• SKF Sealed Spherical Roller Bearings (-2CS, -2CS5)
1 1

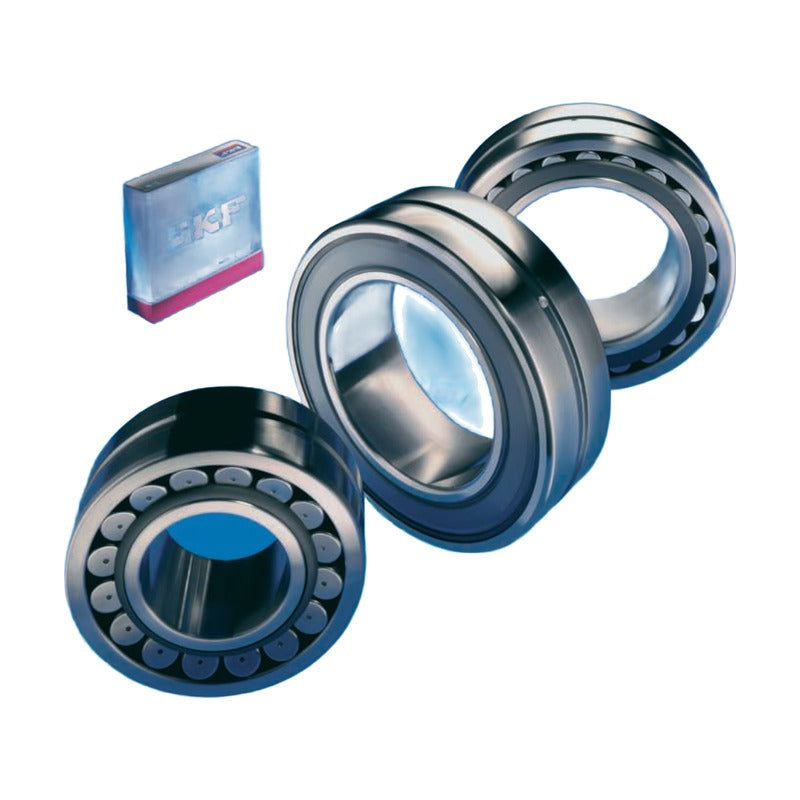

SKF Sealed Spherical Roller Bearings (-2CS, -2CS5)

SKF Sealed Spherical Roller Bearings (-2CS, -2CS5)

SKF sealed spherical roller bearings with contact seals on both sides, filled with grease, in cylindrical and tapered bore. Bore diameters 25-220 mm.

Key features

  • Contact seals on both sides keep lubricant in and contaminants out
  • Filled with grease; relubrication-free in many applications
  • Same self-aligning capability as open spherical roller bearings
  • BS2- designs have increased width to accommodate the seals
  • VT143 grease fill suffix on many sizes

Specifications

Bearing type Sealed spherical roller bearing
Seals 2CS / 2CS5, both sides
Bore range d 25-220 mm
Load ratings C dynamic / C0 static, kN
Speed Limiting speed with seals
Source SKF General Catalogue 6000, p. 740-742
BS2-2205-2CS d: 25 mm | D: 52 mm | B: 23 mm | C: 49 kN | C0: 44 kN | Limiting speed: 3600 r/min
BS2-2206-2CS d: 30 mm | D: 62 mm | B: 25 mm | C: 64 kN | C0: 60 kN | Limiting speed: 2800 r/min
BS2-2207-2CS d: 35 mm | D: 72 mm | B: 28 mm | C: 86.5 kN | C0: 85 kN | Limiting speed: 2400 r/min
BS2-2208-2CS d: 40 mm | D: 80 mm | B: 28 mm | C: 96.5 kN | C0: 90 kN | Limiting speed: 2200 r/min
BS2-2208-2CSK d: 40 mm | D: 80 mm | B: 28 mm | C: 96.5 kN | C0: 90 kN | Limiting speed: 2200 r/min
BS2-2308-2CS d: 40 mm | D: 90 mm | B: 38 mm | C: 150 kN | C0: 140 kN | Limiting speed: 1900 r/min
BS2-2209-2CS d: 45 mm | D: 85 mm | B: 28 mm | C: 102 kN | C0: 98 kN | Limiting speed: 2000 r/min
BS2-2209-2CSK d: 45 mm | D: 85 mm | B: 28 mm | C: 102 kN | C0: 98 kN | Limiting speed: 2000 r/min
BS2-2210-2CS d: 50 mm | D: 90 mm | B: 28 mm | C: 104 kN | C0: 108 kN | Limiting speed: 1900 r/min
BS2-2210-2CSK d: 50 mm | D: 90 mm | B: 28 mm | C: 104 kN | C0: 108 kN | Limiting speed: 1900 r/min
BS2-2211-2CS d: 55 mm | D: 100 mm | B: 31 mm | C: 125 kN | C0: 127 kN | Limiting speed: 1700 r/min
BS2-2211-2CSK d: 55 mm | D: 100 mm | B: 31 mm | C: 125 kN | C0: 127 kN | Limiting speed: 1700 r/min
BS2-2311-2CS d: 55 mm | D: 120 mm | B: 49 mm | C: 270 kN | C0: 280 kN | Limiting speed: 1400 r/min
BS2-2212-2CS d: 60 mm | D: 110 mm | B: 34 mm | C: 156 kN | C0: 166 kN | Limiting speed: 1600 r/min
BS2-2212-2CSK d: 60 mm | D: 110 mm | B: 34 mm | C: 156 kN | C0: 166 kN | Limiting speed: 1600 r/min
24013-2CS5/VT143 d: 65 mm | D: 100 mm | B: 35 mm | C: 132 kN | C0: 173 kN | Limiting speed: 1000 r/min
BS2-2213-2CS d: 65 mm | D: 120 mm | B: 38 mm | C: 193 kN | C0: 216 kN | Limiting speed: 1500 r/min
BS2-2213-2CSK d: 65 mm | D: 120 mm | B: 38 mm | C: 193 kN | C0: 216 kN | Limiting speed: 1500 r/min
BS2-2214-2CS d: 70 mm | D: 125 mm | B: 38 mm | C: 208 kN | C0: 228 kN | Limiting speed: 1400 r/min
BS2-2214-2CSK d: 70 mm | D: 125 mm | B: 38 mm | C: 208 kN | C0: 228 kN | Limiting speed: 1400 r/min
24015-2CS2/VT143 d: 75 mm | D: 115 mm | B: 40 mm | C: 173 kN | C0: 232 kN | Limiting speed: 950 r/min
BS2-2215-2CS d: 75 mm | D: 130 mm | B: 38 mm | C: 212 kN | C0: 240 kN | Limiting speed: 1300 r/min
BS2-2215-2CSK d: 75 mm | D: 130 mm | B: 38 mm | C: 212 kN | C0: 240 kN | Limiting speed: 1300 r/min
BS2-2315-2CS d: 75 mm | D: 160 mm | B: 64 mm | C: 440 kN | C0: 475 kN | Limiting speed: 950 r/min
BS2-2216-2CS d: 80 mm | D: 140 mm | B: 40 mm | C: 236 kN | C0: 270 kN | Limiting speed: 1200 r/min
BS2-2216-2CSK d: 80 mm | D: 140 mm | B: 40 mm | C: 236 kN | C0: 270 kN | Limiting speed: 1200 r/min
BS2-2217-2CS d: 85 mm | D: 150 mm | B: 44 mm | C: 285 kN | C0: 325 kN | Limiting speed: 1100 r/min
BS2-2217-2CSK d: 85 mm | D: 150 mm | B: 44 mm | C: 285 kN | C0: 325 kN | Limiting speed: 1100 r/min
BS2-2218-2CS d: 90 mm | D: 160 mm | B: 48 mm | C: 325 kN | C0: 375 kN | Limiting speed: 1000 r/min
BS2-2218-2CSK d: 90 mm | D: 160 mm | B: 48 mm | C: 325 kN | C0: 375 kN | Limiting speed: 1000 r/min
24020-2CS2/VT143 d: 100 mm | D: 150 mm | B: 50 mm | C: 285 kN | C0: 415 kN | Limiting speed: 800 r/min
23120-2CS2/VT143 d: 100 mm | D: 165 mm | B: 52 mm | C: 365 kN | C0: 490 kN | Limiting speed: 850 r/min
BS2-2220-2CS d: 100 mm | D: 180 mm | B: 55 mm | C: 425 kN | C0: 490 kN | Limiting speed: 900 r/min
23220-2CS d: 100 mm | D: 180 mm | B: 60.3 mm | C: 475 kN | C0: 600 kN | Limiting speed: 700 r/min
23022-2CS d: 110 mm | D: 170 mm | B: 45 mm | C: 310 kN | C0: 440 kN | Limiting speed: 900 r/min
23122-2CS2/VT143 d: 110 mm | D: 180 mm | B: 56 mm | C: 430 kN | C0: 585 kN | Limiting speed: 800 r/min
24122-2CS2/VT143 d: 110 mm | D: 180 mm | B: 69 mm | C: 520 kN | C0: 750 kN | Limiting speed: 630 r/min
BS2-2222-2CS5/VT143 d: 110 mm | D: 200 mm | B: 63 mm | C: 560 kN | C0: 640 kN | Limiting speed: 800 r/min
23024-2CS2/VT143 d: 120 mm | D: 180 mm | B: 46 mm | C: 355 kN | C0: 510 kN | Limiting speed: 850 r/min
24024-2CS2/VT143 d: 120 mm | D: 180 mm | B: 60 mm | C: 430 kN | C0: 670 kN | Limiting speed: 670 r/min
24124-2CS2/VT143 d: 120 mm | D: 200 mm | B: 80 mm | C: 655 kN | C0: 950 kN | Limiting speed: 560 r/min
BS2-2224-2CS d: 120 mm | D: 215 mm | B: 69 mm | C: 630 kN | C0: 765 kN | Limiting speed: 750 r/min
23026-2CS2/VT143 d: 130 mm | D: 200 mm | B: 52 mm | C: 430 kN | C0: 610 kN | Limiting speed: 800 r/min
24026-2CS2/VT143 d: 130 mm | D: 200 mm | B: 69 mm | C: 540 kN | C0: 815 kN | Limiting speed: 600 r/min
24126-2CS2/VT143 d: 130 mm | D: 210 mm | B: 80 mm | C: 680 kN | C0: 1000 kN | Limiting speed: 530 r/min
24028-2CS2/VT143 d: 140 mm | D: 210 mm | B: 69 mm | C: 570 kN | C0: 900 kN | Limiting speed: 560 r/min
24128-2CS2/VT143 d: 140 mm | D: 225 mm | B: 85 mm | C: 765 kN | C0: 1160 kN | Limiting speed: 450 r/min
23228-2CS5/VT143 d: 140 mm | D: 250 mm | B: 88 mm | C: 915 kN | C0: 1250 kN | Limiting speed: 530 r/min
24030-2CS2/VT143 d: 150 mm | D: 225 mm | B: 75 mm | C: 655 kN | C0: 1040 kN | Limiting speed: 530 r/min
24130-2CS2/VT143 d: 150 mm | D: 250 mm | B: 100 mm | C: 1020 kN | C0: 1530 kN | Limiting speed: 400 r/min
24032-2CS2/VT143 d: 160 mm | D: 240 mm | B: 80 mm | C: 750 kN | C0: 1200 kN | Limiting speed: 450 r/min
23132-2CS2/VT143 d: 160 mm | D: 270 mm | B: 86 mm | C: 980 kN | C0: 1370 kN | Limiting speed: 530 r/min
24034-2CS2/VT143 d: 170 mm | D: 260 mm | B: 90 mm | C: 930 kN | C0: 1460 kN | Limiting speed: 400 r/min
24134-2CS2/VT143 d: 170 mm | D: 280 mm | B: 109 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 360 r/min
24036-2CS2/VT143 d: 180 mm | D: 280 mm | B: 100 mm | C: 1080 kN | C0: 1730 kN | Limiting speed: 380 r/min
24138-2CS2/VT143 d: 190 mm | D: 320 mm | B: 128 mm | C: 1600 kN | C0: 2500 kN | Limiting speed: 340 r/min
24140-2CS d: 200 mm | D: 340 mm | B: 140 mm | C: 1800 kN | C0: 2800 kN | Limiting speed: 320 r/min
23240-2CS2/VT143 d: 200 mm | D: 360 mm | B: 128 mm | C: 1860 kN | C0: 2700 kN | Limiting speed: 430 r/min
23944-2CS d: 220 mm | D: 300 mm | B: 60 mm | C: 546 kN | C0: 1080 kN | Limiting speed: 600 r/min
Spherical Roller BearingsSKF
59 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Sealed Spherical Roller Bearings (-2CS, -2CS5)

Brand SKF·Spherical Roller Bearings

Available part numbers (59)

BS2-2205-2CS, BS2-2206-2CS, BS2-2207-2CS, BS2-2208-2CS, BS2-2208-2CSK, BS2-2308-2CS, BS2-2209-2CS, BS2-2209-2CSK, BS2-2210-2CS, BS2-2210-2CSK + 49 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BS2-2205-2CSd: 25 mm | D: 52 mm | B: 23 mm | C: 49 kN | C0: 44 kN | Limiting speed: 3600 r/min
BS2-2206-2CSd: 30 mm | D: 62 mm | B: 25 mm | C: 64 kN | C0: 60 kN | Limiting speed: 2800 r/min
BS2-2207-2CSd: 35 mm | D: 72 mm | B: 28 mm | C: 86.5 kN | C0: 85 kN | Limiting speed: 2400 r/min
BS2-2208-2CSd: 40 mm | D: 80 mm | B: 28 mm | C: 96.5 kN | C0: 90 kN | Limiting speed: 2200 r/min
BS2-2208-2CSKd: 40 mm | D: 80 mm | B: 28 mm | C: 96.5 kN | C0: 90 kN | Limiting speed: 2200 r/min
BS2-2308-2CSd: 40 mm | D: 90 mm | B: 38 mm | C: 150 kN | C0: 140 kN | Limiting speed: 1900 r/min
BS2-2209-2CSd: 45 mm | D: 85 mm | B: 28 mm | C: 102 kN | C0: 98 kN | Limiting speed: 2000 r/min
BS2-2209-2CSKd: 45 mm | D: 85 mm | B: 28 mm | C: 102 kN | C0: 98 kN | Limiting speed: 2000 r/min
BS2-2210-2CSd: 50 mm | D: 90 mm | B: 28 mm | C: 104 kN | C0: 108 kN | Limiting speed: 1900 r/min
BS2-2210-2CSKd: 50 mm | D: 90 mm | B: 28 mm | C: 104 kN | C0: 108 kN | Limiting speed: 1900 r/min
BS2-2211-2CSd: 55 mm | D: 100 mm | B: 31 mm | C: 125 kN | C0: 127 kN | Limiting speed: 1700 r/min
BS2-2211-2CSKd: 55 mm | D: 100 mm | B: 31 mm | C: 125 kN | C0: 127 kN | Limiting speed: 1700 r/min
BS2-2311-2CSd: 55 mm | D: 120 mm | B: 49 mm | C: 270 kN | C0: 280 kN | Limiting speed: 1400 r/min
BS2-2212-2CSd: 60 mm | D: 110 mm | B: 34 mm | C: 156 kN | C0: 166 kN | Limiting speed: 1600 r/min
BS2-2212-2CSKd: 60 mm | D: 110 mm | B: 34 mm | C: 156 kN | C0: 166 kN | Limiting speed: 1600 r/min
24013-2CS5/VT143d: 65 mm | D: 100 mm | B: 35 mm | C: 132 kN | C0: 173 kN | Limiting speed: 1000 r/min
BS2-2213-2CSd: 65 mm | D: 120 mm | B: 38 mm | C: 193 kN | C0: 216 kN | Limiting speed: 1500 r/min
BS2-2213-2CSKd: 65 mm | D: 120 mm | B: 38 mm | C: 193 kN | C0: 216 kN | Limiting speed: 1500 r/min
BS2-2214-2CSd: 70 mm | D: 125 mm | B: 38 mm | C: 208 kN | C0: 228 kN | Limiting speed: 1400 r/min
BS2-2214-2CSKd: 70 mm | D: 125 mm | B: 38 mm | C: 208 kN | C0: 228 kN | Limiting speed: 1400 r/min
24015-2CS2/VT143d: 75 mm | D: 115 mm | B: 40 mm | C: 173 kN | C0: 232 kN | Limiting speed: 950 r/min
BS2-2215-2CSd: 75 mm | D: 130 mm | B: 38 mm | C: 212 kN | C0: 240 kN | Limiting speed: 1300 r/min
BS2-2215-2CSKd: 75 mm | D: 130 mm | B: 38 mm | C: 212 kN | C0: 240 kN | Limiting speed: 1300 r/min
BS2-2315-2CSd: 75 mm | D: 160 mm | B: 64 mm | C: 440 kN | C0: 475 kN | Limiting speed: 950 r/min
BS2-2216-2CSd: 80 mm | D: 140 mm | B: 40 mm | C: 236 kN | C0: 270 kN | Limiting speed: 1200 r/min
BS2-2216-2CSKd: 80 mm | D: 140 mm | B: 40 mm | C: 236 kN | C0: 270 kN | Limiting speed: 1200 r/min
BS2-2217-2CSd: 85 mm | D: 150 mm | B: 44 mm | C: 285 kN | C0: 325 kN | Limiting speed: 1100 r/min
BS2-2217-2CSKd: 85 mm | D: 150 mm | B: 44 mm | C: 285 kN | C0: 325 kN | Limiting speed: 1100 r/min
BS2-2218-2CSd: 90 mm | D: 160 mm | B: 48 mm | C: 325 kN | C0: 375 kN | Limiting speed: 1000 r/min
BS2-2218-2CSKd: 90 mm | D: 160 mm | B: 48 mm | C: 325 kN | C0: 375 kN | Limiting speed: 1000 r/min
24020-2CS2/VT143d: 100 mm | D: 150 mm | B: 50 mm | C: 285 kN | C0: 415 kN | Limiting speed: 800 r/min
23120-2CS2/VT143d: 100 mm | D: 165 mm | B: 52 mm | C: 365 kN | C0: 490 kN | Limiting speed: 850 r/min
BS2-2220-2CSd: 100 mm | D: 180 mm | B: 55 mm | C: 425 kN | C0: 490 kN | Limiting speed: 900 r/min
23220-2CSd: 100 mm | D: 180 mm | B: 60.3 mm | C: 475 kN | C0: 600 kN | Limiting speed: 700 r/min
23022-2CSd: 110 mm | D: 170 mm | B: 45 mm | C: 310 kN | C0: 440 kN | Limiting speed: 900 r/min
23122-2CS2/VT143d: 110 mm | D: 180 mm | B: 56 mm | C: 430 kN | C0: 585 kN | Limiting speed: 800 r/min
24122-2CS2/VT143d: 110 mm | D: 180 mm | B: 69 mm | C: 520 kN | C0: 750 kN | Limiting speed: 630 r/min
BS2-2222-2CS5/VT143d: 110 mm | D: 200 mm | B: 63 mm | C: 560 kN | C0: 640 kN | Limiting speed: 800 r/min
23024-2CS2/VT143d: 120 mm | D: 180 mm | B: 46 mm | C: 355 kN | C0: 510 kN | Limiting speed: 850 r/min
24024-2CS2/VT143d: 120 mm | D: 180 mm | B: 60 mm | C: 430 kN | C0: 670 kN | Limiting speed: 670 r/min
24124-2CS2/VT143d: 120 mm | D: 200 mm | B: 80 mm | C: 655 kN | C0: 950 kN | Limiting speed: 560 r/min
BS2-2224-2CSd: 120 mm | D: 215 mm | B: 69 mm | C: 630 kN | C0: 765 kN | Limiting speed: 750 r/min
23026-2CS2/VT143d: 130 mm | D: 200 mm | B: 52 mm | C: 430 kN | C0: 610 kN | Limiting speed: 800 r/min
24026-2CS2/VT143d: 130 mm | D: 200 mm | B: 69 mm | C: 540 kN | C0: 815 kN | Limiting speed: 600 r/min
24126-2CS2/VT143d: 130 mm | D: 210 mm | B: 80 mm | C: 680 kN | C0: 1000 kN | Limiting speed: 530 r/min
24028-2CS2/VT143d: 140 mm | D: 210 mm | B: 69 mm | C: 570 kN | C0: 900 kN | Limiting speed: 560 r/min
24128-2CS2/VT143d: 140 mm | D: 225 mm | B: 85 mm | C: 765 kN | C0: 1160 kN | Limiting speed: 450 r/min
23228-2CS5/VT143d: 140 mm | D: 250 mm | B: 88 mm | C: 915 kN | C0: 1250 kN | Limiting speed: 530 r/min
24030-2CS2/VT143d: 150 mm | D: 225 mm | B: 75 mm | C: 655 kN | C0: 1040 kN | Limiting speed: 530 r/min
24130-2CS2/VT143d: 150 mm | D: 250 mm | B: 100 mm | C: 1020 kN | C0: 1530 kN | Limiting speed: 400 r/min
24032-2CS2/VT143d: 160 mm | D: 240 mm | B: 80 mm | C: 750 kN | C0: 1200 kN | Limiting speed: 450 r/min
23132-2CS2/VT143d: 160 mm | D: 270 mm | B: 86 mm | C: 980 kN | C0: 1370 kN | Limiting speed: 530 r/min
24034-2CS2/VT143d: 170 mm | D: 260 mm | B: 90 mm | C: 930 kN | C0: 1460 kN | Limiting speed: 400 r/min
24134-2CS2/VT143d: 170 mm | D: 280 mm | B: 109 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 360 r/min
24036-2CS2/VT143d: 180 mm | D: 280 mm | B: 100 mm | C: 1080 kN | C0: 1730 kN | Limiting speed: 380 r/min
24138-2CS2/VT143d: 190 mm | D: 320 mm | B: 128 mm | C: 1600 kN | C0: 2500 kN | Limiting speed: 340 r/min
24140-2CSd: 200 mm | D: 340 mm | B: 140 mm | C: 1800 kN | C0: 2800 kN | Limiting speed: 320 r/min
23240-2CS2/VT143d: 200 mm | D: 360 mm | B: 128 mm | C: 1860 kN | C0: 2700 kN | Limiting speed: 430 r/min
23944-2CSd: 220 mm | D: 300 mm | B: 60 mm | C: 546 kN | C0: 1080 kN | Limiting speed: 600 r/min
