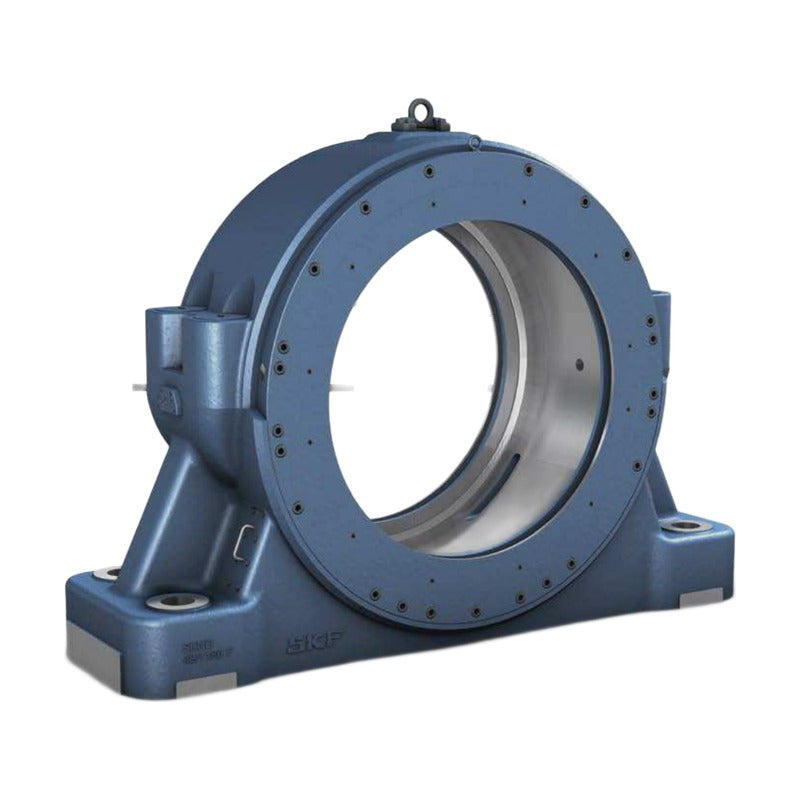

SKF SKND Split Plummer Block Housings for Steel Converters

SKF SKND Split Plummer Block Housings for Steel Converters

SKF SKND split plummer block housings for the trunnion bearings of converters in steel making, in locating (F), non-locating (VC) and L variants.

Key features

  • Designed for converter trunnions in steel plants
  • Locating (F) and non-locating (VC, L) housing variants
  • For large spherical roller and CARB bearings
  • Robust split housing for heavy, slow-rotating loads
  • Replacement bearing designations listed per size

Specifications

Series SKND
Application Steel converter trunnions
Housing type Split plummer block
Brand SKF
Category Bearing Housings
Source SKF Bearing housings and roller bearing units, p. 634-637
SKND 30/530 F Shaft: 530 mm | Bore D: 780 mm | Centre height H1: 450 mm | Length L: 1280 mm
SKND 30/530 VC Shaft: 530 mm | Bore D: 780 mm | Centre height H1: 450 mm | Length L: 1280 mm
SKND 30/600 F Shaft: 600 mm | Bore D: 870 mm | Centre height H1: 500 mm | Length L: 1400 mm
SKND 30/600 VC Shaft: 600 mm | Bore D: 870 mm | Centre height H1: 500 mm | Length L: 1400 mm
SKND 30/670 F Shaft: 670 mm | Bore D: 980 mm | Centre height H1: 570 mm | Length L: 1570 mm
SKND 30/670 VC Shaft: 670 mm | Bore D: 980 mm | Centre height H1: 570 mm | Length L: 1570 mm
SKND 49/710 F Shaft: 710 mm | Bore D: 950 mm | Centre height H1: 600 mm | Length L: 1660 mm
SKND 49/710 VC Shaft: 710 mm | Bore D: 950 mm | Centre height H1: 600 mm | Length L: 1660 mm
SKND 49/710 L Shaft: 710 mm | Bore D: 950 mm | Centre height H1: 600 mm | Length L: 1660 mm
SKND 49/750 F Shaft: 750 mm | Bore D: 1000 mm | Centre height H1: 630 mm | Length L: 1750 mm
SKND 49/750 VC Shaft: 750 mm | Bore D: 1000 mm | Centre height H1: 630 mm | Length L: 1750 mm
SKND 49/750 L Shaft: 750 mm | Bore D: 1000 mm | Centre height H1: 630 mm | Length L: 1750 mm
SKND 49/800 F Shaft: 800 mm | Bore D: 1060 mm | Centre height H1: 670 mm | Length L: 1850 mm
SKND 49/800 VC Shaft: 800 mm | Bore D: 1060 mm | Centre height H1: 670 mm | Length L: 1850 mm
SKND 49/800 L Shaft: 800 mm | Bore D: 1060 mm | Centre height H1: 670 mm | Length L: 1850 mm
SKND 49/850 F Shaft: 850 mm | Bore D: 1120 mm | Centre height H1: 700 mm | Length L: 1940 mm
SKND 49/850 VC Shaft: 850 mm | Bore D: 1120 mm | Centre height H1: 700 mm | Length L: 1940 mm
SKND 49/850 L Shaft: 850 mm | Bore D: 1120 mm | Centre height H1: 700 mm | Length L: 1940 mm
SKND 49/900 F Shaft: 900 mm | Bore D: 1180 mm | Centre height H1: 740 mm
SKND 49/900 VC Shaft: 900 mm | Bore D: 1180 mm | Centre height H1: 741 mm
SKND 49/900 L Shaft: 900 mm | Bore D: 1180 mm | Centre height H1: 742 mm
SKND 49/950 F Shaft: 950 mm | Bore D: 1250 mm | Centre height H1: 780 mm | Length L: 2180 mm
SKND 49/950 VC Shaft: 950 mm | Bore D: 1250 mm | Centre height H1: 780 mm | Length L: 2180 mm
SKND 49/950 L Shaft: 950 mm | Bore D: 1250 mm | Centre height H1: 780 mm | Length L: 2180 mm
SKND 49/1000 F Shaft: 1000 mm | Bore D: 1320 mm | Centre height H1: 830 mm | Length L: 2330 mm
SKND 49/1000 VC Shaft: 1000 mm | Bore D: 1320 mm | Centre height H1: 830 mm | Length L: 2330 mm
SKND 49/1000 L Shaft: 1000 mm | Bore D: 1320 mm | Centre height H1: 830 mm | Length L: 2330 mm
SKND 49/1060 F Shaft: 1060 mm | Bore D: 1400 mm | Centre height H1: 880 mm | Length L: 2450 mm
SKND 49/1060 VC Shaft: 1060 mm | Bore D: 1400 mm | Centre height H1: 880 mm | Length L: 2450 mm
SKND 49/1060 L Shaft: 1060 mm | Bore D: 1400 mm | Centre height H1: 880 mm | Length L: 2450 mm
SKND 49/1120 F Shaft: 1120 mm | Bore D: 1460 mm | Centre height H1: 920 mm | Length L: 2560 mm
SKND 49/1120 VC Shaft: 1120 mm | Bore D: 1460 mm | Centre height H1: 920 mm | Length L: 2560 mm
SKND 49/1120 L Shaft: 1120 mm | Bore D: 1460 mm | Centre height H1: 920 mm | Length L: 2560 mm
SKND 49/1180 F Shaft: 1180 mm | Bore D: 1540 mm | Centre height H1: 970 mm | Length L: 2750 mm
SKND 49/1180 VC Shaft: 1180 mm | Bore D: 1540 mm | Centre height H1: 970 mm | Length L: 2750 mm
SKND 49/1180 L Shaft: 1180 mm | Bore D: 1540 mm | Centre height H1: 970 mm | Length L: 2750 mm
Bearing HousingsSKF
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SKND Split Plummer Block Housings for Steel Converters

Brand SKF·Bearing Housings

Available part numbers (36)

SKND 30/530 F, SKND 30/530 VC, SKND 30/600 F, SKND 30/600 VC, SKND 30/670 F, SKND 30/670 VC, SKND 49/710 F, SKND 49/710 VC, SKND 49/710 L, SKND 49/750 F + 26 more — see full table ↓
