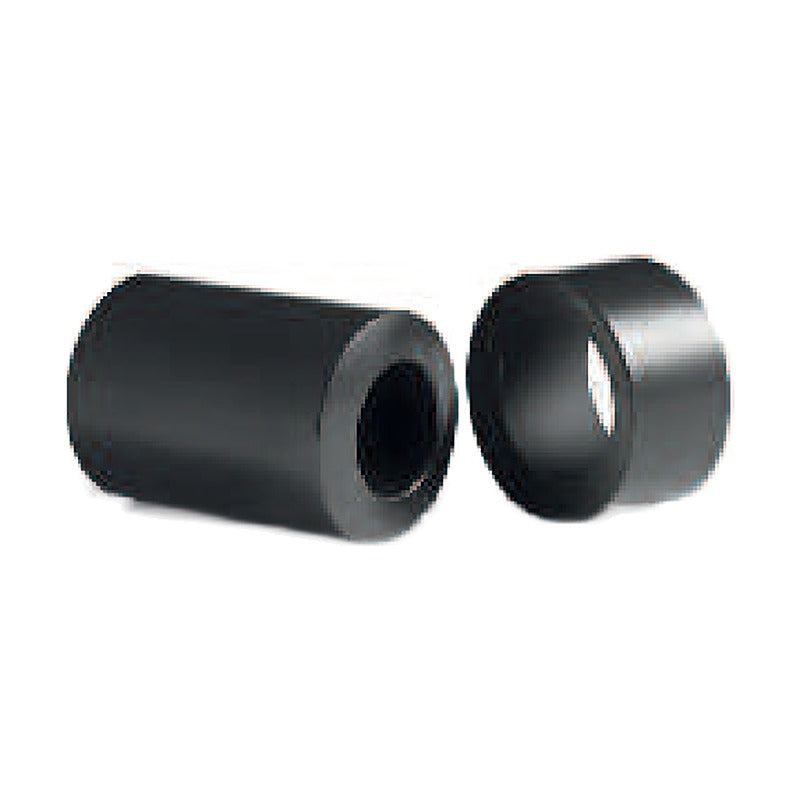

SKF SMSW Spherical Washers, Standard and Low Profile

SKF SMSW Spherical Washers, Standard and Low Profile

SKF spherical washers create an exact parallel plane between bolt head and nut face, compensating angular deviation and preventing the bolt from bending.

Key features

  • Automatically compensates for angular errors
  • Evenly distributed bolt tension; reduces bolt fatigue
  • Improved bolt stretch due to increased clamping length
  • Surface treated for humid and harsh environments
  • Standard and low-profile (LP) versions

Specifications

Surface Treated
Source SKF Maintenance and Lubrication Products, p. 98
SMSW 16-ASTR Version: Standard | D: 33 mm | d: 17 mm | H: 60 mm
SMSW 20-ASTR Version: Standard | D: 42 mm | d: 23 mm | H: 60 mm
SMSW 24-ASTR Version: Standard | D: 47 mm | d: 27 mm | H: 60 mm
SMSW 27-ASTR Version: Standard | D: 52 mm | d: 30 mm | H: 60 mm
SMSW 30-ASTR Version: Standard | D: 56 mm | d: 34 mm | H: 60 mm
SMSW 36-ASTR Version: Standard | D: 67 mm | d: 40 mm | H: 60 mm
SMSW 42-ASTR Version: Standard | D: 82 mm | d: 46 mm | H: 60 mm
SMSW 48-ASTR Version: Standard | D: 92 mm | d: 52 mm | H: 60 mm
SMSW 16LPAST Version: Low profile | D: 33 mm | d: 17 mm | H: 20 mm
SMSW 20LPAST Version: Low profile | D: 42 mm | d: 23 mm | H: 22 mm
SMSW 24LPAST Version: Low profile | D: 47 mm | d: 27 mm | H: 24 mm
SMSW 27LPAST Version: Low profile | D: 52 mm | d: 30 mm | H: 26 mm
SMSW 30LPAST Version: Low profile | D: 56 mm | d: 34 mm | H: 28 mm
SMSW 36LPAST Version: Low profile | D: 67 mm | d: 40 mm | H: 30 mm
SMSW 42LPAST Version: Low profile | D: 82 mm | d: 46 mm | H: 34 mm
Bearing AccessoriesSKF
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SMSW Spherical Washers, Standard and Low Profile

Brand SKF·Bearing Accessories

Available part numbers (15)

SMSW 16-ASTR, SMSW 20-ASTR, SMSW 24-ASTR, SMSW 27-ASTR, SMSW 30-ASTR, SMSW 36-ASTR, SMSW 42-ASTR, SMSW 48-ASTR, SMSW 16LPAST, SMSW 20LPAST + 5 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMSW 16-ASTRVersion: Standard | D: 33 mm | d: 17 mm | H: 60 mm
SMSW 20-ASTRVersion: Standard | D: 42 mm | d: 23 mm | H: 60 mm
SMSW 24-ASTRVersion: Standard | D: 47 mm | d: 27 mm | H: 60 mm
SMSW 27-ASTRVersion: Standard | D: 52 mm | d: 30 mm | H: 60 mm
SMSW 30-ASTRVersion: Standard | D: 56 mm | d: 34 mm | H: 60 mm
SMSW 36-ASTRVersion: Standard | D: 67 mm | d: 40 mm | H: 60 mm
SMSW 42-ASTRVersion: Standard | D: 82 mm | d: 46 mm | H: 60 mm
SMSW 48-ASTRVersion: Standard | D: 92 mm | d: 52 mm | H: 60 mm
SMSW 16LPASTVersion: Low profile | D: 33 mm | d: 17 mm | H: 20 mm
SMSW 20LPASTVersion: Low profile | D: 42 mm | d: 23 mm | H: 22 mm
SMSW 24LPASTVersion: Low profile | D: 47 mm | d: 27 mm | H: 24 mm
SMSW 27LPASTVersion: Low profile | D: 52 mm | d: 30 mm | H: 26 mm
SMSW 30LPASTVersion: Low profile | D: 56 mm | d: 34 mm | H: 28 mm
SMSW 36LPASTVersion: Low profile | D: 67 mm | d: 40 mm | H: 30 mm
SMSW 42LPASTVersion: Low profile | D: 82 mm | d: 46 mm | H: 34 mm
