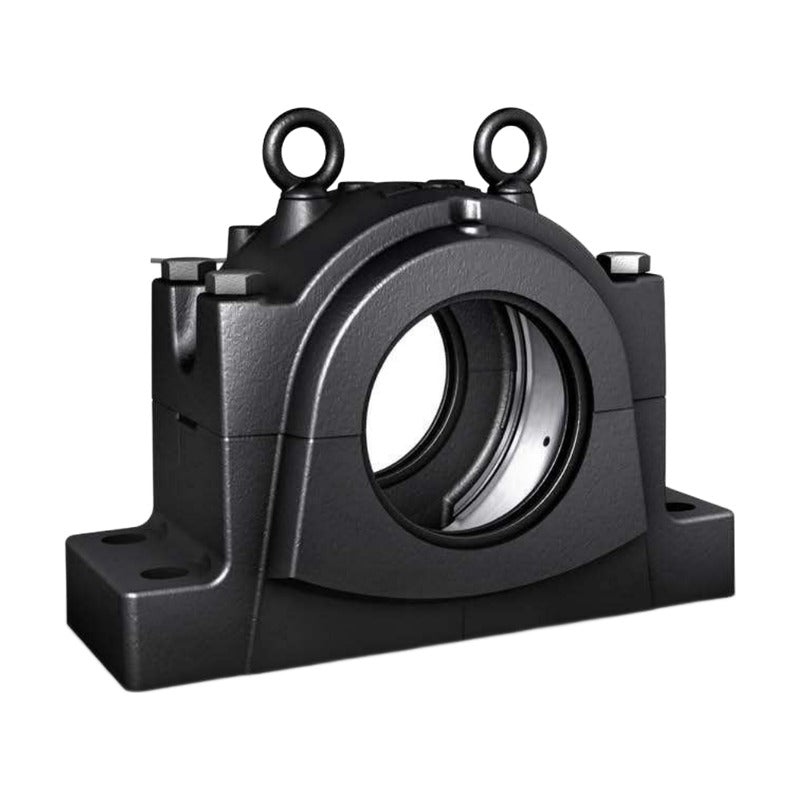

SKF SNL 30 Series Large Split Plummer Block Housings

Large SKF SNL 30 series split plummer block housings for spherical roller and CARB toroidal roller bearings on an adapter sleeve, withdrawal sleeve or cylindrical seat.

Key features

Variants for adapter sleeve/plain shaft or cylindrical seat (G)
Locating (F) and non-locating (L) housings for large shafts
TURT/TURA versions prepared for oil lubrication
Labyrinth (TS), taconite (TNF) and oil seals available
Eye bolts to DIN 580 for lifting; grey cast iron

Specifications

Series	SNL 30
Housing type	Large split plummer block
Material	Grey cast iron
Bearing types	Spherical roller, CARB
Suffix G	Cylindrical seat, stepped shaft
Suffix F / L	Locating / non-locating
Source	SKF Bearing housings and roller bearing units, p. 222-329

SNL 3038		Type: Adapter \| Bore Da: 290 mm \| Centre height H1: 180 mm \| Length L: 530 mm \| Mass: 77.5 kg
SNL 3040		Type: Adapter \| Bore Da: 310 mm \| Centre height H1: 190 mm \| Length L: 560 mm \| Mass: 97.5 kg
SNL 3048		Type: Adapter \| Bore Da: 360 mm \| Centre height H1: 220 mm \| Length L: 640 mm \| Mass: 139 kg
SNL 3036		Type: Adapter \| Bore Da: 280 mm \| Centre height H1: 170 mm \| Length L: 510 mm \| Mass: 69.5 kg
SNL 3036 TURT		Type: Adapter, oil SRB \| Bore Da: 280 mm \| Centre height H1: 170 mm \| Length L: 510 mm \| Mass: 69.5 kg
SNL 3036 TURA		Type: Adapter, oil CARB \| Bore Da: 280 mm \| Centre height H1: 170 mm \| Length L: 510 mm \| Mass: 69.5 kg
SNL 3038 TURT		Type: Adapter, oil SRB \| Bore Da: 290 mm \| Centre height H1: 180 mm \| Length L: 530 mm \| Mass: 77.5 kg
SNL 3038 TURA		Type: Adapter, oil CARB \| Bore Da: 290 mm \| Centre height H1: 180 mm \| Length L: 530 mm \| Mass: 77.5 kg
SNL 3040 TURT		Type: Adapter, oil SRB \| Bore Da: 310 mm \| Centre height H1: 190 mm \| Length L: 560 mm \| Mass: 97.5 kg
SNL 3040 TURA		Type: Adapter, oil CARB \| Bore Da: 310 mm \| Centre height H1: 190 mm \| Length L: 560 mm \| Mass: 97.5 kg
SNL 3056		Type: Adapter \| Bore Da: 420 mm \| Centre height H1: 260 mm \| Length L: 770 mm \| Mass: 221 kg
SNL 3044		Type: Adapter \| Bore Da: 340 mm \| Centre height H1: 210 mm \| Length L: 610 mm \| Mass: 123 kg
SNL 3044 TURT		Type: Adapter, oil SRB \| Bore Da: 340 mm \| Centre height H1: 210 mm \| Length L: 610 mm \| Mass: 123 kg
SNL 3044 TURA		Type: Adapter, oil CARB \| Bore Da: 340 mm \| Centre height H1: 210 mm \| Length L: 610 mm \| Mass: 123 kg
SNL 3048 TURT		Type: Adapter, oil SRB \| Bore Da: 360 mm \| Centre height H1: 220 mm \| Length L: 640 mm \| Mass: 139 kg
SNL 3048 TURA		Type: Adapter, oil CARB \| Bore Da: 360 mm \| Centre height H1: 220 mm \| Length L: 640 mm \| Mass: 139 kg
SNL 3052		Type: Adapter \| Bore Da: 400 mm \| Centre height H1: 240 mm \| Length L: 700 mm \| Mass: 187 kg
SNL 3052 TURT		Type: Adapter, oil SRB \| Bore Da: 400 mm \| Centre height H1: 240 mm \| Length L: 700 mm \| Mass: 187 kg
SNL 3052 TURA		Type: Adapter, oil CARB \| Bore Da: 400 mm \| Centre height H1: 240 mm \| Length L: 700 mm \| Mass: 187 kg
SNL 3064		Type: Adapter \| Bore Da: 480 mm \| Centre height H1: 300 mm \| Length L: 830 mm \| Mass: 301 kg
SNL 3056 TURT		Type: Adapter, oil SRB \| Bore Da: 420 mm \| Centre height H1: 260 mm \| Length L: 770 mm \| Mass: 221 kg
SNL 3056 TURA		Type: Adapter, oil CARB \| Bore Da: 420 mm \| Centre height H1: 260 mm \| Length L: 770 mm \| Mass: 221 kg
SNL 3060		Type: Adapter \| Bore Da: 460 mm \| Centre height H1: 280 mm \| Length L: 790 mm \| Mass: 252 kg
SNL 3060 TURT		Type: Adapter, oil SRB \| Bore Da: 460 mm \| Centre height H1: 280 mm \| Length L: 790 mm \| Mass: 252 kg
SNL 3060 TURA		Type: Adapter, oil CARB \| Bore Da: 460 mm \| Centre height H1: 280 mm \| Length L: 790 mm \| Mass: 252 kg
SNL 3064 TURT		Type: Adapter, oil SRB \| Bore Da: 480 mm \| Centre height H1: 300 mm \| Length L: 830 mm \| Mass: 301 kg
SNL 3064 TURA		Type: Adapter, oil CARB \| Bore Da: 480 mm \| Centre height H1: 300 mm \| Length L: 830 mm \| Mass: 301 kg
SNL 3068		Type: Adapter \| Bore Da: 520 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3068 TURT		Type: Adapter, oil SRB \| Bore Da: 520 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3068 TURA		Type: Adapter, oil CARB \| Bore Da: 520 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3072		Type: Adapter \| Bore Da: 540 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3072 TURT		Type: Adapter, oil SRB \| Bore Da: 540 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3072 TURA		Type: Adapter, oil CARB \| Bore Da: 540 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3076 F		Type: Adapter, locating \| Bore Da: 560 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 430 kg
SNL 3076 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 560 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 430 kg
SNL 3076 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 560 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 430 kg
SNL 3076 L		Type: Adapter, non-locating \| Bore Da: 560 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 427 kg
SNL 3076 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 560 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 427 kg
SNL 3080 F		Type: Adapter, locating \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 458 kg
SNL 3080 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 458 kg
SNL 3080 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 458 kg
SNL 3080 L		Type: Adapter, non-locating \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 454 kg
SNL 3080 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 454 kg
SNL 3084 F		Type: Adapter, locating \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 473 kg
SNL 3084 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 473 kg
SNL 3084 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 473 kg
SNL 3084 L		Type: Adapter, non-locating \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 470 kg
SNL 3084 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 470 kg
SNL 3088 F		Type: Adapter, locating \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3088 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3088 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3088 L		Type: Adapter, non-locating \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3088 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3092 F		Type: Adapter, locating \| Bore Da: 680 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3092 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 680 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3092 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 680 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3092 L		Type: Adapter, non-locating \| Bore Da: 680 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 709 kg
SNL 3092 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 680 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 709 kg
SNL 3096 F		Type: Adapter, locating \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3096 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3096 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3096 L		Type: Adapter, non-locating \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 709 kg
SNL 3096 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 709 kg
SNL 30/500 F		Type: Adapter, locating \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 755 kg
SNL 30/500 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 755 kg
SNL 30/500 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 755 kg
SNL 30/500 L		Type: Adapter, non-locating \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 751 kg
SNL 30/500 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 751 kg
SNL 30/530 F		Type: Adapter, locating \| Bore Da: 780 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 947 kg
SNL 30/530 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 780 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 947 kg
SNL 30/530 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 780 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 947 kg
SNL 30/530 L		Type: Adapter, non-locating \| Bore Da: 780 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 941 kg
SNL 30/530 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 780 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 941 kg
SNL 3036 G		Type: Cyl. seat \| Bore Da: 280 mm \| Centre height H1: 170 mm \| Length L: 510 mm \| Mass: 69.5 kg
SNL 3038 G		Type: Cyl. seat \| Bore Da: 290 mm \| Centre height H1: 180 mm \| Length L: 530 mm \| Mass: 77.5 kg
SNL 3040 G		Type: Cyl. seat \| Bore Da: 310 mm \| Centre height H1: 190 mm \| Length L: 560 mm \| Mass: 97.5 kg
SNL 3044 G		Type: Cyl. seat \| Bore Da: 340 mm \| Centre height H1: 210 mm \| Length L: 610 mm \| Mass: 123 kg
SNL 3048 G		Type: Cyl. seat \| Bore Da: 360 mm \| Centre height H1: 220 mm \| Length L: 640 mm \| Mass: 139 kg
SNL 3052 G		Type: Cyl. seat \| Bore Da: 400 mm \| Centre height H1: 240 mm \| Length L: 700 mm \| Mass: 187 kg
SNL 3056 G		Type: Cyl. seat \| Bore Da: 420 mm \| Centre height H1: 260 mm \| Length L: 770 mm \| Mass: 221 kg
SNL 3060 G		Type: Cyl. seat \| Bore Da: 460 mm \| Centre height H1: 280 mm \| Length L: 790 mm \| Mass: 252 kg
SNL 3064 G		Type: Cyl. seat \| Bore Da: 480 mm \| Centre height H1: 300 mm \| Length L: 830 mm \| Mass: 301 kg
SNL 3068 G		Type: Cyl. seat \| Bore Da: 520 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3072 G		Type: Cyl. seat \| Bore Da: 540 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3076 GF		Type: Cyl. seat, locating \| Bore Da: 560 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 430 kg
SNL 3076 GL		Type: Cyl. seat, non-locating \| Bore Da: 560 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 427 kg
SNL 3080 GF		Type: Cyl. seat, locating \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 458 kg
SNL 3080 GL		Type: Cyl. seat, non-locating \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 454 kg
SNL 3084 GF		Type: Cyl. seat, locating \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 473 kg
SNL 3084 GL		Type: Cyl. seat, non-locating \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 470 kg
SNL 3088 GF		Type: Cyl. seat, locating \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3088 GL		Type: Cyl. seat, non-locating \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3092 GF		Type: Cyl. seat, locating \| Bore Da: 680 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3092 GL		Type: Cyl. seat, non-locating \| Bore Da: 680 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 709 kg
SNL 3096 GF		Type: Cyl. seat, locating \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3096 GL		Type: Cyl. seat, non-locating \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 709 kg
SNL 30/500 GF		Type: Cyl. seat, locating \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 755 kg
SNL 30/500 GL		Type: Cyl. seat, non-locating \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 751 kg
SNL 30/530 GF		Type: Cyl. seat, locating \| Bore Da: 780 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 947 kg
SNL 30/530 GL		Type: Cyl. seat, non-locating \| Bore Da: 780 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 941 kg

Bearing HousingsSKF

100 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SNL 30 Series Large Split Plummer Block Housings

Brand SKF·Bearing Housings

Available part numbers (100)

SNL 3038, SNL 3040, SNL 3048, SNL 3036, SNL 3036 TURT, SNL 3036 TURA, SNL 3038 TURT, SNL 3038 TURA, SNL 3040 TURT, SNL 3040 TURA + 90 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
