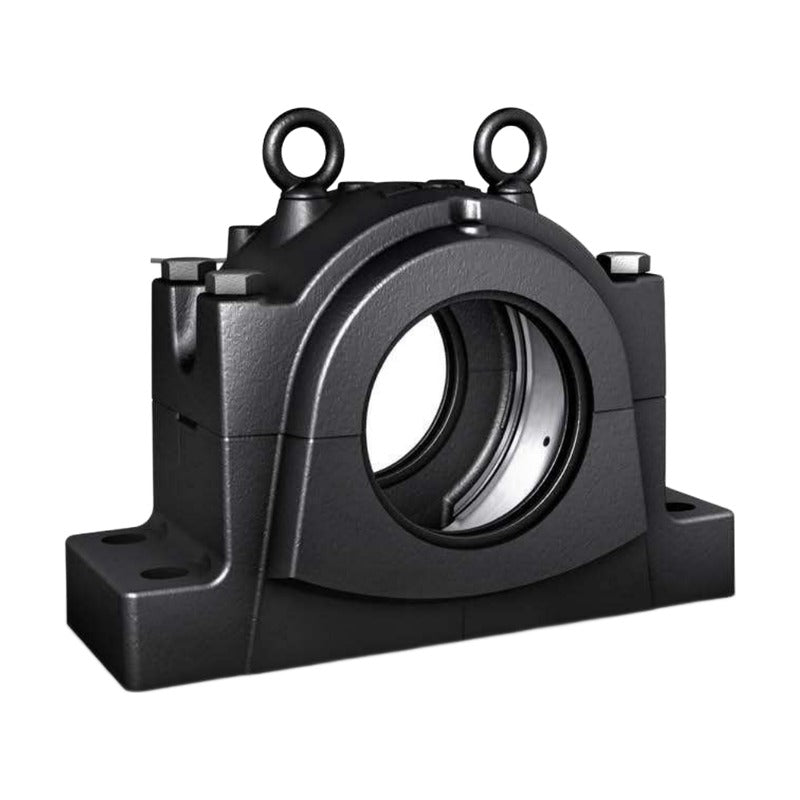

SKF SNL 31 Series Large Split Plummer Block Housings

Large SKF SNL 31 series split plummer block housings for spherical roller and CARB toroidal roller bearings on an adapter sleeve, withdrawal sleeve or cylindrical seat.

Key features

Variants for adapter sleeve/plain shaft or cylindrical seat (G)
Locating (F) and non-locating (L) housings for large shafts
TURT/TURA versions prepared for oil lubrication
Labyrinth (TS), taconite (TNF) and oil seals available
Eye bolts to DIN 580 for lifting; grey cast iron

Specifications

Series	SNL 31
Housing type	Large split plummer block
Material	Grey cast iron
Bearing types	Spherical roller, CARB
Suffix G	Cylindrical seat, stepped shaft
Suffix F / L	Locating / non-locating
Source	SKF Bearing housings and roller bearing units, p. 222-329

SNL 3134		Type: Adapter \| Bore Da: 280 mm \| Centre height H1: 170 mm \| Length L: 510 mm \| Mass: 69.5 kg
SNL 3136		Type: Adapter \| Bore Da: 300 mm \| Centre height H1: 180 mm \| Length L: 530 mm \| Mass: 77.5 kg
SNL 3138		Type: Adapter \| Bore Da: 320 mm \| Centre height H1: 190 mm \| Length L: 560 mm \| Mass: 97.5 kg
SNL 3140		Type: Adapter \| Bore Da: 340 mm \| Centre height H1: 210 mm \| Length L: 610 mm \| Mass: 123 kg
SNL 3134 TURT		Type: Adapter, oil SRB \| Bore Da: 280 mm \| Centre height H1: 170 mm \| Length L: 510 mm \| Mass: 69.5 kg
SNL 3134 TURA		Type: Adapter, oil CARB \| Bore Da: 280 mm \| Centre height H1: 170 mm \| Length L: 510 mm \| Mass: 69.5 kg
SNL 3136 TURT		Type: Adapter, oil SRB \| Bore Da: 300 mm \| Centre height H1: 180 mm \| Length L: 530 mm \| Mass: 77.5 kg
SNL 3136 TURA		Type: Adapter, oil CARB \| Bore Da: 300 mm \| Centre height H1: 180 mm \| Length L: 530 mm \| Mass: 77.5 kg
SNL 3138 TURT		Type: Adapter, oil SRB \| Bore Da: 320 mm \| Centre height H1: 190 mm \| Length L: 560 mm \| Mass: 97.5 kg
SNL 3138 TURA		Type: Adapter, oil CARB \| Bore Da: 320 mm \| Centre height H1: 190 mm \| Length L: 560 mm \| Mass: 97.5 kg
SNL 3148		Type: Adapter \| Bore Da: 400 mm \| Centre height H1: 240 mm \| Length L: 700 mm \| Mass: 187 kg
SNL 3140 TURT		Type: Adapter, oil SRB \| Bore Da: 340 mm \| Centre height H1: 210 mm \| Length L: 610 mm \| Mass: 123 kg
SNL 3140 TURA		Type: Adapter, oil CARB \| Bore Da: 340 mm \| Centre height H1: 210 mm \| Length L: 610 mm \| Mass: 123 kg
SNL 3144		Type: Adapter \| Bore Da: 370 mm \| Centre height H1: 220 mm \| Length L: 640 mm \| Mass: 138 kg
SNL 3144 TURT		Type: Adapter, oil SRB \| Bore Da: 370 mm \| Centre height H1: 220 mm \| Length L: 640 mm \| Mass: 138 kg
SNL 3144 TURA		Type: Adapter, oil CARB \| Bore Da: 370 mm \| Centre height H1: 220 mm \| Length L: 640 mm \| Mass: 138 kg
SNL 3156		Type: Adapter \| Bore Da: 460 mm \| Centre height H1: 280 mm \| Length L: 790 mm \| Mass: 252 kg
SNL 3148 TURT		Type: Adapter, oil SRB \| Bore Da: 400 mm \| Centre height H1: 240 mm \| Length L: 700 mm \| Mass: 187 kg
SNL 3148 TURA		Type: Adapter, oil CARB \| Bore Da: 400 mm \| Centre height H1: 240 mm \| Length L: 700 mm \| Mass: 187 kg
SNL 3152		Type: Adapter \| Bore Da: 440 mm \| Centre height H1: 260 mm \| Length L: 770 mm \| Mass: 221 kg
SNL 3160		Type: Adapter \| Bore Da: 500 mm \| Centre height H1: 300 mm \| Length L: 830 mm \| Mass: 301 kg
SNL 3152 TURT		Type: Adapter, oil SRB \| Bore Da: 440 mm \| Centre height H1: 260 mm \| Length L: 770 mm \| Mass: 221 kg
SNL 3152 TURA		Type: Adapter, oil CARB \| Bore Da: 440 mm \| Centre height H1: 260 mm \| Length L: 770 mm \| Mass: 221 kg
SNL 3164		Type: Adapter \| Bore Da: 540 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3156 TURT		Type: Adapter, oil SRB \| Bore Da: 460 mm \| Centre height H1: 280 mm \| Length L: 790 mm \| Mass: 252 kg
SNL 3156 TURA		Type: Adapter, oil CARB \| Bore Da: 460 mm \| Centre height H1: 280 mm \| Length L: 790 mm \| Mass: 252 kg
SNL 3168 L		Type: Adapter, non-locating \| Bore Da: 580 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 427 kg
SNL 3160 TURT		Type: Adapter, oil SRB \| Bore Da: 500 mm \| Centre height H1: 300 mm \| Length L: 830 mm \| Mass: 301 kg
SNL 3160 TURA		Type: Adapter, oil CARB \| Bore Da: 500 mm \| Centre height H1: 300 mm \| Length L: 830 mm \| Mass: 301 kg
SNL 3164 TURT		Type: Adapter, oil SRB \| Bore Da: 540 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3164 TURA		Type: Adapter, oil CARB \| Bore Da: 540 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3168 F		Type: Adapter, locating \| Bore Da: 580 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 430 kg
SNL 3168 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 580 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 430 kg
SNL 3168 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 580 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 430 kg
SNL 3168 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 580 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 427 kg
SNL 3172 F		Type: Adapter, locating \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 458 kg
SNL 3172 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 458 kg
SNL 3172 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 458 kg
SNL 3172 L		Type: Adapter, non-locating \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 454 kg
SNL 3172 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 454 kg
SNL 3180 L		Type: Adapter, non-locating \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3176 F		Type: Adapter, locating \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 473 kg
SNL 3176 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 473 kg
SNL 3176 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 473 kg
SNL 3176 L		Type: Adapter, non-locating \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 470 kg
SNL 3176 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 470 kg
SNL 3180 F		Type: Adapter, locating \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3180 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3180 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3180 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3184 F		Type: Adapter, locating \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3184 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3184 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3184 L		Type: Adapter, non-locating \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 709 kg
SNL 3184 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 709 kg
SNL 3188 F		Type: Adapter, locating \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 755 kg
SNL 3188 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 755 kg
SNL 3188 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 755 kg
SNL 3188 L		Type: Adapter, non-locating \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 751 kg
SNL 3188 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 751 kg
SNL 3192 F		Type: Adapter, locating \| Bore Da: 760 mm \| Centre height H1: 440 mm \| Length L: 1280 mm \| Mass: 865 kg
SNL 3192 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 760 mm \| Centre height H1: 440 mm \| Length L: 1280 mm \| Mass: 865 kg
SNL 3192 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 760 mm \| Centre height H1: 440 mm \| Length L: 1280 mm \| Mass: 865 kg
SNL 3192 L		Type: Adapter, non-locating \| Bore Da: 760 mm \| Centre height H1: 440 mm \| Length L: 1280 mm \| Mass: 859 kg
SNL 3192 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 760 mm \| Centre height H1: 440 mm \| Length L: 1280 mm \| Mass: 859 kg
SNL 3196 F		Type: Adapter, locating \| Bore Da: 790 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 947 kg
SNL 3196 FTURT		Type: Adapter, locating, oil SRB \| Bore Da: 790 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 947 kg
SNL 3196 FTURA		Type: Adapter, locating, oil CARB \| Bore Da: 790 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 947 kg
SNL 3196 L		Type: Adapter, non-locating \| Bore Da: 790 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 941 kg
SNL 3196 LTURT		Type: Adapter, non-locating, oil SRB \| Bore Da: 790 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 941 kg
SNL 3134 G		Type: Cyl. seat \| Bore Da: 280 mm \| Centre height H1: 170 mm \| Length L: 510 mm \| Mass: 69.5 kg
SNL 3136 G		Type: Cyl. seat \| Bore Da: 300 mm \| Centre height H1: 180 mm \| Length L: 530 mm \| Mass: 77.5 kg
SNL 3138 G		Type: Cyl. seat \| Bore Da: 320 mm \| Centre height H1: 190 mm \| Length L: 560 mm \| Mass: 97.5 kg
SNL 3140 G		Type: Cyl. seat \| Bore Da: 340 mm \| Centre height H1: 210 mm \| Length L: 610 mm \| Mass: 123 kg
SNL 3144 G		Type: Cyl. seat \| Bore Da: 370 mm \| Centre height H1: 220 mm \| Length L: 640 mm \| Mass: 138 kg
SNL 3148 G		Type: Cyl. seat \| Bore Da: 400 mm \| Centre height H1: 240 mm \| Length L: 700 mm \| Mass: 187 kg
SNL 3152 G		Type: Cyl. seat \| Bore Da: 440 mm \| Centre height H1: 260 mm \| Length L: 770 mm \| Mass: 221 kg
SNL 3156 G		Type: Cyl. seat \| Bore Da: 460 mm \| Centre height H1: 280 mm \| Length L: 790 mm \| Mass: 252 kg
SNL 3160 G		Type: Cyl. seat \| Bore Da: 500 mm \| Centre height H1: 300 mm \| Length L: 830 mm \| Mass: 301 kg
SNL 3164 G		Type: Cyl. seat \| Bore Da: 540 mm \| Centre height H1: 320 mm \| Length L: 880 mm \| Mass: 339 kg
SNL 3168 GF		Type: Cyl. seat, locating \| Bore Da: 580 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 430 kg
SNL 3168 GL		Type: Cyl. seat, non-locating \| Bore Da: 580 mm \| Centre height H1: 340 mm \| Length L: 950 mm \| Mass: 427 kg
SNL 3172 GF		Type: Cyl. seat, locating \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 458 kg
SNL 3172 GL		Type: Cyl. seat, non-locating \| Bore Da: 600 mm \| Centre height H1: 350 mm \| Length L: 1000 mm \| Mass: 454 kg
SNL 3176 GF		Type: Cyl. seat, locating \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 473 kg
SNL 3176 GL		Type: Cyl. seat, non-locating \| Bore Da: 620 mm \| Centre height H1: 360 mm \| Length L: 1040 mm \| Mass: 470 kg
SNL 3180 GF		Type: Cyl. seat, locating \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3180 GL		Type: Cyl. seat, non-locating \| Bore Da: 650 mm \| Centre height H1: 380 mm \| Length L: 1120 mm \| Mass: 595 kg
SNL 3184 GF		Type: Cyl. seat, locating \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 716 kg
SNL 3184 GL		Type: Cyl. seat, non-locating \| Bore Da: 700 mm \| Centre height H1: 410 mm \| Length L: 1170 mm \| Mass: 709 kg
SNL 3188 GF		Type: Cyl. seat, locating \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 755 kg
SNL 3188 GL		Type: Cyl. seat, non-locating \| Bore Da: 720 mm \| Centre height H1: 420 mm \| Length L: 1220 mm \| Mass: 751 kg
SNL 3192 GF		Type: Cyl. seat, locating \| Bore Da: 760 mm \| Centre height H1: 440 mm \| Length L: 1280 mm \| Mass: 865 kg
SNL 3192 GL		Type: Cyl. seat, non-locating \| Bore Da: 760 mm \| Centre height H1: 440 mm \| Length L: 1280 mm \| Mass: 859 kg
SNL 3196 GF		Type: Cyl. seat, locating \| Bore Da: 790 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 947 kg
SNL 3196 GL		Type: Cyl. seat, non-locating \| Bore Da: 790 mm \| Centre height H1: 460 mm \| Length L: 1330 mm \| Mass: 941 kg
