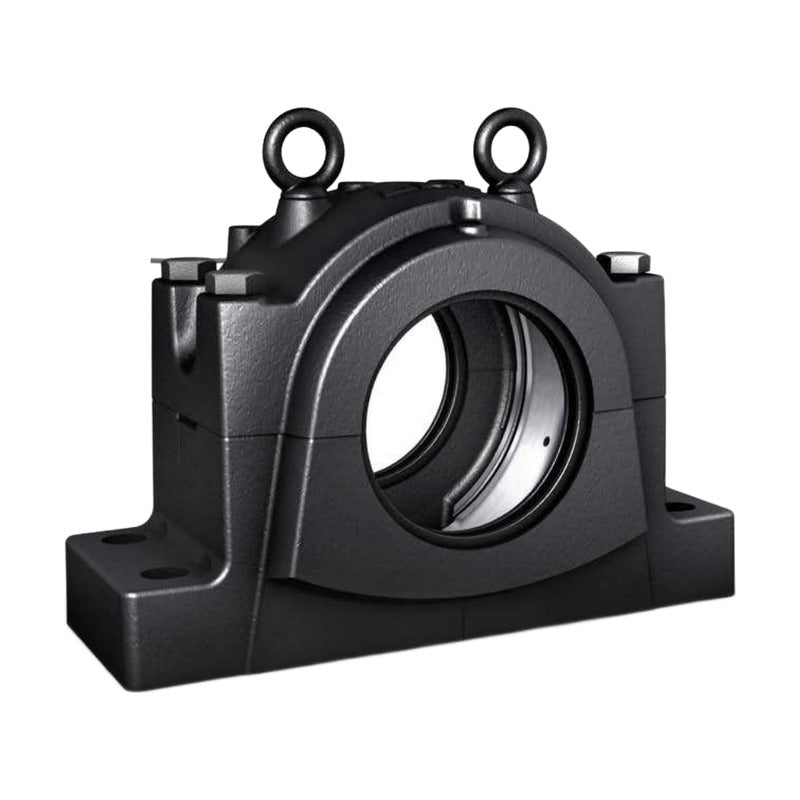

SKF SNL 32 and 40 Series Large Split Plummer Block Housings

SKF SNL 32 and 40 Series Large Split Plummer Block Housings

Large SKF SNL 32 and 40 series split plummer block housings for spherical roller and CARB toroidal roller bearings on an adapter sleeve, withdrawal sleeve or cylindrical seat.

Key features

  • Variants for adapter sleeve/plain shaft or cylindrical seat (G)
  • Locating (F) and non-locating (L) housings for large shafts
  • TURT/TURA versions prepared for oil lubrication
  • Labyrinth (TS), taconite (TNF) and oil seals available
  • Eye bolts to DIN 580 for lifting; grey cast iron

Specifications

Series SNL 32 and 40
Housing type Large split plummer block
Material Grey cast iron
Bearing types Spherical roller, CARB
Suffix G Cylindrical seat, stepped shaft
Suffix F / L Locating / non-locating
Source SKF Bearing housings and roller bearing units, p. 222-329
SNL 3234 Type: Adapter | Bore Da: 310 mm | Centre height H1: 190 mm | Length L: 560 mm | Mass: 97.5 kg
SNL 3236 Type: Adapter | Bore Da: 320 mm | Centre height H1: 190 mm | Length L: 560 mm | Mass: 97.5 kg
SNL 3238 Type: Adapter | Bore Da: 340 mm | Centre height H1: 210 mm | Length L: 610 mm | Mass: 123 kg
SNL 3240 Type: Adapter | Bore Da: 360 mm | Centre height H1: 220 mm | Length L: 640 mm | Mass: 139 kg
SNL 3244 Type: Adapter | Bore Da: 400 mm | Centre height H1: 240 mm | Length L: 700 mm | Mass: 187 kg
SNL 3248 Type: Adapter | Bore Da: 440 mm | Centre height H1: 260 mm | Length L: 770 mm | Mass: 221 kg
SNL 3252 Type: Adapter | Bore Da: 480 mm | Centre height H1: 300 mm | Length L: 830 mm | Mass: 301 kg
SNL 3256 Type: Adapter | Bore Da: 500 mm | Centre height H1: 300 mm | Length L: 830 mm | Mass: 301 kg
SNL 3260 Type: Adapter | Bore Da: 540 mm | Centre height H1: 320 mm | Length L: 880 mm | Mass: 339 kg
SNL 3264 F Type: Adapter, locating | Bore Da: 580 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 430 kg
SNL 3264 L Type: Adapter, non-locating | Bore Da: 580 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 427 kg
SNL 3268 F Type: Adapter, locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 473 kg
SNL 3268 L Type: Adapter, non-locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 470 kg
SNL 3272 F Type: Adapter, locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 3272 L Type: Adapter, non-locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 3276 F Type: Adapter, locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 716 kg
SNL 3276 L Type: Adapter, non-locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 709 kg
SNL 3280 F Type: Adapter, locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 755 kg
SNL 3280 L Type: Adapter, non-locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 751 kg
SNL 3284 F Type: Adapter, locating | Bore Da: 760 mm | Centre height H1: 440 mm | Length L: 1280 mm | Mass: 865 kg
SNL 3284 L Type: Adapter, non-locating | Bore Da: 760 mm | Centre height H1: 440 mm | Length L: 1280 mm | Mass: 859 kg
SNL 3288 F Type: Adapter, locating | Bore Da: 790 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 947 kg
SNL 3288 L Type: Adapter, non-locating | Bore Da: 790 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 941 kg
SNL 3234 G Type: Cyl. seat | Bore Da: 310 mm | Centre height H1: 190 mm | Length L: 560 mm | Mass: 97.5 kg
SNL 3236 G Type: Cyl. seat | Bore Da: 320 mm | Centre height H1: 190 mm | Length L: 560 mm | Mass: 97.5 kg
SNL 3238 G Type: Cyl. seat | Bore Da: 340 mm | Centre height H1: 210 mm | Length L: 610 mm | Mass: 123 kg
SNL 3240 G Type: Cyl. seat | Bore Da: 360 mm | Centre height H1: 220 mm | Length L: 640 mm | Mass: 139 kg
SNL 3244 G Type: Cyl. seat | Bore Da: 400 mm | Centre height H1: 240 mm | Length L: 700 mm | Mass: 187 kg
SNL 3248 G Type: Cyl. seat | Bore Da: 440 mm | Centre height H1: 260 mm | Length L: 770 mm | Mass: 221 kg
SNL 3252 G Type: Cyl. seat | Bore Da: 480 mm | Centre height H1: 300 mm | Length L: 830 mm | Mass: 301 kg
SNL 3256 G Type: Cyl. seat | Bore Da: 500 mm | Centre height H1: 300 mm | Length L: 830 mm | Mass: 301 kg
SNL 3260 G Type: Cyl. seat | Bore Da: 540 mm | Centre height H1: 320 mm | Length L: 880 mm | Mass: 339 kg
SNL 3264 GF Type: Cyl. seat, locating | Bore Da: 580 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 430 kg
SNL 3264 GL Type: Cyl. seat, non-locating | Bore Da: 580 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 427 kg
SNL 3268 GF Type: Cyl. seat, locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 473 kg
SNL 3268 GL Type: Cyl. seat, non-locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 470 kg
SNL 3272 GF Type: Cyl. seat, locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 3272 GL Type: Cyl. seat, non-locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 3276 GF Type: Cyl. seat, locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 716 kg
SNL 3276 GL Type: Cyl. seat, non-locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 709 kg
SNL 4076 GF Type: Cyl. seat, locating | Bore Da: 560 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 430 kg
SNL 4076 GL Type: Cyl. seat, non-locating | Bore Da: 560 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 427 kg
SNL 3280 GF Type: Cyl. seat, locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 745 kg
SNL 3280 GL Type: Cyl. seat, non-locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 740 kg
SNL 4080 GF Type: Cyl. seat, locating | Bore Da: 600 mm | Centre height H1: 350 mm | Length L: 1000 mm | Mass: 458 kg
SNL 4080 GL Type: Cyl. seat, non-locating | Bore Da: 600 mm | Centre height H1: 350 mm | Length L: 1000 mm | Mass: 454 kg
SNL 3284 GF Type: Cyl. seat, locating | Bore Da: 760 mm | Centre height H1: 440 mm | Length L: 1280 mm | Mass: 865 kg
SNL 3284 GL Type: Cyl. seat, non-locating | Bore Da: 760 mm | Centre height H1: 440 mm | Length L: 1280 mm | Mass: 859 kg
SNL 4084 GF Type: Cyl. seat, locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 473 kg
SNL 4084 GL Type: Cyl. seat, non-locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 470 kg
SNL 3288 GF Type: Cyl. seat, locating | Bore Da: 790 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 947 kg
SNL 3288 GL Type: Cyl. seat, non-locating | Bore Da: 790 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 941 kg
SNL 4088 GF Type: Cyl. seat, locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 4088 GL Type: Cyl. seat, non-locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 4092 GF Type: Cyl. seat, locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 716 kg
SNL 4092 GL Type: Cyl. seat, non-locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 709 kg
SNL 4096 GF Type: Cyl. seat, locating | Bore Da: 700 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 716 kg
SNL 4096 GL Type: Cyl. seat, non-locating | Bore Da: 700 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 709 kg
SNL 40/500 GF Type: Cyl. seat, locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 755 kg
SNL 40/500 GL Type: Cyl. seat, non-locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 751 kg
SNL 40/530 GF Type: Cyl. seat, locating | Bore Da: 780 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 947 kg
SNL 40/530 GL Type: Cyl. seat, non-locating | Bore Da: 780 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 941 kg
Bearing HousingsSKF
62 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SNL 32 and 40 Series Large Split Plummer Block Housings

Brand SKF·Bearing Housings

Available part numbers (62)

SNL 3234, SNL 3236, SNL 3238, SNL 3240, SNL 3244, SNL 3248, SNL 3252, SNL 3256, SNL 3260, SNL 3264 F + 52 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNL 3234Type: Adapter | Bore Da: 310 mm | Centre height H1: 190 mm | Length L: 560 mm | Mass: 97.5 kg
SNL 3236Type: Adapter | Bore Da: 320 mm | Centre height H1: 190 mm | Length L: 560 mm | Mass: 97.5 kg
SNL 3238Type: Adapter | Bore Da: 340 mm | Centre height H1: 210 mm | Length L: 610 mm | Mass: 123 kg
SNL 3240Type: Adapter | Bore Da: 360 mm | Centre height H1: 220 mm | Length L: 640 mm | Mass: 139 kg
SNL 3244Type: Adapter | Bore Da: 400 mm | Centre height H1: 240 mm | Length L: 700 mm | Mass: 187 kg
SNL 3248Type: Adapter | Bore Da: 440 mm | Centre height H1: 260 mm | Length L: 770 mm | Mass: 221 kg
SNL 3252Type: Adapter | Bore Da: 480 mm | Centre height H1: 300 mm | Length L: 830 mm | Mass: 301 kg
SNL 3256Type: Adapter | Bore Da: 500 mm | Centre height H1: 300 mm | Length L: 830 mm | Mass: 301 kg
SNL 3260Type: Adapter | Bore Da: 540 mm | Centre height H1: 320 mm | Length L: 880 mm | Mass: 339 kg
SNL 3264 FType: Adapter, locating | Bore Da: 580 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 430 kg
SNL 3264 LType: Adapter, non-locating | Bore Da: 580 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 427 kg
SNL 3268 FType: Adapter, locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 473 kg
SNL 3268 LType: Adapter, non-locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 470 kg
SNL 3272 FType: Adapter, locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 3272 LType: Adapter, non-locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 3276 FType: Adapter, locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 716 kg
SNL 3276 LType: Adapter, non-locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 709 kg
SNL 3280 FType: Adapter, locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 755 kg
SNL 3280 LType: Adapter, non-locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 751 kg
SNL 3284 FType: Adapter, locating | Bore Da: 760 mm | Centre height H1: 440 mm | Length L: 1280 mm | Mass: 865 kg
SNL 3284 LType: Adapter, non-locating | Bore Da: 760 mm | Centre height H1: 440 mm | Length L: 1280 mm | Mass: 859 kg
SNL 3288 FType: Adapter, locating | Bore Da: 790 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 947 kg
SNL 3288 LType: Adapter, non-locating | Bore Da: 790 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 941 kg
SNL 3234 GType: Cyl. seat | Bore Da: 310 mm | Centre height H1: 190 mm | Length L: 560 mm | Mass: 97.5 kg
SNL 3236 GType: Cyl. seat | Bore Da: 320 mm | Centre height H1: 190 mm | Length L: 560 mm | Mass: 97.5 kg
SNL 3238 GType: Cyl. seat | Bore Da: 340 mm | Centre height H1: 210 mm | Length L: 610 mm | Mass: 123 kg
SNL 3240 GType: Cyl. seat | Bore Da: 360 mm | Centre height H1: 220 mm | Length L: 640 mm | Mass: 139 kg
SNL 3244 GType: Cyl. seat | Bore Da: 400 mm | Centre height H1: 240 mm | Length L: 700 mm | Mass: 187 kg
SNL 3248 GType: Cyl. seat | Bore Da: 440 mm | Centre height H1: 260 mm | Length L: 770 mm | Mass: 221 kg
SNL 3252 GType: Cyl. seat | Bore Da: 480 mm | Centre height H1: 300 mm | Length L: 830 mm | Mass: 301 kg
SNL 3256 GType: Cyl. seat | Bore Da: 500 mm | Centre height H1: 300 mm | Length L: 830 mm | Mass: 301 kg
SNL 3260 GType: Cyl. seat | Bore Da: 540 mm | Centre height H1: 320 mm | Length L: 880 mm | Mass: 339 kg
SNL 3264 GFType: Cyl. seat, locating | Bore Da: 580 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 430 kg
SNL 3264 GLType: Cyl. seat, non-locating | Bore Da: 580 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 427 kg
SNL 3268 GFType: Cyl. seat, locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 473 kg
SNL 3268 GLType: Cyl. seat, non-locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 470 kg
SNL 3272 GFType: Cyl. seat, locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 3272 GLType: Cyl. seat, non-locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 3276 GFType: Cyl. seat, locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 716 kg
SNL 3276 GLType: Cyl. seat, non-locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 709 kg
SNL 4076 GFType: Cyl. seat, locating | Bore Da: 560 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 430 kg
SNL 4076 GLType: Cyl. seat, non-locating | Bore Da: 560 mm | Centre height H1: 340 mm | Length L: 950 mm | Mass: 427 kg
SNL 3280 GFType: Cyl. seat, locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 745 kg
SNL 3280 GLType: Cyl. seat, non-locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 740 kg
SNL 4080 GFType: Cyl. seat, locating | Bore Da: 600 mm | Centre height H1: 350 mm | Length L: 1000 mm | Mass: 458 kg
SNL 4080 GLType: Cyl. seat, non-locating | Bore Da: 600 mm | Centre height H1: 350 mm | Length L: 1000 mm | Mass: 454 kg
SNL 3284 GFType: Cyl. seat, locating | Bore Da: 760 mm | Centre height H1: 440 mm | Length L: 1280 mm | Mass: 865 kg
SNL 3284 GLType: Cyl. seat, non-locating | Bore Da: 760 mm | Centre height H1: 440 mm | Length L: 1280 mm | Mass: 859 kg
SNL 4084 GFType: Cyl. seat, locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 473 kg
SNL 4084 GLType: Cyl. seat, non-locating | Bore Da: 620 mm | Centre height H1: 360 mm | Length L: 1040 mm | Mass: 470 kg
SNL 3288 GFType: Cyl. seat, locating | Bore Da: 790 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 947 kg
SNL 3288 GLType: Cyl. seat, non-locating | Bore Da: 790 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 941 kg
SNL 4088 GFType: Cyl. seat, locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 4088 GLType: Cyl. seat, non-locating | Bore Da: 650 mm | Centre height H1: 380 mm | Length L: 1120 mm | Mass: 595 kg
SNL 4092 GFType: Cyl. seat, locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 716 kg
SNL 4092 GLType: Cyl. seat, non-locating | Bore Da: 680 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 709 kg
SNL 4096 GFType: Cyl. seat, locating | Bore Da: 700 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 716 kg
SNL 4096 GLType: Cyl. seat, non-locating | Bore Da: 700 mm | Centre height H1: 410 mm | Length L: 1170 mm | Mass: 709 kg
SNL 40/500 GFType: Cyl. seat, locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 755 kg
SNL 40/500 GLType: Cyl. seat, non-locating | Bore Da: 720 mm | Centre height H1: 420 mm | Length L: 1220 mm | Mass: 751 kg
SNL 40/530 GFType: Cyl. seat, locating | Bore Da: 780 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 947 kg
SNL 40/530 GLType: Cyl. seat, non-locating | Bore Da: 780 mm | Centre height H1: 460 mm | Length L: 1330 mm | Mass: 941 kg
