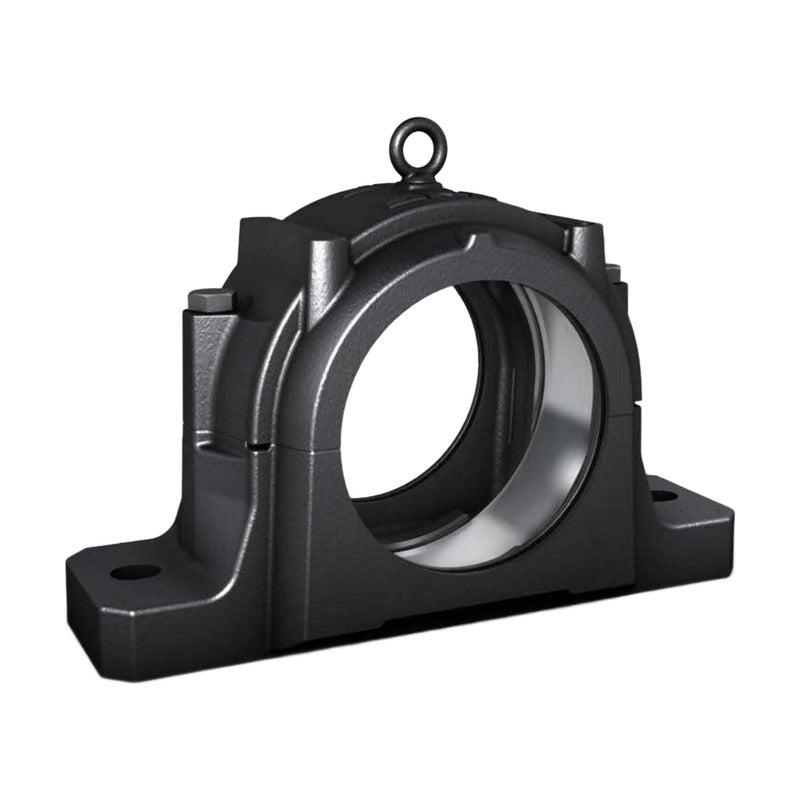

SKF SNLN 30 Series Split Plummer Block Housings

SKF SNLN 30 series split plummer block housings for bearings in the 230 and 240 series, on an adapter sleeve or a cylindrical seat.

Key features

Split cap-and-base design for bearings in the 30 dimension series
For spherical roller and CARB toroidal roller bearings
Adapter sleeve or cylindrical seat mounting
Compatible with TSN labyrinth, V-ring, felt, taconite and four-lip seals
Grease relubrication provisions

Specifications

Series	SNLN 30
Housing type	Split plummer (pillow) block
Material	Grey cast iron
Bearing types	Spherical roller, CARB
Mounting	Adapter sleeve or cylindrical seat
Source	SKF Bearing housings and roller bearing units, p. 180-187

SNLN 3024		Shaft: 110, 120 mm \| Bore Da: 180 mm \| Centre height H1: 112 mm \| Length L: 380 mm \| Mass: 17.5 kg
SNLN 3026		Shaft: 115, 130 mm \| Bore Da: 200 mm \| Centre height H1: 125 mm \| Length L: 410 mm \| Mass: 22.5 kg
SNLN 3028		Shaft: 125, 140 mm \| Bore Da: 210 mm \| Centre height H1: 140 mm \| Length L: 410 mm \| Mass: 30.0 kg
SNLN 3030		Shaft: 135, 150 mm \| Bore Da: 225 mm \| Centre height H1: 150 mm \| Length L: 445 mm \| Mass: 40.0 kg
SNLN 3032		Shaft: 140, 160 mm \| Bore Da: 240 mm \| Centre height H1: 150 mm \| Length L: 460 mm \| Mass: 41.0 kg
SNLN 3034		Shaft: 150, 170 mm \| Bore Da: 260 mm \| Centre height H1: 160 mm \| Length L: 530 mm \| Mass: 50.5 kg
SNLN 3036		Shaft: 160, 180 mm \| Bore Da: 280 mm \| Centre height H1: 170 mm \| Length L: 550 mm \| Mass: 58.5 kg
SNLN 3038		Shaft: 170, 190 mm \| Bore Da: 290 mm \| Centre height H1: 170 mm \| Length L: 550 mm \| Mass: 58.5 kg
SNLN 3040		Shaft: 180, 200 mm \| Bore Da: 310 mm \| Centre height H1: 180 mm \| Length L: 610 mm \| Mass: 76.0 kg
SNLN 3044		Shaft: 200, 220 mm \| Bore Da: 340 mm \| Centre height H1: 200 mm \| Length L: 690 mm \| Mass: 103 kg
SNLN 3048		Shaft: 220, 240 mm \| Bore Da: 360 mm \| Centre height H1: 210 mm \| Length L: 720 mm \| Mass: 117 kg
SNLN 3052		Shaft: 240, 260 mm \| Bore Da: 400 mm \| Centre height H1: 240 mm \| Length L: 820 mm \| Mass: 162 kg
SNLN 3056		Shaft: 260, 280 mm \| Bore Da: 420 mm \| Centre height H1: 250 mm \| Length L: 860 mm \| Mass: 184 kg
