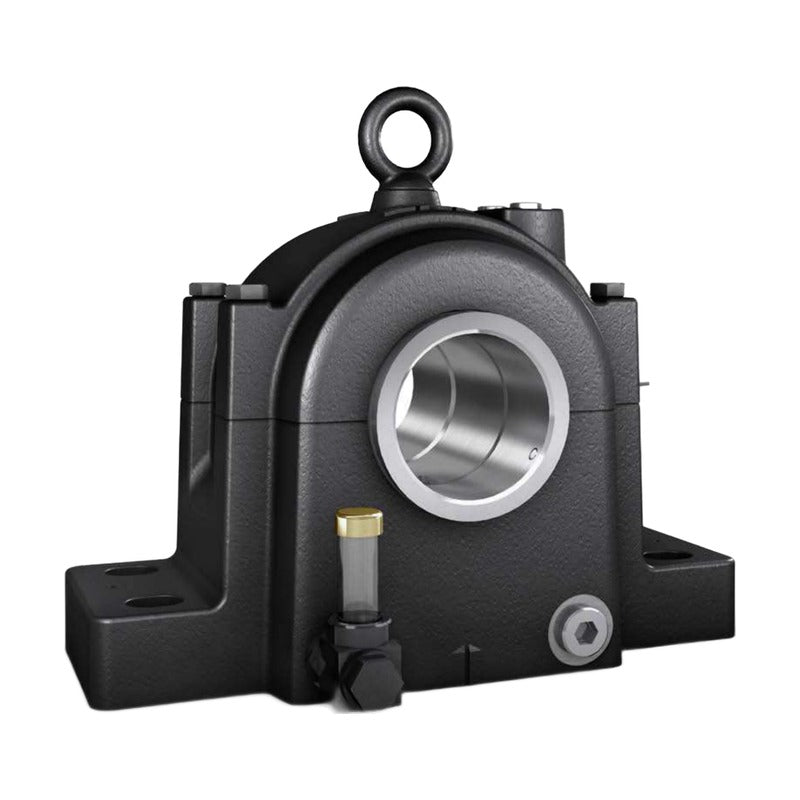

SKF SONL Series Split Plummer Block Housings for Oil Lubrication

SKF SONL Series Split Plummer Block Housings for Oil Lubrication

SKF SONL split plummer block housings designed for oil lubrication of spherical roller, self-aligning ball and CARB bearings on an adapter sleeve or cylindrical seat.

Key features

  • Designed for oil bath or circulating oil lubrication
  • Split cap-and-base housing with oil level gauge
  • For adapter sleeve mounting (metric and inch shafts) or cylindrical seat
  • Seal kits for through shafts and end covers available
  • Eye bolts for lifting on larger sizes

Specifications

Series SONL
Housing type Split plummer block, oil lubricated
Bearing types Self-aligning ball, spherical roller, CARB
Mounting Adapter sleeve or cylindrical seat
Brand SKF
Source SKF Bearing housings and roller bearing units, p. 370-381
SONL 217-517 Shaft: 75, 85 mm | Bore Da: 150 mm | Centre height H1: 125 mm | Length L: 330 mm | Mass: 26 kg
SONL 218-518 Shaft: 80, 90 mm | Bore Da: 160 mm | Centre height H1: 135 mm | Length L: 360 mm | Mass: 33 kg
SONL 220-520 Shaft: 90, 100 mm | Bore Da: 180 mm | Centre height H1: 145 mm | Length L: 400 mm | Mass: 42 kg
SONL 222-522 Shaft: 100, 110 mm | Bore Da: 200 mm | Centre height H1: 160 mm | Length L: 420 mm | Mass: 53 kg
SONL 224-524 Shaft: 110, 120 mm | Bore Da: 215 mm | Centre height H1: 170 mm | Length L: 420 mm | Mass: 72 kg
SONL 226-526 Shaft: 115, 130 mm | Bore Da: 230 mm | Centre height H1: 180 mm | Length L: 450 mm | Mass: 87 kg
SONL 228-528 Shaft: 125, 140 mm | Bore Da: 250 mm | Centre height H1: 190 mm | Length L: 500 mm | Mass: 102 kg
SONL 230-530 Shaft: 135, 150 mm | Bore Da: 270 mm | Centre height H1: 200 mm | Length L: 540 mm | Mass: 115 kg
SONL 232-532 Shaft: 140, 160 mm | Bore Da: 290 mm | Centre height H1: 215 mm | Length L: 560 mm | Mass: 141 kg
SONL 234-534 Shaft: 150, 170 mm | Bore Da: 310 mm | Centre height H1: 235 mm | Length L: 610 mm | Mass: 190 kg
SONL 236-536 Shaft: 160, 180 mm | Bore Da: 320 mm | Centre height H1: 245 mm | Length L: 650 mm | Mass: 213 kg
SONL 238-538 Shaft: 170, 190 mm | Bore Da: 340 mm | Centre height H1: 260 mm | Length L: 720 mm | Mass: 249 kg
SONL 240-540 Shaft: 180, 200 mm | Bore Da: 360 mm | Centre height H1: 275 mm | Length L: 730 mm | Mass: 273 kg
SONL 244-544 Shaft: 200, 220 mm | Bore Da: 400 mm | Centre height H1: 305 mm | Length L: 820 mm | Mass: 361 kg
SONL 248-548 Shaft: 220, 240 mm | Bore Da: 440 mm | Centre height H1: 340 mm | Length L: 900 mm | Mass: 456 kg
Bearing HousingsSKF
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SONL Series Split Plummer Block Housings for Oil Lubrication

Brand SKF·Bearing Housings

Available part numbers (15)

SONL 217-517, SONL 218-518, SONL 220-520, SONL 222-522, SONL 224-524, SONL 226-526, SONL 228-528, SONL 230-530, SONL 232-532, SONL 234-534 + 5 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SONL 217-517Shaft: 75, 85 mm | Bore Da: 150 mm | Centre height H1: 125 mm | Length L: 330 mm | Mass: 26 kg
SONL 218-518Shaft: 80, 90 mm | Bore Da: 160 mm | Centre height H1: 135 mm | Length L: 360 mm | Mass: 33 kg
SONL 220-520Shaft: 90, 100 mm | Bore Da: 180 mm | Centre height H1: 145 mm | Length L: 400 mm | Mass: 42 kg
SONL 222-522Shaft: 100, 110 mm | Bore Da: 200 mm | Centre height H1: 160 mm | Length L: 420 mm | Mass: 53 kg
SONL 224-524Shaft: 110, 120 mm | Bore Da: 215 mm | Centre height H1: 170 mm | Length L: 420 mm | Mass: 72 kg
SONL 226-526Shaft: 115, 130 mm | Bore Da: 230 mm | Centre height H1: 180 mm | Length L: 450 mm | Mass: 87 kg
SONL 228-528Shaft: 125, 140 mm | Bore Da: 250 mm | Centre height H1: 190 mm | Length L: 500 mm | Mass: 102 kg
SONL 230-530Shaft: 135, 150 mm | Bore Da: 270 mm | Centre height H1: 200 mm | Length L: 540 mm | Mass: 115 kg
SONL 232-532Shaft: 140, 160 mm | Bore Da: 290 mm | Centre height H1: 215 mm | Length L: 560 mm | Mass: 141 kg
SONL 234-534Shaft: 150, 170 mm | Bore Da: 310 mm | Centre height H1: 235 mm | Length L: 610 mm | Mass: 190 kg
SONL 236-536Shaft: 160, 180 mm | Bore Da: 320 mm | Centre height H1: 245 mm | Length L: 650 mm | Mass: 213 kg
SONL 238-538Shaft: 170, 190 mm | Bore Da: 340 mm | Centre height H1: 260 mm | Length L: 720 mm | Mass: 249 kg
SONL 240-540Shaft: 180, 200 mm | Bore Da: 360 mm | Centre height H1: 275 mm | Length L: 730 mm | Mass: 273 kg
SONL 244-544Shaft: 200, 220 mm | Bore Da: 400 mm | Centre height H1: 305 mm | Length L: 820 mm | Mass: 361 kg
SONL 248-548Shaft: 220, 240 mm | Bore Da: 440 mm | Centre height H1: 340 mm | Length L: 900 mm | Mass: 456 kg
