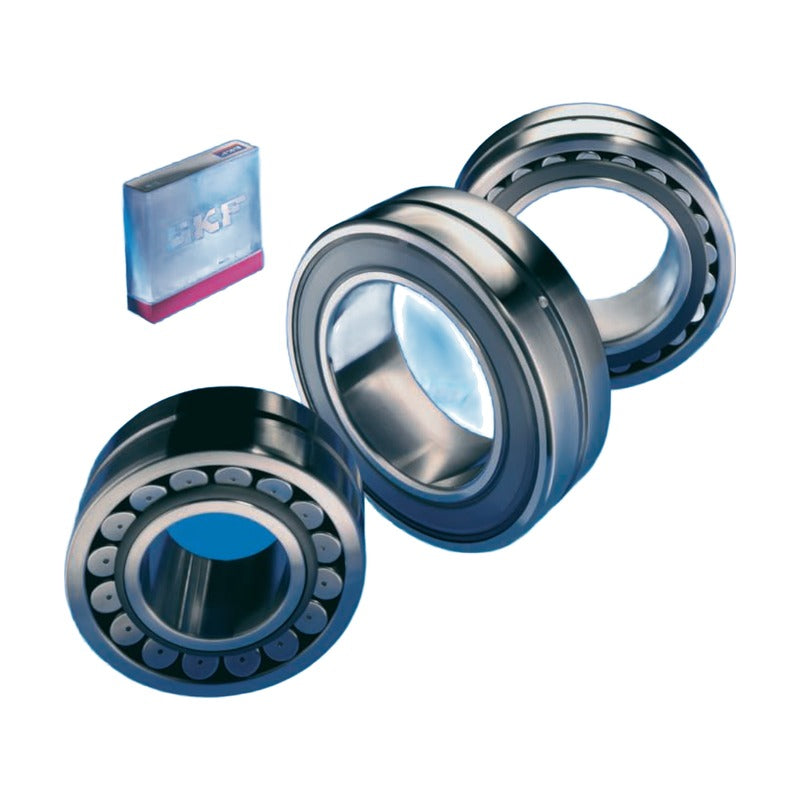

SKF 230, 231, 232 Series Spherical Roller Bearings

SKF 230, 231, 232 Series Spherical Roller Bearings

SKF double row spherical roller bearings of series 230, 231, 232 with cylindrical bore and, where listed, tapered bore (K, 1:12 / K30, 1:30). Bore diameters 90-1250 mm.

Key features

  • Self-aligning: accommodate shaft misalignment and deflection
  • High radial and moderate axial load carrying capacity in both directions
  • Cylindrical bore and tapered bore (K = 1:12, K30 = 1:30) variants as listed
  • Lubrication groove and holes in the outer ring (W33)
  • E, CC, CA and CAF/MB designs; many sizes in SKF Explorer performance class

Specifications

Bearing type Double row spherical roller bearing
Series 230, 231, 232
Bore range d 90-1250 mm
Outside dia. range D 160-1750 mm
Bore Cylindrical or tapered (K, K30)
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 718-739
23218 CC/W33 d: 90 mm | D: 160 mm | B: 52.4 mm | C: 355 kN | C0: 440 kN | Limiting speed: 3800 r/min
23218 CCK/W33 d: 90 mm | D: 160 mm | B: 52.4 mm | C: 355 kN | C0: 440 kN | Limiting speed: 3800 r/min
23120 CC/W33 d: 100 mm | D: 165 mm | B: 52 mm | C: 365 kN | C0: 490 kN | Limiting speed: 4000 r/min
23120 CCK/W33 d: 100 mm | D: 165 mm | B: 52 mm | C: 365 kN | C0: 490 kN | Limiting speed: 4000 r/min
23220 CC/W33 d: 100 mm | D: 180 mm | B: 60.3 mm | C: 475 kN | C0: 600 kN | Limiting speed: 3400 r/min
23220 CCK/W33 d: 100 mm | D: 180 mm | B: 60.3 mm | C: 475 kN | C0: 600 kN | Limiting speed: 3400 r/min
23022 CC/W33 d: 110 mm | D: 170 mm | B: 45 mm | C: 310 kN | C0: 440 kN | Limiting speed: 4300 r/min
23022 CCK/W33 d: 110 mm | D: 170 mm | B: 45 mm | C: 310 kN | C0: 440 kN | Limiting speed: 4300 r/min
23122 CC/W33 d: 110 mm | D: 180 mm | B: 56 mm | C: 430 kN | C0: 585 kN | Limiting speed: 3600 r/min
23122 CCK/W33 d: 110 mm | D: 180 mm | B: 56 mm | C: 430 kN | C0: 585 kN | Limiting speed: 3600 r/min
23222 CC/W33 d: 110 mm | D: 200 mm | B: 69.8 mm | C: 600 kN | C0: 765 kN | Limiting speed: 3200 r/min
23222 CCK/W33 d: 110 mm | D: 200 mm | B: 69.8 mm | C: 600 kN | C0: 765 kN | Limiting speed: 3200 r/min
23024 CC/W33 d: 120 mm | D: 180 mm | B: 46 mm | C: 355 kN | C0: 510 kN | Limiting speed: 4000 r/min
23024 CCK/W33 d: 120 mm | D: 180 mm | B: 46 mm | C: 355 kN | C0: 510 kN | Limiting speed: 4000 r/min
23124 CC/W33 d: 120 mm | D: 200 mm | B: 62 mm | C: 510 kN | C0: 695 kN | Limiting speed: 3400 r/min
23124 CCK/W33 d: 120 mm | D: 200 mm | B: 62 mm | C: 510 kN | C0: 695 kN | Limiting speed: 3400 r/min
23224 CC/W33 d: 120 mm | D: 215 mm | B: 76 mm | C: 695 kN | C0: 930 kN | Limiting speed: 2800 r/min
23224 CCK/W33 d: 120 mm | D: 215 mm | B: 76 mm | C: 695 kN | C0: 930 kN | Limiting speed: 2800 r/min
23026 CC/W33 d: 130 mm | D: 200 mm | B: 52 mm | C: 430 kN | C0: 610 kN | Limiting speed: 3600 r/min
23026 CCK/W33 d: 130 mm | D: 200 mm | B: 52 mm | C: 430 kN | C0: 610 kN | Limiting speed: 3600 r/min
23126 CC/W33 d: 130 mm | D: 210 mm | B: 64 mm | C: 560 kN | C0: 780 kN | Limiting speed: 3200 r/min
23126 CCK/W33 d: 130 mm | D: 210 mm | B: 64 mm | C: 560 kN | C0: 780 kN | Limiting speed: 3200 r/min
23226 CC/W33 d: 130 mm | D: 230 mm | B: 80 mm | C: 780 kN | C0: 1060 kN | Limiting speed: 2600 r/min
23226 CCK/W33 d: 130 mm | D: 230 mm | B: 80 mm | C: 780 kN | C0: 1060 kN | Limiting speed: 2600 r/min
23028 CC/W33 d: 140 mm | D: 210 mm | B: 53 mm | C: 465 kN | C0: 680 kN | Limiting speed: 3400 r/min
23028 CCK/W33 d: 140 mm | D: 210 mm | B: 53 mm | C: 465 kN | C0: 680 kN | Limiting speed: 3400 r/min
23128 CC/W33 d: 140 mm | D: 225 mm | B: 68 mm | C: 630 kN | C0: 900 kN | Limiting speed: 2800 r/min
23128 CCK/W33 d: 140 mm | D: 225 mm | B: 68 mm | C: 630 kN | C0: 900 kN | Limiting speed: 2800 r/min
23228 CC/W33 d: 140 mm | D: 250 mm | B: 88 mm | C: 915 kN | C0: 1250 kN | Limiting speed: 2400 r/min
23228 CCK/W33 d: 140 mm | D: 250 mm | B: 88 mm | C: 915 kN | C0: 1250 kN | Limiting speed: 2400 r/min
23030 CC/W33 d: 150 mm | D: 225 mm | B: 56 mm | C: 510 kN | C0: 750 kN | Limiting speed: 3200 r/min
23030 CCK/W33 d: 150 mm | D: 225 mm | B: 56 mm | C: 510 kN | C0: 750 kN | Limiting speed: 3200 r/min
23130 CC/W33 d: 150 mm | D: 250 mm | B: 80 mm | C: 830 kN | C0: 1200 kN | Limiting speed: 2600 r/min
23130 CCK/W33 d: 150 mm | D: 250 mm | B: 80 mm | C: 830 kN | C0: 1200 kN | Limiting speed: 2600 r/min
23230 CC/W33 d: 150 mm | D: 270 mm | B: 96 mm | C: 1080 kN | C0: 1460 kN | Limiting speed: 2200 r/min
23230 CCK/W33 d: 150 mm | D: 270 mm | B: 96 mm | C: 1080 kN | C0: 1460 kN | Limiting speed: 2200 r/min
23032 CC/W33 d: 160 mm | D: 240 mm | B: 60 mm | C: 585 kN | C0: 880 kN | Limiting speed: 3000 r/min
23032 CCK/W33 d: 160 mm | D: 240 mm | B: 60 mm | C: 585 kN | C0: 880 kN | Limiting speed: 3000 r/min
23132 CC/W33 d: 160 mm | D: 270 mm | B: 86 mm | C: 980 kN | C0: 1370 kN | Limiting speed: 2400 r/min
23132 CCK/W33 d: 160 mm | D: 270 mm | B: 86 mm | C: 980 kN | C0: 1370 kN | Limiting speed: 2400 r/min
23232 CC/W33 d: 160 mm | D: 290 mm | B: 104 mm | C: 1220 kN | C0: 1660 kN | Limiting speed: 2200 r/min
23232 CCK/W33 d: 160 mm | D: 290 mm | B: 104 mm | C: 1220 kN | C0: 1660 kN | Limiting speed: 2200 r/min
23034 CC/W33 d: 170 mm | D: 260 mm | B: 67 mm | C: 710 kN | C0: 1060 kN | Limiting speed: 2800 r/min
23034 CCK/W33 d: 170 mm | D: 260 mm | B: 67 mm | C: 710 kN | C0: 1060 kN | Limiting speed: 2800 r/min
23134 CC/W33 d: 170 mm | D: 280 mm | B: 88 mm | C: 1040 kN | C0: 1500 kN | Limiting speed: 2400 r/min
23134 CCK/W33 d: 170 mm | D: 280 mm | B: 88 mm | C: 1040 kN | C0: 1500 kN | Limiting speed: 2400 r/min
23234 CC/W33 d: 170 mm | D: 310 mm | B: 110 mm | C: 1400 kN | C0: 1930 kN | Limiting speed: 2000 r/min
23234 CCK/W33 d: 170 mm | D: 310 mm | B: 110 mm | C: 1400 kN | C0: 1930 kN | Limiting speed: 2000 r/min
23036 CC/W33 d: 180 mm | D: 280 mm | B: 74 mm | C: 830 kN | C0: 1250 kN | Limiting speed: 2600 r/min
23036 CCK/W33 d: 180 mm | D: 280 mm | B: 74 mm | C: 830 kN | C0: 1250 kN | Limiting speed: 2600 r/min
23136 CC/W33 d: 180 mm | D: 300 mm | B: 96 mm | C: 1200 kN | C0: 1760 kN | Limiting speed: 2200 r/min
23136 CCK/W33 d: 180 mm | D: 300 mm | B: 96 mm | C: 1200 kN | C0: 1760 kN | Limiting speed: 2200 r/min
23236 CC/W33 d: 180 mm | D: 320 mm | B: 112 mm | C: 1500 kN | C0: 2120 kN | Limiting speed: 1900 r/min
23236 CCK/W33 d: 180 mm | D: 320 mm | B: 112 mm | C: 1500 kN | C0: 2120 kN | Limiting speed: 1900 r/min
23038 CC/W33 d: 190 mm | D: 290 mm | B: 75 mm | C: 865 kN | C0: 1340 kN | Limiting speed: 2400 r/min
23038 CCK/W33 d: 190 mm | D: 290 mm | B: 75 mm | C: 865 kN | C0: 1340 kN | Limiting speed: 2400 r/min
23138 CC/W33 d: 190 mm | D: 320 mm | B: 104 mm | C: 1370 kN | C0: 2080 kN | Limiting speed: 2000 r/min
23138 CCK/W33 d: 190 mm | D: 320 mm | B: 104 mm | C: 1370 kN | C0: 2080 kN | Limiting speed: 2000 r/min
23238 CC/W33 d: 190 mm | D: 340 mm | B: 120 mm | C: 1660 kN | C0: 2400 kN | Limiting speed: 1800 r/min
23238 CCK/W33 d: 190 mm | D: 340 mm | B: 120 mm | C: 1660 kN | C0: 2400 kN | Limiting speed: 1800 r/min
23040 CC/W33 d: 200 mm | D: 310 mm | B: 82 mm | C: 1000 kN | C0: 1530 kN | Limiting speed: 2200 r/min
23040 CCK/W33 d: 200 mm | D: 310 mm | B: 82 mm | C: 1000 kN | C0: 1530 kN | Limiting speed: 2200 r/min
23140 CC/W33 d: 200 mm | D: 340 mm | B: 112 mm | C: 1600 kN | C0: 2360 kN | Limiting speed: 1900 r/min
23140 CCK/W33 d: 200 mm | D: 340 mm | B: 112 mm | C: 1600 kN | C0: 2360 kN | Limiting speed: 1900 r/min
23240 CC/W33 d: 200 mm | D: 360 mm | B: 128 mm | C: 1860 kN | C0: 2700 kN | Limiting speed: 1700 r/min
23240 CCK/W33 d: 200 mm | D: 360 mm | B: 128 mm | C: 1860 kN | C0: 2700 kN | Limiting speed: 1700 r/min
23044 CC/W33 d: 220 mm | D: 340 mm | B: 90 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 2000 r/min
23044 CCK/W33 d: 220 mm | D: 340 mm | B: 90 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 2000 r/min
23144 CC/W33 d: 220 mm | D: 370 mm | B: 120 mm | C: 1800 kN | C0: 2750 kN | Limiting speed: 1700 r/min
23144 CCK/W33 d: 220 mm | D: 370 mm | B: 120 mm | C: 1800 kN | C0: 2750 kN | Limiting speed: 1700 r/min
23244 CC/W33 d: 220 mm | D: 400 mm | B: 144 mm | C: 2360 kN | C0: 3450 kN | Limiting speed: 1500 r/min
23244 CCK/W33 d: 220 mm | D: 400 mm | B: 144 mm | C: 2360 kN | C0: 3450 kN | Limiting speed: 1500 r/min
23048 CC/W33 d: 240 mm | D: 360 mm | B: 92 mm | C: 1290 kN | C0: 2080 kN | Limiting speed: 1900 r/min
23048 CCK/W33 d: 240 mm | D: 360 mm | B: 92 mm | C: 1290 kN | C0: 2080 kN | Limiting speed: 1900 r/min
23148 CC/W33 d: 240 mm | D: 400 mm | B: 128 mm | C: 2080 kN | C0: 3200 kN | Limiting speed: 1600 r/min
23148 CCK/W33 d: 240 mm | D: 400 mm | B: 128 mm | C: 2080 kN | C0: 3200 kN | Limiting speed: 1600 r/min
23248 CC/W33 d: 240 mm | D: 440 mm | B: 160 mm | C: 2900 kN | C0: 4300 kN | Limiting speed: 1300 r/min
23248 CCK/W33 d: 240 mm | D: 440 mm | B: 160 mm | C: 2900 kN | C0: 4300 kN | Limiting speed: 1300 r/min
23052 CC/W33 d: 260 mm | D: 400 mm | B: 104 mm | C: 1600 kN | C0: 2550 kN | Limiting speed: 1700 r/min
23052 CCK/W33 d: 260 mm | D: 400 mm | B: 104 mm | C: 1600 kN | C0: 2550 kN | Limiting speed: 1700 r/min
23152 CC/W33 d: 260 mm | D: 440 mm | B: 144 mm | C: 2550 kN | C0: 3900 kN | Limiting speed: 1400 r/min
23152 CCK/W33 d: 260 mm | D: 440 mm | B: 144 mm | C: 2550 kN | C0: 3900 kN | Limiting speed: 1400 r/min
23252 CC/W33 d: 260 mm | D: 480 mm | B: 174 mm | C: 3250 kN | C0: 4750 kN | Limiting speed: 1200 r/min
23252 CCK/W33 d: 260 mm | D: 480 mm | B: 174 mm | C: 3250 kN | C0: 4750 kN | Limiting speed: 1200 r/min
23056 CC/W33 d: 280 mm | D: 420 mm | B: 106 mm | C: 1730 kN | C0: 2850 kN | Limiting speed: 1600 r/min
23056 CCK/W33 d: 280 mm | D: 420 mm | B: 106 mm | C: 1730 kN | C0: 2850 kN | Limiting speed: 1600 r/min
23156 CC/W33 d: 280 mm | D: 460 mm | B: 146 mm | C: 2650 kN | C0: 4250 kN | Limiting speed: 1300 r/min
23156 CCK/W33 d: 280 mm | D: 460 mm | B: 146 mm | C: 2650 kN | C0: 4250 kN | Limiting speed: 1300 r/min
23256 CC/W33 d: 280 mm | D: 500 mm | B: 176 mm | C: 3250 kN | C0: 4900 kN | Limiting speed: 1100 r/min
23256 CCK/W33 d: 280 mm | D: 500 mm | B: 176 mm | C: 3250 kN | C0: 4900 kN | Limiting speed: 1100 r/min
23060 CC/W33 d: 300 mm | D: 460 mm | B: 118 mm | C: 2120 kN | C0: 3450 kN | Limiting speed: 1500 r/min
23060 CCK/W33 d: 300 mm | D: 460 mm | B: 118 mm | C: 2120 kN | C0: 3450 kN | Limiting speed: 1500 r/min
23160 CC/W33 d: 300 mm | D: 500 mm | B: 160 mm | C: 3200 kN | C0: 5100 kN | Limiting speed: 1200 r/min
23160 CCK/W33 d: 300 mm | D: 500 mm | B: 160 mm | C: 3200 kN | C0: 5100 kN | Limiting speed: 1200 r/min
23260 CC/W33 d: 300 mm | D: 540 mm | B: 192 mm | C: 3900 kN | C0: 5850 kN | Limiting speed: 1000 r/min
23260 CCK/W33 d: 300 mm | D: 540 mm | B: 192 mm | C: 3900 kN | C0: 5850 kN | Limiting speed: 1000 r/min
23064 CC/W33 d: 320 mm | D: 480 mm | B: 121 mm | C: 2240 kN | C0: 3800 kN | Limiting speed: 1400 r/min
23064 CCK/W33 d: 320 mm | D: 480 mm | B: 121 mm | C: 2240 kN | C0: 3800 kN | Limiting speed: 1400 r/min
23164 CC/W33 d: 320 mm | D: 540 mm | B: 176 mm | C: 3750 kN | C0: 6000 kN | Limiting speed: 1100 r/min
23164 CCK/W33 d: 320 mm | D: 540 mm | B: 176 mm | C: 3750 kN | C0: 6000 kN | Limiting speed: 1100 r/min
23264 CC/W33 d: 320 mm | D: 580 mm | B: 208 mm | C: 4400 kN | C0: 6700 kN | Limiting speed: 950 r/min
23264 CCK/W33 d: 320 mm | D: 580 mm | B: 208 mm | C: 4400 kN | C0: 6700 kN | Limiting speed: 950 r/min
23068 CC/W33 d: 340 mm | D: 520 mm | B: 133 mm | C: 2700 kN | C0: 4550 kN | Limiting speed: 1300 r/min
23068 CCK/W33 d: 340 mm | D: 520 mm | B: 133 mm | C: 2700 kN | C0: 4550 kN | Limiting speed: 1300 r/min
23168 CC/W33 d: 340 mm | D: 580 mm | B: 190 mm | C: 4250 kN | C0: 6800 kN | Limiting speed: 1000 r/min
23168 CCK/W33 d: 340 mm | D: 580 mm | B: 190 mm | C: 4250 kN | C0: 6800 kN | Limiting speed: 1000 r/min
23268 CA/W33 d: 340 mm | D: 620 mm | B: 224 mm | C: 5100 kN | C0: 7800 kN | Limiting speed: 800 r/min
23268 CAK/W33 d: 340 mm | D: 620 mm | B: 224 mm | C: 5100 kN | C0: 7800 kN | Limiting speed: 800 r/min
23072 CC/W33 d: 360 mm | D: 540 mm | B: 134 mm | C: 2750 kN | C0: 4800 kN | Limiting speed: 1200 r/min
23072 CCK/W33 d: 360 mm | D: 540 mm | B: 134 mm | C: 2750 kN | C0: 4800 kN | Limiting speed: 1200 r/min
23172 CC/W33 d: 360 mm | D: 600 mm | B: 192 mm | C: 4300 kN | C0: 6950 kN | Limiting speed: 1000 r/min
23172 CCK/W33 d: 360 mm | D: 600 mm | B: 192 mm | C: 4300 kN | C0: 6950 kN | Limiting speed: 1000 r/min
23272 CA/W33 d: 360 mm | D: 650 mm | B: 232 mm | C: 5400 kN | C0: 8300 kN | Limiting speed: 750 r/min
23272 CAK/W33 d: 360 mm | D: 650 mm | B: 232 mm | C: 5400 kN | C0: 8300 kN | Limiting speed: 750 r/min
23076 CC/W33 d: 380 mm | D: 560 mm | B: 135 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1200 r/min
23076 CCK/W33 d: 380 mm | D: 560 mm | B: 135 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1200 r/min
23176 CA/W33 d: 380 mm | D: 620 mm | B: 194 mm | C: 4400 kN | C0: 7100 kN | Limiting speed: 1000 r/min
23176 CAK/W33 d: 380 mm | D: 620 mm | B: 194 mm | C: 4400 kN | C0: 7100 kN | Limiting speed: 1000 r/min
23276 CA/W33 d: 380 mm | D: 680 mm | B: 240 mm | C: 5850 kN | C0: 9150 kN | Limiting speed: 750 r/min
23276 CAK/W33 d: 380 mm | D: 680 mm | B: 240 mm | C: 5850 kN | C0: 9150 kN | Limiting speed: 750 r/min
23080 CC/W33 d: 400 mm | D: 600 mm | B: 148 mm | C: 3250 kN | C0: 5700 kN | Limiting speed: 1100 r/min
23080 CCK/W33 d: 400 mm | D: 600 mm | B: 148 mm | C: 3250 kN | C0: 5700 kN | Limiting speed: 1100 r/min
23180 CA/W33 d: 400 mm | D: 650 mm | B: 200 mm | C: 4650 kN | C0: 7650 kN | Limiting speed: 950 r/min
23180 CAK/W33 d: 400 mm | D: 650 mm | B: 200 mm | C: 4650 kN | C0: 7650 kN | Limiting speed: 950 r/min
23280 CA/W33 d: 400 mm | D: 720 mm | B: 256 mm | C: 6550 kN | C0: 10400 kN | Limiting speed: 670 r/min
23280 CAK/W33 d: 400 mm | D: 720 mm | B: 256 mm | C: 6550 kN | C0: 10400 kN | Limiting speed: 670 r/min
23084 CA/W33 d: 420 mm | D: 620 mm | B: 150 mm | C: 3400 kN | C0: 6000 kN | Limiting speed: 1100 r/min
23084 CAK/W33 d: 420 mm | D: 620 mm | B: 150 mm | C: 3400 kN | C0: 6000 kN | Limiting speed: 1100 r/min
23184 CJ/W33 d: 420 mm | D: 700 mm | B: 224 mm | C: 5600 kN | C0: 9300 kN | Limiting speed: 900 r/min
23184 CKJ/W33 d: 420 mm | D: 700 mm | B: 224 mm | C: 5600 kN | C0: 9300 kN | Limiting speed: 900 r/min
23284 CA/W33 d: 420 mm | D: 760 mm | B: 272 mm | C: 7350 kN | C0: 11600 kN | Limiting speed: 630 r/min
23284 CAK/W33 d: 420 mm | D: 760 mm | B: 272 mm | C: 7350 kN | C0: 11600 kN | Limiting speed: 630 r/min
23088 CA/W33 d: 440 mm | D: 650 mm | B: 157 mm | C: 3650 kN | C0: 6550 kN | Limiting speed: 1000 r/min
23088 CAK/W33 d: 440 mm | D: 650 mm | B: 157 mm | C: 3650 kN | C0: 6550 kN | Limiting speed: 1000 r/min
23188 CA/W33 d: 440 mm | D: 720 mm | B: 226 mm | C: 6000 kN | C0: 10000 kN | Limiting speed: 850 r/min
23188 CAK/W33 d: 440 mm | D: 720 mm | B: 226 mm | C: 6000 kN | C0: 10000 kN | Limiting speed: 850 r/min
23288 CA/W33 d: 440 mm | D: 790 mm | B: 280 mm | C: 7800 kN | C0: 12500 kN | Limiting speed: 600 r/min
23288 CAK/W33 d: 440 mm | D: 790 mm | B: 280 mm | C: 7800 kN | C0: 12500 kN | Limiting speed: 600 r/min
23092 CA/W33 d: 460 mm | D: 680 mm | B: 163 mm | C: 3900 kN | C0: 6950 kN | Limiting speed: 950 r/min
23092 CAK/W33 d: 460 mm | D: 680 mm | B: 163 mm | C: 3900 kN | C0: 6950 kN | Limiting speed: 950 r/min
23192 CA/W33 d: 460 mm | D: 760 mm | B: 240 mm | C: 6400 kN | C0: 10800 kN | Limiting speed: 800 r/min
23192 CAK/W33 d: 460 mm | D: 760 mm | B: 240 mm | C: 6400 kN | C0: 10800 kN | Limiting speed: 800 r/min
23292 CA/W33 d: 460 mm | D: 830 mm | B: 296 mm | C: 8500 kN | C0: 13700 kN | Limiting speed: 560 r/min
23292 CAK/W33 d: 460 mm | D: 830 mm | B: 296 mm | C: 8500 kN | C0: 13700 kN | Limiting speed: 560 r/min
23096 CA/W33 d: 480 mm | D: 700 mm | B: 165 mm | C: 3900 kN | C0: 6800 kN | Limiting speed: 950 r/min
23096 CAK/W33 d: 480 mm | D: 700 mm | B: 165 mm | C: 3900 kN | C0: 6800 kN | Limiting speed: 950 r/min
23196 CA/W33 d: 480 mm | D: 790 mm | B: 248 mm | C: 6950 kN | C0: 12000 kN | Limiting speed: 750 r/min
23196 CAK/W33 d: 480 mm | D: 790 mm | B: 248 mm | C: 6950 kN | C0: 12000 kN | Limiting speed: 750 r/min
23296 CA/W33 d: 480 mm | D: 870 mm | B: 310 mm | C: 9300 kN | C0: 15000 kN | Limiting speed: 530 r/min
23296 CAK/W33 d: 480 mm | D: 870 mm | B: 310 mm | C: 9300 kN | C0: 15000 kN | Limiting speed: 530 r/min
230/500 CA/W33 d: 500 mm | D: 720 mm | B: 167 mm | C: 4150 kN | C0: 7800 kN | Limiting speed: 900 r/min
230/500 CAK/W33 d: 500 mm | D: 720 mm | B: 167 mm | C: 4150 kN | C0: 7800 kN | Limiting speed: 900 r/min
231/500 CA/W33 d: 500 mm | D: 830 mm | B: 264 mm | C: 7650 kN | C0: 12900 kN | Limiting speed: 700 r/min
231/500 CAK/W33 d: 500 mm | D: 830 mm | B: 264 mm | C: 7650 kN | C0: 12900 kN | Limiting speed: 700 r/min
232/500 CA/W33 d: 500 mm | D: 920 mm | B: 336 mm | C: 10600 kN | C0: 17300 kN | Limiting speed: 500 r/min
232/500 CAK/W33 d: 500 mm | D: 920 mm | B: 336 mm | C: 10600 kN | C0: 17300 kN | Limiting speed: 500 r/min
230/530 CA/W33 d: 530 mm | D: 780 mm | B: 185 mm | C: 5100 kN | C0: 9300 kN | Limiting speed: 800 r/min
230/530 CAK/W33 d: 530 mm | D: 780 mm | B: 185 mm | C: 5100 kN | C0: 9300 kN | Limiting speed: 800 r/min
231/530 CA/W33 d: 530 mm | D: 870 mm | B: 272 mm | C: 8150 kN | C0: 14000 kN | Limiting speed: 670 r/min
231/530 CAK/W33 d: 530 mm | D: 870 mm | B: 272 mm | C: 8150 kN | C0: 14000 kN | Limiting speed: 670 r/min
232/530 CA/W33 d: 530 mm | D: 980 mm | B: 355 mm | C: 11100 kN | C0: 20400 kN | Limiting speed: 480 r/min
232/530 CAK/W33 d: 530 mm | D: 980 mm | B: 355 mm | C: 11100 kN | C0: 20400 kN | Limiting speed: 480 r/min
230/560 CA/W33 d: 560 mm | D: 820 mm | B: 195 mm | C: 5600 kN | C0: 10200 kN | Limiting speed: 750 r/min
230/560 CAK/W33 d: 560 mm | D: 820 mm | B: 195 mm | C: 5600 kN | C0: 10200 kN | Limiting speed: 750 r/min
231/560 CA/W33 d: 560 mm | D: 920 mm | B: 280 mm | C: 9150 kN | C0: 16000 kN | Limiting speed: 630 r/min
231/560 CAK/W33 d: 560 mm | D: 920 mm | B: 280 mm | C: 9150 kN | C0: 16000 kN | Limiting speed: 630 r/min
232/560 CA/W33 d: 560 mm | D: 1030 mm | B: 365 mm | C: 11500 kN | C0: 22000 kN | Limiting speed: 430 r/min
232/560 CAK/W33 d: 560 mm | D: 1030 mm | B: 365 mm | C: 11500 kN | C0: 22000 kN | Limiting speed: 430 r/min
230/600 CA/W33 d: 600 mm | D: 870 mm | B: 200 mm | C: 6000 kN | C0: 11400 kN | Limiting speed: 700 r/min
230/600 CAK/W33 d: 600 mm | D: 870 mm | B: 200 mm | C: 6000 kN | C0: 11400 kN | Limiting speed: 700 r/min
231/600 CA/W33 d: 600 mm | D: 980 mm | B: 300 mm | C: 10200 kN | C0: 18000 kN | Limiting speed: 560 r/min
231/600 CAK/W33 d: 600 mm | D: 980 mm | B: 300 mm | C: 10200 kN | C0: 18000 kN | Limiting speed: 560 r/min
232/600 CA/W33 d: 600 mm | D: 1090 mm | B: 388 mm | C: 13100 kN | C0: 25500 kN | Limiting speed: 400 r/min
232/600 CAK/W33 d: 600 mm | D: 1090 mm | B: 388 mm | C: 13100 kN | C0: 25500 kN | Limiting speed: 400 r/min
230/630 CA/W33 d: 630 mm | D: 920 mm | B: 212 mm | C: 6700 kN | C0: 12500 kN | Limiting speed: 670 r/min
230/630 CAK/W33 d: 630 mm | D: 920 mm | B: 212 mm | C: 6700 kN | C0: 12500 kN | Limiting speed: 670 r/min
231/630 CA/W33 d: 630 mm | D: 1030 mm | B: 315 mm | C: 10500 kN | C0: 20800 kN | Limiting speed: 530 r/min
231/630 CAK/W33 d: 630 mm | D: 1030 mm | B: 315 mm | C: 10500 kN | C0: 20800 kN | Limiting speed: 530 r/min
230/670 CA/W33 d: 670 mm | D: 980 mm | B: 230 mm | C: 7650 kN | C0: 14600 kN | Limiting speed: 600 r/min
230/670 CAK/W33 d: 670 mm | D: 980 mm | B: 230 mm | C: 7650 kN | C0: 14600 kN | Limiting speed: 600 r/min
231/670 CA/W33 d: 670 mm | D: 1090 mm | B: 336 mm | C: 10900 kN | C0: 22400 kN | Limiting speed: 500 r/min
231/670 CAK/W33 d: 670 mm | D: 1090 mm | B: 336 mm | C: 10900 kN | C0: 22400 kN | Limiting speed: 500 r/min
232/670 CA/W33 d: 670 mm | D: 1220 mm | B: 438 mm | C: 15400 kN | C0: 30500 kN | Limiting speed: 360 r/min
232/670 CAK/W33 d: 670 mm | D: 1220 mm | B: 438 mm | C: 15400 kN | C0: 30500 kN | Limiting speed: 360 r/min
230/710 CA/W33 d: 710 mm | D: 1030 mm | B: 236 mm | C: 8300 kN | C0: 16300 kN | Limiting speed: 560 r/min
230/710 CAK/W33 d: 710 mm | D: 1030 mm | B: 236 mm | C: 8300 kN | C0: 16300 kN | Limiting speed: 560 r/min
231/710 CA/W33 d: 710 mm | D: 1150 mm | B: 345 mm | C: 12200 kN | C0: 26000 kN | Limiting speed: 450 r/min
231/710 CAK/W33 d: 710 mm | D: 1150 mm | B: 345 mm | C: 12200 kN | C0: 26000 kN | Limiting speed: 450 r/min
232/710 CA/W33 d: 710 mm | D: 1280 mm | B: 450 mm | C: 17600 kN | C0: 34500 kN | Limiting speed: 320 r/min
232/710 CAK/W33 d: 710 mm | D: 1280 mm | B: 450 mm | C: 17600 kN | C0: 34500 kN | Limiting speed: 320 r/min
230/750 CA/W33 d: 750 mm | D: 1090 mm | B: 250 mm | C: 9650 kN | C0: 18600 kN | Limiting speed: 530 r/min
230/750 CAK/W33 d: 750 mm | D: 1090 mm | B: 250 mm | C: 9650 kN | C0: 18600 kN | Limiting speed: 530 r/min
231/750 CA/W33 d: 750 mm | D: 1220 mm | B: 365 mm | C: 13800 kN | C0: 29000 kN | Limiting speed: 430 r/min
231/750 CAK/W33 d: 750 mm | D: 1220 mm | B: 365 mm | C: 13800 kN | C0: 29000 kN | Limiting speed: 430 r/min
232/750 CAF/W33 d: 750 mm | D: 1360 mm | B: 475 mm | C: 18700 kN | C0: 36500 kN | Limiting speed: 300 r/min
232/750 CAKF/W33 d: 750 mm | D: 1360 mm | B: 475 mm | C: 18700 kN | C0: 36500 kN | Limiting speed: 300 r/min
230/800 CA/W33 d: 800 mm | D: 1150 mm | B: 258 mm | C: 10000 kN | C0: 20000 kN | Limiting speed: 480 r/min
230/800 CAK/W33 d: 800 mm | D: 1150 mm | B: 258 mm | C: 10000 kN | C0: 20000 kN | Limiting speed: 480 r/min
231/800 CA/W33 d: 800 mm | D: 1280 mm | B: 375 mm | C: 14800 kN | C0: 31500 kN | Limiting speed: 400 r/min
231/800 CAK/W33 d: 800 mm | D: 1280 mm | B: 375 mm | C: 14800 kN | C0: 31500 kN | Limiting speed: 400 r/min
230/850 CA/W33 d: 850 mm | D: 1220 mm | B: 272 mm | C: 9370 kN | C0: 21600 kN | Limiting speed: 450 r/min
230/850 CAK/W33 d: 850 mm | D: 1220 mm | B: 272 mm | C: 9370 kN | C0: 21600 kN | Limiting speed: 450 r/min
231/850 CA/W33 d: 850 mm | D: 1360 mm | B: 400 mm | C: 16100 kN | C0: 34500 kN | Limiting speed: 360 r/min
231/850 CAK/W33 d: 850 mm | D: 1360 mm | B: 400 mm | C: 16100 kN | C0: 34500 kN | Limiting speed: 360 r/min
230/900 CA/W33 d: 900 mm | D: 1280 mm | B: 280 mm | C: 10100 kN | C0: 23200 kN | Limiting speed: 400 r/min
230/900 CAK/W33 d: 900 mm | D: 1280 mm | B: 280 mm | C: 10100 kN | C0: 23200 kN | Limiting speed: 400 r/min
230/950 CA/W33 d: 950 mm | D: 1360 mm | B: 300 mm | C: 12000 kN | C0: 28500 kN | Limiting speed: 380 r/min
230/950 CAK/W33 d: 950 mm | D: 1360 mm | B: 300 mm | C: 12000 kN | C0: 28500 kN | Limiting speed: 380 r/min
230/1000 CAF/W33 d: 1000 mm | D: 1420 mm | B: 308 mm | C: 12700 kN | C0: 30500 kN | Limiting speed: 360 r/min
230/1000 CAKF/W33 d: 1000 mm | D: 1420 mm | B: 308 mm | C: 12700 kN | C0: 30500 kN | Limiting speed: 360 r/min
231/1000 CAF/W33 d: 1000 mm | D: 1580 mm | B: 462 mm | C: 21400 kN | C0: 48000 kN | Limiting speed: 280 r/min
231/1000 CAKF/W33 d: 1000 mm | D: 1580 mm | B: 462 mm | C: 21400 kN | C0: 48000 kN | Limiting speed: 280 r/min
230/1060 CAF/W33 d: 1060 mm | D: 1500 mm | B: 325 mm | C: 13800 kN | C0: 34000 kN | Limiting speed: 320 r/min
230/1060 CAKF/W33 d: 1060 mm | D: 1500 mm | B: 325 mm | C: 13800 kN | C0: 34000 kN | Limiting speed: 320 r/min
230/1250 CAF/W33 d: 1250 mm | D: 1750 mm | B: 375 mm | C: 17900 kN | C0: 45000 kN | Limiting speed: 240 r/min
230/1250 CAKF/W33 d: 1250 mm | D: 1750 mm | B: 375 mm | C: 17900 kN | C0: 45000 kN | Limiting speed: 240 r/min
Spherical Roller BearingsSKF
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 230, 231, 232 Series Spherical Roller Bearings

Brand SKF·Spherical Roller Bearings

Available part numbers (216)

23218 CC/W33, 23218 CCK/W33, 23120 CC/W33, 23120 CCK/W33, 23220 CC/W33, 23220 CCK/W33, 23022 CC/W33, 23022 CCK/W33, 23122 CC/W33, 23122 CCK/W33 + 206 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
23218 CC/W33d: 90 mm | D: 160 mm | B: 52.4 mm | C: 355 kN | C0: 440 kN | Limiting speed: 3800 r/min
23218 CCK/W33d: 90 mm | D: 160 mm | B: 52.4 mm | C: 355 kN | C0: 440 kN | Limiting speed: 3800 r/min
23120 CC/W33d: 100 mm | D: 165 mm | B: 52 mm | C: 365 kN | C0: 490 kN | Limiting speed: 4000 r/min
23120 CCK/W33d: 100 mm | D: 165 mm | B: 52 mm | C: 365 kN | C0: 490 kN | Limiting speed: 4000 r/min
23220 CC/W33d: 100 mm | D: 180 mm | B: 60.3 mm | C: 475 kN | C0: 600 kN | Limiting speed: 3400 r/min
23220 CCK/W33d: 100 mm | D: 180 mm | B: 60.3 mm | C: 475 kN | C0: 600 kN | Limiting speed: 3400 r/min
23022 CC/W33d: 110 mm | D: 170 mm | B: 45 mm | C: 310 kN | C0: 440 kN | Limiting speed: 4300 r/min
23022 CCK/W33d: 110 mm | D: 170 mm | B: 45 mm | C: 310 kN | C0: 440 kN | Limiting speed: 4300 r/min
23122 CC/W33d: 110 mm | D: 180 mm | B: 56 mm | C: 430 kN | C0: 585 kN | Limiting speed: 3600 r/min
23122 CCK/W33d: 110 mm | D: 180 mm | B: 56 mm | C: 430 kN | C0: 585 kN | Limiting speed: 3600 r/min
23222 CC/W33d: 110 mm | D: 200 mm | B: 69.8 mm | C: 600 kN | C0: 765 kN | Limiting speed: 3200 r/min
23222 CCK/W33d: 110 mm | D: 200 mm | B: 69.8 mm | C: 600 kN | C0: 765 kN | Limiting speed: 3200 r/min
23024 CC/W33d: 120 mm | D: 180 mm | B: 46 mm | C: 355 kN | C0: 510 kN | Limiting speed: 4000 r/min
23024 CCK/W33d: 120 mm | D: 180 mm | B: 46 mm | C: 355 kN | C0: 510 kN | Limiting speed: 4000 r/min
23124 CC/W33d: 120 mm | D: 200 mm | B: 62 mm | C: 510 kN | C0: 695 kN | Limiting speed: 3400 r/min
23124 CCK/W33d: 120 mm | D: 200 mm | B: 62 mm | C: 510 kN | C0: 695 kN | Limiting speed: 3400 r/min
23224 CC/W33d: 120 mm | D: 215 mm | B: 76 mm | C: 695 kN | C0: 930 kN | Limiting speed: 2800 r/min
23224 CCK/W33d: 120 mm | D: 215 mm | B: 76 mm | C: 695 kN | C0: 930 kN | Limiting speed: 2800 r/min
23026 CC/W33d: 130 mm | D: 200 mm | B: 52 mm | C: 430 kN | C0: 610 kN | Limiting speed: 3600 r/min
23026 CCK/W33d: 130 mm | D: 200 mm | B: 52 mm | C: 430 kN | C0: 610 kN | Limiting speed: 3600 r/min
23126 CC/W33d: 130 mm | D: 210 mm | B: 64 mm | C: 560 kN | C0: 780 kN | Limiting speed: 3200 r/min
23126 CCK/W33d: 130 mm | D: 210 mm | B: 64 mm | C: 560 kN | C0: 780 kN | Limiting speed: 3200 r/min
23226 CC/W33d: 130 mm | D: 230 mm | B: 80 mm | C: 780 kN | C0: 1060 kN | Limiting speed: 2600 r/min
23226 CCK/W33d: 130 mm | D: 230 mm | B: 80 mm | C: 780 kN | C0: 1060 kN | Limiting speed: 2600 r/min
23028 CC/W33d: 140 mm | D: 210 mm | B: 53 mm | C: 465 kN | C0: 680 kN | Limiting speed: 3400 r/min
23028 CCK/W33d: 140 mm | D: 210 mm | B: 53 mm | C: 465 kN | C0: 680 kN | Limiting speed: 3400 r/min
23128 CC/W33d: 140 mm | D: 225 mm | B: 68 mm | C: 630 kN | C0: 900 kN | Limiting speed: 2800 r/min
23128 CCK/W33d: 140 mm | D: 225 mm | B: 68 mm | C: 630 kN | C0: 900 kN | Limiting speed: 2800 r/min
23228 CC/W33d: 140 mm | D: 250 mm | B: 88 mm | C: 915 kN | C0: 1250 kN | Limiting speed: 2400 r/min
23228 CCK/W33d: 140 mm | D: 250 mm | B: 88 mm | C: 915 kN | C0: 1250 kN | Limiting speed: 2400 r/min
23030 CC/W33d: 150 mm | D: 225 mm | B: 56 mm | C: 510 kN | C0: 750 kN | Limiting speed: 3200 r/min
23030 CCK/W33d: 150 mm | D: 225 mm | B: 56 mm | C: 510 kN | C0: 750 kN | Limiting speed: 3200 r/min
23130 CC/W33d: 150 mm | D: 250 mm | B: 80 mm | C: 830 kN | C0: 1200 kN | Limiting speed: 2600 r/min
23130 CCK/W33d: 150 mm | D: 250 mm | B: 80 mm | C: 830 kN | C0: 1200 kN | Limiting speed: 2600 r/min
23230 CC/W33d: 150 mm | D: 270 mm | B: 96 mm | C: 1080 kN | C0: 1460 kN | Limiting speed: 2200 r/min
23230 CCK/W33d: 150 mm | D: 270 mm | B: 96 mm | C: 1080 kN | C0: 1460 kN | Limiting speed: 2200 r/min
23032 CC/W33d: 160 mm | D: 240 mm | B: 60 mm | C: 585 kN | C0: 880 kN | Limiting speed: 3000 r/min
23032 CCK/W33d: 160 mm | D: 240 mm | B: 60 mm | C: 585 kN | C0: 880 kN | Limiting speed: 3000 r/min
23132 CC/W33d: 160 mm | D: 270 mm | B: 86 mm | C: 980 kN | C0: 1370 kN | Limiting speed: 2400 r/min
23132 CCK/W33d: 160 mm | D: 270 mm | B: 86 mm | C: 980 kN | C0: 1370 kN | Limiting speed: 2400 r/min
23232 CC/W33d: 160 mm | D: 290 mm | B: 104 mm | C: 1220 kN | C0: 1660 kN | Limiting speed: 2200 r/min
23232 CCK/W33d: 160 mm | D: 290 mm | B: 104 mm | C: 1220 kN | C0: 1660 kN | Limiting speed: 2200 r/min
23034 CC/W33d: 170 mm | D: 260 mm | B: 67 mm | C: 710 kN | C0: 1060 kN | Limiting speed: 2800 r/min
23034 CCK/W33d: 170 mm | D: 260 mm | B: 67 mm | C: 710 kN | C0: 1060 kN | Limiting speed: 2800 r/min
23134 CC/W33d: 170 mm | D: 280 mm | B: 88 mm | C: 1040 kN | C0: 1500 kN | Limiting speed: 2400 r/min
23134 CCK/W33d: 170 mm | D: 280 mm | B: 88 mm | C: 1040 kN | C0: 1500 kN | Limiting speed: 2400 r/min
23234 CC/W33d: 170 mm | D: 310 mm | B: 110 mm | C: 1400 kN | C0: 1930 kN | Limiting speed: 2000 r/min
23234 CCK/W33d: 170 mm | D: 310 mm | B: 110 mm | C: 1400 kN | C0: 1930 kN | Limiting speed: 2000 r/min
23036 CC/W33d: 180 mm | D: 280 mm | B: 74 mm | C: 830 kN | C0: 1250 kN | Limiting speed: 2600 r/min
23036 CCK/W33d: 180 mm | D: 280 mm | B: 74 mm | C: 830 kN | C0: 1250 kN | Limiting speed: 2600 r/min
23136 CC/W33d: 180 mm | D: 300 mm | B: 96 mm | C: 1200 kN | C0: 1760 kN | Limiting speed: 2200 r/min
23136 CCK/W33d: 180 mm | D: 300 mm | B: 96 mm | C: 1200 kN | C0: 1760 kN | Limiting speed: 2200 r/min
23236 CC/W33d: 180 mm | D: 320 mm | B: 112 mm | C: 1500 kN | C0: 2120 kN | Limiting speed: 1900 r/min
23236 CCK/W33d: 180 mm | D: 320 mm | B: 112 mm | C: 1500 kN | C0: 2120 kN | Limiting speed: 1900 r/min
23038 CC/W33d: 190 mm | D: 290 mm | B: 75 mm | C: 865 kN | C0: 1340 kN | Limiting speed: 2400 r/min
23038 CCK/W33d: 190 mm | D: 290 mm | B: 75 mm | C: 865 kN | C0: 1340 kN | Limiting speed: 2400 r/min
23138 CC/W33d: 190 mm | D: 320 mm | B: 104 mm | C: 1370 kN | C0: 2080 kN | Limiting speed: 2000 r/min
23138 CCK/W33d: 190 mm | D: 320 mm | B: 104 mm | C: 1370 kN | C0: 2080 kN | Limiting speed: 2000 r/min
23238 CC/W33d: 190 mm | D: 340 mm | B: 120 mm | C: 1660 kN | C0: 2400 kN | Limiting speed: 1800 r/min
23238 CCK/W33d: 190 mm | D: 340 mm | B: 120 mm | C: 1660 kN | C0: 2400 kN | Limiting speed: 1800 r/min
23040 CC/W33d: 200 mm | D: 310 mm | B: 82 mm | C: 1000 kN | C0: 1530 kN | Limiting speed: 2200 r/min
23040 CCK/W33d: 200 mm | D: 310 mm | B: 82 mm | C: 1000 kN | C0: 1530 kN | Limiting speed: 2200 r/min
23140 CC/W33d: 200 mm | D: 340 mm | B: 112 mm | C: 1600 kN | C0: 2360 kN | Limiting speed: 1900 r/min
23140 CCK/W33d: 200 mm | D: 340 mm | B: 112 mm | C: 1600 kN | C0: 2360 kN | Limiting speed: 1900 r/min
23240 CC/W33d: 200 mm | D: 360 mm | B: 128 mm | C: 1860 kN | C0: 2700 kN | Limiting speed: 1700 r/min
23240 CCK/W33d: 200 mm | D: 360 mm | B: 128 mm | C: 1860 kN | C0: 2700 kN | Limiting speed: 1700 r/min
23044 CC/W33d: 220 mm | D: 340 mm | B: 90 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 2000 r/min
23044 CCK/W33d: 220 mm | D: 340 mm | B: 90 mm | C: 1220 kN | C0: 1860 kN | Limiting speed: 2000 r/min
23144 CC/W33d: 220 mm | D: 370 mm | B: 120 mm | C: 1800 kN | C0: 2750 kN | Limiting speed: 1700 r/min
23144 CCK/W33d: 220 mm | D: 370 mm | B: 120 mm | C: 1800 kN | C0: 2750 kN | Limiting speed: 1700 r/min
23244 CC/W33d: 220 mm | D: 400 mm | B: 144 mm | C: 2360 kN | C0: 3450 kN | Limiting speed: 1500 r/min
23244 CCK/W33d: 220 mm | D: 400 mm | B: 144 mm | C: 2360 kN | C0: 3450 kN | Limiting speed: 1500 r/min
23048 CC/W33d: 240 mm | D: 360 mm | B: 92 mm | C: 1290 kN | C0: 2080 kN | Limiting speed: 1900 r/min
23048 CCK/W33d: 240 mm | D: 360 mm | B: 92 mm | C: 1290 kN | C0: 2080 kN | Limiting speed: 1900 r/min
23148 CC/W33d: 240 mm | D: 400 mm | B: 128 mm | C: 2080 kN | C0: 3200 kN | Limiting speed: 1600 r/min
23148 CCK/W33d: 240 mm | D: 400 mm | B: 128 mm | C: 2080 kN | C0: 3200 kN | Limiting speed: 1600 r/min
23248 CC/W33d: 240 mm | D: 440 mm | B: 160 mm | C: 2900 kN | C0: 4300 kN | Limiting speed: 1300 r/min
23248 CCK/W33d: 240 mm | D: 440 mm | B: 160 mm | C: 2900 kN | C0: 4300 kN | Limiting speed: 1300 r/min
23052 CC/W33d: 260 mm | D: 400 mm | B: 104 mm | C: 1600 kN | C0: 2550 kN | Limiting speed: 1700 r/min
23052 CCK/W33d: 260 mm | D: 400 mm | B: 104 mm | C: 1600 kN | C0: 2550 kN | Limiting speed: 1700 r/min
23152 CC/W33d: 260 mm | D: 440 mm | B: 144 mm | C: 2550 kN | C0: 3900 kN | Limiting speed: 1400 r/min
23152 CCK/W33d: 260 mm | D: 440 mm | B: 144 mm | C: 2550 kN | C0: 3900 kN | Limiting speed: 1400 r/min
23252 CC/W33d: 260 mm | D: 480 mm | B: 174 mm | C: 3250 kN | C0: 4750 kN | Limiting speed: 1200 r/min
23252 CCK/W33d: 260 mm | D: 480 mm | B: 174 mm | C: 3250 kN | C0: 4750 kN | Limiting speed: 1200 r/min
23056 CC/W33d: 280 mm | D: 420 mm | B: 106 mm | C: 1730 kN | C0: 2850 kN | Limiting speed: 1600 r/min
23056 CCK/W33d: 280 mm | D: 420 mm | B: 106 mm | C: 1730 kN | C0: 2850 kN | Limiting speed: 1600 r/min
23156 CC/W33d: 280 mm | D: 460 mm | B: 146 mm | C: 2650 kN | C0: 4250 kN | Limiting speed: 1300 r/min
23156 CCK/W33d: 280 mm | D: 460 mm | B: 146 mm | C: 2650 kN | C0: 4250 kN | Limiting speed: 1300 r/min
23256 CC/W33d: 280 mm | D: 500 mm | B: 176 mm | C: 3250 kN | C0: 4900 kN | Limiting speed: 1100 r/min
23256 CCK/W33d: 280 mm | D: 500 mm | B: 176 mm | C: 3250 kN | C0: 4900 kN | Limiting speed: 1100 r/min
23060 CC/W33d: 300 mm | D: 460 mm | B: 118 mm | C: 2120 kN | C0: 3450 kN | Limiting speed: 1500 r/min
23060 CCK/W33d: 300 mm | D: 460 mm | B: 118 mm | C: 2120 kN | C0: 3450 kN | Limiting speed: 1500 r/min
23160 CC/W33d: 300 mm | D: 500 mm | B: 160 mm | C: 3200 kN | C0: 5100 kN | Limiting speed: 1200 r/min
23160 CCK/W33d: 300 mm | D: 500 mm | B: 160 mm | C: 3200 kN | C0: 5100 kN | Limiting speed: 1200 r/min
23260 CC/W33d: 300 mm | D: 540 mm | B: 192 mm | C: 3900 kN | C0: 5850 kN | Limiting speed: 1000 r/min
23260 CCK/W33d: 300 mm | D: 540 mm | B: 192 mm | C: 3900 kN | C0: 5850 kN | Limiting speed: 1000 r/min
23064 CC/W33d: 320 mm | D: 480 mm | B: 121 mm | C: 2240 kN | C0: 3800 kN | Limiting speed: 1400 r/min
23064 CCK/W33d: 320 mm | D: 480 mm | B: 121 mm | C: 2240 kN | C0: 3800 kN | Limiting speed: 1400 r/min
23164 CC/W33d: 320 mm | D: 540 mm | B: 176 mm | C: 3750 kN | C0: 6000 kN | Limiting speed: 1100 r/min
23164 CCK/W33d: 320 mm | D: 540 mm | B: 176 mm | C: 3750 kN | C0: 6000 kN | Limiting speed: 1100 r/min
23264 CC/W33d: 320 mm | D: 580 mm | B: 208 mm | C: 4400 kN | C0: 6700 kN | Limiting speed: 950 r/min
23264 CCK/W33d: 320 mm | D: 580 mm | B: 208 mm | C: 4400 kN | C0: 6700 kN | Limiting speed: 950 r/min
23068 CC/W33d: 340 mm | D: 520 mm | B: 133 mm | C: 2700 kN | C0: 4550 kN | Limiting speed: 1300 r/min
23068 CCK/W33d: 340 mm | D: 520 mm | B: 133 mm | C: 2700 kN | C0: 4550 kN | Limiting speed: 1300 r/min
23168 CC/W33d: 340 mm | D: 580 mm | B: 190 mm | C: 4250 kN | C0: 6800 kN | Limiting speed: 1000 r/min
23168 CCK/W33d: 340 mm | D: 580 mm | B: 190 mm | C: 4250 kN | C0: 6800 kN | Limiting speed: 1000 r/min
23268 CA/W33d: 340 mm | D: 620 mm | B: 224 mm | C: 5100 kN | C0: 7800 kN | Limiting speed: 800 r/min
23268 CAK/W33d: 340 mm | D: 620 mm | B: 224 mm | C: 5100 kN | C0: 7800 kN | Limiting speed: 800 r/min
23072 CC/W33d: 360 mm | D: 540 mm | B: 134 mm | C: 2750 kN | C0: 4800 kN | Limiting speed: 1200 r/min
23072 CCK/W33d: 360 mm | D: 540 mm | B: 134 mm | C: 2750 kN | C0: 4800 kN | Limiting speed: 1200 r/min
23172 CC/W33d: 360 mm | D: 600 mm | B: 192 mm | C: 4300 kN | C0: 6950 kN | Limiting speed: 1000 r/min
23172 CCK/W33d: 360 mm | D: 600 mm | B: 192 mm | C: 4300 kN | C0: 6950 kN | Limiting speed: 1000 r/min
23272 CA/W33d: 360 mm | D: 650 mm | B: 232 mm | C: 5400 kN | C0: 8300 kN | Limiting speed: 750 r/min
23272 CAK/W33d: 360 mm | D: 650 mm | B: 232 mm | C: 5400 kN | C0: 8300 kN | Limiting speed: 750 r/min
23076 CC/W33d: 380 mm | D: 560 mm | B: 135 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1200 r/min
23076 CCK/W33d: 380 mm | D: 560 mm | B: 135 mm | C: 2900 kN | C0: 5000 kN | Limiting speed: 1200 r/min
23176 CA/W33d: 380 mm | D: 620 mm | B: 194 mm | C: 4400 kN | C0: 7100 kN | Limiting speed: 1000 r/min
23176 CAK/W33d: 380 mm | D: 620 mm | B: 194 mm | C: 4400 kN | C0: 7100 kN | Limiting speed: 1000 r/min
23276 CA/W33d: 380 mm | D: 680 mm | B: 240 mm | C: 5850 kN | C0: 9150 kN | Limiting speed: 750 r/min
23276 CAK/W33d: 380 mm | D: 680 mm | B: 240 mm | C: 5850 kN | C0: 9150 kN | Limiting speed: 750 r/min
23080 CC/W33d: 400 mm | D: 600 mm | B: 148 mm | C: 3250 kN | C0: 5700 kN | Limiting speed: 1100 r/min
23080 CCK/W33d: 400 mm | D: 600 mm | B: 148 mm | C: 3250 kN | C0: 5700 kN | Limiting speed: 1100 r/min
23180 CA/W33d: 400 mm | D: 650 mm | B: 200 mm | C: 4650 kN | C0: 7650 kN | Limiting speed: 950 r/min
23180 CAK/W33d: 400 mm | D: 650 mm | B: 200 mm | C: 4650 kN | C0: 7650 kN | Limiting speed: 950 r/min
23280 CA/W33d: 400 mm | D: 720 mm | B: 256 mm | C: 6550 kN | C0: 10400 kN | Limiting speed: 670 r/min
23280 CAK/W33d: 400 mm | D: 720 mm | B: 256 mm | C: 6550 kN | C0: 10400 kN | Limiting speed: 670 r/min
23084 CA/W33d: 420 mm | D: 620 mm | B: 150 mm | C: 3400 kN | C0: 6000 kN | Limiting speed: 1100 r/min
23084 CAK/W33d: 420 mm | D: 620 mm | B: 150 mm | C: 3400 kN | C0: 6000 kN | Limiting speed: 1100 r/min
23184 CJ/W33d: 420 mm | D: 700 mm | B: 224 mm | C: 5600 kN | C0: 9300 kN | Limiting speed: 900 r/min
23184 CKJ/W33d: 420 mm | D: 700 mm | B: 224 mm | C: 5600 kN | C0: 9300 kN | Limiting speed: 900 r/min
23284 CA/W33d: 420 mm | D: 760 mm | B: 272 mm | C: 7350 kN | C0: 11600 kN | Limiting speed: 630 r/min
23284 CAK/W33d: 420 mm | D: 760 mm | B: 272 mm | C: 7350 kN | C0: 11600 kN | Limiting speed: 630 r/min
23088 CA/W33d: 440 mm | D: 650 mm | B: 157 mm | C: 3650 kN | C0: 6550 kN | Limiting speed: 1000 r/min
23088 CAK/W33d: 440 mm | D: 650 mm | B: 157 mm | C: 3650 kN | C0: 6550 kN | Limiting speed: 1000 r/min
23188 CA/W33d: 440 mm | D: 720 mm | B: 226 mm | C: 6000 kN | C0: 10000 kN | Limiting speed: 850 r/min
23188 CAK/W33d: 440 mm | D: 720 mm | B: 226 mm | C: 6000 kN | C0: 10000 kN | Limiting speed: 850 r/min
23288 CA/W33d: 440 mm | D: 790 mm | B: 280 mm | C: 7800 kN | C0: 12500 kN | Limiting speed: 600 r/min
23288 CAK/W33d: 440 mm | D: 790 mm | B: 280 mm | C: 7800 kN | C0: 12500 kN | Limiting speed: 600 r/min
23092 CA/W33d: 460 mm | D: 680 mm | B: 163 mm | C: 3900 kN | C0: 6950 kN | Limiting speed: 950 r/min
23092 CAK/W33d: 460 mm | D: 680 mm | B: 163 mm | C: 3900 kN | C0: 6950 kN | Limiting speed: 950 r/min
23192 CA/W33d: 460 mm | D: 760 mm | B: 240 mm | C: 6400 kN | C0: 10800 kN | Limiting speed: 800 r/min
23192 CAK/W33d: 460 mm | D: 760 mm | B: 240 mm | C: 6400 kN | C0: 10800 kN | Limiting speed: 800 r/min
23292 CA/W33d: 460 mm | D: 830 mm | B: 296 mm | C: 8500 kN | C0: 13700 kN | Limiting speed: 560 r/min
23292 CAK/W33d: 460 mm | D: 830 mm | B: 296 mm | C: 8500 kN | C0: 13700 kN | Limiting speed: 560 r/min
23096 CA/W33d: 480 mm | D: 700 mm | B: 165 mm | C: 3900 kN | C0: 6800 kN | Limiting speed: 950 r/min
23096 CAK/W33d: 480 mm | D: 700 mm | B: 165 mm | C: 3900 kN | C0: 6800 kN | Limiting speed: 950 r/min
23196 CA/W33d: 480 mm | D: 790 mm | B: 248 mm | C: 6950 kN | C0: 12000 kN | Limiting speed: 750 r/min
23196 CAK/W33d: 480 mm | D: 790 mm | B: 248 mm | C: 6950 kN | C0: 12000 kN | Limiting speed: 750 r/min
23296 CA/W33d: 480 mm | D: 870 mm | B: 310 mm | C: 9300 kN | C0: 15000 kN | Limiting speed: 530 r/min
23296 CAK/W33d: 480 mm | D: 870 mm | B: 310 mm | C: 9300 kN | C0: 15000 kN | Limiting speed: 530 r/min
230/500 CA/W33d: 500 mm | D: 720 mm | B: 167 mm | C: 4150 kN | C0: 7800 kN | Limiting speed: 900 r/min
230/500 CAK/W33d: 500 mm | D: 720 mm | B: 167 mm | C: 4150 kN | C0: 7800 kN | Limiting speed: 900 r/min
231/500 CA/W33d: 500 mm | D: 830 mm | B: 264 mm | C: 7650 kN | C0: 12900 kN | Limiting speed: 700 r/min
231/500 CAK/W33d: 500 mm | D: 830 mm | B: 264 mm | C: 7650 kN | C0: 12900 kN | Limiting speed: 700 r/min
232/500 CA/W33d: 500 mm | D: 920 mm | B: 336 mm | C: 10600 kN | C0: 17300 kN | Limiting speed: 500 r/min
232/500 CAK/W33d: 500 mm | D: 920 mm | B: 336 mm | C: 10600 kN | C0: 17300 kN | Limiting speed: 500 r/min
230/530 CA/W33d: 530 mm | D: 780 mm | B: 185 mm | C: 5100 kN | C0: 9300 kN | Limiting speed: 800 r/min
230/530 CAK/W33d: 530 mm | D: 780 mm | B: 185 mm | C: 5100 kN | C0: 9300 kN | Limiting speed: 800 r/min
231/530 CA/W33d: 530 mm | D: 870 mm | B: 272 mm | C: 8150 kN | C0: 14000 kN | Limiting speed: 670 r/min
231/530 CAK/W33d: 530 mm | D: 870 mm | B: 272 mm | C: 8150 kN | C0: 14000 kN | Limiting speed: 670 r/min
232/530 CA/W33d: 530 mm | D: 980 mm | B: 355 mm | C: 11100 kN | C0: 20400 kN | Limiting speed: 480 r/min
232/530 CAK/W33d: 530 mm | D: 980 mm | B: 355 mm | C: 11100 kN | C0: 20400 kN | Limiting speed: 480 r/min
230/560 CA/W33d: 560 mm | D: 820 mm | B: 195 mm | C: 5600 kN | C0: 10200 kN | Limiting speed: 750 r/min
230/560 CAK/W33d: 560 mm | D: 820 mm | B: 195 mm | C: 5600 kN | C0: 10200 kN | Limiting speed: 750 r/min
231/560 CA/W33d: 560 mm | D: 920 mm | B: 280 mm | C: 9150 kN | C0: 16000 kN | Limiting speed: 630 r/min
231/560 CAK/W33d: 560 mm | D: 920 mm | B: 280 mm | C: 9150 kN | C0: 16000 kN | Limiting speed: 630 r/min
232/560 CA/W33d: 560 mm | D: 1030 mm | B: 365 mm | C: 11500 kN | C0: 22000 kN | Limiting speed: 430 r/min
232/560 CAK/W33d: 560 mm | D: 1030 mm | B: 365 mm | C: 11500 kN | C0: 22000 kN | Limiting speed: 430 r/min
230/600 CA/W33d: 600 mm | D: 870 mm | B: 200 mm | C: 6000 kN | C0: 11400 kN | Limiting speed: 700 r/min
230/600 CAK/W33d: 600 mm | D: 870 mm | B: 200 mm | C: 6000 kN | C0: 11400 kN | Limiting speed: 700 r/min
231/600 CA/W33d: 600 mm | D: 980 mm | B: 300 mm | C: 10200 kN | C0: 18000 kN | Limiting speed: 560 r/min
231/600 CAK/W33d: 600 mm | D: 980 mm | B: 300 mm | C: 10200 kN | C0: 18000 kN | Limiting speed: 560 r/min
232/600 CA/W33d: 600 mm | D: 1090 mm | B: 388 mm | C: 13100 kN | C0: 25500 kN | Limiting speed: 400 r/min
232/600 CAK/W33d: 600 mm | D: 1090 mm | B: 388 mm | C: 13100 kN | C0: 25500 kN | Limiting speed: 400 r/min
230/630 CA/W33d: 630 mm | D: 920 mm | B: 212 mm | C: 6700 kN | C0: 12500 kN | Limiting speed: 670 r/min
230/630 CAK/W33d: 630 mm | D: 920 mm | B: 212 mm | C: 6700 kN | C0: 12500 kN | Limiting speed: 670 r/min
231/630 CA/W33d: 630 mm | D: 1030 mm | B: 315 mm | C: 10500 kN | C0: 20800 kN | Limiting speed: 530 r/min
231/630 CAK/W33d: 630 mm | D: 1030 mm | B: 315 mm | C: 10500 kN | C0: 20800 kN | Limiting speed: 530 r/min
230/670 CA/W33d: 670 mm | D: 980 mm | B: 230 mm | C: 7650 kN | C0: 14600 kN | Limiting speed: 600 r/min
230/670 CAK/W33d: 670 mm | D: 980 mm | B: 230 mm | C: 7650 kN | C0: 14600 kN | Limiting speed: 600 r/min
231/670 CA/W33d: 670 mm | D: 1090 mm | B: 336 mm | C: 10900 kN | C0: 22400 kN | Limiting speed: 500 r/min
231/670 CAK/W33d: 670 mm | D: 1090 mm | B: 336 mm | C: 10900 kN | C0: 22400 kN | Limiting speed: 500 r/min
232/670 CA/W33d: 670 mm | D: 1220 mm | B: 438 mm | C: 15400 kN | C0: 30500 kN | Limiting speed: 360 r/min
232/670 CAK/W33d: 670 mm | D: 1220 mm | B: 438 mm | C: 15400 kN | C0: 30500 kN | Limiting speed: 360 r/min
230/710 CA/W33d: 710 mm | D: 1030 mm | B: 236 mm | C: 8300 kN | C0: 16300 kN | Limiting speed: 560 r/min
230/710 CAK/W33d: 710 mm | D: 1030 mm | B: 236 mm | C: 8300 kN | C0: 16300 kN | Limiting speed: 560 r/min
231/710 CA/W33d: 710 mm | D: 1150 mm | B: 345 mm | C: 12200 kN | C0: 26000 kN | Limiting speed: 450 r/min
231/710 CAK/W33d: 710 mm | D: 1150 mm | B: 345 mm | C: 12200 kN | C0: 26000 kN | Limiting speed: 450 r/min
232/710 CA/W33d: 710 mm | D: 1280 mm | B: 450 mm | C: 17600 kN | C0: 34500 kN | Limiting speed: 320 r/min
232/710 CAK/W33d: 710 mm | D: 1280 mm | B: 450 mm | C: 17600 kN | C0: 34500 kN | Limiting speed: 320 r/min
230/750 CA/W33d: 750 mm | D: 1090 mm | B: 250 mm | C: 9650 kN | C0: 18600 kN | Limiting speed: 530 r/min
230/750 CAK/W33d: 750 mm | D: 1090 mm | B: 250 mm | C: 9650 kN | C0: 18600 kN | Limiting speed: 530 r/min
231/750 CA/W33d: 750 mm | D: 1220 mm | B: 365 mm | C: 13800 kN | C0: 29000 kN | Limiting speed: 430 r/min
231/750 CAK/W33d: 750 mm | D: 1220 mm | B: 365 mm | C: 13800 kN | C0: 29000 kN | Limiting speed: 430 r/min
232/750 CAF/W33d: 750 mm | D: 1360 mm | B: 475 mm | C: 18700 kN | C0: 36500 kN | Limiting speed: 300 r/min
232/750 CAKF/W33d: 750 mm | D: 1360 mm | B: 475 mm | C: 18700 kN | C0: 36500 kN | Limiting speed: 300 r/min
230/800 CA/W33d: 800 mm | D: 1150 mm | B: 258 mm | C: 10000 kN | C0: 20000 kN | Limiting speed: 480 r/min
230/800 CAK/W33d: 800 mm | D: 1150 mm | B: 258 mm | C: 10000 kN | C0: 20000 kN | Limiting speed: 480 r/min
231/800 CA/W33d: 800 mm | D: 1280 mm | B: 375 mm | C: 14800 kN | C0: 31500 kN | Limiting speed: 400 r/min
231/800 CAK/W33d: 800 mm | D: 1280 mm | B: 375 mm | C: 14800 kN | C0: 31500 kN | Limiting speed: 400 r/min
230/850 CA/W33d: 850 mm | D: 1220 mm | B: 272 mm | C: 9370 kN | C0: 21600 kN | Limiting speed: 450 r/min
230/850 CAK/W33d: 850 mm | D: 1220 mm | B: 272 mm | C: 9370 kN | C0: 21600 kN | Limiting speed: 450 r/min
231/850 CA/W33d: 850 mm | D: 1360 mm | B: 400 mm | C: 16100 kN | C0: 34500 kN | Limiting speed: 360 r/min
231/850 CAK/W33d: 850 mm | D: 1360 mm | B: 400 mm | C: 16100 kN | C0: 34500 kN | Limiting speed: 360 r/min
230/900 CA/W33d: 900 mm | D: 1280 mm | B: 280 mm | C: 10100 kN | C0: 23200 kN | Limiting speed: 400 r/min
230/900 CAK/W33d: 900 mm | D: 1280 mm | B: 280 mm | C: 10100 kN | C0: 23200 kN | Limiting speed: 400 r/min
230/950 CA/W33d: 950 mm | D: 1360 mm | B: 300 mm | C: 12000 kN | C0: 28500 kN | Limiting speed: 380 r/min
230/950 CAK/W33d: 950 mm | D: 1360 mm | B: 300 mm | C: 12000 kN | C0: 28500 kN | Limiting speed: 380 r/min
230/1000 CAF/W33d: 1000 mm | D: 1420 mm | B: 308 mm | C: 12700 kN | C0: 30500 kN | Limiting speed: 360 r/min
230/1000 CAKF/W33d: 1000 mm | D: 1420 mm | B: 308 mm | C: 12700 kN | C0: 30500 kN | Limiting speed: 360 r/min
231/1000 CAF/W33d: 1000 mm | D: 1580 mm | B: 462 mm | C: 21400 kN | C0: 48000 kN | Limiting speed: 280 r/min
231/1000 CAKF/W33d: 1000 mm | D: 1580 mm | B: 462 mm | C: 21400 kN | C0: 48000 kN | Limiting speed: 280 r/min
230/1060 CAF/W33d: 1060 mm | D: 1500 mm | B: 325 mm | C: 13800 kN | C0: 34000 kN | Limiting speed: 320 r/min
230/1060 CAKF/W33d: 1060 mm | D: 1500 mm | B: 325 mm | C: 13800 kN | C0: 34000 kN | Limiting speed: 320 r/min
230/1250 CAF/W33d: 1250 mm | D: 1750 mm | B: 375 mm | C: 17900 kN | C0: 45000 kN | Limiting speed: 240 r/min
230/1250 CAKF/W33d: 1250 mm | D: 1750 mm | B: 375 mm | C: 17900 kN | C0: 45000 kN | Limiting speed: 240 r/min

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
