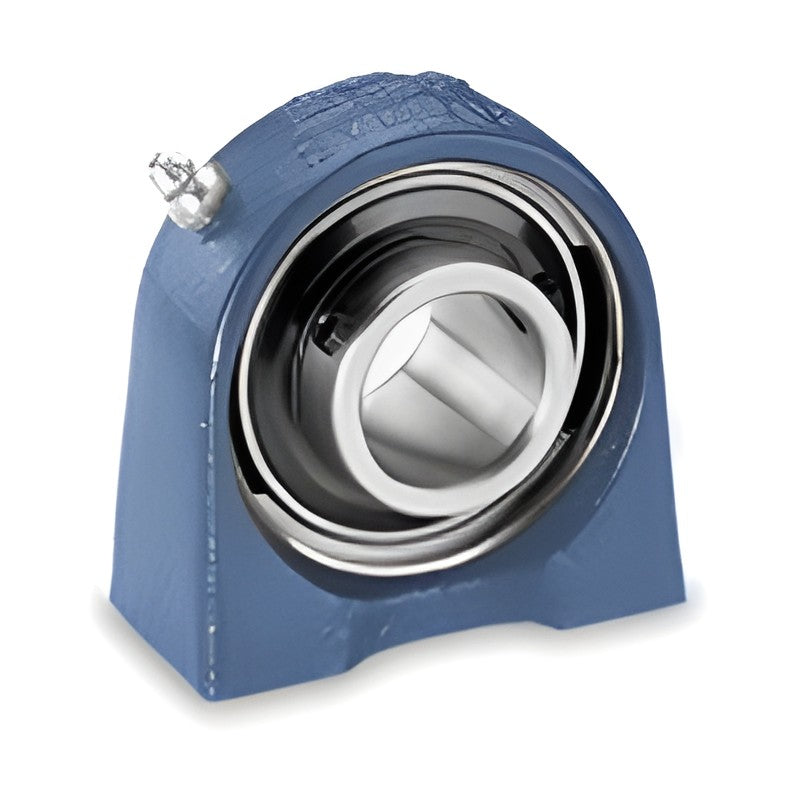

SKF SYF Shortened Cast Plummer Block Units

SKF SYF Shortened Cast Plummer Block Units

SKF SYF Shortened Cast Plummer Block Units: ready-to-mount Y-bearing units with a shortened cast iron plummer block housing, for metric and/or inch shafts as listed.

Key features

  • Complete unit: housing plus sealed, greased Y-bearing
  • Self-aligning fit of the sphered bearing in the housing
  • Unit, housing and bearing designations listed for ordering
  • Relubrication or end cover options where listed
  • Metric and inch shaft sizes as listed in the catalogue

Specifications

Product Y-bearing unit
Housing shortened cast iron plummer block housing
Brand SKF
Category Mounted Bearing Units
Example designation SYF 20 TF
Source SKF Y-bearings and Y-bearing units, p. 148-151
SYF 20 TF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 33.3 mm
SYFJ 20 TF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 30.2 mm
SYF 25 TF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 36.5 mm
SYFJ 25 TF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 36.5 mm
SYF 30 TF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 42.9 mm
SYFJ 30 TF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 42.9 mm
SYF 35 TF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm
SYFJ 35 TF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm
SYF 40 TF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 49.2 mm
SYFJ 40 TF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 49.2 mm
SYF 45 TF Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 54 mm
SYFJ 45 TF Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 54.2 mm
SYF 50 TF Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm
SYFJ 50 TF Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm
SYF 20 FM Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 33.3 mm
SYF 25 FM Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 36.5 mm
SYF 30 FM Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 42.9 mm
SYF 35 FM Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm
SYF 40 FM Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 49.2 mm
SYF 45 FM Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 54 mm
SYF 50 FM Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm
Mounted Bearing UnitsSKF
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SYF Shortened Cast Plummer Block Units

Brand SKF·Mounted Bearing Units

Available part numbers (21)

SYF 20 TF, SYFJ 20 TF, SYF 25 TF, SYFJ 25 TF, SYF 30 TF, SYFJ 30 TF, SYF 35 TF, SYFJ 35 TF, SYF 40 TF, SYFJ 40 TF + 11 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SYF 20 TFShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 33.3 mm
SYFJ 20 TFShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 30.2 mm
SYF 25 TFShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 36.5 mm
SYFJ 25 TFShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 36.5 mm
SYF 30 TFShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 42.9 mm
SYFJ 30 TFShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 42.9 mm
SYF 35 TFShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm
SYFJ 35 TFShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm
SYF 40 TFShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 49.2 mm
SYFJ 40 TFShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 49.2 mm
SYF 45 TFShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 54 mm
SYFJ 45 TFShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 54.2 mm
SYF 50 TFShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm
SYFJ 50 TFShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm
SYF 20 FMShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 33.3 mm
SYF 25 FMShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 36.5 mm
SYF 30 FMShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 42.9 mm
SYF 35 FMShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm
SYF 40 FMShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 49.2 mm
SYF 45 FMShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 54 mm
SYF 50 FMShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm
