SKF SYJ Plummer Block Units with Adapter Sleeve (KF)

SKF SYJ Plummer Block Units with Adapter Sleeve (KF)

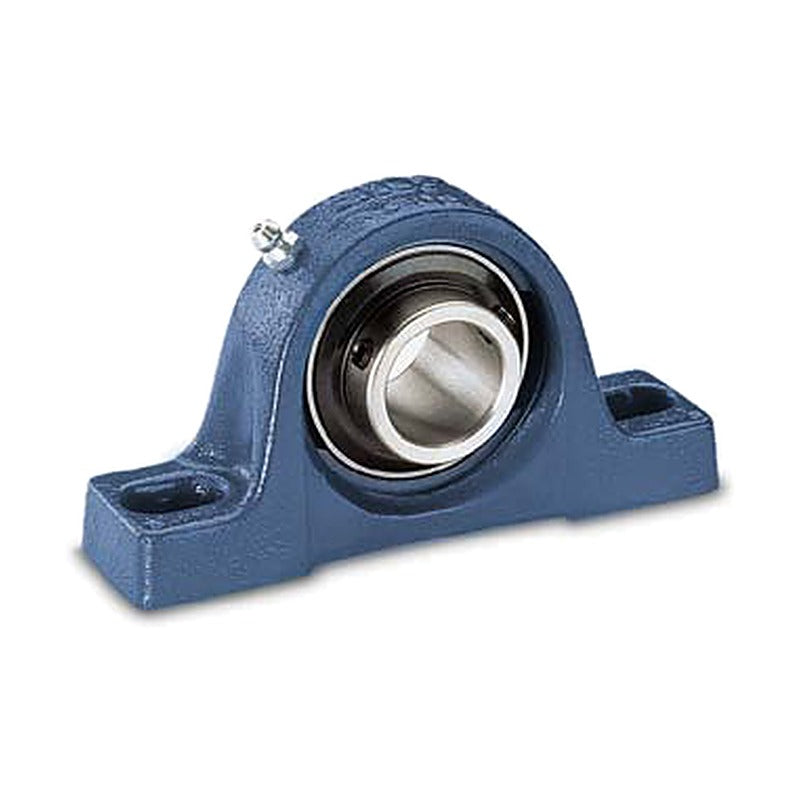

SKF SYJ Plummer Block Units with Adapter Sleeve (KF): ready-to-mount Y-bearing units with a cast iron plummer block housing; Y-bearing on an adapter sleeve, for metric and/or inch shafts as listed.

Key features

  • Complete unit: housing plus sealed, greased Y-bearing
  • Self-aligning fit of the sphered bearing in the housing
  • Unit, housing and bearing designations listed for ordering
  • Relubrication or end cover options where listed
  • Metric and inch shaft sizes as listed in the catalogue

Specifications

Product Y-bearing unit
Housing cast iron plummer block housing
Brand SKF
Category Mounted Bearing Units
Example designation SYJ 25 KF
Source SKF Y-bearings and Y-bearing units, p. 142-147
SYJ 25 KF Shaft: 20 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 36.5 mm
SYJ 30 KF Shaft: 25 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 42.9 mm
SYJ 35 KF Shaft: 30 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm
SYJ 40 KF Shaft: 35 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 49.2 mm
SYJ 45 KF Shaft: 40 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 54 mm
SYJ 50 KF Shaft: 45 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm
SYJ 55 KF Shaft: 50 mm | C: 43.6 kN | C0: 29 kN | Centre height H1: 63.5 mm
SYJ 60 KF Shaft: 55 mm | C: 52.7 kN | C0: 36 kN | Centre height H1: 69.8 mm
SYJ 65 KF Shaft: 60 mm | C: 57.2 kN | C0: 40 kN | Centre height H1: 76.2 mm
Mounted Bearing UnitsSKF
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF SYJ Plummer Block Units with Adapter Sleeve (KF)

Brand SKF·Mounted Bearing Units

Available part numbers (9)

SYJ 25 KF, SYJ 30 KF, SYJ 35 KF, SYJ 40 KF, SYJ 45 KF, SYJ 50 KF, SYJ 55 KF, SYJ 60 KF, SYJ 65 KF

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SYJ 25 KFShaft: 20 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 36.5 mm
SYJ 30 KFShaft: 25 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 42.9 mm
SYJ 35 KFShaft: 30 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm
SYJ 40 KFShaft: 35 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 49.2 mm
SYJ 45 KFShaft: 40 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 54 mm
SYJ 50 KFShaft: 45 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm
SYJ 55 KFShaft: 50 mm | C: 43.6 kN | C0: 29 kN | Centre height H1: 63.5 mm
SYJ 60 KFShaft: 55 mm | C: 52.7 kN | C0: 36 kN | Centre height H1: 69.8 mm
SYJ 65 KFShaft: 60 mm | C: 57.2 kN | C0: 40 kN | Centre height H1: 76.2 mm
