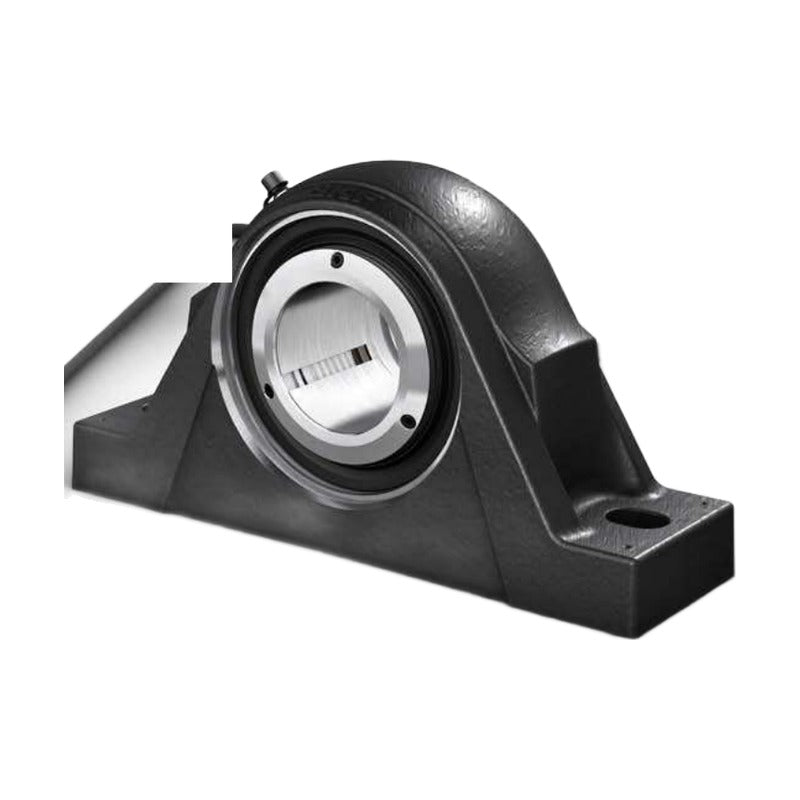

SKF ConCentra SYNT Roller Bearing Units (Plummer Block)

SKF ConCentra SYNT Roller Bearing Units (Plummer Block)

SKF ConCentra SYNT roller bearing units with a plummer block housing: ready-to-mount units with a spherical roller bearing and ConCentra sleeve mounting for metric shafts.

Key features

  • Ready-to-mount, pre-lubricated and sealed units
  • ConCentra mounting technology for a true concentric fit on the shaft
  • Locating (F) and non-locating (L) variants plus high-speed (TS), rugged (TF) and relubrication-free (W) versions
  • Grey cast iron housing for metric shafts 35-100 mm
  • End covers (ECY) available for shaft ends

Specifications

Series SYNT
Bearing type Spherical roller (ConCentra)
Suffix F / L Locating / non-locating
Shaft range 35-100 mm
Brand SKF
Source SKF Bearing housings and roller bearing units, p. 686-687; SKF ConCentra roller bearing units, p. 8-9
SYNT 35 F Shaft: 35 mm | Variant: Locating | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 L Shaft: 35 mm | Variant: Non-locating | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 40 F Shaft: 40 mm | Variant: Locating | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 L Shaft: 40 mm | Variant: Non-locating | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 45 F Shaft: 45 mm | Variant: Locating | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 L Shaft: 45 mm | Variant: Non-locating | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 50 F Shaft: 50 mm | Variant: Locating | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 L Shaft: 50 mm | Variant: Non-locating | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 55 F Shaft: 55 mm | Variant: Locating | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 L Shaft: 55 mm | Variant: Non-locating | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 60 F Shaft: 60 mm | Variant: Locating | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 L Shaft: 60 mm | Variant: Non-locating | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 65 F Shaft: 65 mm | Variant: Locating | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 L Shaft: 65 mm | Variant: Non-locating | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 70 F Shaft: 70 mm | Variant: Locating | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 L Shaft: 70 mm | Variant: Non-locating | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 75 F Shaft: 75 mm | Variant: Locating | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 L Shaft: 75 mm | Variant: Non-locating | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 80 F Shaft: 80 mm | Variant: Locating | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 L Shaft: 80 mm | Variant: Non-locating | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 90 F Shaft: 90 mm | Variant: Locating | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 L Shaft: 90 mm | Variant: Non-locating | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 100 F Shaft: 100 mm | Variant: Locating | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 L Shaft: 100 mm | Variant: Non-locating | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 35 FTS Shaft: 35 mm | Variant: Locating, high-speed | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 FTF Shaft: 35 mm | Variant: Locating, rugged | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 FW Shaft: 35 mm | Variant: Locating, relube-free | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 LTS Shaft: 35 mm | Variant: Non-locating, high-speed | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 LTF Shaft: 35 mm | Variant: Non-locating, rugged | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 LW Shaft: 35 mm | Variant: Non-locating, relube-free | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 40 FTS Shaft: 40 mm | Variant: Locating, high-speed | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 FTF Shaft: 40 mm | Variant: Locating, rugged | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 FW Shaft: 40 mm | Variant: Locating, relube-free | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 LTS Shaft: 40 mm | Variant: Non-locating, high-speed | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 LTF Shaft: 40 mm | Variant: Non-locating, rugged | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 LW Shaft: 40 mm | Variant: Non-locating, relube-free | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 45 FTS Shaft: 45 mm | Variant: Locating, high-speed | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 FTF Shaft: 45 mm | Variant: Locating, rugged | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 FW Shaft: 45 mm | Variant: Locating, relube-free | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 LTS Shaft: 45 mm | Variant: Non-locating, high-speed | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 LTF Shaft: 45 mm | Variant: Non-locating, rugged | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 LW Shaft: 45 mm | Variant: Non-locating, relube-free | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 50 FTS Shaft: 50 mm | Variant: Locating, high-speed | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 FTF Shaft: 50 mm | Variant: Locating, rugged | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 FW Shaft: 50 mm | Variant: Locating, relube-free | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 LTS Shaft: 50 mm | Variant: Non-locating, high-speed | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 LTF Shaft: 50 mm | Variant: Non-locating, rugged | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 LW Shaft: 50 mm | Variant: Non-locating, relube-free | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 55 FTS Shaft: 55 mm | Variant: Locating, high-speed | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 FTF Shaft: 55 mm | Variant: Locating, rugged | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 FW Shaft: 55 mm | Variant: Locating, relube-free | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 LTS Shaft: 55 mm | Variant: Non-locating, high-speed | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 LTF Shaft: 55 mm | Variant: Non-locating, rugged | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 LW Shaft: 55 mm | Variant: Non-locating, relube-free | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 60 FTS Shaft: 60 mm | Variant: Locating, high-speed | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 FTF Shaft: 60 mm | Variant: Locating, rugged | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 FW Shaft: 60 mm | Variant: Locating, relube-free | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 LTS Shaft: 60 mm | Variant: Non-locating, high-speed | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 LTF Shaft: 60 mm | Variant: Non-locating, rugged | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 LW Shaft: 60 mm | Variant: Non-locating, relube-free | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 65 FTS Shaft: 65 mm | Variant: Locating, high-speed | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 FTF Shaft: 65 mm | Variant: Locating, rugged | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 FW Shaft: 65 mm | Variant: Locating, relube-free | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 LTS Shaft: 65 mm | Variant: Non-locating, high-speed | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 LTF Shaft: 65 mm | Variant: Non-locating, rugged | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 LW Shaft: 65 mm | Variant: Non-locating, relube-free | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 70 FTS Shaft: 70 mm | Variant: Locating, high-speed | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 FTF Shaft: 70 mm | Variant: Locating, rugged | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 FW Shaft: 70 mm | Variant: Locating, relube-free | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 LTS Shaft: 70 mm | Variant: Non-locating, high-speed | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 LTF Shaft: 70 mm | Variant: Non-locating, rugged | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 LW Shaft: 70 mm | Variant: Non-locating, relube-free | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 75 FTS Shaft: 75 mm | Variant: Locating, high-speed | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 FTF Shaft: 75 mm | Variant: Locating, rugged | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 FW Shaft: 75 mm | Variant: Locating, relube-free | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 LTS Shaft: 75 mm | Variant: Non-locating, high-speed | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 LTF Shaft: 75 mm | Variant: Non-locating, rugged | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 LW Shaft: 75 mm | Variant: Non-locating, relube-free | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 80 FTS Shaft: 80 mm | Variant: Locating, high-speed | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 FTF Shaft: 80 mm | Variant: Locating, rugged | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 FW Shaft: 80 mm | Variant: Locating, relube-free | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 LTS Shaft: 80 mm | Variant: Non-locating, high-speed | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 LTF Shaft: 80 mm | Variant: Non-locating, rugged | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 LW Shaft: 80 mm | Variant: Non-locating, relube-free | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 90 FTS Shaft: 90 mm | Variant: Locating, high-speed | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 FTF Shaft: 90 mm | Variant: Locating, rugged | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 FW Shaft: 90 mm | Variant: Locating, relube-free | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 LTS Shaft: 90 mm | Variant: Non-locating, high-speed | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 LTF Shaft: 90 mm | Variant: Non-locating, rugged | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 LW Shaft: 90 mm | Variant: Non-locating, relube-free | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 100 FTS Shaft: 100 mm | Variant: Locating, high-speed | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 FTF Shaft: 100 mm | Variant: Locating, rugged | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 FW Shaft: 100 mm | Variant: Locating, relube-free | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 LTS Shaft: 100 mm | Variant: Non-locating, high-speed | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 LTF Shaft: 100 mm | Variant: Non-locating, rugged | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 LW Shaft: 100 mm | Variant: Non-locating, relube-free | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
Mounted Bearing UnitsSKF
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF ConCentra SYNT Roller Bearing Units (Plummer Block)

Brand SKF·Mounted Bearing Units

Available part numbers (96)

SYNT 35 F, SYNT 35 L, SYNT 40 F, SYNT 40 L, SYNT 45 F, SYNT 45 L, SYNT 50 F, SYNT 50 L, SYNT 55 F, SYNT 55 L + 86 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SYNT 35 FShaft: 35 mm | Variant: Locating | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 LShaft: 35 mm | Variant: Non-locating | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 40 FShaft: 40 mm | Variant: Locating | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 LShaft: 40 mm | Variant: Non-locating | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 45 FShaft: 45 mm | Variant: Locating | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 LShaft: 45 mm | Variant: Non-locating | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 50 FShaft: 50 mm | Variant: Locating | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 LShaft: 50 mm | Variant: Non-locating | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 55 FShaft: 55 mm | Variant: Locating | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 LShaft: 55 mm | Variant: Non-locating | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 60 FShaft: 60 mm | Variant: Locating | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 LShaft: 60 mm | Variant: Non-locating | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 65 FShaft: 65 mm | Variant: Locating | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 LShaft: 65 mm | Variant: Non-locating | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 70 FShaft: 70 mm | Variant: Locating | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 LShaft: 70 mm | Variant: Non-locating | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 75 FShaft: 75 mm | Variant: Locating | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 LShaft: 75 mm | Variant: Non-locating | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 80 FShaft: 80 mm | Variant: Locating | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 LShaft: 80 mm | Variant: Non-locating | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 90 FShaft: 90 mm | Variant: Locating | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 LShaft: 90 mm | Variant: Non-locating | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 100 FShaft: 100 mm | Variant: Locating | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 LShaft: 100 mm | Variant: Non-locating | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 35 FTSShaft: 35 mm | Variant: Locating, high-speed | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 FTFShaft: 35 mm | Variant: Locating, rugged | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 FWShaft: 35 mm | Variant: Locating, relube-free | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 LTSShaft: 35 mm | Variant: Non-locating, high-speed | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 LTFShaft: 35 mm | Variant: Non-locating, rugged | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 35 LWShaft: 35 mm | Variant: Non-locating, relube-free | C: 86.5 kN | C0: 85 kN | Centre height H1: 60 mm
SYNT 40 FTSShaft: 40 mm | Variant: Locating, high-speed | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 FTFShaft: 40 mm | Variant: Locating, rugged | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 FWShaft: 40 mm | Variant: Locating, relube-free | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 LTSShaft: 40 mm | Variant: Non-locating, high-speed | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 LTFShaft: 40 mm | Variant: Non-locating, rugged | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 40 LWShaft: 40 mm | Variant: Non-locating, relube-free | C: 96.5 kN | C0: 90 kN | Centre height H1: 60 mm
SYNT 45 FTSShaft: 45 mm | Variant: Locating, high-speed | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 FTFShaft: 45 mm | Variant: Locating, rugged | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 FWShaft: 45 mm | Variant: Locating, relube-free | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 LTSShaft: 45 mm | Variant: Non-locating, high-speed | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 LTFShaft: 45 mm | Variant: Non-locating, rugged | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 45 LWShaft: 45 mm | Variant: Non-locating, relube-free | C: 102 kN | C0: 98 kN | Centre height H1: 60 mm
SYNT 50 FTSShaft: 50 mm | Variant: Locating, high-speed | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 FTFShaft: 50 mm | Variant: Locating, rugged | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 FWShaft: 50 mm | Variant: Locating, relube-free | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 LTSShaft: 50 mm | Variant: Non-locating, high-speed | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 LTFShaft: 50 mm | Variant: Non-locating, rugged | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 50 LWShaft: 50 mm | Variant: Non-locating, relube-free | C: 104 kN | C0: 108 kN | Centre height H1: 70 mm
SYNT 55 FTSShaft: 55 mm | Variant: Locating, high-speed | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 FTFShaft: 55 mm | Variant: Locating, rugged | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 FWShaft: 55 mm | Variant: Locating, relube-free | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 LTSShaft: 55 mm | Variant: Non-locating, high-speed | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 LTFShaft: 55 mm | Variant: Non-locating, rugged | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 55 LWShaft: 55 mm | Variant: Non-locating, relube-free | C: 125 kN | C0: 137 kN | Centre height H1: 70 mm
SYNT 60 FTSShaft: 60 mm | Variant: Locating, high-speed | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 FTFShaft: 60 mm | Variant: Locating, rugged | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 FWShaft: 60 mm | Variant: Locating, relube-free | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 LTSShaft: 60 mm | Variant: Non-locating, high-speed | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 LTFShaft: 60 mm | Variant: Non-locating, rugged | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 60 LWShaft: 60 mm | Variant: Non-locating, relube-free | C: 156 kN | C0: 166 kN | Centre height H1: 80 mm
SYNT 65 FTSShaft: 65 mm | Variant: Locating, high-speed | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 FTFShaft: 65 mm | Variant: Locating, rugged | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 FWShaft: 65 mm | Variant: Locating, relube-free | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 LTSShaft: 65 mm | Variant: Non-locating, high-speed | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 LTFShaft: 65 mm | Variant: Non-locating, rugged | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 65 LWShaft: 65 mm | Variant: Non-locating, relube-free | C: 193 kN | C0: 216 kN | Centre height H1: 80 mm
SYNT 70 FTSShaft: 70 mm | Variant: Locating, high-speed | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 FTFShaft: 70 mm | Variant: Locating, rugged | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 FWShaft: 70 mm | Variant: Locating, relube-free | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 LTSShaft: 70 mm | Variant: Non-locating, high-speed | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 LTFShaft: 70 mm | Variant: Non-locating, rugged | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 70 LWShaft: 70 mm | Variant: Non-locating, relube-free | C: 208 kN | C0: 228 kN | Centre height H1: 95 mm
SYNT 75 FTSShaft: 75 mm | Variant: Locating, high-speed | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 FTFShaft: 75 mm | Variant: Locating, rugged | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 FWShaft: 75 mm | Variant: Locating, relube-free | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 LTSShaft: 75 mm | Variant: Non-locating, high-speed | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 LTFShaft: 75 mm | Variant: Non-locating, rugged | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 75 LWShaft: 75 mm | Variant: Non-locating, relube-free | C: 212 kN | C0: 240 kN | Centre height H1: 95 mm
SYNT 80 FTSShaft: 80 mm | Variant: Locating, high-speed | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 FTFShaft: 80 mm | Variant: Locating, rugged | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 FWShaft: 80 mm | Variant: Locating, relube-free | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 LTSShaft: 80 mm | Variant: Non-locating, high-speed | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 LTFShaft: 80 mm | Variant: Non-locating, rugged | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 80 LWShaft: 80 mm | Variant: Non-locating, relube-free | C: 236 kN | C0: 270 kN | Centre height H1: 100 mm
SYNT 90 FTSShaft: 90 mm | Variant: Locating, high-speed | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 FTFShaft: 90 mm | Variant: Locating, rugged | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 FWShaft: 90 mm | Variant: Locating, relube-free | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 LTSShaft: 90 mm | Variant: Non-locating, high-speed | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 LTFShaft: 90 mm | Variant: Non-locating, rugged | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 90 LWShaft: 90 mm | Variant: Non-locating, relube-free | C: 325 kN | C0: 375 kN | Centre height H1: 112 mm
SYNT 100 FTSShaft: 100 mm | Variant: Locating, high-speed | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 FTFShaft: 100 mm | Variant: Locating, rugged | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 FWShaft: 100 mm | Variant: Locating, relube-free | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 LTSShaft: 100 mm | Variant: Non-locating, high-speed | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 LTFShaft: 100 mm | Variant: Non-locating, rugged | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm
SYNT 100 LWShaft: 100 mm | Variant: Non-locating, relube-free | C: 425 kN | C0: 490 kN | Centre height H1: 125 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
