SKF THAP E Air-driven Hydraulic Pumps and Oil Injectors (30-400 MPa)

SKF THAP E Air-driven Hydraulic Pumps and Oil Injectors (30-400 MPa)

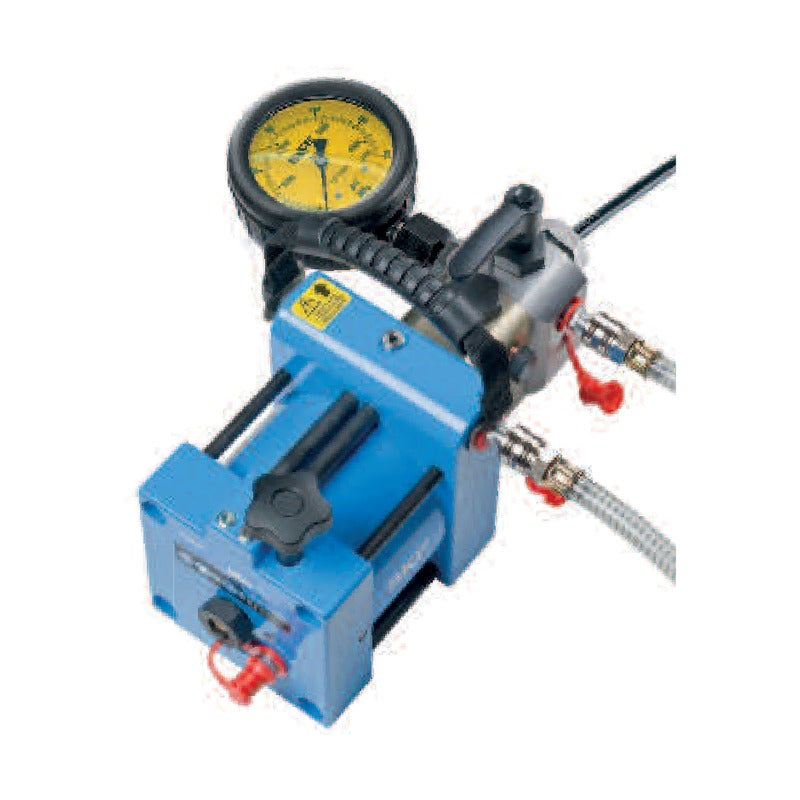

SKF THAP E units are hydraulic pumps or high pressure oil injectors driven by an air motor, used for OK Couplings and large pressure joints such as propellers and railway wheels.

Key features

  • Time savings compared to hand operated pumps and injectors
  • Continuous oil supply; portable
  • Internal air pressure limiter (7 bar) for safe operation
  • Low air consumption, wide operating temperature range
  • Also available as complete sets /SK1 in a carrying case

Specifications

Operating air pressure 7 bar
Oil outlet G 3/4
Source SKF Maintenance and Lubrication Products, p. 72
THAP 030E Pressure: 30 MPa | Volume/stroke: 10 cm3 | Length: 350 mm | Weight: 11.5 kg
THAP 150E Pressure: 150 MPa | Volume/stroke: 1.92 cm3 | Length: 350 mm | Weight: 11.5 kg
THAP 300E Pressure: 300 MPa | Volume/stroke: 0.83 cm3 | Length: 405 mm | Weight: 13 kg
THAP 400E Pressure: 400 MPa | Volume/stroke: 0.64 cm3 | Length: 405 mm | Weight: 13 kg
THAP 030E/SK1 Pressure: 30 MPa | Set content: Pump, high pressure hose, nipples
THAP 150E/SK1 Pressure: 150 MPa | Set content: Pump, gauge, hose, nipples
THAP 300E/SK1 Pressure: 300 MPa | Set content: Injector, gauge, high pressure pipe
THAP 400E/SK1 Pressure: 400 MPa | Set content: Injector, gauge, high pressure pipe
Mounting & Dismounting ToolsSKF
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF THAP E Air-driven Hydraulic Pumps and Oil Injectors (30-400 MPa)

Brand SKF·Mounting & Dismounting Tools

Available part numbers (8)

THAP 030E, THAP 150E, THAP 300E, THAP 400E, THAP 030E/SK1, THAP 150E/SK1, THAP 300E/SK1, THAP 400E/SK1

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
THAP 030EPressure: 30 MPa | Volume/stroke: 10 cm3 | Length: 350 mm | Weight: 11.5 kg
THAP 150EPressure: 150 MPa | Volume/stroke: 1.92 cm3 | Length: 350 mm | Weight: 11.5 kg
THAP 300EPressure: 300 MPa | Volume/stroke: 0.83 cm3 | Length: 405 mm | Weight: 13 kg
THAP 400EPressure: 400 MPa | Volume/stroke: 0.64 cm3 | Length: 405 mm | Weight: 13 kg
THAP 030E/SK1Pressure: 30 MPa | Set content: Pump, high pressure hose, nipples
THAP 150E/SK1Pressure: 150 MPa | Set content: Pump, gauge, hose, nipples
THAP 300E/SK1Pressure: 300 MPa | Set content: Injector, gauge, high pressure pipe
THAP 400E/SK1Pressure: 400 MPa | Set content: Injector, gauge, high pressure pipe
