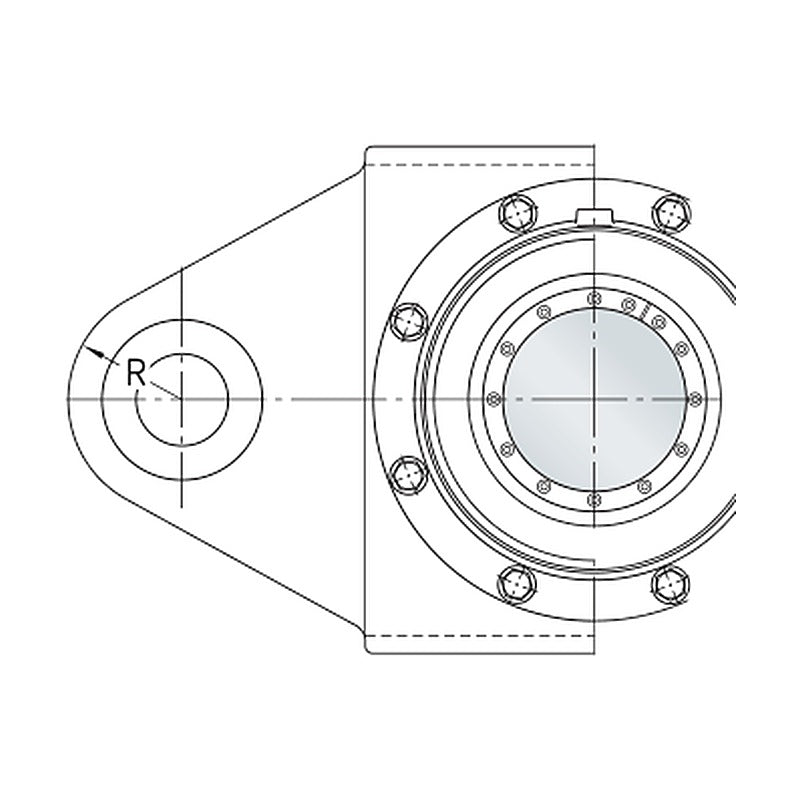

SKF THD Non-Split Take-Up Housings

SKF THD Non-Split Take-Up Housings

SKF THD non-split take-up housings for spherical roller bearings on an adapter sleeve and a plain shaft, used to tension conveyor belts.

Key features

  • Non-split take-up housing in spheroidal graphite cast iron
  • For bearings on an adapter sleeve and plain shaft
  • Labyrinth sealing with PSBD adapter ring included
  • Housing type A (shaft end) and B (through shaft)
  • Typical use: belt conveyor take-up and tensioning

Specifications

Series THD
Housing type Take-up housing, non-split
Material Spheroidal graphite cast iron
Mounting Adapter sleeve, plain shaft
Mass A / B Type A shaft end / type B through shaft
Source SKF Bearing housings and roller bearing units, p. 526-529
THDD 2211 Shaft: 50 mm | Height H: 150 mm | Length L: 150 mm | Bore D1: 115 mm | Mass A / B: 10 / 10 kg
THDD 2212 Shaft: 55 mm | Height H: 165 mm | Length L: 165 mm | Bore D1: 130 mm | Mass A / B: 12 / 12 kg
THDD 2213 Shaft: 60 mm | Height H: 180 mm | Length L: 160 mm | Bore D1: 140 mm | Mass A / B: 16 / 16 kg
THDD 2216 Shaft: 70 mm | Height H: 200 mm | Length L: 180 mm | Bore D1: 155 mm | Mass A / B: 22 / 23 kg
THDD 2218 Shaft: 80 mm | Height H: 230 mm | Length L: 210 mm | Bore D1: 180 mm | Mass A / B: 29 / 30 kg
THDD 2220 Shaft: 90 mm | Height H: 250 mm | Length L: 235 mm | Bore D1: 195 mm | Mass A / B: 35 / 37 kg
THDD 2222 Shaft: 100 mm | Height H: 270 mm | Length L: 255 mm | Bore D1: 215 mm | Mass A / B: 40 / 45 kg
THDD 3222 Shaft: 100 mm | Height H: 300 mm | Length L: 270 mm | Bore D1: 230 mm | Mass A / B: 70 / 74 kg
THDD 2224 Shaft: 110 mm | Height H: 290 mm | Length L: 275 mm | Bore D1: 230 mm | Mass A / B: 45 / 48 kg
THDD 3224 Shaft: 110 mm | Height H: 310 mm | Length L: 290 mm | Bore D1: 245 mm | Mass A / B: 75 / 80 kg
THDD 3226 Shaft: 115 mm | Height H: 335 mm | Length L: 300 mm | Bore D1: 260 mm | Mass A / B: 80 / 85 kg
THDD 2228 Shaft: 125 mm | Height H: 330 mm | Length L: 315 mm | Bore D1: 275 mm | Mass A / B: 56 / 61 kg
THDD 3228 Shaft: 125 mm | Height H: 360 mm | Length L: 330 mm | Bore D1: 290 mm | Mass A / B: 95 / 101 kg
THDD 3030 Shaft: 135 mm | Height H: 320 mm | Length L: 280 mm | Bore D1: 245 mm | Mass A / B: 45 / 52 kg
THDD 3230 Shaft: 135 mm | Height H: 385 mm | Length L: 360 mm | Bore D1: 305 mm | Mass A / B: 118 / 126 kg
THDD 3132 Shaft: 140 mm | Height H: 370 mm | Length L: 370 mm | Bore D1: 310 mm | Mass A / B: 136 / 146 kg
THDD 3232 Shaft: 140 mm | Height H: 400 mm | Length L: 380 mm | Bore D1: 330 mm | Mass A / B: 140 / 150 kg
THDD 3034 Shaft: 150 mm | Height H: 360 mm | Length L: 325 mm | Bore D1: 280 mm | Mass A / B: 76 / 83 kg
THDD 3134 Shaft: 150 mm | Height H: 380 mm | Length L: 375 mm | Bore D1: 330 mm | Mass A / B: 150 / 184 kg
THDD 3136 Shaft: 160 mm | Height H: 440 mm | Length L: 400 mm | Bore D1: 350 mm | Mass A / B: 160 / 172 kg
THDD 3236 Shaft: 160 mm | Height H: 450 mm | Length L: 420 mm | Bore D1: 360 mm | Mass A / B: 165 / 178 kg
THDD 3038 Shaft: 170 mm | Height H: 390 mm | Length L: 380 mm | Bore D1: 315 mm | Mass A / B: 135 / 141 kg
THDD 3138 Shaft: 170 mm | Height H: 450 mm | Length L: 420 mm | Bore D1: 365 mm | Mass A / B: 166 / 176 kg
THDD 3040 Shaft: 180 mm | Height H: 430 mm | Length L: 390 mm | Bore D1: 340 mm | Mass A / B: 160 / 167 kg
THDD 3140 Shaft: 180 mm | Height H: 440 mm | Length L: 440 mm | Bore D1: 380 mm | Mass A / B: 175 / 190 kg
THDD 3240 Shaft: 180 mm | Height H: 500 mm | Length L: 470 mm | Bore D1: 405 mm | Mass A / B: 270 / 290 kg
THDD 3044 Shaft: 200 mm | Height H: 480 mm | Length L: 430 mm | Bore D1: 370 mm | Mass A / B: 200 / 220 kg
THDD 3144 Shaft: 200 mm | Height H: 510 mm | Length L: 470 mm | Bore D1: 420 mm | Mass A / B: 240 / 255 kg
THDD 3244 Shaft: 200 mm | Height H: 540 mm | Length L: 520 mm | Bore D1: 445 mm | Mass A / B: 380 / 400 kg
THDD 3148 Shaft: 220 mm | Height H: 540 mm | Length L: 520 mm | Bore D1: 455 mm | Mass A / B: 310 / 360 kg
THDD 3248 Shaft: 220 mm | Height H: 580 mm | Length L: 560 mm | Bore D1: 490 mm | Mass A / B: 460 / 485 kg
THDD 3052 Shaft: 240 mm | Height H: 540 mm | Length L: 500 mm | Bore D1: 435 mm | Mass A / B: 269 / 280 kg
THDD 3152 Shaft: 240 mm | Height H: 570 mm | Length L: 550 mm | Bore D1: 490 mm | Mass A / B: 400 / 460 kg
THDD 3252 Shaft: 240 mm | Height H: 610 mm | Length L: 590 mm | Bore D1: 540 mm | Mass A / B: 545 / 580 kg
THDD 3256 Shaft: 260 mm | Height H: 650 mm | Length L: 630 mm | Bore D1: 555 mm | Mass A / B: 590 / 630 kg
THDD 3160 Shaft: 280 mm | Height H: 650 mm | Length L: 625 mm | Bore D1: 550 mm | Mass A / B: 540 / 580 kg
THDD 3260 Shaft: 280 mm | Height H: 670 mm | Length L: 670 mm | Bore D1: 600 mm | Mass A / B: 678 / 730 kg
THDD 3164 Shaft: 300 mm | Height H: 670 mm | Length L: 665 mm | Bore D1: 590 mm | Mass A / B: 650 / 690 kg
THDD 3264 Shaft: 300 mm | Height H: 710 mm | Length L: 710 mm | Bore D1: 640 mm | Mass A / B: 800 / 860 kg
THDD 3168 Shaft: 320 mm | Height H: 740 mm | Length L: 740 mm | Bore D1: 630 mm | Mass A / B: 760 / 880 kg
THDD 3268 Shaft: 320 mm | Height H: 750 mm | Length L: 750 mm | Bore D1: 680 mm | Mass A / B: 920 / 1000 kg
THDD 3272 Shaft: 340 mm | Height H: 790 mm | Length L: 790 mm | Bore D1: 710 mm | Mass A / B: 1050 / 1120 kg
THDD 3176 Shaft: 360 mm | Height H: 790 mm | Length L: 750 mm | Bore D1: 680 mm | Mass A / B: 890 / 1000 kg
THDD 3276 Shaft: 360 mm | Height H: 820 mm | Length L: 810 mm | Bore D1: 745 mm | Mass A / B: 1200 / 1280 kg
THDD 3280 Shaft: 380 mm | Height H: 870 mm | Length L: 870 mm | Bore D1: 790 mm | Mass A / B: 1480 / 1580 kg
THDD 3284 Shaft: 400 mm | Height H: 925 mm | Length L: 925 mm | Bore D1: 835 mm | Mass A / B: 1880 / 1980 kg
