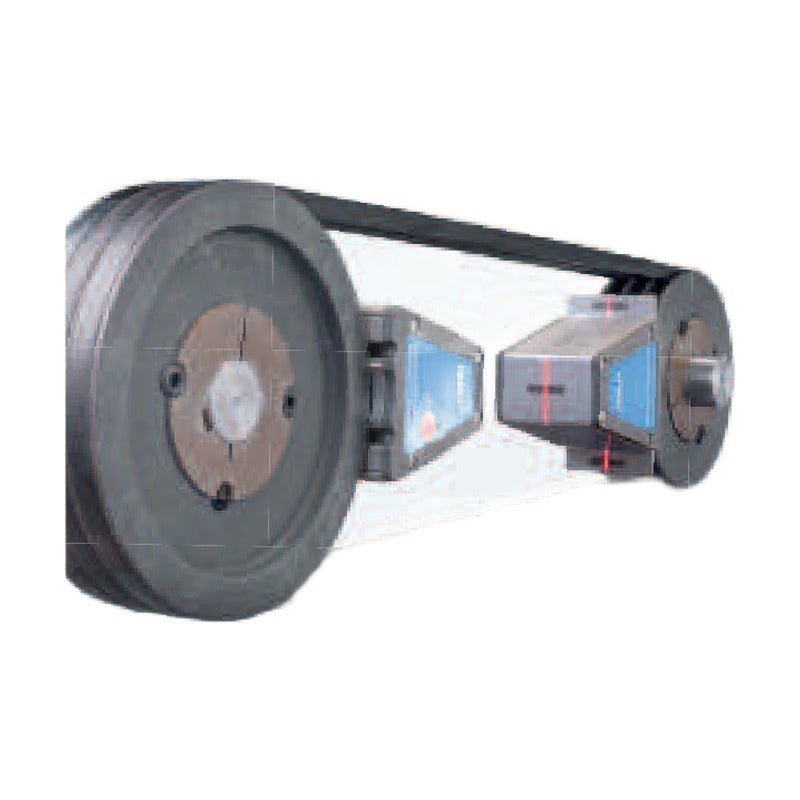

SKF TKBA Belt Alignment Tools (TKBA 10, TKBA 20, TKBA 40)

SKF TKBA laser belt alignment tools align pulleys and sprockets on the face (TKBA 10/20) or in the V-belt grooves (TKBA 40) for reduced wear, vibration and energy use.

Key features

Powerful magnets for fast attachment
Laser position shows the nature of misalignment
Simultaneous adjustment of tension and alignment
TKBA 20 green laser usable outdoors up to 6 m
TKBA 40 V-guides align grooves; side adapter TMEB A2 optional

Specifications

Laser class	2, <1 mW
IP rating	IP 40
Calibration	Valid two years
Source	SKF Maintenance and Lubrication Products, p. 100-101

TKBA 10		Laser: Red, 635 nm \| Distance: 50-3 000 mm \| Mounting: Magnetic, side \| Battery life: 25 h \| Weight: 1.3 kg kit
TKBA 20		Laser: Green, 532 nm \| Distance: 50-6 000 mm \| Mounting: Magnetic, side \| Battery life: 8 h \| Weight: 1.3 kg kit
TKBA 40		Laser: Red, 632 nm \| Distance: 50-6 000 mm \| Mounting: Magnetic, groove (V-guides) \| Battery life: 20 h \| Weight: 1.2 kg kit
TMEB A2		Mounting: Side adapter for TKBA 40 \| Use: Multi-ribbed/timing belts, sprockets

Shaft Alignment ToolsSKF

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TKBA Belt Alignment Tools (TKBA 10, TKBA 20, TKBA 40)

Brand SKF·Shaft Alignment Tools

Available part numbers (4)

TKBA 10, TKBA 20, TKBA 40, TMEB A2

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	TKBA 10	Laser: Red, 635 nm \| Distance: 50-3 000 mm \| Mounting: Magnetic, side \| Battery life: 25 h \| Weight: 1.3 kg kit
	TKBA 20	Laser: Green, 532 nm \| Distance: 50-6 000 mm \| Mounting: Magnetic, side \| Battery life: 8 h \| Weight: 1.3 kg kit
	TKBA 40	Laser: Red, 632 nm \| Distance: 50-6 000 mm \| Mounting: Magnetic, groove (V-guides) \| Battery life: 20 h \| Weight: 1.2 kg kit
	TMEB A2	Mounting: Side adapter for TKBA 40 \| Use: Multi-ribbed/timing belts, sprockets
