SKF TKSA Shaft Alignment Tools (TKSA 11, 31, 41, 51, 71)

SKF TKSA Shaft Alignment Tools (TKSA 11, 31, 41, 51, 71)

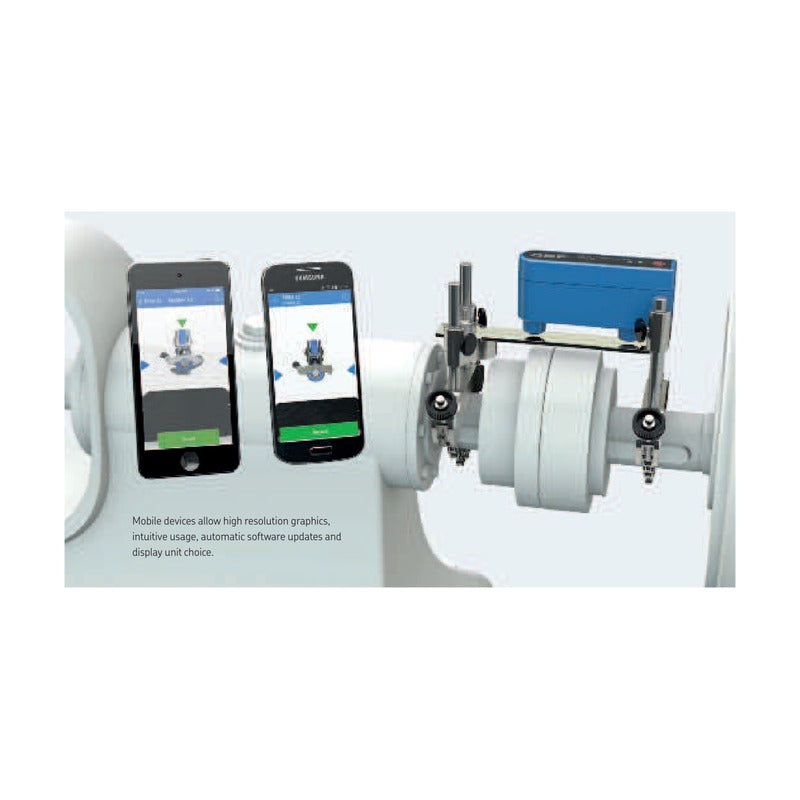

SKF TKSA shaft alignment tools range from the app-based TKSA 11 with inductive sensors to the professional TKSA 71 laser system for horizontal, vertical, spacer shaft and machine train alignment.

Key features

  • Guided alignment with live view and automatic PDF reports
  • TKSA 31/41 with touch-screen display unit and machine library
  • TKSA 51/71 use apps on tablets or phones; D2 versions include display TKSA DISPLAY2
  • TKSA 71: IP67 measuring units, up to 10 m distance, disturbance compensation
  • Calibration certificate with 2 years validity

Specifications

Calibration certificate 2 years validity
Source SKF Maintenance and Lubrication Products, p. 84, 93
TKSA 11 Sensor: Inductive proximity | Distance: 0-185 mm | Min. rotation: 180 deg | Display: Phone/tablet (not incl.) | Weight: 2.1 kg kit
TKSA 11D2 Sensor: Inductive proximity | Distance: 0-185 mm | Min. rotation: 180 deg | Display: TKSA DISPLAY2 incl.
TKSA 31 Sensor: 29 mm CCD, line laser | Distance: 0.07-2 m (cable) | Min. rotation: 140 deg | Display: Touch screen unit | Weight: 4.75 kg kit
TKSA 41 Sensor: 29 mm CCD, line laser | Distance: 0.07-4 m, wireless | Min. rotation: 90 deg | Display: Touch screen unit | Weight: 4.75 kg kit
TKSA 51 Sensor: 20 mm PSD, line laser | Distance: 0.07-5 m, wireless | Min. rotation: 40 deg | Display: Phone/tablet (not incl.) | Weight: 2.9 kg kit
TKSA 51D2 Sensor: 20 mm PSD, line laser | Distance: 0.07-5 m, wireless | Min. rotation: 40 deg | Display: TKSA DISPLAY2 incl.
TKSA 71 Sensor: 20 mm 2nd gen. PSD | Distance: 0.04-10 m, wireless | Min. rotation: 40 deg | Display: Phone/tablet (not incl.) | Weight: 3.9 kg kit
TKSA 71/PRO Sensor: 20 mm 2nd gen. PSD | Distance: 0.04-10 m, wireless | Min. rotation: 40 deg | Display: Phone/tablet (not incl.) | Weight: 12.5 kg kit
TKSA 71D2 Sensor: 20 mm 2nd gen. PSD | Distance: 0.04-10 m, wireless | Min. rotation: 40 deg | Display: TKSA DISPLAY2 incl.
TKSA 71D2/PRO Sensor: 20 mm 2nd gen. PSD | Distance: 0.04-10 m, wireless | Min. rotation: 40 deg | Display: TKSA DISPLAY2 incl.
TKSA DISPLAY2 Type: Industrial Android tablet | Screen: 8 in. | Operation: 8 h | Apps: Pre-installed
Shaft Alignment ToolsSKF
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TKSA Shaft Alignment Tools (TKSA 11, 31, 41, 51, 71)

Brand SKF·Shaft Alignment Tools

Available part numbers (11)

TKSA 11, TKSA 11D2, TKSA 31, TKSA 41, TKSA 51, TKSA 51D2, TKSA 71, TKSA 71/PRO, TKSA 71D2, TKSA 71D2/PRO + 1 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TKSA 11Sensor: Inductive proximity | Distance: 0-185 mm | Min. rotation: 180 deg | Display: Phone/tablet (not incl.) | Weight: 2.1 kg kit
TKSA 11D2Sensor: Inductive proximity | Distance: 0-185 mm | Min. rotation: 180 deg | Display: TKSA DISPLAY2 incl.
TKSA 31Sensor: 29 mm CCD, line laser | Distance: 0.07-2 m (cable) | Min. rotation: 140 deg | Display: Touch screen unit | Weight: 4.75 kg kit
TKSA 41Sensor: 29 mm CCD, line laser | Distance: 0.07-4 m, wireless | Min. rotation: 90 deg | Display: Touch screen unit | Weight: 4.75 kg kit
TKSA 51Sensor: 20 mm PSD, line laser | Distance: 0.07-5 m, wireless | Min. rotation: 40 deg | Display: Phone/tablet (not incl.) | Weight: 2.9 kg kit
TKSA 51D2Sensor: 20 mm PSD, line laser | Distance: 0.07-5 m, wireless | Min. rotation: 40 deg | Display: TKSA DISPLAY2 incl.
TKSA 71Sensor: 20 mm 2nd gen. PSD | Distance: 0.04-10 m, wireless | Min. rotation: 40 deg | Display: Phone/tablet (not incl.) | Weight: 3.9 kg kit
TKSA 71/PROSensor: 20 mm 2nd gen. PSD | Distance: 0.04-10 m, wireless | Min. rotation: 40 deg | Display: Phone/tablet (not incl.) | Weight: 12.5 kg kit
TKSA 71D2Sensor: 20 mm 2nd gen. PSD | Distance: 0.04-10 m, wireless | Min. rotation: 40 deg | Display: TKSA DISPLAY2 incl.
TKSA 71D2/PROSensor: 20 mm 2nd gen. PSD | Distance: 0.04-10 m, wireless | Min. rotation: 40 deg | Display: TKSA DISPLAY2 incl.
TKSA DISPLAY2Type: Industrial Android tablet | Screen: 8 in. | Operation: 8 h | Apps: Pre-installed
