SKF TKTL Infrared Thermometers (TKTL 10, 20, 30, 40)

SKF TKTL Infrared Thermometers (TKTL 10, 20, 30, 40)

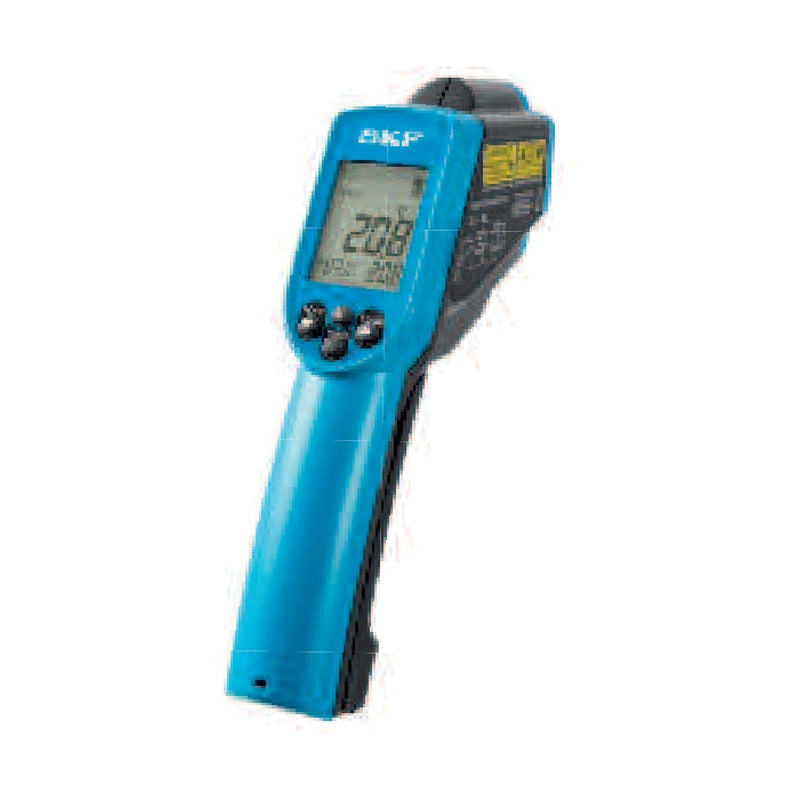

SKF TKTL infrared thermometers measure temperature safely at a distance with laser sighting; TKTL 20-40 also accept contact probes and TKTL 40 adds camera, video and data logging.

Key features

  • Back-lit display, laser sighting and LED illuminator
  • TKTL 20/30/40 supplied with probe TMDT 2-30
  • Max, min, average, differential and probe/IR dual modes (TKTL 20-40)
  • TKTL 30/40 dual laser sighting, 50:1 distance to spot
  • TKTL 40: camera, HVAC functions and data logging

Specifications

Spectral response 8-14 um
Laser Class 2
Source SKF Maintenance and Lubrication Products, p. 106-108
TKTL 10 IR range: -60 to +625 C | D:S: 16:1 | Emissivity: 0.95 fixed | Weight: 230 g
TKTL 20 IR range: -60 to +625 C | D:S: 16:1 | Emissivity: 0.1-1.0 | Probe range: -64 to +1 400 C | Weight: 230 g
TKTL 30 IR range: -60 to +1 000 C | D:S: 50:1 | Emissivity: 0.1-1.0 | Probe range: -64 to +1 400 C | Weight: 370 g
TKTL 40 IR range: -50 to +1 000 C | D:S: 50:1 | Emissivity: 0.1-1.0 | Probe range: -50 to +1 370 C | Weight: 600 g
Condition MonitoringSKF
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TKTL Infrared Thermometers (TKTL 10, 20, 30, 40)

Brand SKF·Condition Monitoring

Available part numbers (4)

TKTL 10, TKTL 20, TKTL 30, TKTL 40

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TKTL 10IR range: -60 to +625 C | D:S: 16:1 | Emissivity: 0.95 fixed | Weight: 230 g
TKTL 20IR range: -60 to +625 C | D:S: 16:1 | Emissivity: 0.1-1.0 | Probe range: -64 to +1 400 C | Weight: 230 g
TKTL 30IR range: -60 to +1 000 C | D:S: 50:1 | Emissivity: 0.1-1.0 | Probe range: -64 to +1 400 C | Weight: 370 g
TKTL 40IR range: -50 to +1 000 C | D:S: 50:1 | Emissivity: 0.1-1.0 | Probe range: -50 to +1 370 C | Weight: 600 g
