SKF TMBS E Strong Back Pullers (TMBS 50E, 100E, 150E)

SKF TMBS E Strong Back Pullers (TMBS 50E, 100E, 150E)

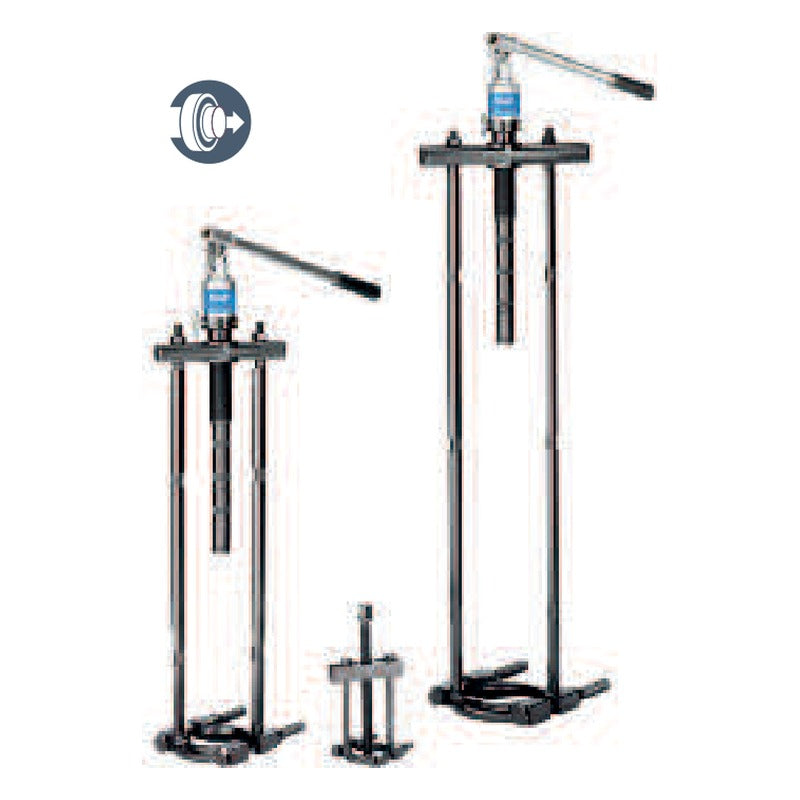

SKF TMBS E strong back pullers dismount bearings where traditional jaw pullers cannot be used due to lack of space or where a long reach is needed.

Key features

  • Separator designed to fit between the bearing and the shaft shoulder
  • Firm grip behind the inner ring reduces the dismounting force required
  • TMBS 100E/150E with hydraulic spindle TMHS 100 up to 100 kN
  • TMBS 50E with mechanical spindle
  • Extension rods allow pulling lengths up to 816 mm

Specifications

Type Strong back puller kit
Source SKF Maintenance and Lubrication Products, p. 30-31
TMBS 50E Shaft dia.: 7-50 mm | Max. bearing OD: 85 mm | Max. reach: 110 mm | Force: 30 kN | Weight: 1.8 kg
TMBS 100E Shaft dia.: 20-100 mm | Max. bearing OD: 160 mm | Max. reach: 120-816 mm | Force: 100 kN | Weight: 13.5 kg
TMBS 150E Shaft dia.: 35-150 mm | Max. bearing OD: 215 mm | Max. reach: 120-816 mm | Force: 100 kN | Weight: 17 kg
Mounting & Dismounting ToolsSKF
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMBS E Strong Back Pullers (TMBS 50E, 100E, 150E)

Brand SKF·Mounting & Dismounting Tools

Available part numbers (3)

TMBS 50E, TMBS 100E, TMBS 150E

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMBS 50EShaft dia.: 7-50 mm | Max. bearing OD: 85 mm | Max. reach: 110 mm | Force: 30 kN | Weight: 1.8 kg
TMBS 100EShaft dia.: 20-100 mm | Max. bearing OD: 160 mm | Max. reach: 120-816 mm | Force: 100 kN | Weight: 13.5 kg
TMBS 150EShaft dia.: 35-150 mm | Max. bearing OD: 215 mm | Max. reach: 120-816 mm | Force: 100 kN | Weight: 17 kg
