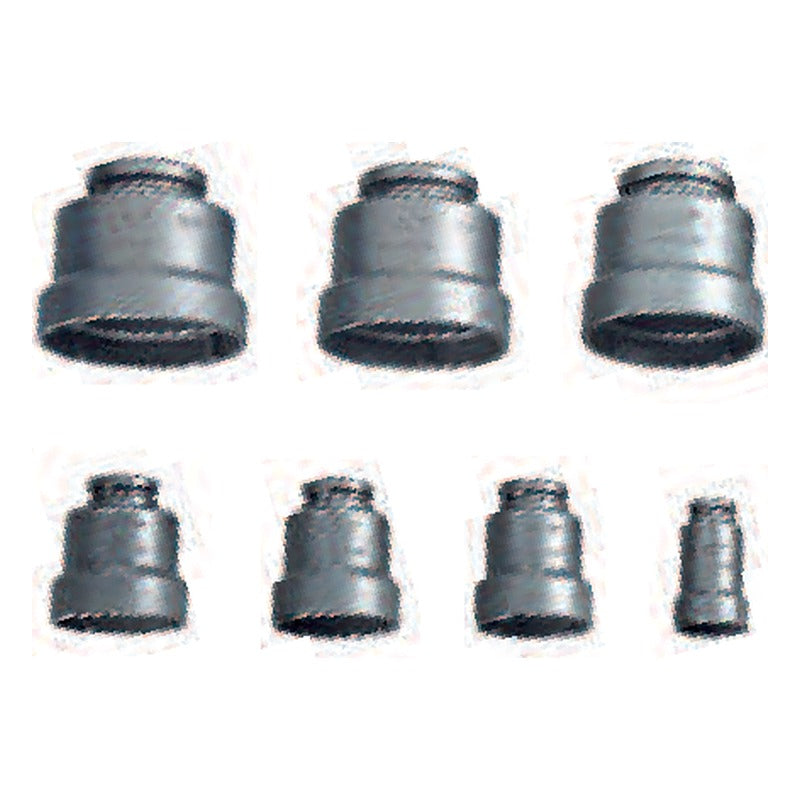

SKF TMFS Axial Lock Nut Sockets (TMFS 0 to TMFS 20)

SKF TMFS Axial Lock Nut Sockets (TMFS 0 to TMFS 20)

SKF TMFS axial lock nut sockets mount and dismount KM, KMK and KMFE lock nuts with power tools or torque wrenches, requiring less space around the bearing arrangement than hook spanners.

Key features

  • Requires less space around the bearing arrangement than hook spanners
  • Inch drive connections for power tools or torque wrenches
  • Fits SKF lock nut series KM, KMK (metric) and KMFE
  • Special longer length versions available upon request

Specifications

Nut series KM, KMK, KMFE
Source SKF Maintenance and Lubrication Products, p. 17
TMFS 0 KM nut size: 0 | Lock nut OD: 18 mm | Socket OD: 22.0 mm | Effective height: 45 mm | Drive: 3/8 in.
TMFS 1 KM nut size: 1 | Lock nut OD: 22 mm | Socket OD: 28.0 mm | Effective height: 45 mm | Drive: 3/8 in.
TMFS 2 KM nut size: 2 | Lock nut OD: 25 mm | Socket OD: 33.0 mm | Effective height: 61 mm | Drive: 1/2 in.
TMFS 3 KM nut size: 3 | Lock nut OD: 28 mm | Socket OD: 36.0 mm | Effective height: 61 mm | Drive: 1/2 in.
TMFS 4 KM nut size: 4 | Lock nut OD: 32 mm | Socket OD: 38.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 5 KM nut size: 5 | Lock nut OD: 38 mm | Socket OD: 46.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 6 KM nut size: 6 | Lock nut OD: 45 mm | Socket OD: 53.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 7 KM nut size: 7 | Lock nut OD: 52 mm | Socket OD: 60.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 8 KM nut size: 8 | Lock nut OD: 58 mm | Socket OD: 68.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 9 KM nut size: 9 | Lock nut OD: 65 mm | Socket OD: 73.5 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 10 KM nut size: 10 | Lock nut OD: 70 mm | Socket OD: 78.5 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 11 KM nut size: 11 | Lock nut OD: 75 mm | Socket OD: 83.5 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 12 KM nut size: 12 | Lock nut OD: 80 mm | Socket OD: 88.5 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 13 KM nut size: 13 | Lock nut OD: 85 mm | Socket OD: 94.0 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 14 KM nut size: 14 | Lock nut OD: 92 mm | Socket OD: 103.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 15 KM nut size: 15 | Lock nut OD: 98 mm | Socket OD: 109.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 16 KM nut size: 16 | Lock nut OD: 105 mm | Socket OD: 116.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 17 KM nut size: 17 | Lock nut OD: 110 mm | Socket OD: 121.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 18 KM nut size: 18 | Lock nut OD: 120 mm | Socket OD: 131.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 19 KM nut size: 19 | Lock nut OD: 125 mm | Socket OD: 137.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 20 KM nut size: 20 | Lock nut OD: 130 mm | Socket OD: 143.0 mm | Effective height: 80 mm | Drive: 1 in.
Mounting & Dismounting ToolsSKF
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMFS Axial Lock Nut Sockets (TMFS 0 to TMFS 20)

Brand SKF·Mounting & Dismounting Tools

Available part numbers (21)

TMFS 0, TMFS 1, TMFS 2, TMFS 3, TMFS 4, TMFS 5, TMFS 6, TMFS 7, TMFS 8, TMFS 9 + 11 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMFS 0KM nut size: 0 | Lock nut OD: 18 mm | Socket OD: 22.0 mm | Effective height: 45 mm | Drive: 3/8 in.
TMFS 1KM nut size: 1 | Lock nut OD: 22 mm | Socket OD: 28.0 mm | Effective height: 45 mm | Drive: 3/8 in.
TMFS 2KM nut size: 2 | Lock nut OD: 25 mm | Socket OD: 33.0 mm | Effective height: 61 mm | Drive: 1/2 in.
TMFS 3KM nut size: 3 | Lock nut OD: 28 mm | Socket OD: 36.0 mm | Effective height: 61 mm | Drive: 1/2 in.
TMFS 4KM nut size: 4 | Lock nut OD: 32 mm | Socket OD: 38.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 5KM nut size: 5 | Lock nut OD: 38 mm | Socket OD: 46.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 6KM nut size: 6 | Lock nut OD: 45 mm | Socket OD: 53.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 7KM nut size: 7 | Lock nut OD: 52 mm | Socket OD: 60.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 8KM nut size: 8 | Lock nut OD: 58 mm | Socket OD: 68.0 mm | Effective height: 58 mm | Drive: 1/2 in.
TMFS 9KM nut size: 9 | Lock nut OD: 65 mm | Socket OD: 73.5 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 10KM nut size: 10 | Lock nut OD: 70 mm | Socket OD: 78.5 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 11KM nut size: 11 | Lock nut OD: 75 mm | Socket OD: 83.5 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 12KM nut size: 12 | Lock nut OD: 80 mm | Socket OD: 88.5 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 13KM nut size: 13 | Lock nut OD: 85 mm | Socket OD: 94.0 mm | Effective height: 63 mm | Drive: 3/4 in.
TMFS 14KM nut size: 14 | Lock nut OD: 92 mm | Socket OD: 103.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 15KM nut size: 15 | Lock nut OD: 98 mm | Socket OD: 109.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 16KM nut size: 16 | Lock nut OD: 105 mm | Socket OD: 116.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 17KM nut size: 17 | Lock nut OD: 110 mm | Socket OD: 121.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 18KM nut size: 18 | Lock nut OD: 120 mm | Socket OD: 131.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 19KM nut size: 19 | Lock nut OD: 125 mm | Socket OD: 137.0 mm | Effective height: 80 mm | Drive: 1 in.
TMFS 20KM nut size: 20 | Lock nut OD: 130 mm | Socket OD: 143.0 mm | Effective height: 80 mm | Drive: 1 in.
