SKF TMHP Hydraulically Assisted Heavy Duty Jaw Pullers (150-500 kN)

SKF TMHP Hydraulically Assisted Heavy Duty Jaw Pullers (150-500 kN)

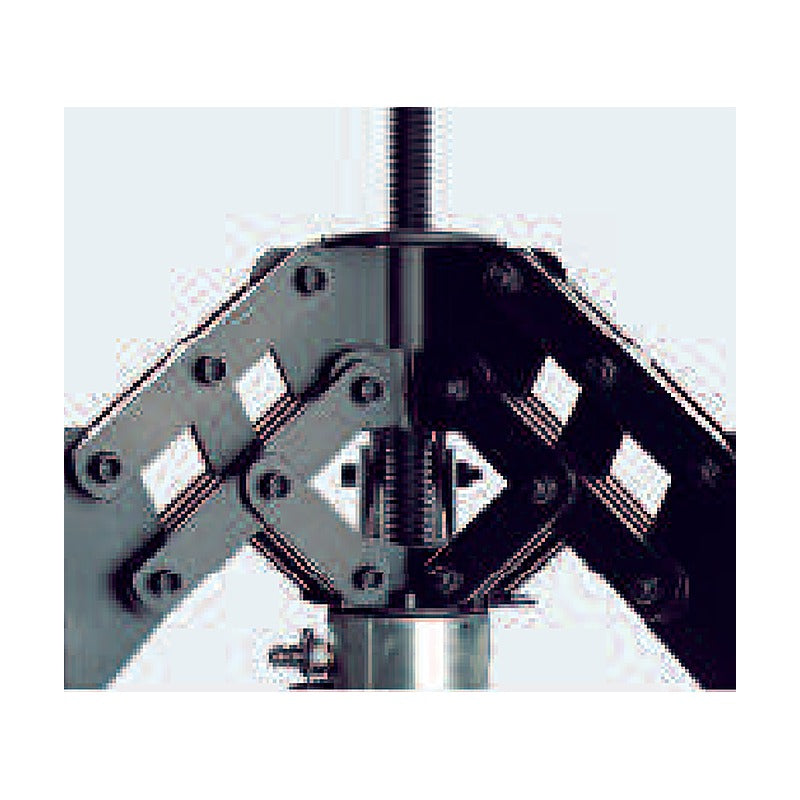

SKF TMHP pullers combine a spindle and a hydraulic cylinder with a self-centring pantograph jaw system to apply withdrawal forces of 150, 300 or 500 kN.

Key features

  • Self-centring puller allows high forces to be applied easily
  • Spindle and hydraulic cylinder combination allows easy adjustment of working length
  • Pantograph system gives exceptional grip and counteracts misalignment
  • Lifting handle and eye bolt for easy handling
  • Supplied with hydraulic pump TMJL 100; 'X' suffix versions without pump

Specifications

Arms 3
Max. cylinder pressure 80 MPa
Source SKF Maintenance and Lubrication Products, p. 27
TMHP 15/260 Grip width: 195-386 mm | Arm length: 264 mm | Stroke: 100 mm | Max. force: 150 kN | Pump: TMJL 100 incl.
TMHP 30/170 Grip width: 290-500 mm | Arm length: 170 mm | Stroke: 50 mm | Max. force: 300 kN | Pump: TMJL 100 incl.
TMHP 30/350 Grip width: 290-500 mm | Arm length: 350 mm | Stroke: 50 mm | Max. force: 300 kN | Pump: TMJL 100 incl.
TMHP 30/600 Grip width: 290-500 mm | Arm length: 600 mm | Stroke: 50 mm | Max. force: 300 kN | Pump: TMJL 100 incl.
TMHP 50/140 Grip width: 310-506 mm | Arm length: 140 mm | Stroke: 40 mm | Max. force: 500 kN | Pump: TMJL 100 incl.
TMHP 50/320 Grip width: 310-506 mm | Arm length: 320 mm | Stroke: 40 mm | Max. force: 500 kN | Pump: TMJL 100 incl.
TMHP 50/570 Grip width: 310-506 mm | Arm length: 570 mm | Stroke: 40 mm | Max. force: 500 kN | Pump: TMJL 100 incl.
TMHP 15/260X Grip width: 195-386 mm | Arm length: 264 mm | Stroke: 100 mm | Max. force: 150 kN | Pump: without pump
TMHP 30/170X Grip width: 290-500 mm | Arm length: 170 mm | Stroke: 50 mm | Max. force: 300 kN | Pump: without pump
TMHP 30/350X Grip width: 290-500 mm | Arm length: 350 mm | Stroke: 50 mm | Max. force: 300 kN | Pump: without pump
TMHP 30/600X Grip width: 290-500 mm | Arm length: 600 mm | Stroke: 50 mm | Max. force: 300 kN | Pump: without pump
TMHP 50/140X Grip width: 310-506 mm | Arm length: 140 mm | Stroke: 40 mm | Max. force: 500 kN | Pump: without pump
TMHP 50/320X Grip width: 310-506 mm | Arm length: 320 mm | Stroke: 40 mm | Max. force: 500 kN | Pump: without pump
TMHP 50/570X Grip width: 310-506 mm | Arm length: 570 mm | Stroke: 40 mm | Max. force: 500 kN | Pump: without pump
