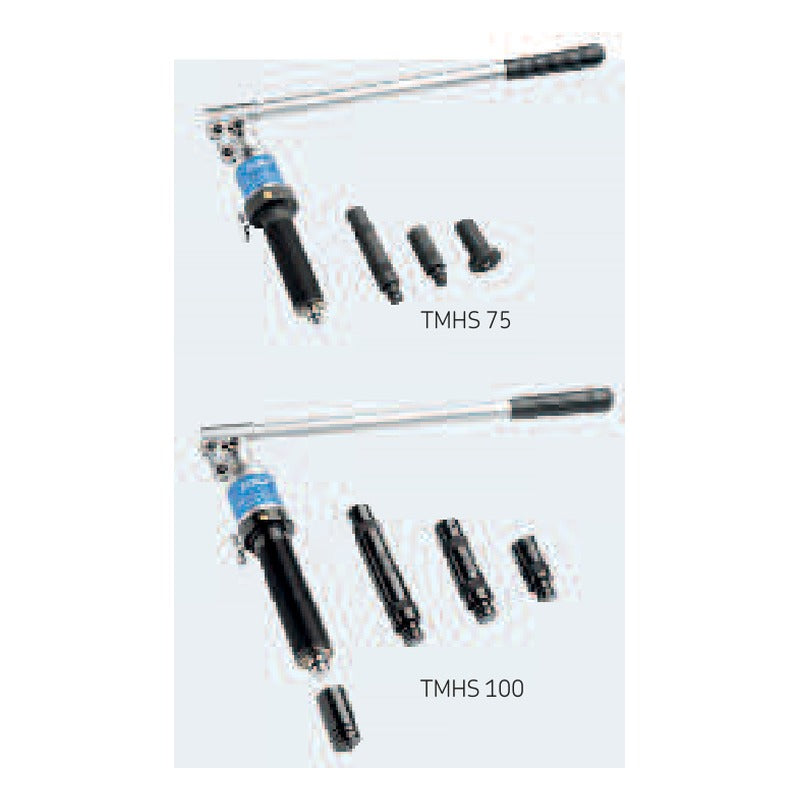

SKF TMHS Advanced Hydraulic Spindles (TMHS 75, TMHS 100)

SKF TMHS Advanced Hydraulic Spindles (TMHS 75, TMHS 100)

SKF TMHS 75 and TMHS 100 hydraulic spindles generate high pulling force with very little effort, integrating cylinder, pump and spindle for use with pullers.

Key features

  • Integrated hydraulic cylinder, pump and spindle; no separate pump needed
  • Safety valve prevents overloading spindle and puller
  • Long stroke enables dismounting in one operation
  • Spring-loaded nosepiece centre point for easy centring
  • Hand lever rotates 360 degrees; extension pieces included

Specifications

Type Hydraulic spindle
Source SKF Maintenance and Lubrication Products, p. 38
TMHS 75 Max. force: 75 kN | Stroke: 75 mm | Thread: 1 1/4"-12 UNF | Max. reach: 229 mm | Weight: 2.7 kg
TMHS 100 Max. force: 100 kN | Stroke: 80 mm | Thread: 1 1/2"-16 UN | Max. reach: 390 mm | Weight: 4.5 kg
Mounting & Dismounting ToolsSKF
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMHS Advanced Hydraulic Spindles (TMHS 75, TMHS 100)

Brand SKF·Mounting & Dismounting Tools

Available part numbers (2)

TMHS 75, TMHS 100

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMHS 75Max. force: 75 kN | Stroke: 75 mm | Thread: 1 1/4"-12 UNF | Max. reach: 229 mm | Weight: 2.7 kg
TMHS 100Max. force: 100 kN | Stroke: 80 mm | Thread: 1 1/2"-16 UN | Max. reach: 390 mm | Weight: 4.5 kg
