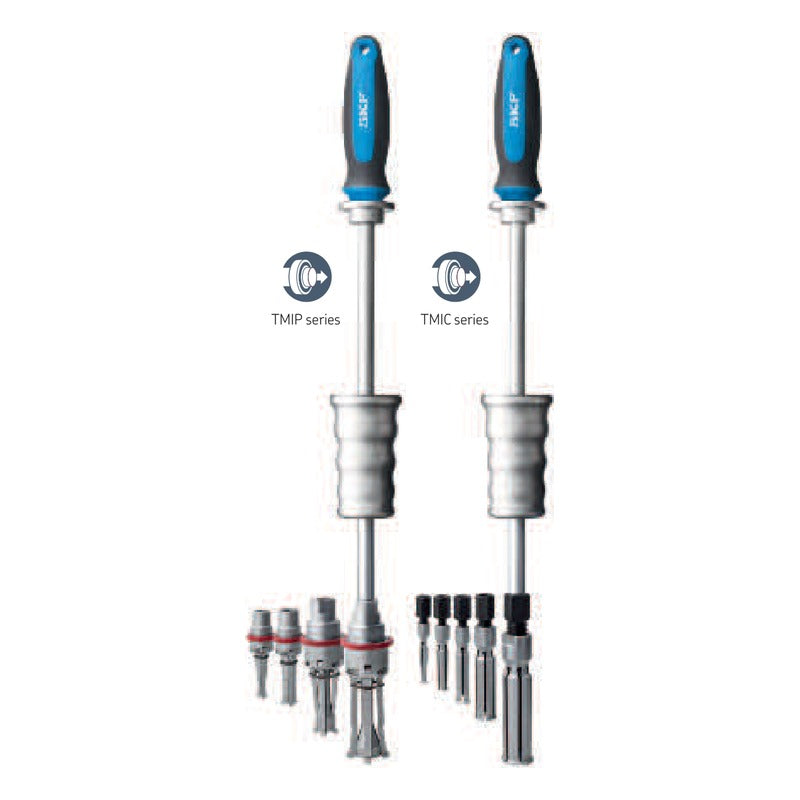

SKF TMIP and TMIC Internal Bearing Puller Kits and Extractors

SKF TMIP and TMIC Internal Bearing Puller Kits and Extractors

SKF TMIP and TMIC internal bearing puller kits dismount bearings from housings where the fit is on the outer ring, using extractors and an ergonomic sliding hammer.

Key features

  • TMIP spring-loaded extractors fit the inner ring in one quick action
  • TMIC expandable collets for applications with little space behind the bearing
  • Strong, secure grip behind the inner ring allows high puller force
  • Sliding hammer designed for user safety
  • Supplied in a sturdy carrying case (530 x 85 x 180 mm)

Specifications

Case 530 x 85 x 180 mm
Source SKF Maintenance and Lubrication Products, p. 34-35
TMIC 7-28 Bearing bore: 7-28 mm | Hammer length: 417 mm | Type: Kit, collet extractors | Weight: 3.0 kg
TMIP 7-28 Bearing bore: 7-28 mm | Hammer length: 417 mm | Type: Kit, spring extractors | Weight: 3.1 kg
TMIP 30-60 Bearing bore: 30-60 mm | Hammer length: 557 mm | Type: Kit, spring extractors | Weight: 5.4 kg
TMIC C7-8 Bearing bore: 7-8 mm | Max. bearing width: 13.3 mm | Space behind bearing: 3 mm | Housing depth: 54 mm
TMIC C10-12 Bearing bore: 10-12 mm | Max. bearing width: 46.5 mm | Space behind bearing: 3 mm | Housing depth: 56 mm
TMIC C12-15 Bearing bore: 12-15 mm | Max. bearing width: 54 mm | Space behind bearing: 4 mm | Housing depth: 62 mm
TMIC C17-20 Bearing bore: 17-20 mm | Max. bearing width: 59 mm | Space behind bearing: 5.3 mm | Housing depth: 70 mm
TMIC C22-28 Bearing bore: 22-28 mm | Max. bearing width: 90 mm | Space behind bearing: 6.7 mm | Housing depth: 90 mm
TMIP E7-9 Bearing bore: 7-9 mm | Max. bearing width: 10 mm | Space behind bearing: 6 mm | Housing depth: 39 mm
TMIP E10-12 Bearing bore: 10-12 mm | Max. bearing width: 11 mm | Space behind bearing: 6 mm | Housing depth: 45 mm
TMIP E15-17 Bearing bore: 15-17 mm | Max. bearing width: 18 mm | Space behind bearing: 7.5 mm | Housing depth: 55 mm
TMIP E20-28 Bearing bore: 20-28 mm | Max. bearing width: 24 mm | Space behind bearing: 10 mm | Housing depth: 60 mm
TMIP E30-40 Bearing bore: 30-40 mm | Max. bearing width: >35 mm | Space behind bearing: 11.5 mm | Housing depth: 97 mm
TMIP E45-60 Bearing bore: 45-60 mm | Max. bearing width: >64 mm | Space behind bearing: 15 mm | Housing depth: 102 mm
Mounting & Dismounting ToolsSKF
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMIP and TMIC Internal Bearing Puller Kits and Extractors

Brand SKF·Mounting & Dismounting Tools

Available part numbers (14)

TMIC 7-28, TMIP 7-28, TMIP 30-60, TMIC C7-8, TMIC C10-12, TMIC C12-15, TMIC C17-20, TMIC C22-28, TMIP E7-9, TMIP E10-12 + 4 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMIC 7-28Bearing bore: 7-28 mm | Hammer length: 417 mm | Type: Kit, collet extractors | Weight: 3.0 kg
TMIP 7-28Bearing bore: 7-28 mm | Hammer length: 417 mm | Type: Kit, spring extractors | Weight: 3.1 kg
TMIP 30-60Bearing bore: 30-60 mm | Hammer length: 557 mm | Type: Kit, spring extractors | Weight: 5.4 kg
TMIC C7-8Bearing bore: 7-8 mm | Max. bearing width: 13.3 mm | Space behind bearing: 3 mm | Housing depth: 54 mm
TMIC C10-12Bearing bore: 10-12 mm | Max. bearing width: 46.5 mm | Space behind bearing: 3 mm | Housing depth: 56 mm
TMIC C12-15Bearing bore: 12-15 mm | Max. bearing width: 54 mm | Space behind bearing: 4 mm | Housing depth: 62 mm
TMIC C17-20Bearing bore: 17-20 mm | Max. bearing width: 59 mm | Space behind bearing: 5.3 mm | Housing depth: 70 mm
TMIC C22-28Bearing bore: 22-28 mm | Max. bearing width: 90 mm | Space behind bearing: 6.7 mm | Housing depth: 90 mm
TMIP E7-9Bearing bore: 7-9 mm | Max. bearing width: 10 mm | Space behind bearing: 6 mm | Housing depth: 39 mm
TMIP E10-12Bearing bore: 10-12 mm | Max. bearing width: 11 mm | Space behind bearing: 6 mm | Housing depth: 45 mm
TMIP E15-17Bearing bore: 15-17 mm | Max. bearing width: 18 mm | Space behind bearing: 7.5 mm | Housing depth: 55 mm
TMIP E20-28Bearing bore: 20-28 mm | Max. bearing width: 24 mm | Space behind bearing: 10 mm | Housing depth: 60 mm
TMIP E30-40Bearing bore: 30-40 mm | Max. bearing width: >35 mm | Space behind bearing: 11.5 mm | Housing depth: 97 mm
TMIP E45-60Bearing bore: 45-60 mm | Max. bearing width: >64 mm | Space behind bearing: 15 mm | Housing depth: 102 mm
