SKF TMMA EasyPull Mechanical and Hydraulic Pullers and Sets

SKF TMMA EasyPull Mechanical and Hydraulic Pullers and Sets

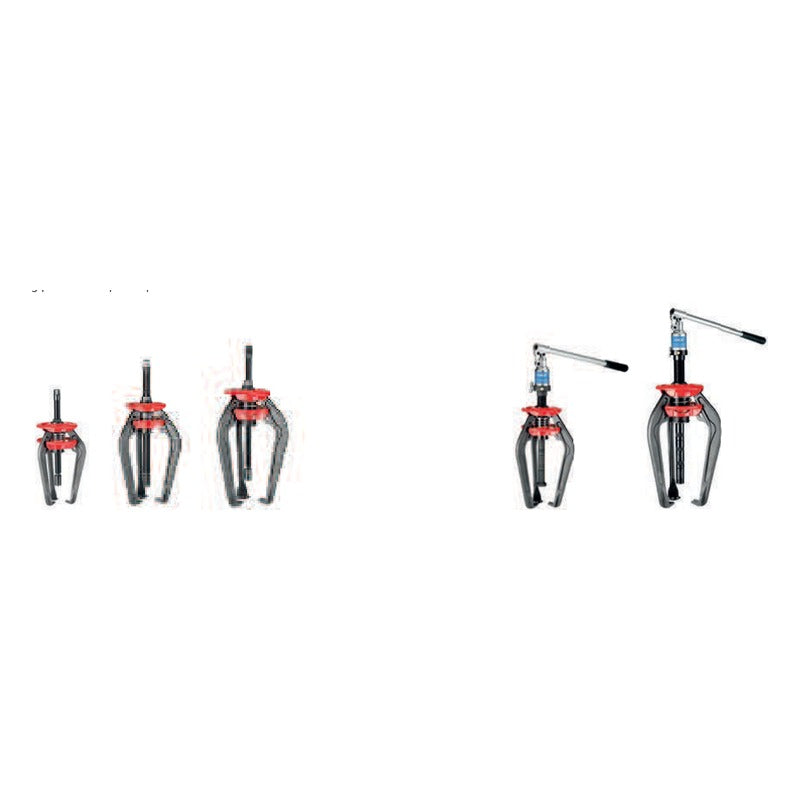

SKF EasyPull TMMA pullers have spring-operated, self-locking arms that are positioned behind the component in one movement; mechanical, hydraulic and complete set versions are available.

Key features

  • Spring-operated arm opening mechanism for one-movement positioning
  • Self-locking arms prevent the puller slipping under load
  • Hydraulic versions integrate cylinder, pump and spindle with safety valve
  • TMHS hydraulic spindles available to upgrade TMMA 80 and TMMA 120
  • Sets include tri-section pulling plate TMMS and protection blanket TMMX in a case

Specifications

Arms 3
Source SKF Maintenance and Lubrication Products, p. 24-25
TMMA 60 Grip width: 36-150 mm | Arm length: 150 mm | Max. force: 60 kN | Weight: 4.0 kg
TMMA 80 Grip width: 52-200 mm | Arm length: 200 mm | Max. force: 80 kN | Weight: 5.7 kg
TMMA 120 Grip width: 75-250 mm | Arm length: 250 mm | Max. force: 120 kN | Weight: 10.6 kg
TMMA 75H Grip width: 52-200 mm | Arm length: 200 mm | Max. force: 75 kN | Weight: 7.0 kg
TMMA 100H Grip width: 75-250 mm | Arm length: 250 mm | Max. force: 100 kN | Weight: 13.2 kg
TMMA 75H/SET Grip width: 52-200 mm | Contents: TMMA 75H, TMMS 100, TMMX 280 | Max. force: 75 kN | Weight: 15.0 kg
TMMA 100H/SET Grip width: 75-250 mm | Contents: TMMA 100H, TMMS 160, TMMX 350 | Max. force: 100 kN | Weight: 31.6 kg
Mounting & Dismounting ToolsSKF
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMMA EasyPull Mechanical and Hydraulic Pullers and Sets

Brand SKF·Mounting & Dismounting Tools

Available part numbers (7)

TMMA 60, TMMA 80, TMMA 120, TMMA 75H, TMMA 100H, TMMA 75H/SET, TMMA 100H/SET

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMMA 60Grip width: 36-150 mm | Arm length: 150 mm | Max. force: 60 kN | Weight: 4.0 kg
TMMA 80Grip width: 52-200 mm | Arm length: 200 mm | Max. force: 80 kN | Weight: 5.7 kg
TMMA 120Grip width: 75-250 mm | Arm length: 250 mm | Max. force: 120 kN | Weight: 10.6 kg
TMMA 75HGrip width: 52-200 mm | Arm length: 200 mm | Max. force: 75 kN | Weight: 7.0 kg
TMMA 100HGrip width: 75-250 mm | Arm length: 250 mm | Max. force: 100 kN | Weight: 13.2 kg
TMMA 75H/SETGrip width: 52-200 mm | Contents: TMMA 75H, TMMS 100, TMMX 280 | Max. force: 75 kN | Weight: 15.0 kg
TMMA 100H/SETGrip width: 75-250 mm | Contents: TMMA 100H, TMMS 160, TMMX 350 | Max. force: 100 kN | Weight: 31.6 kg
