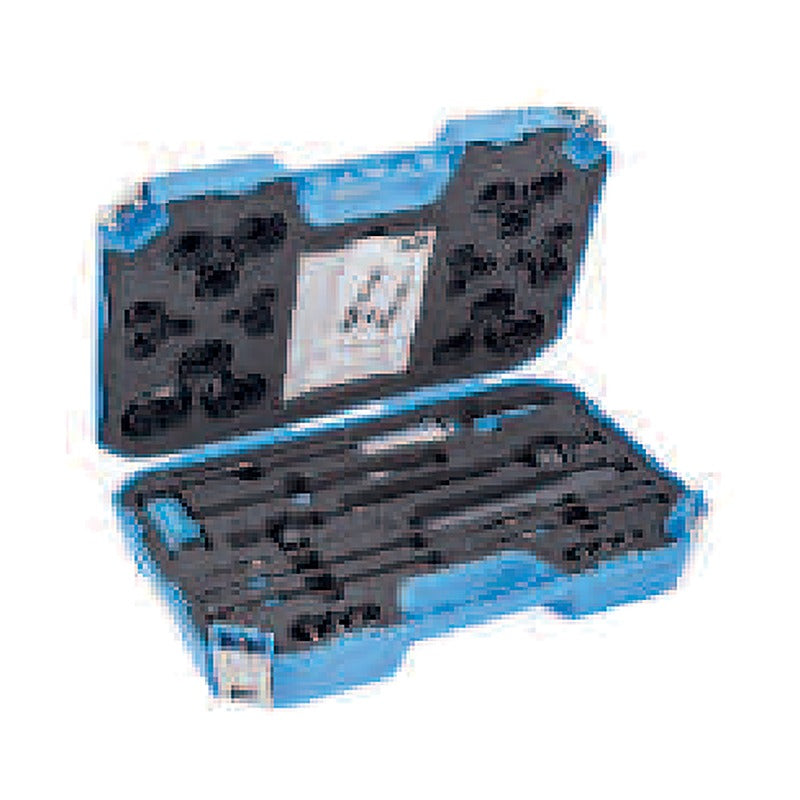

SKF TMMK Combi Kits for Mounting and Dismounting (TMMK 10-35, 20-50)

SKF TMMK Combi Kits for Mounting and Dismounting (TMMK 10-35, 20-50)

SKF TMMK combi kits combine impact fitting tools and a three-armed puller with sliding hammer for quick, precise mounting and dismounting of deep groove ball bearings on shafts, in housings and in blind housings.

Key features

  • Impact ring and sleeve combination keeps mounting forces off the rolling elements
  • Impact rings of high-impact modified polyamide, sleeves glass-fibre reinforced
  • Dead-blow hammer TMFT 36-H with nylon faces and steel-shot loading
  • Three-armed puller with claws fitting the bearing raceways and heavy sliding hammer
  • Colour-coded springs and laser-engraved arms for easy selection

Specifications

Sleeves 2
Hammer TMFT 36-H
Case 530 x 110 x 360 mm
Source SKF Maintenance and Lubrication Products, p. 20-21
TMMK 10-35 Bearing bore: 10-35 mm | Ring OD: 26-80 mm | Impact rings: 24 | Weight: 7.6 kg
TMMK 20-50 Bearing bore: 20-50 mm | Ring OD: 42-110 mm | Impact rings: 21 | Weight: 8.5 kg
Mounting & Dismounting ToolsSKF
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMMK Combi Kits for Mounting and Dismounting (TMMK 10-35, 20-50)

Brand SKF·Mounting & Dismounting Tools

Available part numbers (2)

TMMK 10-35, TMMK 20-50

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMMK 10-35Bearing bore: 10-35 mm | Ring OD: 26-80 mm | Impact rings: 24 | Weight: 7.6 kg
TMMK 20-50Bearing bore: 20-50 mm | Ring OD: 42-110 mm | Impact rings: 21 | Weight: 8.5 kg
