SKF TMMS Tri-section Pulling Plates (TMMS 50 to TMMS 380)

SKF TMMS Tri-section Pulling Plates (TMMS 50 to TMMS 380)

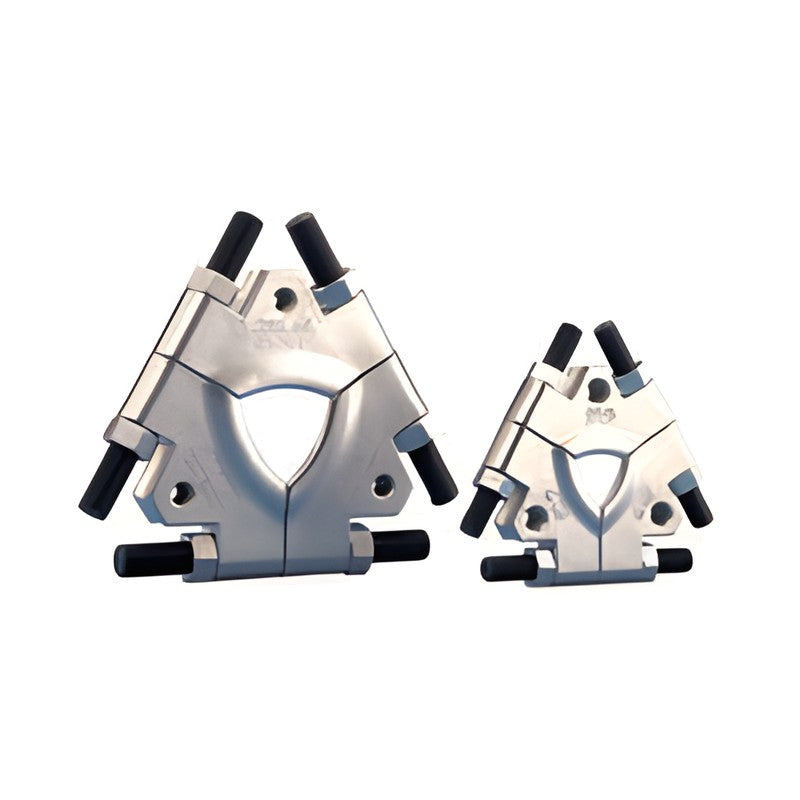

SKF TMMS tri-section pulling plates grip behind the bearing inner ring so pulling forces are transmitted only through the inner ring, for use with three-arm pullers.

Key features

  • Five sizes for shafts from 12 to 380 mm
  • For use with three-armed pullers
  • Grips behind the inner ring to protect rolling elements and outer ring
  • Tri-section construction distributes force evenly and prevents tilting
  • Wedge shape inserts easily between bearing and shaft shoulder

Specifications

Sections 3
Source SKF Maintenance and Lubrication Products, p. 39
TMMS 50 Shaft d min: 12 mm | Shaft d max: 50 mm | A: 20-30 mm | H: 15 mm
TMMS 100 Shaft d min: 26 mm | Shaft d max: 100 mm | A: 36-55 mm | H: 25 mm
TMMS 160 Shaft d min: 50 mm | Shaft d max: 160 mm | A: 45-73 mm | H: 30 mm
TMMS 260 Shaft d min: 90 mm | Shaft d max: 260 mm | A: 70-114 mm | H: 42 mm
TMMS 380 Shaft d min: 140 mm | Shaft d max: 380 mm | A: 81-142 mm | H: 58 mm
Mounting & Dismounting ToolsSKF
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TMMS Tri-section Pulling Plates (TMMS 50 to TMMS 380)

Brand SKF·Mounting & Dismounting Tools

Available part numbers (5)

TMMS 50, TMMS 100, TMMS 160, TMMS 260, TMMS 380

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TMMS 50Shaft d min: 12 mm | Shaft d max: 50 mm | A: 20-30 mm | H: 15 mm
TMMS 100Shaft d min: 26 mm | Shaft d max: 100 mm | A: 36-55 mm | H: 25 mm
TMMS 160Shaft d min: 50 mm | Shaft d max: 160 mm | A: 45-73 mm | H: 30 mm
TMMS 260Shaft d min: 90 mm | Shaft d max: 260 mm | A: 70-114 mm | H: 42 mm
TMMS 380Shaft d min: 140 mm | Shaft d max: 380 mm | A: 81-142 mm | H: 58 mm
