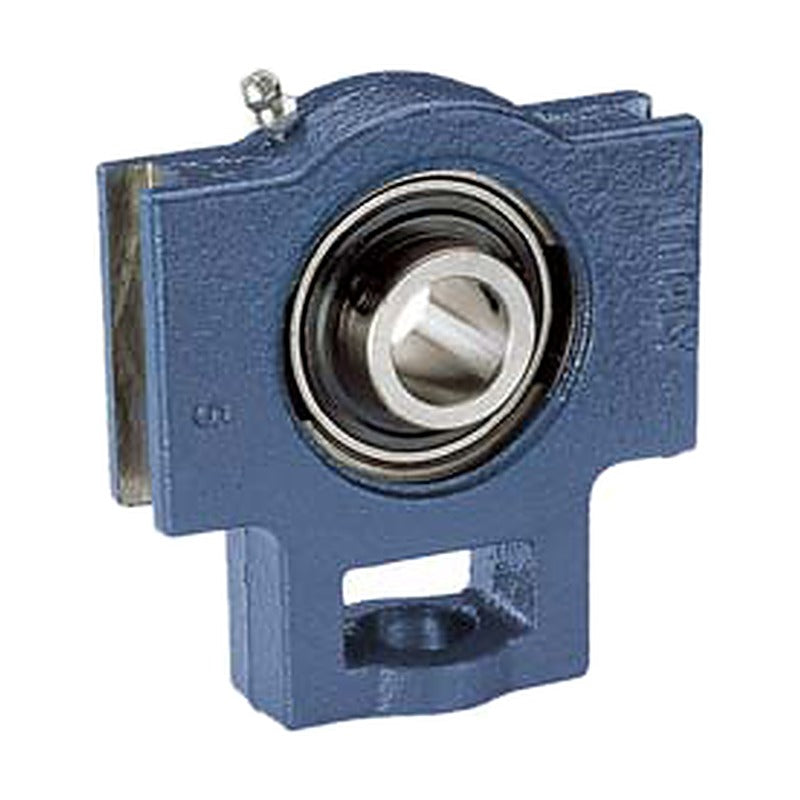

SKF TU and TUJ Y-Bearing Take-Up Units

SKF TU and TUJ Y-Bearing Take-Up Units

SKF TU and TUJ Y-Bearing Take-Up Units: ready-to-mount Y-bearing units with a cast iron take-up housing, for metric and/or inch shafts as listed.

Key features

  • Complete unit: housing plus sealed, greased Y-bearing
  • Self-aligning fit of the sphered bearing in the housing
  • Unit, housing and bearing designations listed for ordering
  • Relubrication or end cover options where listed
  • Metric and inch shaft sizes as listed in the catalogue

Specifications

Product Y-bearing unit
Housing cast iron take-up housing
Brand SKF
Category Mounted Bearing Units
Example designation TU 20 TF
Source SKF Y-bearings and Y-bearing units, p. 238-245
TU 20 TF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 76 mm
TUJ 20 TF Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 76 mm
TU 25 TF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TUJ 25 TF Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 30 TF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TUJ 30 TF Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 35 TF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TUJ 35 TF Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 40 TF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 101 mm
TUJ 40 TF Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 102 mm
TU 45 TF Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 101 mm
TUJ 45 TF Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 102 mm
TU 50 TF Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 101 mm
TUJ 50 TF Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 102 mm
TU 55 TF Shaft: 55 mm | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
TUJ 55 TF Shaft: 55 mm | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
TUJ 60 TF Shaft: 60 mm | C: 52.7 kN | C0: 36 kN | Centre height H1: 130 mm
TU 3/4 TF Shaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 76 mm
TU 13/16 TF Shaft: 13/16 in. | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 7/8 TF Shaft: 7/8 in. | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 15/16 TF Shaft: 15/16 in. | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 1. TF Shaft: 1 in. | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 1.1/16 TF Shaft: 1 1/16 in. | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 1.1/8 TF Shaft: 1 1/8 in. | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 1.3/16 TF Shaft: 1 3/16 in. | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 1.1/4 TF Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 1.5/16 TF Shaft: 1 5/16 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 1.3/8 TF Shaft: 1 3/8 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 1.7/16 TF Shaft: 1 7/16 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 1.1/2 TF Shaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Centre height H1: 101 mm
TU 1.11/16 TF Shaft: 1 11/16 in. | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 101 mm
TU 1.3/4 TF Shaft: 1 3/4 in. | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 101 mm
TU 1.15/16 TF Shaft: 1 15/16 in. | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 101 mm
TU 2. TF Shaft: 2 in. | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
TU 2.3/16 TF Shaft: 2 3/16 in. | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
TU 20 FM Shaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 76 mm
TU 25 FM Shaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 30 FM Shaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 35 FM Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 40 FM Shaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 101 mm
TU 45 FM Shaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 101 mm
TU 50 FM Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 101 mm
TU 55 FM Shaft: 55 mm | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
Mounted Bearing UnitsSKF
43 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TU and TUJ Y-Bearing Take-Up Units

Brand SKF·Mounted Bearing Units

Available part numbers (43)

TU 20 TF, TUJ 20 TF, TU 25 TF, TUJ 25 TF, TU 30 TF, TUJ 30 TF, TU 35 TF, TUJ 35 TF, TU 40 TF, TUJ 40 TF + 33 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TU 20 TFShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 76 mm
TUJ 20 TFShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 76 mm
TU 25 TFShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TUJ 25 TFShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 30 TFShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TUJ 30 TFShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 35 TFShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TUJ 35 TFShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 40 TFShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 101 mm
TUJ 40 TFShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 102 mm
TU 45 TFShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 101 mm
TUJ 45 TFShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 102 mm
TU 50 TFShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 101 mm
TUJ 50 TFShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 102 mm
TU 55 TFShaft: 55 mm | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
TUJ 55 TFShaft: 55 mm | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
TUJ 60 TFShaft: 60 mm | C: 52.7 kN | C0: 36 kN | Centre height H1: 130 mm
TU 3/4 TFShaft: 3/4 in. | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 76 mm
TU 13/16 TFShaft: 13/16 in. | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 7/8 TFShaft: 7/8 in. | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 15/16 TFShaft: 15/16 in. | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 1. TFShaft: 1 in. | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 1.1/16 TFShaft: 1 1/16 in. | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 1.1/8 TFShaft: 1 1/8 in. | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 1.3/16 TFShaft: 1 3/16 in. | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 1.1/4 TFShaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 1.5/16 TFShaft: 1 5/16 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 1.3/8 TFShaft: 1 3/8 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 1.7/16 TFShaft: 1 7/16 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 1.1/2 TFShaft: 1 1/2 in. | C: 30.7 kN | C0: 19 kN | Centre height H1: 101 mm
TU 1.11/16 TFShaft: 1 11/16 in. | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 101 mm
TU 1.3/4 TFShaft: 1 3/4 in. | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 101 mm
TU 1.15/16 TFShaft: 1 15/16 in. | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 101 mm
TU 2. TFShaft: 2 in. | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
TU 2.3/16 TFShaft: 2 3/16 in. | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
TU 20 FMShaft: 20 mm | C: 12.7 kN | C0: 6.55 kN | Centre height H1: 76 mm
TU 25 FMShaft: 25 mm | C: 14 kN | C0: 7.8 kN | Centre height H1: 76 mm
TU 30 FMShaft: 30 mm | C: 19.5 kN | C0: 11.2 kN | Centre height H1: 89 mm
TU 35 FMShaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 89 mm
TU 40 FMShaft: 40 mm | C: 30.7 kN | C0: 19 kN | Centre height H1: 101 mm
TU 45 FMShaft: 45 mm | C: 33.2 kN | C0: 21.6 kN | Centre height H1: 101 mm
TU 50 FMShaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 101 mm
TU 55 FMShaft: 55 mm | C: 43.6 kN | C0: 29 kN | Centre height H1: 130 mm
