• SKF U 2, U 3, U 4 Seating Washers for Thrust Ball Bearings
1 1

SKF U 2, U 3, U 4 Seating Washers for Thrust Ball Bearings

SKF U 2, U 3, U 4 Seating Washers for Thrust Ball Bearings

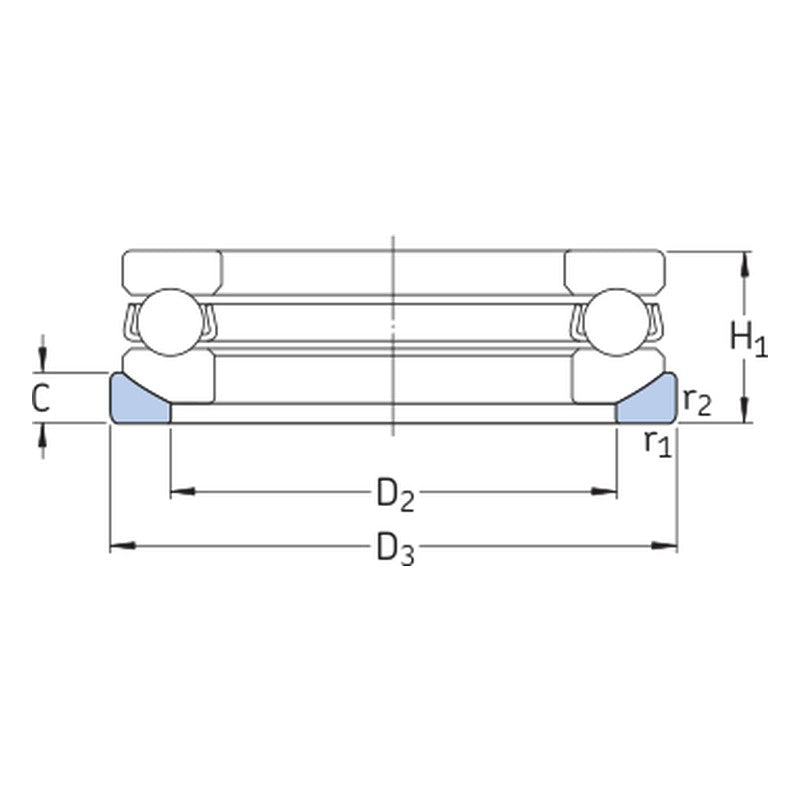

SKF U series seating washers for thrust ball bearings with sphered housing washers (532, 533, 534, 542, 543 and 544 series).

Key features

  • Sphered seat matching the sphered housing washer of the bearing
  • Compensates misalignment between shaft and housing support surfaces
  • Ordered separately from the bearing
  • Series U 2, U 3 and U 4 matched to bearing series

Specifications

Product Seating washer
Series U 2, U 3, U 4
For Thrust ball bearings with sphered housing washer
Units mm, kN, r/min
Brand SKF
Source SKF General Catalogue 6000, p. 852-861
U 201 For bearing: 53201 | Bearing d: 12 mm | Bearing D: 28 mm
U 202 For bearing: 53202 | Bearing d: 15 mm | Bearing D: 32 mm
U 203 For bearing: 53203 | Bearing d: 17 mm | Bearing D: 35 mm
U 204 For bearing: 53204 | Bearing d: 20 mm | Bearing D: 40 mm
U 205 For bearing: 53205 | Bearing d: 25 mm | Bearing D: 47 mm
U 206 For bearing: 53206 | Bearing d: 30 mm | Bearing D: 52 mm
U 207 For bearing: 53207, 54207 | Bearing d: 35 mm | Bearing D: 62 mm
U 208 For bearing: 53208, 54208 | Bearing d: 40 mm | Bearing D: 68 mm
U 209 For bearing: 53209, 54209 | Bearing d: 45 mm | Bearing D: 73 mm
U 210 For bearing: 53210 | Bearing d: 50 mm | Bearing D: 78 mm
U 211 For bearing: 53211, 54211 | Bearing d: 55 mm | Bearing D: 90 mm
U 212 For bearing: 53212 | Bearing d: 60 mm | Bearing D: 95 mm
U 213 For bearing: 53213 | Bearing d: 65 mm | Bearing D: 100 mm
U 214 For bearing: 53214 | Bearing d: 70 mm | Bearing D: 105 mm
U 215 For bearing: 53215 | Bearing d: 75 mm | Bearing D: 110 mm
U 216 For bearing: 53216 | Bearing d: 80 mm | Bearing D: 115 mm
U 217 For bearing: 53217 | Bearing d: 85 mm | Bearing D: 125 mm
U 218 For bearing: 53218 | Bearing d: 90 mm | Bearing D: 135 mm
U 220 For bearing: 53220 | Bearing d: 100 mm | Bearing D: 150 mm
U 222 For bearing: 53222 | Bearing d: 110 mm | Bearing D: 160 mm
U 224 For bearing: 53224 | Bearing d: 120 mm | Bearing D: 170 mm
U 226 For bearing: 53226 | Bearing d: 130 mm | Bearing D: 190 mm
U 228 For bearing: 53228 | Bearing d: 140 mm | Bearing D: 200 mm
U 306 For bearing: 53306, 54306 | Bearing d: 30 mm | Bearing D: 60 mm
U 307 For bearing: 53307, 54307 | Bearing d: 35 mm | Bearing D: 68 mm
U 308 For bearing: 53308, 54308 | Bearing d: 40 mm | Bearing D: 78 mm
U 309 For bearing: 53309, 54309 | Bearing d: 45 mm | Bearing D: 85 mm
U 310 For bearing: 53310, 54310 | Bearing d: 50 mm | Bearing D: 95 mm
U 311 For bearing: 53311 | Bearing d: 55 mm | Bearing D: 105 mm
U 312 For bearing: 53312, 54312 | Bearing d: 60 mm | Bearing D: 110 mm
U 313 For bearing: 53313 | Bearing d: 65 mm | Bearing D: 115 mm
U 314 For bearing: 53314 | Bearing d: 70 mm | Bearing D: 125 mm
U 315 For bearing: 53315 | Bearing d: 75 mm | Bearing D: 135 mm
U 316 For bearing: 53316, 54316 | Bearing d: 80 mm | Bearing D: 140 mm
U 317 For bearing: 53317, 54317 | Bearing d: 85 mm | Bearing D: 150 mm
U 318 For bearing: 53318 | Bearing d: 90 mm | Bearing D: 155 mm
U 320 For bearing: 53320 | Bearing d: 100 mm | Bearing D: 170 mm
U 322 For bearing: 53322 M | Bearing d: 110 mm | Bearing D: 190 mm
U 324 For bearing: 53324 M | Bearing d: 120 mm | Bearing D: 210 mm
U 408 For bearing: 53408 | Bearing d: 40 mm | Bearing D: 90 mm
U 409 For bearing: 54409 | Bearing d: 35 mm | Bearing D: 100 mm
U 410 For bearing: 53410, 54410 | Bearing d: 50 mm | Bearing D: 110 mm
U 411 For bearing: 53411 | Bearing d: 55 mm | Bearing D: 120 mm
U 412 For bearing: 53412 M | Bearing d: 60 mm | Bearing D: 130 mm
U 414 For bearing: 53414 M | Bearing d: 70 mm | Bearing D: 150 mm
U 415 For bearing: 53415 M | Bearing d: 75 mm | Bearing D: 160 mm
U 416 For bearing: 54416 M | Bearing d: 65 mm | Bearing D: 170 mm
U 418 For bearing: 53418 M | Bearing d: 90 mm | Bearing D: 190 mm
U 420 For bearing: 53420 M, 54420 M | Bearing d: 100 mm | Bearing D: 210 mm
Bearing AccessoriesSKF
49 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF U 2, U 3, U 4 Seating Washers for Thrust Ball Bearings

Brand SKF·Bearing Accessories

Available part numbers (49)

U 201, U 202, U 203, U 204, U 205, U 206, U 207, U 208, U 209, U 210 + 39 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
