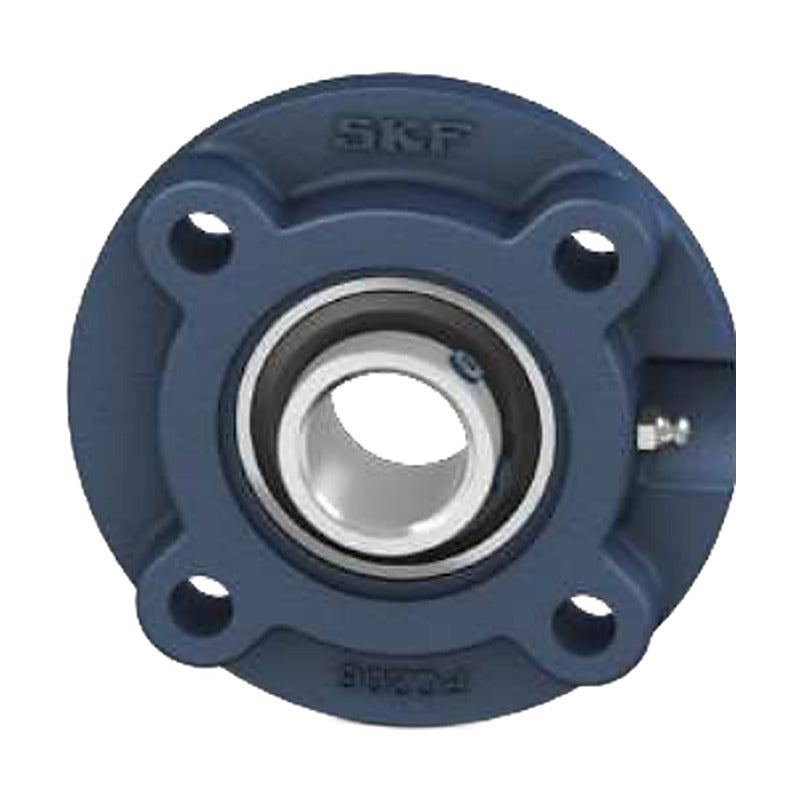

SKF UCFC Round 4-Bolt Flanged Ball Bearing Units (JIS)

SKF UCFC Round 4-Bolt Flanged Ball Bearing Units (JIS)

SKF UCFC insert bearing units with a round 4-bolt flange housing and a UC insert bearing with set screws, interchangeable with JIS-standard units.

Key features

  • Complete unit: cast iron housing with UC insert bearing
  • Set screw locking for easy mounting on the shaft
  • JIS-compatible dimensions for direct replacement
  • Relubrication via grease nipple
  • End covers (ECY) ordered separately where listed

Specifications

Series UCFC
Housing Round 4-bolt flange housing
Insert bearing UC series, set screws
Standard JIS compatible
Brand SKF
Source SKF insert bearing units UC range (JIS), p. 16-17
UCFC 204 Shaft: 20 mm | C: 12.7 kN | C0: 6.7 kN | Flange L: 100 mm | Bolt spacing J: 78 mm | Mass: 0.72 kg
UCFC 205 Shaft: 25 mm | C: 14.0 kN | C0: 7.8 kN | Flange L: 115.1 mm | Bolt spacing J: 90 mm | Mass: 1.01 kg
UCFC 206 Shaft: 30 mm | C: 19.5 kN | C0: 11.4 kN | Flange L: 124.6 mm | Bolt spacing J: 100 mm | Mass: 1.29 kg
UCFC 207 Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Flange L: 134.9 mm | Bolt spacing J: 110 mm | Mass: 1.61 kg
UCFC 208 Shaft: 40 mm | C: 32.5 kN | C0: 20.0 kN | Flange L: 145.3 mm | Bolt spacing J: 120 mm | Mass: 2.02 kg
UCFC 209 Shaft: 45 mm | C: 32.5 kN | C0: 20.4 kN | Flange L: 160.3 mm | Bolt spacing J: 132 mm | Mass: 2.45 kg
UCFC 210 Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Flange L: 165.1 mm | Bolt spacing J: 138 mm | Mass: 2.95 kg
UCFC 211 Shaft: 55 mm | C: 43.6 kN | C0: 29.0 kN | Flange L: 184.9 mm | Bolt spacing J: 150 mm | Mass: 4.26 kg
UCFC 212 Shaft: 60 mm | C: 52.7 kN | C0: 36.0 kN | Flange L: 195.3 mm | Bolt spacing J: 160 mm | Mass: 5.10 kg
UCFC 213 Shaft: 65 mm | C: 57.2 kN | C0: 40.0 kN | Flange L: 204.8 mm | Bolt spacing J: 170 mm | Mass: 5.70 kg
UCFC 214 Shaft: 70 mm | C: 62.4 kN | C0: 44.0 kN | Flange L: 215.1 mm | Bolt spacing J: 177 mm | Mass: 6.87 kg
UCFC 215 Shaft: 75 mm | C: 66.3 kN | C0: 49.0 kN | Flange L: 220 mm | Bolt spacing J: 184 mm | Mass: 7.86 kg
UCFC 216 Shaft: 80 mm | C: 71.5 kN | C0: 54.0 kN | Flange L: 239.7 mm | Bolt spacing J: 200 mm | Mass: 9.12 kg
UCFC 217 Shaft: 85 mm | C: 83.2 kN | C0: 64.0 kN | Flange L: 250 mm | Bolt spacing J: 208 mm | Mass: 10.3 kg
UCFC 218 Shaft: 90 mm | C: 95.6 kN | C0: 72.0 kN | Flange L: 265.1 mm | Bolt spacing J: 220 mm | Mass: 11.9 kg
Mounted Bearing UnitsSKF
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF UCFC Round 4-Bolt Flanged Ball Bearing Units (JIS)

Brand SKF·Mounted Bearing Units

Available part numbers (15)

UCFC 204, UCFC 205, UCFC 206, UCFC 207, UCFC 208, UCFC 209, UCFC 210, UCFC 211, UCFC 212, UCFC 213 + 5 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCFC 204Shaft: 20 mm | C: 12.7 kN | C0: 6.7 kN | Flange L: 100 mm | Bolt spacing J: 78 mm | Mass: 0.72 kg
UCFC 205Shaft: 25 mm | C: 14.0 kN | C0: 7.8 kN | Flange L: 115.1 mm | Bolt spacing J: 90 mm | Mass: 1.01 kg
UCFC 206Shaft: 30 mm | C: 19.5 kN | C0: 11.4 kN | Flange L: 124.6 mm | Bolt spacing J: 100 mm | Mass: 1.29 kg
UCFC 207Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Flange L: 134.9 mm | Bolt spacing J: 110 mm | Mass: 1.61 kg
UCFC 208Shaft: 40 mm | C: 32.5 kN | C0: 20.0 kN | Flange L: 145.3 mm | Bolt spacing J: 120 mm | Mass: 2.02 kg
UCFC 209Shaft: 45 mm | C: 32.5 kN | C0: 20.4 kN | Flange L: 160.3 mm | Bolt spacing J: 132 mm | Mass: 2.45 kg
UCFC 210Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Flange L: 165.1 mm | Bolt spacing J: 138 mm | Mass: 2.95 kg
UCFC 211Shaft: 55 mm | C: 43.6 kN | C0: 29.0 kN | Flange L: 184.9 mm | Bolt spacing J: 150 mm | Mass: 4.26 kg
UCFC 212Shaft: 60 mm | C: 52.7 kN | C0: 36.0 kN | Flange L: 195.3 mm | Bolt spacing J: 160 mm | Mass: 5.10 kg
UCFC 213Shaft: 65 mm | C: 57.2 kN | C0: 40.0 kN | Flange L: 204.8 mm | Bolt spacing J: 170 mm | Mass: 5.70 kg
UCFC 214Shaft: 70 mm | C: 62.4 kN | C0: 44.0 kN | Flange L: 215.1 mm | Bolt spacing J: 177 mm | Mass: 6.87 kg
UCFC 215Shaft: 75 mm | C: 66.3 kN | C0: 49.0 kN | Flange L: 220 mm | Bolt spacing J: 184 mm | Mass: 7.86 kg
UCFC 216Shaft: 80 mm | C: 71.5 kN | C0: 54.0 kN | Flange L: 239.7 mm | Bolt spacing J: 200 mm | Mass: 9.12 kg
UCFC 217Shaft: 85 mm | C: 83.2 kN | C0: 64.0 kN | Flange L: 250 mm | Bolt spacing J: 208 mm | Mass: 10.3 kg
UCFC 218Shaft: 90 mm | C: 95.6 kN | C0: 72.0 kN | Flange L: 265.1 mm | Bolt spacing J: 220 mm | Mass: 11.9 kg
