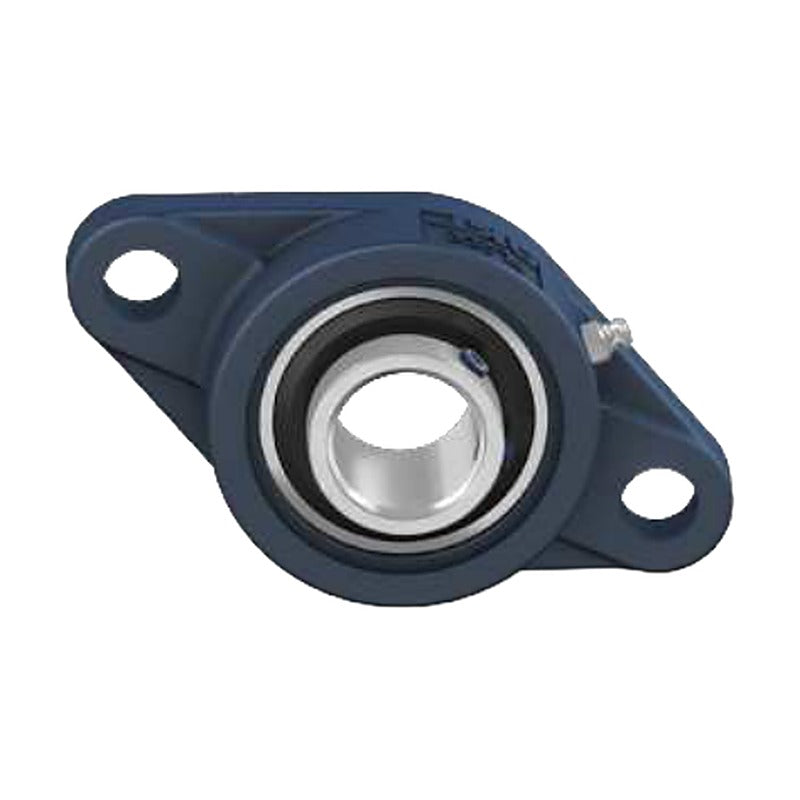

SKF UCFL Oval 2-Bolt Flanged Ball Bearing Units (JIS)

SKF UCFL Oval 2-Bolt Flanged Ball Bearing Units (JIS)

SKF UCFL insert bearing units with a oval 2-bolt flange housing and a UC insert bearing with set screws, interchangeable with JIS-standard units.

Key features

  • Complete unit: cast iron housing with UC insert bearing
  • Set screw locking for easy mounting on the shaft
  • JIS-compatible dimensions for direct replacement
  • Relubrication via grease nipple
  • End covers (ECY) ordered separately where listed

Specifications

Series UCFL
Housing Oval 2-bolt flange housing
Insert bearing UC series, set screws
Standard JIS compatible
Brand SKF
Source SKF insert bearing units UC range (JIS), p. 18-19
UCFL 204 Shaft: 20 mm | C: 12.7 kN | C0: 6.7 kN | Length H: 113 mm | Bolt spacing J: 90 mm | Mass: 0.44 kg
UCFL 205 Shaft: 25 mm | C: 14.0 kN | C0: 7.8 kN | Length H: 130.2 mm | Bolt spacing J: 99 mm | Mass: 0.62 kg
UCFL 206 Shaft: 30 mm | C: 19.5 kN | C0: 11.4 kN | Length H: 147.6 mm | Bolt spacing J: 117 mm | Mass: 0.90 kg
UCFL 207 Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Length H: 161.1 mm | Bolt spacing J: 130 mm | Mass: 1.19 kg
UCFL 208 Shaft: 40 mm | C: 32.5 kN | C0: 20.0 kN | Length H: 174.6 mm | Bolt spacing J: 144 mm | Mass: 1.53 kg
UCFL 209 Shaft: 45 mm | C: 32.5 kN | C0: 20.4 kN | Length H: 188.1 mm | Bolt spacing J: 148 mm | Mass: 1.84 kg
UCFL 210 Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Length H: 196.9 mm | Bolt spacing J: 157 mm | Mass: 2.17 kg
UCFL 211 Shaft: 55 mm | C: 43.6 kN | C0: 29.0 kN | Length H: 223.8 mm | Bolt spacing J: 184 mm | Mass: 3.12 kg
UCFL 212 Shaft: 60 mm | C: 52.7 kN | C0: 36.0 kN | Length H: 250 mm | Bolt spacing J: 202 mm | Mass: 3.99 kg
UCFL 213 Shaft: 65 mm | C: 57.2 kN | C0: 40.0 kN | Length H: 258 mm | Bolt spacing J: 210 mm | Mass: 4.93 kg
UCFL 214 Shaft: 70 mm | C: 62.4 kN | C0: 44.0 kN | Length H: 265.1 mm | Bolt spacing J: 216 mm | Mass: 5.46 kg
UCFL 215 Shaft: 75 mm | C: 66.3 kN | C0: 49.0 kN | Length H: 275 mm | Bolt spacing J: 225 mm | Mass: 5.99 kg
UCFL 216 Shaft: 80 mm | C: 71.5 kN | C0: 54.0 kN | Length H: 290 mm | Bolt spacing J: 233 mm | Mass: 7.52 kg
UCFL 217 Shaft: 85 mm | C: 83.2 kN | C0: 64.0 kN | Length H: 305 mm | Bolt spacing J: 248 mm | Mass: 8.83 kg
UCFL 218 Shaft: 90 mm | C: 95.6 kN | C0: 72.0 kN | Length H: 320 mm | Bolt spacing J: 265 mm | Mass: 10.70 kg
Mounted Bearing UnitsSKF
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF UCFL Oval 2-Bolt Flanged Ball Bearing Units (JIS)

Brand SKF·Mounted Bearing Units

Available part numbers (15)

UCFL 204, UCFL 205, UCFL 206, UCFL 207, UCFL 208, UCFL 209, UCFL 210, UCFL 211, UCFL 212, UCFL 213 + 5 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCFL 204Shaft: 20 mm | C: 12.7 kN | C0: 6.7 kN | Length H: 113 mm | Bolt spacing J: 90 mm | Mass: 0.44 kg
UCFL 205Shaft: 25 mm | C: 14.0 kN | C0: 7.8 kN | Length H: 130.2 mm | Bolt spacing J: 99 mm | Mass: 0.62 kg
UCFL 206Shaft: 30 mm | C: 19.5 kN | C0: 11.4 kN | Length H: 147.6 mm | Bolt spacing J: 117 mm | Mass: 0.90 kg
UCFL 207Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Length H: 161.1 mm | Bolt spacing J: 130 mm | Mass: 1.19 kg
UCFL 208Shaft: 40 mm | C: 32.5 kN | C0: 20.0 kN | Length H: 174.6 mm | Bolt spacing J: 144 mm | Mass: 1.53 kg
UCFL 209Shaft: 45 mm | C: 32.5 kN | C0: 20.4 kN | Length H: 188.1 mm | Bolt spacing J: 148 mm | Mass: 1.84 kg
UCFL 210Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Length H: 196.9 mm | Bolt spacing J: 157 mm | Mass: 2.17 kg
UCFL 211Shaft: 55 mm | C: 43.6 kN | C0: 29.0 kN | Length H: 223.8 mm | Bolt spacing J: 184 mm | Mass: 3.12 kg
UCFL 212Shaft: 60 mm | C: 52.7 kN | C0: 36.0 kN | Length H: 250 mm | Bolt spacing J: 202 mm | Mass: 3.99 kg
UCFL 213Shaft: 65 mm | C: 57.2 kN | C0: 40.0 kN | Length H: 258 mm | Bolt spacing J: 210 mm | Mass: 4.93 kg
UCFL 214Shaft: 70 mm | C: 62.4 kN | C0: 44.0 kN | Length H: 265.1 mm | Bolt spacing J: 216 mm | Mass: 5.46 kg
UCFL 215Shaft: 75 mm | C: 66.3 kN | C0: 49.0 kN | Length H: 275 mm | Bolt spacing J: 225 mm | Mass: 5.99 kg
UCFL 216Shaft: 80 mm | C: 71.5 kN | C0: 54.0 kN | Length H: 290 mm | Bolt spacing J: 233 mm | Mass: 7.52 kg
UCFL 217Shaft: 85 mm | C: 83.2 kN | C0: 64.0 kN | Length H: 305 mm | Bolt spacing J: 248 mm | Mass: 8.83 kg
UCFL 218Shaft: 90 mm | C: 95.6 kN | C0: 72.0 kN | Length H: 320 mm | Bolt spacing J: 265 mm | Mass: 10.70 kg
