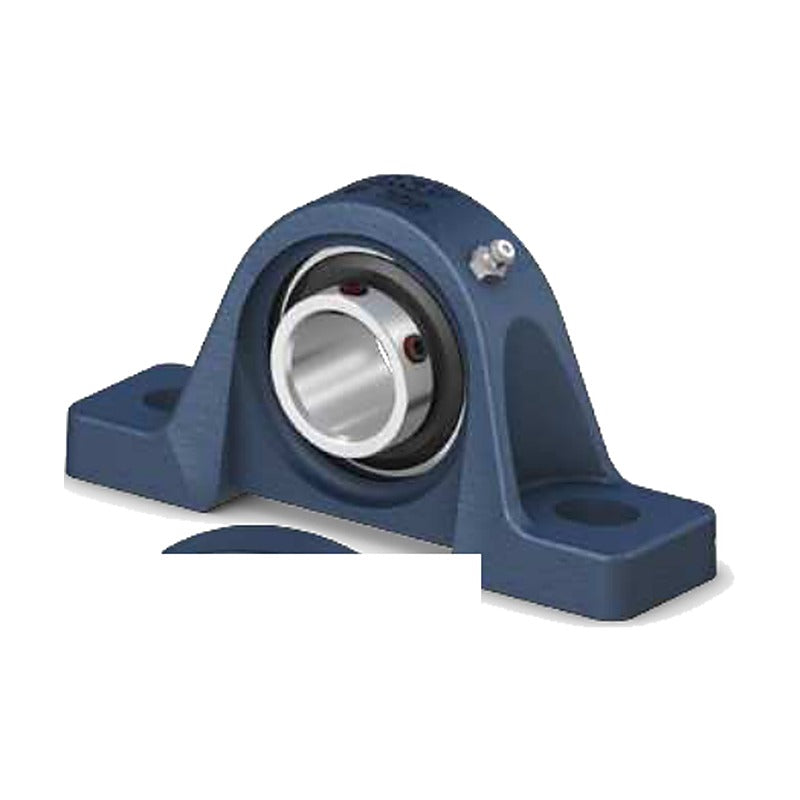

SKF UCP Pillow Block Ball Bearing Units (JIS)

SKF UCP Pillow Block Ball Bearing Units (JIS)

SKF UCP insert bearing units with a pillow block housing and a UC insert bearing with set screws, interchangeable with JIS-standard units.

Key features

  • Complete unit: cast iron housing with UC insert bearing
  • Set screw locking for easy mounting on the shaft
  • JIS-compatible dimensions for direct replacement
  • Relubrication via grease nipple
  • End covers (ECY) ordered separately where listed

Specifications

Series UCP
Housing Pillow block housing
Insert bearing UC series, set screws
Standard JIS compatible
Brand SKF
Source SKF insert bearing units UC range (JIS), p. 8-11
UCP 204 Shaft: 20 mm | C: 12.7 kN | C0: 6.7 kN | Centre height H1: 33.3 mm | Length L: 127 mm | Mass: 0.66 kg
UCP 205 Shaft: 25 mm | C: 14.0 kN | C0: 7.8 kN | Centre height H1: 36.5 mm | Length L: 139.7 mm | Mass: 0.86 kg
UCP 206 Shaft: 30 mm | C: 19.5 kN | C0: 11.4 kN | Centre height H1: 42.9 mm | Length L: 165.1 mm | Mass: 1.34 kg
UCP 306 Shaft: 30 mm | C: 26.5 kN | C0: 15 kN | Centre height H1: 50 mm | Length L: 182 mm | Mass: 2.15 kg
UCP 207 Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm | Length L: 166.69 mm | Mass: 1.62 kg
UCP 307 Shaft: 35 mm | C: 33.2 kN | C0: 19.3 kN | Centre height H1: 56 mm | Length L: 209 mm | Mass: 3.00 kg
UCP 208 Shaft: 40 mm | C: 32.5 kN | C0: 20.0 kN | Centre height H1: 49.2 mm | Length L: 184.15 mm | Mass: 2.17 kg
UCP 308 Shaft: 40 mm | C: 41.0 kN | C0: 24.0 kN | Centre height H1: 60 mm | Length L: 221 mm | Mass: 3.55 kg
UCP 209 Shaft: 45 mm | C: 32.5 kN | C0: 20.4 kN | Centre height H1: 54 mm | Length L: 189.71 mm | Mass: 2.40 kg
UCP 309 Shaft: 45 mm | C: 52.7 kN | C0: 32.0 kN | Centre height H1: 67 mm | Length L: 247 mm | Mass: 5.05 kg
UCP 210 Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm | Length L: 206.38 mm | Mass: 2.88 kg
UCP 310 Shaft: 50 mm | C: 61.8 kN | C0: 38.0 kN | Centre height H1: 75 mm | Length L: 275 mm | Mass: 6.40 kg
UCP 211 Shaft: 55 mm | C: 43.6 kN | C0: 29.0 kN | Centre height H1: 63.5 mm | Length L: 219.08 mm | Mass: 3.95 kg
UCP 311 Shaft: 55 mm | C: 71.5 kN | C0: 45.0 kN | Centre height H1: 80 mm | Length L: 302 mm | Mass: 7.80 kg
UCP 212 Shaft: 60 mm | C: 52.7 kN | C0: 36.0 kN | Centre height H1: 69.8 mm | Length L: 239.71 mm | Mass: 5.05 kg
UCP 312 Shaft: 60 mm | C: 81.9 kN | C0: 52.0 kN | Centre height H1: 85 mm | Length L: 321 mm | Mass: 9.6 kg
UCP 213 Shaft: 65 mm | C: 57.2 kN | C0: 40.0 kN | Centre height H1: 76.2 mm | Length L: 265.11 mm | Mass: 6.63 kg
UCP 214 Shaft: 70 mm | C: 62.4 kN | C0: 44.0 kN | Centre height H1: 79.4 mm | Length L: 265.91 mm | Mass: 7.17 kg
UCP 215 Shaft: 75 mm | C: 66.3 kN | C0: 49.0 kN | Centre height H1: 82.6 mm | Length L: 271.47 mm | Mass: 8.17 kg
UCP 315 Shaft: 75 mm | C: 114.0 kN | C0: 76.5 kN | Centre height H1: 100 mm | Length L: 368 mm | Mass: 15.5 kg
UCP 216 Shaft: 80 mm | C: 71.5 kN | C0: 54.0 kN | Centre height H1: 88.9 mm | Length L: 292.1 mm | Mass: 9.30 kg
UCP 316 Shaft: 80 mm | C: 124.0 kN | C0: 86.5 kN | Centre height H1: 106 mm | Length L: 378 mm | Mass: 18.2 kg
UCP 217 Shaft: 85 mm | C: 83.2 kN | C0: 64.0 kN | Centre height H1: 95.2 mm | Length L: 310.36 mm | Mass: 12.9 kg
UCP 218 Shaft: 90 mm | C: 95.6 kN | C0: 72.0 kN | Centre height H1: 101.6 mm | Length L: 327.03 mm | Mass: 14.5 kg
UCP 320 Shaft: 100 mm | C: 174.0 kN | C0: 140.0 kN | Centre height H1: 140 mm | Length L: 482 mm | Mass: 36.7 kg
UCP 204-12 Shaft: 3/4 in. | C: 12.7 kN | C0: 6.7 kN | Centre height H1: 33.3 mm | Length L: 127 mm | Mass: 0.67 kg
UCP 205-14 Shaft: 7/8 in. | C: 14.0 kN | C0: 7.8 kN | Centre height H1: 36.5 mm | Length L: 139.7 mm | Mass: 0.89 kg
UCP 205-15 Shaft: 15/16 in. | C: 14.0 kN | C0: 7.8 kN | Centre height H1: 36.5 mm | Length L: 139.7 mm | Mass: 0.88 kg
UCP 205-16 Shaft: 1 in. | C: 14.0 kN | C0: 7.8 kN | Centre height H1: 36.5 mm | Length L: 139.7 mm | Mass: 0.86 kg
UCP 206-18 Shaft: 1 1/8 in. | C: 19.5 kN | C0: 11.4 kN | Centre height H1: 42.9 mm | Length L: 165.1 mm | Mass: 1.36 kg
UCP 206-19 Shaft: 1 3/16 in. | C: 19.5 kN | C0: 11.4 kN | Centre height H1: 42.9 mm | Length L: 165.1 mm | Mass: 1.34 kg
UCP 207-20 Shaft: 1 1/4 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm | Length L: 166.69 mm | Mass: 1.67 kg
UCP 207-22 Shaft: 1 3/8 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm | Length L: 166.69 mm | Mass: 1.62 kg
UCP 207-23 Shaft: 1 7/16 in. | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm | Length L: 166.69 mm | Mass: 1.59 kg
UCP 208-24 Shaft: 1 1/2 in. | C: 32.5 kN | C0: 20.0 kN | Centre height H1: 49.2 mm | Length L: 184.15 mm | Mass: 2.22 kg
UCP 209-28 Shaft: 1 3/4 in. | C: 32.5 kN | C0: 20.4 kN | Centre height H1: 54 mm | Length L: 189.71 mm | Mass: 2.41 kg
UCP 211-32 Shaft: 2 in. | C: 43.6 kN | C0: 29.0 kN | Centre height H1: 63.5 mm | Length L: 219.08 mm | Mass: 4.10 kg
UCP 212-36 Shaft: 2 1/4 in. | C: 52.7 kN | C0: 36.0 kN | Centre height H1: 69.8 mm | Length L: 239.71 mm | Mass: 5.18 kg
UCP 213-40 Shaft: 2 1/2 in. | C: 57.2 kN | C0: 40.0 kN | Centre height H1: 76.2 mm | Length L: 265.11 mm | Mass: 6.70 kg
UCP 315-48 Shaft: 3 in. | C: 114 kN | C0: 76.5 kN | Centre height H1: 100 mm | Length L: 368 mm | Mass: 15.4 kg
UCP 320-64 Shaft: 4 in. | C: 174 kN | C0: 140 kN | Centre height H1: 140 mm | Length L: 482 mm | Mass: 36.4 kg
