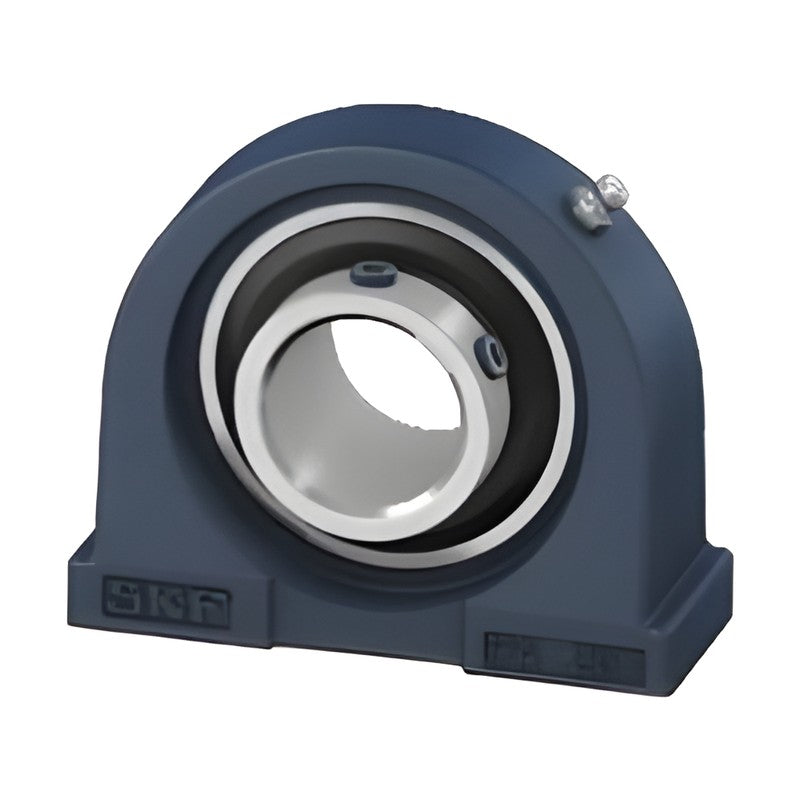

SKF UCPA Tapped Base Pillow Block Ball Bearing Units (JIS)

SKF UCPA Tapped Base Pillow Block Ball Bearing Units (JIS)

SKF UCPA insert bearing units with a tapped base pillow block housing and a UC insert bearing with set screws, interchangeable with JIS-standard units.

Key features

  • Complete unit: cast iron housing with UC insert bearing
  • Set screw locking for easy mounting on the shaft
  • JIS-compatible dimensions for direct replacement
  • Relubrication via grease nipple
  • End covers (ECY) ordered separately where listed

Specifications

Series UCPA
Housing Tapped base pillow block housing
Insert bearing UC series, set screws
Standard JIS compatible
Brand SKF
Source SKF insert bearing units UC range (JIS), p. 24-25
UCPA 204 Shaft: 20 mm | C: 12.7 kN | C0: 6.7 kN | Centre height H1: 30.2 mm | Length L: 76.2 mm | Mass: 0.54 kg
UCPA 205 Shaft: 25 mm | C: 14.0 kN | C0: 7.8 kN | Centre height H1: 36.5 mm | Length L: 84.1 mm | Mass: 0.76 kg
UCPA 206 Shaft: 30 mm | C: 19.5 kN | C0: 11.4 kN | Centre height H1: 42.8 mm | Length L: 93.7 mm | Mass: 0.99 kg
UCPA 207 Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm | Length L: 110.3 mm | Mass: 1.46 kg
UCPA 208 Shaft: 40 mm | C: 32.5 kN | C0: 20.0 kN | Centre height H1: 49.2 mm | Length L: 115.9 mm | Mass: 1.67 kg
UCPA 209 Shaft: 45 mm | C: 32.5 kN | C0: 20.4 kN | Centre height H1: 54.2 mm | Length L: 119.8 mm | Mass: 1.86 kg
UCPA 210 Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm | Length L: 130.2 mm | Mass: 2.25 kg
Mounted Bearing UnitsSKF
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF UCPA Tapped Base Pillow Block Ball Bearing Units (JIS)

Brand SKF·Mounted Bearing Units

Available part numbers (7)

UCPA 204, UCPA 205, UCPA 206, UCPA 207, UCPA 208, UCPA 209, UCPA 210

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCPA 204Shaft: 20 mm | C: 12.7 kN | C0: 6.7 kN | Centre height H1: 30.2 mm | Length L: 76.2 mm | Mass: 0.54 kg
UCPA 205Shaft: 25 mm | C: 14.0 kN | C0: 7.8 kN | Centre height H1: 36.5 mm | Length L: 84.1 mm | Mass: 0.76 kg
UCPA 206Shaft: 30 mm | C: 19.5 kN | C0: 11.4 kN | Centre height H1: 42.8 mm | Length L: 93.7 mm | Mass: 0.99 kg
UCPA 207Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Centre height H1: 47.6 mm | Length L: 110.3 mm | Mass: 1.46 kg
UCPA 208Shaft: 40 mm | C: 32.5 kN | C0: 20.0 kN | Centre height H1: 49.2 mm | Length L: 115.9 mm | Mass: 1.67 kg
UCPA 209Shaft: 45 mm | C: 32.5 kN | C0: 20.4 kN | Centre height H1: 54.2 mm | Length L: 119.8 mm | Mass: 1.86 kg
UCPA 210Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Centre height H1: 57.2 mm | Length L: 130.2 mm | Mass: 2.25 kg
