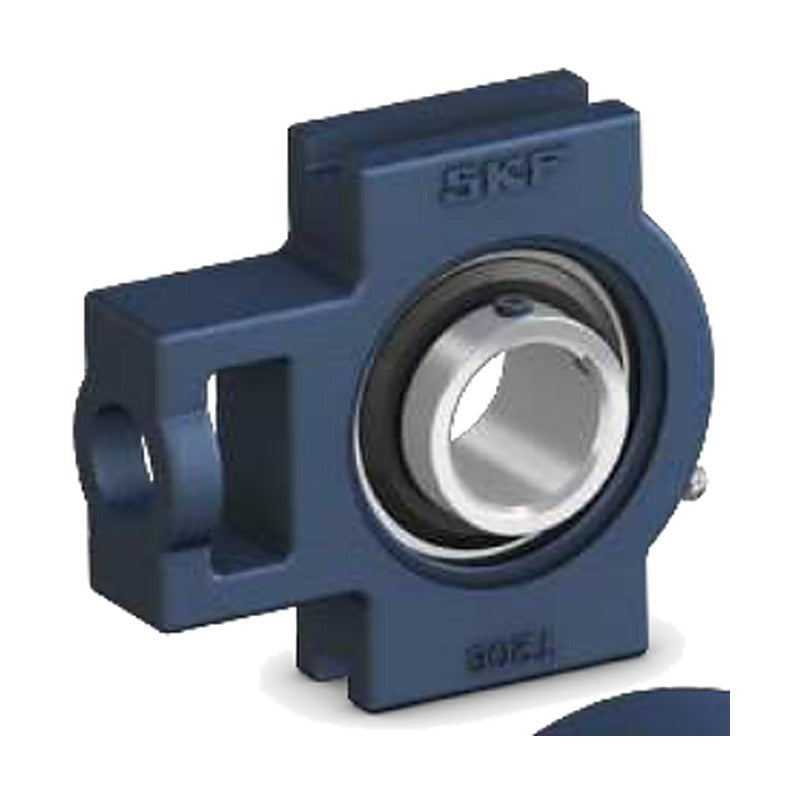

SKF UCT Take-Up Ball Bearing Units (JIS)

SKF UCT Take-Up Ball Bearing Units (JIS)

SKF UCT insert bearing units with a take-up housing and a UC insert bearing with set screws, interchangeable with JIS-standard units.

Key features

  • Complete unit: cast iron housing with UC insert bearing
  • Set screw locking for easy mounting on the shaft
  • JIS-compatible dimensions for direct replacement
  • Relubrication via grease nipple
  • End covers (ECY) ordered separately where listed

Specifications

Series UCT
Housing Take-up housing
Insert bearing UC series, set screws
Standard JIS compatible
Brand SKF
Source SKF insert bearing units UC range (JIS), p. 22-23
UCT 204 Shaft: 20 mm | C: 12.7 kN | C0: 6.7 kN | Height H: 88.9 mm | Length L: 96 mm | Mass: 0.70 kg
UCT 205 Shaft: 25 mm | C: 14.0 kN | C0: 7.8 kN | Height H: 88.9 mm | Length L: 99 mm | Mass: 0.78 kg
UCT 206 Shaft: 30 mm | C: 19.5 kN | C0: 11.4 kN | Height H: 102.4 mm | Length L: 115 mm | Mass: 1.22 kg
UCT 207 Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Height H: 102.4 mm | Length L: 131 mm | Mass: 1.62 kg
UCT 208 Shaft: 40 mm | C: 32.5 kN | C0: 20.0 kN | Height H: 114.3 mm | Length L: 146 mm | Mass: 2.37 kg
UCT 209 Shaft: 45 mm | C: 32.5 kN | C0: 20.4 kN | Height H: 116.7 mm | Length L: 146 mm | Mass: 2.33 kg
UCT 210 Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Height H: 116.7 mm | Length L: 151 mm | Mass: 2.50 kg
UCT 211 Shaft: 55 mm | C: 43.6 kN | C0: 29.0 kN | Height H: 146.1 mm | Length L: 173 mm | Mass: 3.92 kg
UCT 212 Shaft: 60 mm | C: 52.7 kN | C0: 36.0 kN | Height H: 146.1 mm | Length L: 196 mm | Mass: 4.81 kg
UCT 213 Shaft: 65 mm | C: 57.2 kN | C0: 40.0 kN | Height H: 166.7 mm | Length L: 226 mm | Mass: 6.78 kg
UCT 214 Shaft: 70 mm | C: 62.4 kN | C0: 44.0 kN | Height H: 166.7 mm | Length L: 226 mm | Mass: 6.93 kg
UCT 215 Shaft: 75 mm | C: 66.3 kN | C0: 49.0 kN | Height H: 166.7 mm | Length L: 234 mm | Mass: 7.75 kg
UCT 216 Shaft: 80 mm | C: 71.5 kN | C0: 54.0 kN | Height H: 184.2 mm | Length L: 237 mm | Mass: 8.18 kg
UCT 217 Shaft: 85 mm | C: 83.2 kN | C0: 64.0 kN | Height H: 198 mm | Length L: 263 mm | Mass: 10.88 kg
Mounted Bearing UnitsSKF
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF UCT Take-Up Ball Bearing Units (JIS)

Brand SKF·Mounted Bearing Units

Available part numbers (14)

UCT 204, UCT 205, UCT 206, UCT 207, UCT 208, UCT 209, UCT 210, UCT 211, UCT 212, UCT 213 + 4 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCT 204Shaft: 20 mm | C: 12.7 kN | C0: 6.7 kN | Height H: 88.9 mm | Length L: 96 mm | Mass: 0.70 kg
UCT 205Shaft: 25 mm | C: 14.0 kN | C0: 7.8 kN | Height H: 88.9 mm | Length L: 99 mm | Mass: 0.78 kg
UCT 206Shaft: 30 mm | C: 19.5 kN | C0: 11.4 kN | Height H: 102.4 mm | Length L: 115 mm | Mass: 1.22 kg
UCT 207Shaft: 35 mm | C: 25.5 kN | C0: 15.3 kN | Height H: 102.4 mm | Length L: 131 mm | Mass: 1.62 kg
UCT 208Shaft: 40 mm | C: 32.5 kN | C0: 20.0 kN | Height H: 114.3 mm | Length L: 146 mm | Mass: 2.37 kg
UCT 209Shaft: 45 mm | C: 32.5 kN | C0: 20.4 kN | Height H: 116.7 mm | Length L: 146 mm | Mass: 2.33 kg
UCT 210Shaft: 50 mm | C: 35.1 kN | C0: 23.2 kN | Height H: 116.7 mm | Length L: 151 mm | Mass: 2.50 kg
UCT 211Shaft: 55 mm | C: 43.6 kN | C0: 29.0 kN | Height H: 146.1 mm | Length L: 173 mm | Mass: 3.92 kg
UCT 212Shaft: 60 mm | C: 52.7 kN | C0: 36.0 kN | Height H: 146.1 mm | Length L: 196 mm | Mass: 4.81 kg
UCT 213Shaft: 65 mm | C: 57.2 kN | C0: 40.0 kN | Height H: 166.7 mm | Length L: 226 mm | Mass: 6.78 kg
UCT 214Shaft: 70 mm | C: 62.4 kN | C0: 44.0 kN | Height H: 166.7 mm | Length L: 226 mm | Mass: 6.93 kg
UCT 215Shaft: 75 mm | C: 66.3 kN | C0: 49.0 kN | Height H: 166.7 mm | Length L: 234 mm | Mass: 7.75 kg
UCT 216Shaft: 80 mm | C: 71.5 kN | C0: 54.0 kN | Height H: 184.2 mm | Length L: 237 mm | Mass: 8.18 kg
UCT 217Shaft: 85 mm | C: 83.2 kN | C0: 64.0 kN | Height H: 198 mm | Length L: 263 mm | Mass: 10.88 kg
