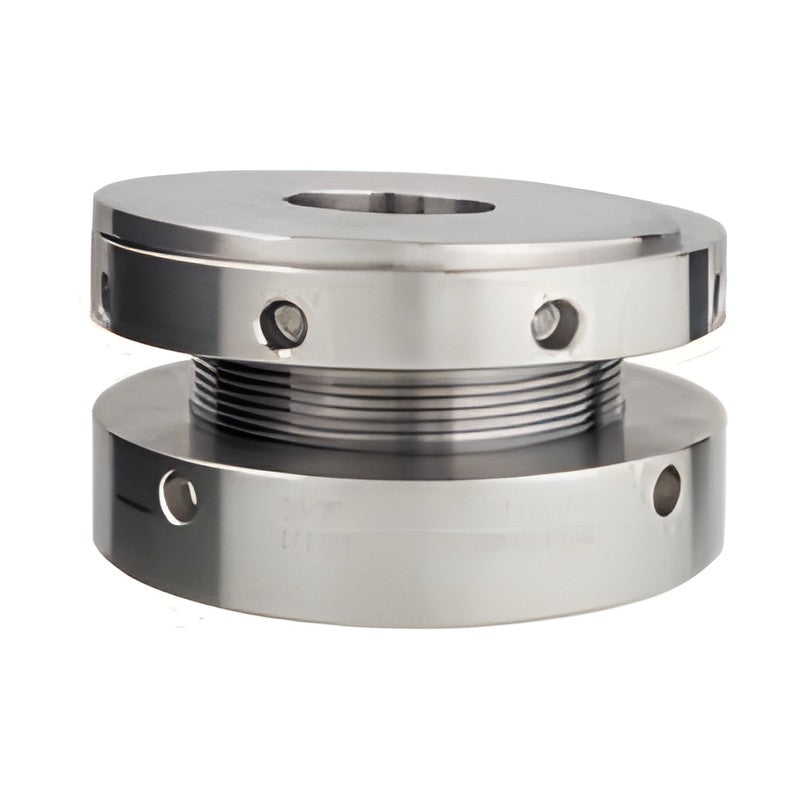

SKF Vibracon SM Adjustable Machinery Chocks and SMAT Tools

SKF Vibracon SM Adjustable Machinery Chocks and SMAT Tools

SKF Vibracon is a universal, re-usable adjustable machinery mounting chock that accommodates up to 4 degrees between machine and base and eliminates soft foot.

Key features

  • Self-levelling with height adjustment, no machining or epoxy resin needed
  • Accommodates angular difference up to 4 degrees
  • Carbon steel (CS), surface treated (CSTR), stainless steel (SS) versions
  • Low profile ASTR versions in surface treated alloy steel
  • SMAT adjustment tools for safe height alteration

Specifications

Angular compensation up to 4 deg
Source SKF Maintenance and Lubrication Products, p. 96-97
SM 12-CS Material: Carbon steel | Height A: 30-38 mm | d1: 60 mm | d2: 17 mm
SM 12-CSTR Material: Surface treated carbon steel | Height A: 30-38 mm | d1: 60 mm | d2: 17 mm
SM 12-SS Material: Stainless steel | Height A: 30-38 mm | d1: 60 mm | d2: 17 mm
SM 16-CS Material: Carbon steel | Height A: 35-45 mm | d1: 80 mm | d2: 21 mm
SM 16-CSTR Material: Surface treated carbon steel | Height A: 35-45 mm | d1: 80 mm | d2: 21 mm
SM 16-SS Material: Stainless steel | Height A: 35-45 mm | d1: 80 mm | d2: 21 mm
SM 20-CS Material: Carbon steel | Height A: 40-50 mm | d1: 100 mm | d2: 25 mm
SM 20-CSTR Material: Surface treated carbon steel | Height A: 40-50 mm | d1: 100 mm | d2: 25 mm
SM 20-SS Material: Stainless steel | Height A: 40-50 mm | d1: 100 mm | d2: 25 mm
SM 24-CS Material: Carbon steel | Height A: 45-57 mm | d1: 120 mm | d2: 31 mm
SM 24-CSTR Material: Surface treated carbon steel | Height A: 45-57 mm | d1: 120 mm | d2: 31 mm
SM 24-SS Material: Stainless steel | Height A: 45-57 mm | d1: 120 mm | d2: 31 mm
SM 30-CS Material: Carbon steel | Height A: 50-62 mm | d1: 140 mm | d2: 37 mm
SM 30-CSTR Material: Surface treated carbon steel | Height A: 50-62 mm | d1: 140 mm | d2: 37 mm
SM 30-SS Material: Stainless steel | Height A: 50-62 mm | d1: 140 mm | d2: 37 mm
SM 36-CS Material: Carbon steel | Height A: 55-67 mm | d1: 160 mm | d2: 44 mm
SM 36-CSTR Material: Surface treated carbon steel | Height A: 55-67 mm | d1: 160 mm | d2: 44 mm
SM 36-SS Material: Stainless steel | Height A: 55-67 mm | d1: 160 mm | d2: 44 mm
SM 42-CS Material: Carbon steel | Height A: 60-72 mm | d1: 190 mm | d2: 50 mm
SM 42-CSTR Material: Surface treated carbon steel | Height A: 60-72 mm | d1: 190 mm | d2: 50 mm
SM 42-SS Material: Stainless steel | Height A: 60-72 mm | d1: 190 mm | d2: 50 mm
SM 48-CS Material: Carbon steel | Height A: 70-85 mm | d1: 220 mm | d2: 60 mm
SM 48-CSTR Material: Surface treated carbon steel | Height A: 70-85 mm | d1: 220 mm | d2: 60 mm
SM 48-SS Material: Stainless steel | Height A: 70-85 mm | d1: 220 mm | d2: 60 mm
SM 56-CS Material: Carbon steel | Height A: 75-90 mm | d1: 230 mm | d2: 66 mm
SM 56-CSTR Material: Surface treated carbon steel | Height A: 75-90 mm | d1: 230 mm | d2: 66 mm
SM 56-SS Material: Stainless steel | Height A: 75-90 mm | d1: 230 mm | d2: 66 mm
SM 64-CS Material: Carbon steel | Height A: 80-95 mm | d1: 250 mm | d2: 74 mm
SM 64-CSTR Material: Surface treated carbon steel | Height A: 80-95 mm | d1: 250 mm | d2: 74 mm
SM 64-SS Material: Stainless steel | Height A: 80-95 mm | d1: 250 mm | d2: 74 mm
SM 16 LP-ASTR Material: Surface treated alloy steel, low profile | Height A: 20-30 mm | d1: 80 mm | d2: 21 mm
SM 20 LP-ASTR Material: Surface treated alloy steel, low profile | Height A: 20-30 mm | d1: 100 mm | d2: 25 mm
SM 24 LP-ASTR Material: Surface treated alloy steel, low profile | Height A: 20-30 mm | d1: 120 mm | d2: 31 mm
SM 30 LP-ASTR Material: Surface treated alloy steel, low profile | Height A: 20-30 mm | d1: 140 mm | d2: 37 mm
SM 36 LP-ASTR Material: Surface treated alloy steel, low profile | Height A: 20-40 mm | d1: 160 mm | d2: 44 mm
SM 42 LP-ASTR Material: Surface treated alloy steel, low profile | Height A: 35-45 mm | d1: 190 mm | d2: 50 mm
SMAT 006 Material: Adjustment tool | For Vibracon: SM 12-SM 16
SMAT 008 Material: Adjustment tool | For Vibracon: SM 20-SM 24
SMAT 010 Material: Adjustment tool | For Vibracon: SM 30-SM 48
SMAT 012 Material: Adjustment tool | For Vibracon: SM 56-SM 64
SMAT 006 LP-3 Material: Adjustment tool | For Vibracon: SM 12 LP-SM 20 LP
SMAT 006 LP-4 Material: Adjustment tool | For Vibracon: SM 24 LP-SM 42 LP
