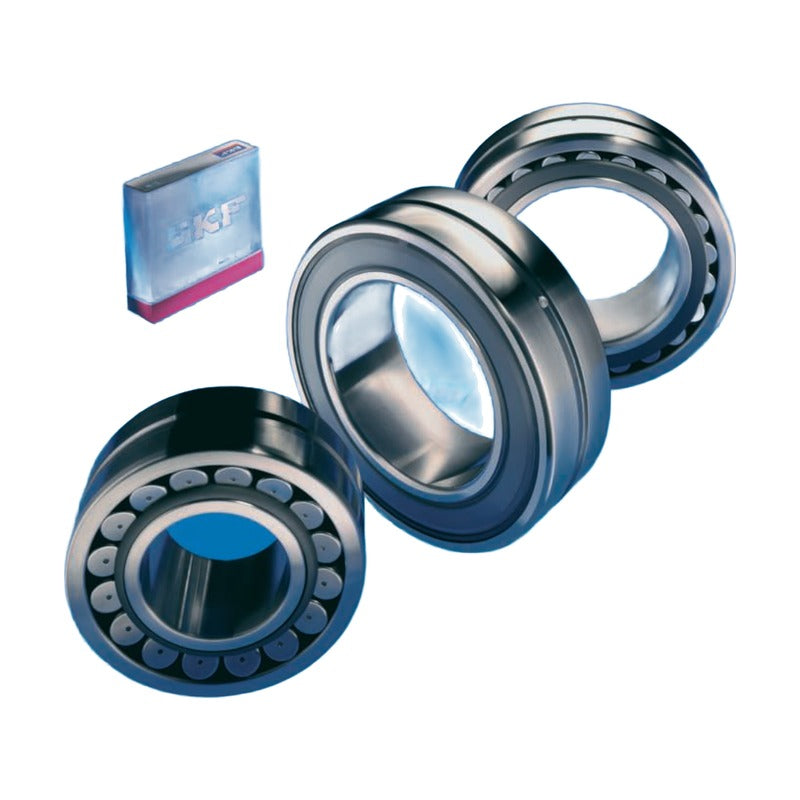

SKF 223 Spherical Roller Bearings for Vibratory Applications (VA405)

SKF 223 Spherical Roller Bearings for Vibratory Applications (VA405)

SKF 223 series spherical roller bearings with VA405 / VA406 execution for vibrating screens and other vibratory machinery. Bore diameters 40-240 mm.

Key features

  • Special execution for high accelerations in vibrating screens and exciters
  • Surface-hardened, guided cages; reduced bore tolerance and increased clearance
  • VA406 with PTFE-coated bore for floating bearing positions
  • Cylindrical and tapered (K) bore versions

Specifications

Bearing type Spherical roller bearing, vibratory application
Series 223
Bore range d 40-240 mm
Executions VA405, VA406
Load ratings C dynamic / C0 static, kN
Source SKF General Catalogue 6000, p. 744-746
22308 E/VA405 d: 40 mm | D: 90 mm | B: 33 mm | C: 150 kN | C0: 140 kN | Limiting speed: 8000 r/min
22309 E/VA405 d: 45 mm | D: 100 mm | B: 36 mm | C: 183 kN | C0: 183 kN | Limiting speed: 7000 r/min
22310 E/VA405 d: 50 mm | D: 110 mm | B: 40 mm | C: 220 kN | C0: 224 kN | Limiting speed: 6300 r/min
22311 E/VA405 d: 55 mm | D: 120 mm | B: 43 mm | C: 270 kN | C0: 280 kN | Limiting speed: 5600 r/min
22311 EK/VA405 d: 55 mm | D: 120 mm | B: 43 mm | C: 270 kN | C0: 280 kN | Limiting speed: 5600 r/min
22312 E/VA405 d: 60 mm | D: 130 mm | B: 46 mm | C: 310 kN | C0: 335 kN | Limiting speed: 5300 r/min
22312 EK/VA405 d: 60 mm | D: 130 mm | B: 46 mm | C: 310 kN | C0: 335 kN | Limiting speed: 5300 r/min
22313 E/VA405 d: 65 mm | D: 140 mm | B: 48 mm | C: 340 kN | C0: 360 kN | Limiting speed: 5000 r/min
22313 EK/VA405 d: 65 mm | D: 140 mm | B: 48 mm | C: 340 kN | C0: 360 kN | Limiting speed: 5000 r/min
22314 E/VA405 d: 70 mm | D: 150 mm | B: 51 mm | C: 400 kN | C0: 430 kN | Limiting speed: 4500 r/min
22314 EK/VA405 d: 70 mm | D: 150 mm | B: 51 mm | C: 400 kN | C0: 430 kN | Limiting speed: 4500 r/min
22315 EJA/VA405 d: 75 mm | D: 160 mm | B: 55 mm | C: 440 kN | C0: 475 kN | Limiting speed: 4300 r/min
22315 EKJA/VA405 d: 75 mm | D: 160 mm | B: 55 mm | C: 440 kN | C0: 475 kN | Limiting speed: 4300 r/min
22316 EJA/VA405 d: 80 mm | D: 170 mm | B: 58 mm | C: 490 kN | C0: 540 kN | Limiting speed: 4000 r/min
22316 EKJA/VA405 d: 80 mm | D: 170 mm | B: 58 mm | C: 490 kN | C0: 540 kN | Limiting speed: 4000 r/min
22317 EJA/VA405 d: 85 mm | D: 180 mm | B: 60 mm | C: 550 kN | C0: 620 kN | Limiting speed: 3800 r/min
22317 EKJA/VA405 d: 85 mm | D: 180 mm | B: 60 mm | C: 550 kN | C0: 620 kN | Limiting speed: 3800 r/min
22317 EJA/VA406 d: 85 mm | D: 180 mm | B: 60 mm | C: 550 kN | C0: 620 kN | Limiting speed: 3800 r/min
22318 EJA/VA405 d: 90 mm | D: 190 mm | B: 64 mm | C: 610 kN | C0: 695 kN | Limiting speed: 3600 r/min
22318 EKJA/VA405 d: 90 mm | D: 190 mm | B: 64 mm | C: 610 kN | C0: 695 kN | Limiting speed: 3600 r/min
22319 EJA/VA405 d: 95 mm | D: 200 mm | B: 67 mm | C: 670 kN | C0: 765 kN | Limiting speed: 3400 r/min
22319 EKJA/VA405 d: 95 mm | D: 200 mm | B: 67 mm | C: 670 kN | C0: 765 kN | Limiting speed: 3400 r/min
22320 EJA/VA405 d: 100 mm | D: 215 mm | B: 73 mm | C: 815 kN | C0: 950 kN | Limiting speed: 3000 r/min
22320 EKJA/VA405 d: 100 mm | D: 215 mm | B: 73 mm | C: 815 kN | C0: 950 kN | Limiting speed: 3000 r/min
22320 EJA/VA406 d: 100 mm | D: 215 mm | B: 73 mm | C: 815 kN | C0: 950 kN | Limiting speed: 3000 r/min
22322 EJA/VA405 d: 110 mm | D: 240 mm | B: 80 mm | C: 950 kN | C0: 1120 kN | Limiting speed: 2800 r/min
22322 EKJA/VA405 d: 110 mm | D: 240 mm | B: 80 mm | C: 950 kN | C0: 1120 kN | Limiting speed: 2800 r/min
22322 EJA/VA406 d: 110 mm | D: 240 mm | B: 80 mm | C: 950 kN | C0: 1120 kN | Limiting speed: 2800 r/min
22324 CCJA/W33VA405 d: 120 mm | D: 260 mm | B: 86 mm | C: 965 kN | C0: 1120 kN | Limiting speed: 2600 r/min
22324 CCKJA/W33VA405 d: 120 mm | D: 260 mm | B: 86 mm | C: 965 kN | C0: 1120 kN | Limiting speed: 2600 r/min
22324 CCJA/W33VA406 d: 120 mm | D: 260 mm | B: 86 mm | C: 965 kN | C0: 1120 kN | Limiting speed: 2600 r/min
22326 CCJA/W33VA405 d: 130 mm | D: 280 mm | B: 93 mm | C: 1120 kN | C0: 1320 kN | Limiting speed: 2400 r/min
22326 CCKJA/W33VA405 d: 130 mm | D: 280 mm | B: 93 mm | C: 1120 kN | C0: 1320 kN | Limiting speed: 2400 r/min
22326 CCJA/W33VA406 d: 130 mm | D: 280 mm | B: 93 mm | C: 1120 kN | C0: 1320 kN | Limiting speed: 2400 r/min
22328 CCJA/W33VA405 d: 140 mm | D: 300 mm | B: 102 mm | C: 1290 kN | C0: 1560 kN | Limiting speed: 2200 r/min
22328 CCKJA/W33VA405 d: 140 mm | D: 300 mm | B: 102 mm | C: 1290 kN | C0: 1560 kN | Limiting speed: 2200 r/min
22328 CCJA/W33VA406 d: 140 mm | D: 300 mm | B: 102 mm | C: 1290 kN | C0: 1560 kN | Limiting speed: 2200 r/min
22330 CCJA/W33VA405 d: 150 mm | D: 320 mm | B: 108 mm | C: 1460 kN | C0: 1760 kN | Limiting speed: 2000 r/min
22330 CCKJA/W33VA405 d: 150 mm | D: 320 mm | B: 108 mm | C: 1460 kN | C0: 1760 kN | Limiting speed: 2000 r/min
22330 CCJA/W33VA406 d: 150 mm | D: 320 mm | B: 108 mm | C: 1460 kN | C0: 1760 kN | Limiting speed: 2000 r/min
22332 CCJA/W33VA405 d: 160 mm | D: 340 mm | B: 114 mm | C: 1600 kN | C0: 1960 kN | Limiting speed: 1900 r/min
22332 CCKJA/W33VA405 d: 160 mm | D: 340 mm | B: 114 mm | C: 1600 kN | C0: 1960 kN | Limiting speed: 1900 r/min
22332 CCJA/W33VA406 d: 160 mm | D: 340 mm | B: 114 mm | C: 1600 kN | C0: 1960 kN | Limiting speed: 1900 r/min
22334 CCJA/W33VA405 d: 170 mm | D: 360 mm | B: 120 mm | C: 1760 kN | C0: 2160 kN | Limiting speed: 1800 r/min
22334 CCKJA/W33VA405 d: 170 mm | D: 360 mm | B: 120 mm | C: 1760 kN | C0: 2160 kN | Limiting speed: 1800 r/min
22334 CCJA/W33VA406 d: 170 mm | D: 360 mm | B: 120 mm | C: 1760 kN | C0: 2160 kN | Limiting speed: 1800 r/min
22336 CCJA/W33VA405 d: 180 mm | D: 380 mm | B: 126 mm | C: 2000 kN | C0: 2450 kN | Limiting speed: 1700 r/min
22336 CCKJA/W33VA405 d: 180 mm | D: 380 mm | B: 126 mm | C: 2000 kN | C0: 2450 kN | Limiting speed: 1700 r/min
22336 CCJA/W33VA406 d: 180 mm | D: 380 mm | B: 126 mm | C: 2000 kN | C0: 2450 kN | Limiting speed: 1700 r/min
22338 CCJA/W33VA405 d: 190 mm | D: 400 mm | B: 132 mm | C: 2120 kN | C0: 2650 kN | Limiting speed: 1600 r/min
22338 CCKJA/W33VA405 d: 190 mm | D: 400 mm | B: 132 mm | C: 2120 kN | C0: 2650 kN | Limiting speed: 1600 r/min
22338 CCJA/W33VA406 d: 190 mm | D: 400 mm | B: 132 mm | C: 2120 kN | C0: 2650 kN | Limiting speed: 1600 r/min
22340 CCJA/W33VA405 d: 200 mm | D: 420 mm | B: 138 mm | C: 2320 kN | C0: 2900 kN | Limiting speed: 1500 r/min
22340 CCKJA/W33VA405 d: 200 mm | D: 420 mm | B: 138 mm | C: 2320 kN | C0: 2900 kN | Limiting speed: 1500 r/min
22340 CCJA/W33VA406 d: 200 mm | D: 420 mm | B: 138 mm | C: 2320 kN | C0: 2900 kN | Limiting speed: 1500 r/min
22344 CCJA/W33VA405 d: 220 mm | D: 460 mm | B: 145 mm | C: 2700 kN | C0: 3450 kN | Limiting speed: 1400 r/min
22344 CCKJA/W33VA405 d: 220 mm | D: 460 mm | B: 145 mm | C: 2700 kN | C0: 3450 kN | Limiting speed: 1400 r/min
22348 CCJA/W33VA405 d: 240 mm | D: 500 mm | B: 155 mm | C: 3100 kN | C0: 4000 kN | Limiting speed: 1300 r/min
22348 CCKJA/W33VA405 d: 240 mm | D: 500 mm | B: 155 mm | C: 3100 kN | C0: 4000 kN | Limiting speed: 1300 r/min
Spherical Roller BearingsSKF
59 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF 223 Spherical Roller Bearings for Vibratory Applications (VA405)

Brand SKF·Spherical Roller Bearings

Available part numbers (59)

22308 E/VA405, 22309 E/VA405, 22310 E/VA405, 22311 E/VA405, 22311 EK/VA405, 22312 E/VA405, 22312 EK/VA405, 22313 E/VA405, 22313 EK/VA405, 22314 E/VA405 + 49 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
22308 E/VA405d: 40 mm | D: 90 mm | B: 33 mm | C: 150 kN | C0: 140 kN | Limiting speed: 8000 r/min
22309 E/VA405d: 45 mm | D: 100 mm | B: 36 mm | C: 183 kN | C0: 183 kN | Limiting speed: 7000 r/min
22310 E/VA405d: 50 mm | D: 110 mm | B: 40 mm | C: 220 kN | C0: 224 kN | Limiting speed: 6300 r/min
22311 E/VA405d: 55 mm | D: 120 mm | B: 43 mm | C: 270 kN | C0: 280 kN | Limiting speed: 5600 r/min
22311 EK/VA405d: 55 mm | D: 120 mm | B: 43 mm | C: 270 kN | C0: 280 kN | Limiting speed: 5600 r/min
22312 E/VA405d: 60 mm | D: 130 mm | B: 46 mm | C: 310 kN | C0: 335 kN | Limiting speed: 5300 r/min
22312 EK/VA405d: 60 mm | D: 130 mm | B: 46 mm | C: 310 kN | C0: 335 kN | Limiting speed: 5300 r/min
22313 E/VA405d: 65 mm | D: 140 mm | B: 48 mm | C: 340 kN | C0: 360 kN | Limiting speed: 5000 r/min
22313 EK/VA405d: 65 mm | D: 140 mm | B: 48 mm | C: 340 kN | C0: 360 kN | Limiting speed: 5000 r/min
22314 E/VA405d: 70 mm | D: 150 mm | B: 51 mm | C: 400 kN | C0: 430 kN | Limiting speed: 4500 r/min
22314 EK/VA405d: 70 mm | D: 150 mm | B: 51 mm | C: 400 kN | C0: 430 kN | Limiting speed: 4500 r/min
22315 EJA/VA405d: 75 mm | D: 160 mm | B: 55 mm | C: 440 kN | C0: 475 kN | Limiting speed: 4300 r/min
22315 EKJA/VA405d: 75 mm | D: 160 mm | B: 55 mm | C: 440 kN | C0: 475 kN | Limiting speed: 4300 r/min
22316 EJA/VA405d: 80 mm | D: 170 mm | B: 58 mm | C: 490 kN | C0: 540 kN | Limiting speed: 4000 r/min
22316 EKJA/VA405d: 80 mm | D: 170 mm | B: 58 mm | C: 490 kN | C0: 540 kN | Limiting speed: 4000 r/min
22317 EJA/VA405d: 85 mm | D: 180 mm | B: 60 mm | C: 550 kN | C0: 620 kN | Limiting speed: 3800 r/min
22317 EKJA/VA405d: 85 mm | D: 180 mm | B: 60 mm | C: 550 kN | C0: 620 kN | Limiting speed: 3800 r/min
22317 EJA/VA406d: 85 mm | D: 180 mm | B: 60 mm | C: 550 kN | C0: 620 kN | Limiting speed: 3800 r/min
22318 EJA/VA405d: 90 mm | D: 190 mm | B: 64 mm | C: 610 kN | C0: 695 kN | Limiting speed: 3600 r/min
22318 EKJA/VA405d: 90 mm | D: 190 mm | B: 64 mm | C: 610 kN | C0: 695 kN | Limiting speed: 3600 r/min
22319 EJA/VA405d: 95 mm | D: 200 mm | B: 67 mm | C: 670 kN | C0: 765 kN | Limiting speed: 3400 r/min
22319 EKJA/VA405d: 95 mm | D: 200 mm | B: 67 mm | C: 670 kN | C0: 765 kN | Limiting speed: 3400 r/min
22320 EJA/VA405d: 100 mm | D: 215 mm | B: 73 mm | C: 815 kN | C0: 950 kN | Limiting speed: 3000 r/min
22320 EKJA/VA405d: 100 mm | D: 215 mm | B: 73 mm | C: 815 kN | C0: 950 kN | Limiting speed: 3000 r/min
22320 EJA/VA406d: 100 mm | D: 215 mm | B: 73 mm | C: 815 kN | C0: 950 kN | Limiting speed: 3000 r/min
22322 EJA/VA405d: 110 mm | D: 240 mm | B: 80 mm | C: 950 kN | C0: 1120 kN | Limiting speed: 2800 r/min
22322 EKJA/VA405d: 110 mm | D: 240 mm | B: 80 mm | C: 950 kN | C0: 1120 kN | Limiting speed: 2800 r/min
22322 EJA/VA406d: 110 mm | D: 240 mm | B: 80 mm | C: 950 kN | C0: 1120 kN | Limiting speed: 2800 r/min
22324 CCJA/W33VA405d: 120 mm | D: 260 mm | B: 86 mm | C: 965 kN | C0: 1120 kN | Limiting speed: 2600 r/min
22324 CCKJA/W33VA405d: 120 mm | D: 260 mm | B: 86 mm | C: 965 kN | C0: 1120 kN | Limiting speed: 2600 r/min
22324 CCJA/W33VA406d: 120 mm | D: 260 mm | B: 86 mm | C: 965 kN | C0: 1120 kN | Limiting speed: 2600 r/min
22326 CCJA/W33VA405d: 130 mm | D: 280 mm | B: 93 mm | C: 1120 kN | C0: 1320 kN | Limiting speed: 2400 r/min
22326 CCKJA/W33VA405d: 130 mm | D: 280 mm | B: 93 mm | C: 1120 kN | C0: 1320 kN | Limiting speed: 2400 r/min
22326 CCJA/W33VA406d: 130 mm | D: 280 mm | B: 93 mm | C: 1120 kN | C0: 1320 kN | Limiting speed: 2400 r/min
22328 CCJA/W33VA405d: 140 mm | D: 300 mm | B: 102 mm | C: 1290 kN | C0: 1560 kN | Limiting speed: 2200 r/min
22328 CCKJA/W33VA405d: 140 mm | D: 300 mm | B: 102 mm | C: 1290 kN | C0: 1560 kN | Limiting speed: 2200 r/min
22328 CCJA/W33VA406d: 140 mm | D: 300 mm | B: 102 mm | C: 1290 kN | C0: 1560 kN | Limiting speed: 2200 r/min
22330 CCJA/W33VA405d: 150 mm | D: 320 mm | B: 108 mm | C: 1460 kN | C0: 1760 kN | Limiting speed: 2000 r/min
22330 CCKJA/W33VA405d: 150 mm | D: 320 mm | B: 108 mm | C: 1460 kN | C0: 1760 kN | Limiting speed: 2000 r/min
22330 CCJA/W33VA406d: 150 mm | D: 320 mm | B: 108 mm | C: 1460 kN | C0: 1760 kN | Limiting speed: 2000 r/min
22332 CCJA/W33VA405d: 160 mm | D: 340 mm | B: 114 mm | C: 1600 kN | C0: 1960 kN | Limiting speed: 1900 r/min
22332 CCKJA/W33VA405d: 160 mm | D: 340 mm | B: 114 mm | C: 1600 kN | C0: 1960 kN | Limiting speed: 1900 r/min
22332 CCJA/W33VA406d: 160 mm | D: 340 mm | B: 114 mm | C: 1600 kN | C0: 1960 kN | Limiting speed: 1900 r/min
22334 CCJA/W33VA405d: 170 mm | D: 360 mm | B: 120 mm | C: 1760 kN | C0: 2160 kN | Limiting speed: 1800 r/min
22334 CCKJA/W33VA405d: 170 mm | D: 360 mm | B: 120 mm | C: 1760 kN | C0: 2160 kN | Limiting speed: 1800 r/min
22334 CCJA/W33VA406d: 170 mm | D: 360 mm | B: 120 mm | C: 1760 kN | C0: 2160 kN | Limiting speed: 1800 r/min
22336 CCJA/W33VA405d: 180 mm | D: 380 mm | B: 126 mm | C: 2000 kN | C0: 2450 kN | Limiting speed: 1700 r/min
22336 CCKJA/W33VA405d: 180 mm | D: 380 mm | B: 126 mm | C: 2000 kN | C0: 2450 kN | Limiting speed: 1700 r/min
22336 CCJA/W33VA406d: 180 mm | D: 380 mm | B: 126 mm | C: 2000 kN | C0: 2450 kN | Limiting speed: 1700 r/min
22338 CCJA/W33VA405d: 190 mm | D: 400 mm | B: 132 mm | C: 2120 kN | C0: 2650 kN | Limiting speed: 1600 r/min
22338 CCKJA/W33VA405d: 190 mm | D: 400 mm | B: 132 mm | C: 2120 kN | C0: 2650 kN | Limiting speed: 1600 r/min
22338 CCJA/W33VA406d: 190 mm | D: 400 mm | B: 132 mm | C: 2120 kN | C0: 2650 kN | Limiting speed: 1600 r/min
22340 CCJA/W33VA405d: 200 mm | D: 420 mm | B: 138 mm | C: 2320 kN | C0: 2900 kN | Limiting speed: 1500 r/min
22340 CCKJA/W33VA405d: 200 mm | D: 420 mm | B: 138 mm | C: 2320 kN | C0: 2900 kN | Limiting speed: 1500 r/min
22340 CCJA/W33VA406d: 200 mm | D: 420 mm | B: 138 mm | C: 2320 kN | C0: 2900 kN | Limiting speed: 1500 r/min
22344 CCJA/W33VA405d: 220 mm | D: 460 mm | B: 145 mm | C: 2700 kN | C0: 3450 kN | Limiting speed: 1400 r/min
22344 CCKJA/W33VA405d: 220 mm | D: 460 mm | B: 145 mm | C: 2700 kN | C0: 3450 kN | Limiting speed: 1400 r/min
22348 CCJA/W33VA405d: 240 mm | D: 500 mm | B: 155 mm | C: 3100 kN | C0: 4000 kN | Limiting speed: 1300 r/min
22348 CCKJA/W33VA405d: 240 mm | D: 500 mm | B: 155 mm | C: 3100 kN | C0: 4000 kN | Limiting speed: 1300 r/min

Need a different model, or a part not listed here? Send us your parts list →
