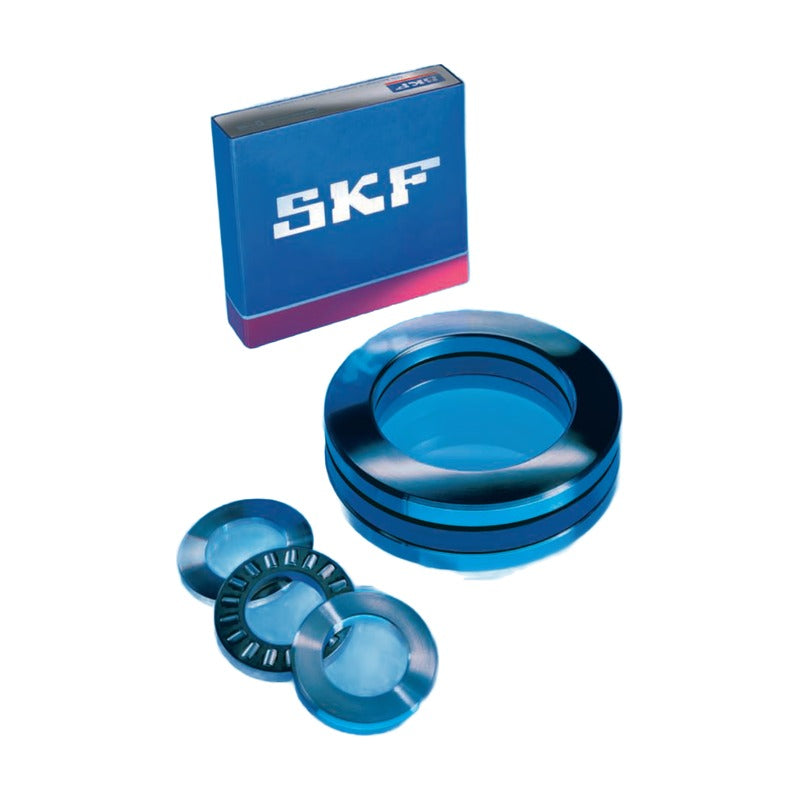

SKF WS / GS 811 and 812 Shaft and Housing Washers

SKF WS / GS 811 and 812 Shaft and Housing Washers

SKF shaft washers (WS) and housing washers (GS) for 811 and 812 series cylindrical roller thrust bearings, supplied separately as components.

Key features

  • WS shaft washer: bore fits the shaft, raceway for the rollers
  • GS housing washer: seats in the housing, raceway for the rollers
  • Used with K 811 / K 812 cage assemblies to make complete bearings
  • Hardened bearing steel raceway washers

Specifications

Product Thrust bearing shaft / housing washer
Series 811, 812
B Washer thickness
Bore range d 15-630 mm
Source SKF General Catalogue 6000, p. 871-875
WS 81102 d: 15 mm | d1: 28 mm | B: 2.75 mm
WS 81103 d: 17 mm | d1: 30 mm | B: 2.75 mm
WS 81104 d: 20 mm | d1: 35 mm | B: 2.75 mm
WS 81105 d: 25 mm | d1: 42 mm | B: 3 mm
WS 81106 d: 30 mm | d1: 47 mm | B: 3 mm
WS 81206 d: 30 mm | d1: 52 mm | B: 4.25 mm
WS 81107 d: 35 mm | d1: 52 mm | B: 3.5 mm
WS 81207 d: 35 mm | d1: 62 mm | B: 5.25 mm
WS 81108 d: 40 mm | d1: 60 mm | B: 3.5 mm
WS 81208 d: 40 mm | d1: 68 mm | B: 5 mm
WS 81109 d: 45 mm | d1: 65 mm | B: 4 mm
WS 81209 d: 45 mm | d1: 73 mm | B: 5.5 mm
WS 81110 d: 50 mm | d1: 70 mm | B: 4 mm
WS 81210 d: 50 mm | d1: 78 mm | B: 6.5 mm
WS 81111 d: 55 mm | d1: 78 mm | B: 5 mm
WS 81211 d: 55 mm | d1: 90 mm | B: 7 mm
WS 81112 d: 60 mm | d1: 85 mm | B: 4.75 mm
WS 81212 d: 60 mm | d1: 95 mm | B: 7.5 mm
WS 81113 d: 65 mm | d1: 90 mm | B: 5.25 mm
WS 81213 d: 65 mm | d1: 100 mm | B: 8 mm
WS 81114 d: 70 mm | d1: 95 mm | B: 5.25 mm
WS 81214 d: 70 mm | d1: 105 mm | B: 8 mm
WS 81115 d: 75 mm | d1: 100 mm | B: 5.75 mm
WS 81215 d: 75 mm | d1: 110 mm | B: 8 mm
WS 81116 d: 80 mm | d1: 105 mm | B: 5.75 mm
WS 81216 d: 80 mm | d1: 115 mm | B: 8.5 mm
WS 81117 d: 85 mm | d1: 110 mm | B: 5.75 mm
WS 81217 d: 85 mm | d1: 125 mm | B: 9.5 mm
WS 81118 d: 90 mm | d1: 120 mm | B: 6.5 mm
WS 81218 d: 90 mm | d1: 135 mm | B: 10.5 mm
WS 81120 d: 100 mm | d1: 135 mm | B: 7 mm
WS 81220 d: 100 mm | d1: 150 mm | B: 11.5 mm
WS 81122 d: 110 mm | d1: 145 mm | B: 7 mm
WS 81222 d: 110 mm | d1: 160 mm | B: 11.5 mm
WS 81124 d: 120 mm | d1: 155 mm | B: 7 mm
WS 81224 d: 120 mm | d1: 170 mm | B: 12 mm
WS 81126 d: 130 mm | d1: 170 mm | B: 9 mm
WS 81226 d: 130 mm | d1: 187 mm | B: 13 mm
WS 81128 d: 140 mm | d1: 178 mm | B: 9.5 mm
WS 81228 d: 140 mm | d1: 197 mm | B: 13.5 mm
WS 81130 d: 150 mm | d1: 188 mm | B: 9.5 mm
WS 81230 d: 150 mm | d1: 212 mm | B: 14.5 mm
WS 81132 d: 160 mm | d1: 198 mm | B: 9.5 mm
WS 81232 d: 160 mm | d1: 222 mm | B: 15 mm
WS 81134 d: 170 mm | d1: 213 mm | B: 10 mm
WS 81234 d: 170 mm | d1: 237 mm | B: 16.5 mm
WS 81136 d: 180 mm | d1: 222 mm | B: 10 mm
WS 81236 d: 180 mm | d1: 247 mm | B: 17 mm
WS 81138 d: 190 mm | d1: 237 mm | B: 11 mm
WS 81238 d: 190 mm | d1: 267 mm | B: 18 mm
WS 81140 d: 200 mm | d1: 247 mm | B: 11 mm
WS 81240 d: 200 mm | d1: 277 mm | B: 18 mm
WS 81144 d: 220 mm | d1: 267 mm | B: 11 mm
WS 81244 d: 220 mm | d1: 297 mm | B: 18.5 mm
WS 81148 d: 240 mm | d1: 297 mm | B: 13.5 mm
WS 81248 d: 240 mm | d1: 335 mm | B: 23 mm
WS 81152 d: 260 mm | d1: 317 mm | B: 13.5 mm
WS 81252 d: 260 mm | d1: 355 mm | B: 23.5 mm
WS 81156 d: 280 mm | d1: 347 mm | B: 15.5 mm
WS 81256 d: 280 mm | d1: 375 mm | B: 24 mm
WS 81160 d: 300 mm | d1: 376 mm | B: 18.5 mm
WS 81260 d: 300 mm | d1: 415 mm | B: 28.5 mm
WS 81164 d: 320 mm | d1: 396 mm | B: 19 mm
WS 81264 d: 320 mm | d1: 435 mm | B: 28.5 mm
WS 81168 d: 340 mm | d1: 416 mm | B: 19.5 mm
WS 81268 d: 340 mm | d1: 455 mm | B: 29 mm
WS 81172 d: 360 mm | d1: 436 mm | B: 20 mm
WS 81272 d: 360 mm | d1: 495 mm | B: 32.5 mm
WS 81176 d: 380 mm | d1: 456 mm | B: 20 mm
WS 81180 d: 400 mm | d1: 476 mm | B: 20 mm
WS 81184 d: 420 mm | d1: 495 mm | B: 20 mm
WS 81188 d: 440 mm | d1: 535 mm | B: 24 mm
WS 81192 d: 460 mm | d1: 555 mm | B: 24 mm
WS 81196 d: 480 mm | d1: 575 mm | B: 24 mm
WS 811/500 d: 500 mm | d1: 595 mm | B: 24 mm
WS 811/530 d: 530 mm | d1: 635 mm | B: 25.5 mm
WS 811/560 d: 560 mm | d1: 665 mm | B: 25.5 mm
WS 811/600 d: 600 mm | d1: 705 mm | B: 25.5 mm
WS 811/630 d: 630 mm | d1: 746 mm | B: 28.5 mm
GS 81102 D1: 16 mm | D: 28 mm | B: 2.75 mm
GS 81103 D1: 18 mm | D: 30 mm | B: 2.75 mm
GS 81104 D1: 21 mm | D: 35 mm | B: 2.75 mm
GS 81105 D1: 26 mm | D: 42 mm | B: 3 mm
GS 81106 D1: 32 mm | D: 47 mm | B: 3 mm
GS 81206 D1: 32 mm | D: 52 mm | B: 4.25 mm
GS 81107 D1: 37 mm | D: 52 mm | B: 3.5 mm
GS 81207 D1: 37 mm | D: 62 mm | B: 5.25 mm
GS 81108 D1: 42 mm | D: 60 mm | B: 3.5 mm
GS 81208 D1: 42 mm | D: 68 mm | B: 5 mm
GS 81109 D1: 47 mm | D: 65 mm | B: 4 mm
GS 81209 D1: 47 mm | D: 73 mm | B: 5.5 mm
GS 81110 D1: 52 mm | D: 70 mm | B: 4 mm
GS 81210 D1: 52 mm | D: 78 mm | B: 6.5 mm
GS 81111 D1: 57 mm | D: 78 mm | B: 5 mm
GS 81211 D1: 57 mm | D: 90 mm | B: 7 mm
GS 81112 D1: 62 mm | D: 85 mm | B: 4.75 mm
GS 81212 D1: 62 mm | D: 95 mm | B: 7.5 mm
GS 81113 D1: 67 mm | D: 90 mm | B: 5.25 mm
GS 81213 D1: 67 mm | D: 100 mm | B: 8 mm
GS 81114 D1: 72 mm | D: 95 mm | B: 5.25 mm
GS 81214 D1: 72 mm | D: 105 mm | B: 8 mm
GS 81115 D1: 77 mm | D: 100 mm | B: 5.75 mm
GS 81215 D1: 77 mm | D: 110 mm | B: 8 mm
GS 81116 D1: 82 mm | D: 105 mm | B: 5.75 mm
GS 81216 D1: 82 mm | D: 115 mm | B: 8.5 mm
GS 81117 D1: 87 mm | D: 110 mm | B: 5.75 mm
GS 81217 D1: 88 mm | D: 125 mm | B: 9.5 mm
GS 81118 D1: 92 mm | D: 120 mm | B: 6.5 mm
GS 81218 D1: 93 mm | D: 135 mm | B: 10.5 mm
GS 81120 D1: 102 mm | D: 135 mm | B: 7 mm
GS 81220 D1: 103 mm | D: 150 mm | B: 11.5 mm
GS 81122 D1: 112 mm | D: 145 mm | B: 7 mm
GS 81222 D1: 113 mm | D: 160 mm | B: 11.5 mm
GS 81124 D1: 122 mm | D: 155 mm | B: 7 mm
GS 81224 D1: 123 mm | D: 170 mm | B: 12 mm
GS 81126 D1: 132 mm | D: 170 mm | B: 9 mm
GS 81226 D1: 133 mm | D: 190 mm | B: 13 mm
GS 81128 D1: 142 mm | D: 180 mm | B: 9.5 mm
GS 81228 D1: 143 mm | D: 200 mm | B: 13.5 mm
GS 81130 D1: 152 mm | D: 190 mm | B: 9.5 mm
GS 81230 D1: 153 mm | D: 215 mm | B: 14.5 mm
GS 81132 D1: 162 mm | D: 200 mm | B: 9.5 mm
GS 81232 D1: 163 mm | D: 225 mm | B: 15 mm
GS 81134 D1: 172 mm | D: 215 mm | B: 10 mm
GS 81234 D1: 173 mm | D: 240 mm | B: 16.5 mm
GS 81136 D1: 183 mm | D: 225 mm | B: 10 mm
GS 81236 D1: 183 mm | D: 250 mm | B: 17 mm
GS 81138 D1: 193 mm | D: 240 mm | B: 11 mm
GS 81238 D1: 194 mm | D: 270 mm | B: 18 mm
GS 81140 D1: 203 mm | D: 250 mm | B: 11 mm
GS 81240 D1: 204 mm | D: 280 mm | B: 18 mm
GS 81144 D1: 223 mm | D: 270 mm | B: 11 mm
GS 81244 D1: 224 mm | D: 300 mm | B: 18.5 mm
GS 81148 D1: 243 mm | D: 300 mm | B: 13.5 mm
GS 81248 D1: 244 mm | D: 340 mm | B: 23 mm
GS 81152 D1: 263 mm | D: 320 mm | B: 13.5 mm
GS 81252 D1: 264 mm | D: 360 mm | B: 23.5 mm
GS 81156 D1: 283 mm | D: 350 mm | B: 15.5 mm
GS 81256 D1: 284 mm | D: 380 mm | B: 24 mm
GS 81160 D1: 304 mm | D: 380 mm | B: 18.5 mm
GS 81260 D1: 304 mm | D: 420 mm | B: 28.5 mm
GS 81164 D1: 324 mm | D: 400 mm | B: 19 mm
GS 81264 D1: 325 mm | D: 440 mm | B: 28.5 mm
GS 81168 D1: 344 mm | D: 420 mm | B: 19.5 mm
GS 81268 D1: 345 mm | D: 460 mm | B: 29 mm
GS 81172 D1: 364 mm | D: 440 mm | B: 20 mm
GS 81272 D1: 365 mm | D: 500 mm | B: 32.5 mm
GS 81176 D1: 384 mm | D: 460 mm | B: 20 mm
GS 81180 D1: 404 mm | D: 480 mm | B: 20 mm
GS 81184 D1: 424 mm | D: 500 mm | B: 20 mm
GS 81188 D1: 444 mm | D: 540 mm | B: 24 mm
GS 81192 D1: 464 mm | D: 560 mm | B: 24 mm
GS 81196 D1: 484 mm | D: 580 mm | B: 24 mm
GS 811/500 D1: 505 mm | D: 600 mm | B: 24 mm
GS 811/530 D1: 535 mm | D: 640 mm | B: 25.5 mm
GS 811/560 D1: 565 mm | D: 670 mm | B: 25.5 mm
GS 811/600 D1: 605 mm | D: 710 mm | B: 25.5 mm
GS 811/630 D1: 634 mm | D: 750 mm | B: 28.5 mm
