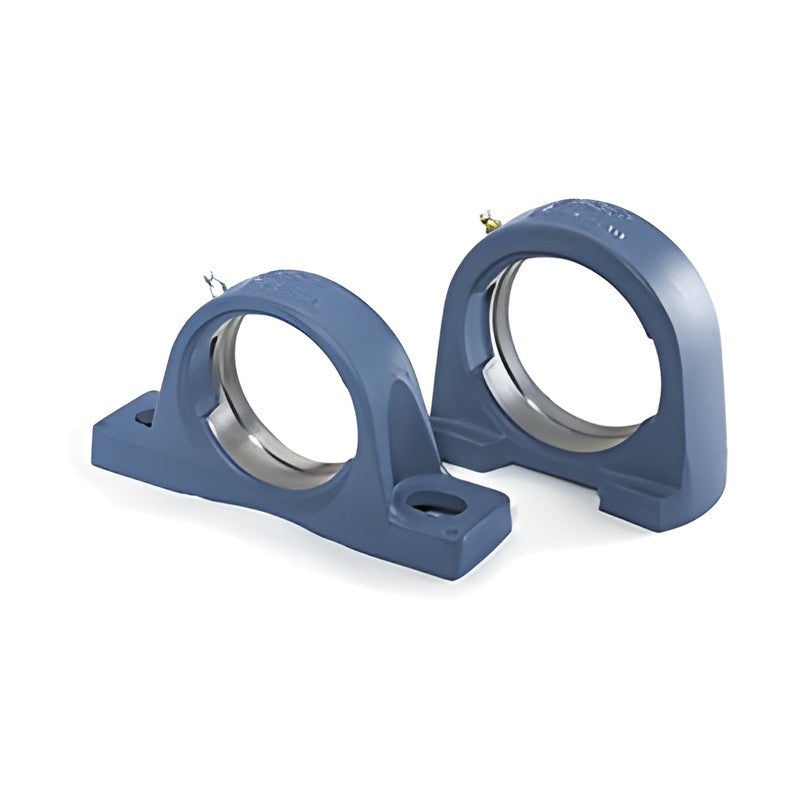

SKF Y-Bearing Housings (SY, FY, FYT, FYC, P, PF, TU Series)

Separate housings for SKF Y-bearing units, listed as the housing component of each Y-bearing unit: cast iron, composite (Y-TECH) and pressed steel plummer block, flanged and take-up housings.

Key features

Housing designations as listed under separate components
Cast iron (M, U), composite (Y-TECH) and pressed steel versions
Combine with matching Y-bearing to form a complete unit
Plummer block, square, oval and round flange and take-up types
Metric (M) and inch (U) relubrication fitting variants

Specifications

Product	Y-bearing housing
Material	Cast iron, composite or pressed steel
Brand	SKF
Category	Bearing Housings
Example designation	SYK 504
Source	SKF Y-bearings and Y-bearing units, p. 120-245

SYK 504		Housing type: Y-TECH plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SYK 20 TF
SYK 505		Housing type: Y-TECH plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SYK 25 TF
SYK 506		Housing type: Y-TECH plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SYK 30 TF
SYK 507		Housing type: Y-TECH plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SYK 35 TF
SYK 508		Housing type: Y-TECH plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SYK 40 TF
SY 503 M		Housing type: Plummer block \| Y-bearing: YAR 203/12-2F \| Complete unit: SY 12 TF
SY 504 M		Housing type: Plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SY 20 TF
SYJ 504		Housing type: Plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SYJ 20 TF
SY 505 M		Housing type: Plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SY 25 TF
SYJ 505		Housing type: Plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SYJ 25 TF
SY 506 M		Housing type: Plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SY 30 TF
SYJ 506		Housing type: Plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SYJ 30 TF
SY 507 M		Housing type: Plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SY 35 TF
SYJ 507		Housing type: Plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SYJ 35 TF
SY 508 M		Housing type: Plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SY 40 TF
SYJ 508		Housing type: Plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SYJ 40 TF
SY 509 M		Housing type: Plummer block \| Y-bearing: YAR 209-2F \| Complete unit: SY 45 TF
SYJ 509		Housing type: Plummer block \| Y-bearing: YAR 209-2F \| Complete unit: SYJ 45 TF
SY 510 M		Housing type: Plummer block \| Y-bearing: YAR 210-2F \| Complete unit: SY 50 TF
SYJ 510		Housing type: Plummer block \| Y-bearing: YAR 210-2F \| Complete unit: SYJ 50 TF
SY 511 M		Housing type: Plummer block \| Y-bearing: YAR 211-2F \| Complete unit: SY 55 TF
SYJ 511		Housing type: Plummer block \| Y-bearing: YAR 211-2F \| Complete unit: SYJ 55 TF
SY 512 M		Housing type: Plummer block \| Y-bearing: YAR 212-2F \| Complete unit: SY 60 TF
SYJ 512		Housing type: Plummer block \| Y-bearing: YAR 212-2F \| Complete unit: SYJ 60 TF
SY 513 M		Housing type: Plummer block \| Y-bearing: YAR 213-2F \| Complete unit: SY 65 TF
SYJ 513		Housing type: Plummer block \| Y-bearing: YAR 213-2F \| Complete unit: SYJ 65 TF
SYJ 514		Housing type: Plummer block \| Y-bearing: YAR 214-2F \| Complete unit: SYJ 70 TF
SYJ 515		Housing type: Plummer block \| Y-bearing: YAR 215-2F \| Complete unit: SYJ 75 TF
SYJ 516		Housing type: Plummer block \| Y-bearing: YAR 216-2F \| Complete unit: SYJ 80 TF
SYJ 518		Housing type: Plummer block \| Y-bearing: YAR 218-2F \| Complete unit: SYJ 90 TF
SYJ 520		Housing type: Plummer block \| Y-bearing: YAR 220-2F \| Complete unit: SYJ 100 TF
SY 503 U		Housing type: Plummer block \| Y-bearing: YAR 203-008-2F \| Complete unit: SY 1/2 TF
SYH 503 U		Housing type: Plummer block \| Y-bearing: YAR 203-008-2F \| Complete unit: SYH 1/2 TF
SY 505 U		Housing type: Plummer block \| Y-bearing: YAR 205-013-2F \| Complete unit: SY 13/16 TF
SY 505 U/AH		Housing type: Plummer block \| Y-bearing: YAR 205-100-2F/AH \| Complete unit: SY 1. TF/AH
SY 506 U		Housing type: Plummer block \| Y-bearing: YAR 206-101-2F \| Complete unit: SY 1.1/16 TF
SY 506 U/AH		Housing type: Plummer block \| Y-bearing: YAR 206-103-2F/AH \| Complete unit: SY 1.3/16 TF/AH
SY 507 U		Housing type: Plummer block \| Y-bearing: YAR 207-105-2F \| Complete unit: SY 1.5/16 TF
SYM 508 U		Housing type: Plummer block \| Y-bearing: YAR 208-107-2F \| Complete unit: SYM 1.7/16 TF
SY 508 U/AH		Housing type: Plummer block \| Y-bearing: YAR 208-108-2F/AH \| Complete unit: SY 1.1/2 TF/AH
SYM 509 U		Housing type: Plummer block \| Y-bearing: YAR 209-108-2F \| Complete unit: SYM 1.1/2 TF
SY 508 U		Housing type: Plummer block \| Y-bearing: YAR 208-109-2F \| Complete unit: SY 1.9/16 TF
SY 509 U		Housing type: Plummer block \| Y-bearing: YAR 209-110-2F \| Complete unit: SY 1.5/8 TF
SY 509 U/AH		Housing type: Plummer block \| Y-bearing: YAR 209-111-2F/AH \| Complete unit: SY 1.11/16 TF/AH
SYM 510 U		Housing type: Plummer block \| Y-bearing: YAR 210-111-2F \| Complete unit: SYM 1.11/16 TF
SY 510 U		Housing type: Plummer block \| Y-bearing: YAR 210-112-2F \| Complete unit: SYM 1.3/4 TF
SY 510 U/AH		Housing type: Plummer block \| Y-bearing: YAR 210-115-2F/AH \| Complete unit: SY 1.15/16 TF/AH
SYH 510 U		Housing type: Plummer block \| Y-bearing: YAR 210-115-2F \| Complete unit: SYH 1.15/16 TF
SY 511 U		Housing type: Plummer block \| Y-bearing: YAR 211-115-2F \| Complete unit: SYM 1.15/16 TF
SY 511 U/AH		Housing type: Plummer block \| Y-bearing: YAR 211-200-2F/AH \| Complete unit: SY 2. TF/AH
SY 512 U		Housing type: Plummer block \| Y-bearing: YAR 212-203-2F \| Complete unit: SYM 2.3/16 TF
SYH 512 U		Housing type: Plummer block \| Y-bearing: YAR 212-204-2F \| Complete unit: SYH 2.1/4 TF
SY 514 U		Housing type: Plummer block \| Y-bearing: YAR 214-207-2F \| Complete unit: SYM 2.7/16 TF
SY 513 U		Housing type: Plummer block \| Y-bearing: YAR 213-211-2F \| Complete unit: SY 2.11/16 TF
SYM 515 U		Housing type: Plummer block \| Y-bearing: YAR 215-211-2F \| Complete unit: SYM 2.11/16 TF
SY 515 U		Housing type: Plummer block \| Y-bearing: YAR 215-212-2F \| Complete unit: SY 2.3/4 TF
SY 516 U		Housing type: Plummer block \| Y-bearing: YAR 216-215-2F \| Complete unit: SYM 2.15/16 TF
SY 504 U		Housing type: Plummer block \| Y-bearing: YET 204-012 \| Complete unit: SY 3/4 FM
SYH 504 U		Housing type: Plummer block \| Y-bearing: YEL 204-012-2F \| Complete unit: SYH 3/4 WF
SYH 505 U		Housing type: Plummer block \| Y-bearing: YET 205-100 \| Complete unit: SYH 1. FM
SYH 506 U		Housing type: Plummer block \| Y-bearing: YEL 206-102-2F \| Complete unit: SYH 1.1/8 WF
SYH 507 U		Housing type: Plummer block \| Y-bearing: YET 207-104 \| Complete unit: SYH 1.1/4 FM
SYH 508 U		Housing type: Plummer block \| Y-bearing: YEL 208-108-2F \| Complete unit: SYH 1.1/2 WF
SYH 509 U		Housing type: Plummer block \| Y-bearing: YEL 209-111-2F \| Complete unit: SYH 1.11/16 WF
SYH 511 U		Housing type: Plummer block \| Y-bearing: YET 211-200 \| Complete unit: SYH 2. FM
SYF 504		Housing type: Shortened plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SYF 20 TF
SYFJ 504		Housing type: Shortened plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SYFJ 20 TF
SYF 505		Housing type: Shortened plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SYF 25 TF
SYFJ 505		Housing type: Shortened plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SYFJ 25 TF
SYF 506		Housing type: Shortened plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SYF 30 TF
SYFJ 506		Housing type: Shortened plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SYFJ 30 TF
SYF 507		Housing type: Shortened plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SYF 35 TF
SYFJ 507		Housing type: Shortened plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SYFJ 35 TF
SYF 508		Housing type: Shortened plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SYF 40 TF
SYFJ 508		Housing type: Shortened plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SYFJ 40 TF
SYF 509		Housing type: Shortened plummer block \| Y-bearing: YAR 209-2F \| Complete unit: SYF 45 TF
SYFJ 509		Housing type: Shortened plummer block \| Y-bearing: YAR 209-2F \| Complete unit: SYFJ 45 TF
SYF 510		Housing type: Shortened plummer block \| Y-bearing: YAR 210-2F \| Complete unit: SYF 50 TF
SYFJ 510		Housing type: Shortened plummer block \| Y-bearing: YAR 210-2F \| Complete unit: SYFJ 50 TF
P 40		Housing type: Pressed steel pillow block \| Y-bearing: YAR 203/12-2F \| Complete unit: P 12 TF
P 47		Housing type: Pressed steel pillow block \| Y-bearing: YAT 204 \| Complete unit: P 20 RM
P 52		Housing type: Pressed steel pillow block \| Y-bearing: YAT 205 \| Complete unit: P 25 RM
P 62		Housing type: Pressed steel pillow block \| Y-bearing: YAT 206 \| Complete unit: P 30 RM
P 72		Housing type: Pressed steel pillow block \| Y-bearing: YAT 207 \| Complete unit: P 35 RM
P 80		Housing type: Pressed steel pillow block \| Y-bearing: YAT 208 \| Complete unit: P 40 RM
P 85		Housing type: Pressed steel pillow block \| Y-bearing: YAT 209 \| Complete unit: P 45 RM
FYK 504		Housing type: Y-TECH square flange \| Y-bearing: YAR 204-2F \| Complete unit: FYK 20 TF
FYK 505		Housing type: Y-TECH square flange \| Y-bearing: YAR 205-2F \| Complete unit: FYK 25 TF
FYK 506		Housing type: Y-TECH square flange \| Y-bearing: YAR 206-2F \| Complete unit: FYK 30 TF
FYK 507		Housing type: Y-TECH square flange \| Y-bearing: YAR 207-2F \| Complete unit: FYK 35 TF
FYK 508		Housing type: Y-TECH square flange \| Y-bearing: YAR 208-2F \| Complete unit: FYK 40 TF
FYTBK 504		Housing type: Y-TECH oval flange \| Y-bearing: YAR 204-2F \| Complete unit: FYTBK 20 TF
FYTBK 505		Housing type: Y-TECH oval flange \| Y-bearing: YAR 205-2F \| Complete unit: FYTBK 25 TF
FYTBK 506		Housing type: Y-TECH oval flange \| Y-bearing: YAR 206-2F \| Complete unit: FYTBK 30 TF
FYTBK 507		Housing type: Y-TECH oval flange \| Y-bearing: YAR 207-2F \| Complete unit: FYTBK 35 TF
FY 503 M		Housing type: Square flange \| Y-bearing: YAR 203/12-2F \| Complete unit: FY 12 TF
FY 504 M		Housing type: Square flange \| Y-bearing: YAR 204-2F \| Complete unit: FY 20 TF
FYJ 504		Housing type: Square flange \| Y-bearing: YAR 204-2F \| Complete unit: FYJ 20 TF
FY 505 M		Housing type: Square flange \| Y-bearing: YAR 205-2F \| Complete unit: FY 25 TF
FYJ 505		Housing type: Square flange \| Y-bearing: YAR 205-2F \| Complete unit: FYJ 25 TF
FY 506 M		Housing type: Square flange \| Y-bearing: YAR 206-2F \| Complete unit: FY 30 TF
FYJ 506		Housing type: Square flange \| Y-bearing: YAR 206-2F \| Complete unit: FYJ 30 TF
FY 507 M		Housing type: Square flange \| Y-bearing: YAR 207-2F \| Complete unit: FY 35 TF
FYJ 507		Housing type: Square flange \| Y-bearing: YAR 207-2F \| Complete unit: FYJ 35 TF
FY 508 M		Housing type: Square flange \| Y-bearing: YAR 208-2F \| Complete unit: FY 40 TF
FYJ 508		Housing type: Square flange \| Y-bearing: YAR 208-2F \| Complete unit: FYJ 40 TF
FY 509 M		Housing type: Square flange \| Y-bearing: YAR 209-2F \| Complete unit: FY 45 TF
FYJ 509		Housing type: Square flange \| Y-bearing: YAR 209-2F \| Complete unit: FYJ 45 TF
FY 510 M		Housing type: Square flange \| Y-bearing: YAR 210-2F \| Complete unit: FY 50 TF
FYJ 510		Housing type: Square flange \| Y-bearing: YAR 210-2F \| Complete unit: FYJ 50 TF
FY 511 M		Housing type: Square flange \| Y-bearing: YAR 211-2F \| Complete unit: FY 55 TF
FYJ 511		Housing type: Square flange \| Y-bearing: YAR 211-2F \| Complete unit: FYJ 55 TF
FY 512 M		Housing type: Square flange \| Y-bearing: YAR 212-2F \| Complete unit: FY 60 TF
FYJ 512		Housing type: Square flange \| Y-bearing: YAR 212-2F \| Complete unit: FYJ 60 TF
FY 513 M		Housing type: Square flange \| Y-bearing: YAR 213-2F \| Complete unit: FY 65 TF
FYJ 513		Housing type: Square flange \| Y-bearing: YAR 213-2F \| Complete unit: FYJ 65 TF
FYJ 514		Housing type: Square flange \| Y-bearing: YAR 214-2F \| Complete unit: FYJ 70 TF
FYJ 515		Housing type: Square flange \| Y-bearing: YAR 215-2F \| Complete unit: FYJ 75 TF
FYJ 516		Housing type: Square flange \| Y-bearing: YAR 216-2F \| Complete unit: FYJ 80 TF
FYJ 518		Housing type: Square flange \| Y-bearing: YAR 218-2F \| Complete unit: FYJ 90 TF
FYJ 520		Housing type: Square flange \| Y-bearing: YAR 220-2F \| Complete unit: FYJ 100 TF
FY 503 U		Housing type: Square flange \| Y-bearing: YAR 203-008-2F \| Complete unit: FY 1/2 TF
FY 505 U		Housing type: Square flange \| Y-bearing: YAR 205-013-2F \| Complete unit: FY 13/16 TF
FY 506 U		Housing type: Square flange \| Y-bearing: YAR 206-101-2F \| Complete unit: FY 1.1/16 TF
FY 507 U		Housing type: Square flange \| Y-bearing: YAR 207-105-2F \| Complete unit: FY 1.5/16 TF
FY 508 U		Housing type: Square flange \| Y-bearing: YAR 208-107-2F \| Complete unit: FYM 1.7/16 TF
FY 509 U		Housing type: Square flange \| Y-bearing: YAR 209-108-2F \| Complete unit: FYM 1.1/2 TF
FY 510 U		Housing type: Square flange \| Y-bearing: YAR 210-111-2F \| Complete unit: FYM 1.11/16 TF
FY 511 U		Housing type: Square flange \| Y-bearing: YAR 211-115-2F \| Complete unit: FYM 1.15/16 TF
FY 512 U		Housing type: Square flange \| Y-bearing: YAR 212-203-2F \| Complete unit: FYM 2.3/16 TF
FY 514 U		Housing type: Square flange \| Y-bearing: YAR 214-207-2F \| Complete unit: FYM 2.7/16 TF
FY 513 U		Housing type: Square flange \| Y-bearing: YAR 213-211-2F \| Complete unit: FY 2.11/16 TF
FY 515 U		Housing type: Square flange \| Y-bearing: YAR 215-212-2F \| Complete unit: FY 2.3/4 TF
FY 516 U		Housing type: Square flange \| Y-bearing: YAR 216-215-2F \| Complete unit: FYM 2.15/16 TF
FY 504 U		Housing type: Square flange \| Y-bearing: YET 204-012 \| Complete unit: FY 3/4 FM
FYTB 503 M		Housing type: Oval flange \| Y-bearing: YAR 203/12-2F \| Complete unit: FYTB 12 TF
FYTB 504 M		Housing type: Oval flange \| Y-bearing: YAR 204-2F \| Complete unit: FYTB 20 TF
FYTJ 504		Housing type: Oval flange \| Y-bearing: YAR 204-2F \| Complete unit: FYTJ 20 TF
FYTB 505 M		Housing type: Oval flange \| Y-bearing: YAR 205-2F \| Complete unit: FYTB 25 TF
FYTJ 505		Housing type: Oval flange \| Y-bearing: YAR 205-2F \| Complete unit: FYTJ 25 TF
FYTB 506 M		Housing type: Oval flange \| Y-bearing: YAR 206-2F \| Complete unit: FYTB 30 TF
FYTJ 506		Housing type: Oval flange \| Y-bearing: YAR 206-2F \| Complete unit: FYTJ 30 TF
FYTB 507 M		Housing type: Oval flange \| Y-bearing: YAR 207-2F \| Complete unit: FYTB 35 TF
FYTJ 507		Housing type: Oval flange \| Y-bearing: YAR 207-2F \| Complete unit: FYTJ 35 TF
FYTB 508 M		Housing type: Oval flange \| Y-bearing: YAR 208-2F \| Complete unit: FYTB 40 TF
FYTJ 508		Housing type: Oval flange \| Y-bearing: YAR 208-2F \| Complete unit: FYTJ 40 TF
FYTB 509 M		Housing type: Oval flange \| Y-bearing: YAR 209-2F \| Complete unit: FYTB 45 TF
FYTJ 509		Housing type: Oval flange \| Y-bearing: YAR 209-2F \| Complete unit: FYTJ 45 TF
FYTB 510 M		Housing type: Oval flange \| Y-bearing: YAR 210-2F \| Complete unit: FYTB 50 TF
FYTJ 510		Housing type: Oval flange \| Y-bearing: YAR 210-2F \| Complete unit: FYTJ 50 TF
FYT 503 U		Housing type: Oval flange \| Y-bearing: YAT 203-008 \| Complete unit: FYT 1/2 RM
FYT 504 U		Housing type: Oval flange \| Y-bearing: YAT 204-012 \| Complete unit: FYT 3/4 RM
FYT 504 U/AH		Housing type: Oval flange \| Y-bearing: YAR 204-012-2F/AH \| Complete unit: FYT 3/4 TF/AH
FYT 505 U		Housing type: Oval flange \| Y-bearing: YAR 205-014-2F \| Complete unit: FYT 7/8 TF
FYT 506 U		Housing type: Oval flange \| Y-bearing: YAR 206-102-2F \| Complete unit: FYT 1.1/8 TF
FYT 507 U		Housing type: Oval flange \| Y-bearing: YAT 207-104 \| Complete unit: FYT 1.1/4 RM
FYTB 507 U		Housing type: Oval flange \| Y-bearing: YAR 207-104-2F \| Complete unit: FYTB 1.1/4 TF
FYTJ 507 U		Housing type: Oval flange \| Y-bearing: YAR 207-104-2F \| Complete unit: FYTJ 1.1/4 TF
FYT 508 U		Housing type: Oval flange \| Y-bearing: YAT 208-108 \| Complete unit: FYT 1.1/2 RM
FYT 509 U		Housing type: Oval flange \| Y-bearing: YAR 209-110-2F \| Complete unit: FYT 1.5/8 TF
FYT 510 U		Housing type: Oval flange \| Y-bearing: YAT 210-115 \| Complete unit: FYT 1.15/16 RM
FYT 511 U		Housing type: Oval flange \| Y-bearing: YAT 211-200 \| Complete unit: FYT 2. RM
FYC 504		Housing type: Round flange \| Y-bearing: YAR 204-2F \| Complete unit: FYC 20 TF
FYC 505		Housing type: Round flange \| Y-bearing: YAR 205-2F \| Complete unit: FYC 25 TF
FYC 506		Housing type: Round flange \| Y-bearing: YAR 206-2F \| Complete unit: FYC 30 TF
FYC 507		Housing type: Round flange \| Y-bearing: YAR 207-2F \| Complete unit: FYC 35 TF
FYC 508		Housing type: Round flange \| Y-bearing: YAR 208-2F \| Complete unit: FYC 40 TF
FYC 509		Housing type: Round flange \| Y-bearing: YAR 209-2F \| Complete unit: FYC 45 TF
FYC 510		Housing type: Round flange \| Y-bearing: YAR 210-2F \| Complete unit: FYC 50 TF
FYC 511		Housing type: Round flange \| Y-bearing: YAR 211-2F \| Complete unit: FYC 55 TF
FYC 512		Housing type: Round flange \| Y-bearing: YAR 212-2F \| Complete unit: FYC 60 TF
FYC 513		Housing type: Round flange \| Y-bearing: YAR 213-2F \| Complete unit: FYC 65 TF
PF 40		Housing type: Pressed 4-bolt flange \| Y-bearing: YAR 203/12-2F \| Complete unit: PF 12 TF
PFD 40		Housing type: Pressed 2-bolt flange \| Y-bearing: YAR 203/12-2F \| Complete unit: PFD 12 TF
PFT 40		Housing type: Pressed 3-bolt flange \| Y-bearing: YAR 203/12-2F \| Complete unit: PFT 12 TF
PF 47		Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 204 \| Complete unit: PF 20 RM
PFD 47		Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 204 \| Complete unit: PFD 20 RM
PFT 47		Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 204 \| Complete unit: PFT 20 RM
PF 52		Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 205 \| Complete unit: PF 25 RM
PFD 52		Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 205 \| Complete unit: PFD 25 RM
PFT 52		Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 205 \| Complete unit: PFT 25 RM
PF 62		Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 206 \| Complete unit: PF 30 RM
PFD 62		Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 206 \| Complete unit: PFD 30 RM
PFT 62		Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 206 \| Complete unit: PFT 30 RM
PF 72		Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 207 \| Complete unit: PF 35 RM
PFD 72		Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 207 \| Complete unit: PFD 35 RM
PFT 72		Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 207 \| Complete unit: PFT 35 RM
PF 80		Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 208 \| Complete unit: PF 40 RM
PFD 80		Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 208 \| Complete unit: PFD 40 RM
PFT 80		Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 208 \| Complete unit: PFT 40 RM
PF 85		Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 209 \| Complete unit: PF 45 RM
PF 90		Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 210 \| Complete unit: PF 50 RM
TU 504 M		Housing type: Take-up \| Y-bearing: YAR 204-2F \| Complete unit: TU 20 TF
TUJ 504		Housing type: Take-up \| Y-bearing: YAR 204-2F \| Complete unit: TUJ 20 TF
TU 505 M		Housing type: Take-up \| Y-bearing: YAR 205-2F \| Complete unit: TU 25 TF
TUJ 505		Housing type: Take-up \| Y-bearing: YAR 205-2F \| Complete unit: TUJ 25 TF
TU 506 M		Housing type: Take-up \| Y-bearing: YAR 206-2F \| Complete unit: TU 30 TF
TUJ 506		Housing type: Take-up \| Y-bearing: YAR 206-2F \| Complete unit: TUJ 30 TF
TU 507 M		Housing type: Take-up \| Y-bearing: YAR 207-2F \| Complete unit: TU 35 TF
TUJ 507		Housing type: Take-up \| Y-bearing: YAR 207-2F \| Complete unit: TUJ 35 TF
TU 508 M		Housing type: Take-up \| Y-bearing: YAR 208-2F \| Complete unit: TU 40 TF
TUJ 508		Housing type: Take-up \| Y-bearing: YAR 208-2F \| Complete unit: TUJ 40 TF
TU 509 M		Housing type: Take-up \| Y-bearing: YAR 209-2F \| Complete unit: TU 45 TF
TUJ 509		Housing type: Take-up \| Y-bearing: YAR 209-2F \| Complete unit: TUJ 45 TF
TU 510 M		Housing type: Take-up \| Y-bearing: YAR 210-2F \| Complete unit: TU 50 TF
TUJ 510		Housing type: Take-up \| Y-bearing: YAR 210-2F \| Complete unit: TUJ 50 TF
TU 511 M		Housing type: Take-up \| Y-bearing: YAR 211-2F \| Complete unit: TU 55 TF
TUJ 511		Housing type: Take-up \| Y-bearing: YAR 211-2F \| Complete unit: TUJ 55 TF
TUJ 512		Housing type: Take-up \| Y-bearing: YAR 212-2F \| Complete unit: TUJ 60 TF
TU 504 U		Housing type: Take-up \| Y-bearing: YAR 204-012-2F \| Complete unit: TU 3/4 TF
TU 505 U		Housing type: Take-up \| Y-bearing: YAR 205-013-2F \| Complete unit: TU 13/16 TF
TU 506 U		Housing type: Take-up \| Y-bearing: YAR 206-101-2F \| Complete unit: TU 1.1/16 TF
TU 507 U		Housing type: Take-up \| Y-bearing: YAR 207-105-2F \| Complete unit: TU 1.5/16 TF
TU 509 U		Housing type: Take-up \| Y-bearing: YAR 209-111-2F \| Complete unit: TU 1.11/16 TF
TU 510 U		Housing type: Take-up \| Y-bearing: YAR 210-115-2F \| Complete unit: TU 1.15/16 TF
TU 511 U		Housing type: Take-up \| Y-bearing: YAR 211-203-2F \| Complete unit: TU 2.3/16 TF

Bearing HousingsSKF

216 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF Y-Bearing Housings (SY, FY, FYT, FYC, P, PF, TU Series)

Brand SKF·Bearing Housings

Available part numbers (216)

SYK 504, SYK 505, SYK 506, SYK 507, SYK 508, SY 503 M, SY 504 M, SYJ 504, SY 505 M, SYJ 505 + 206 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SYK 504	Housing type: Y-TECH plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SYK 20 TF
	SYK 505	Housing type: Y-TECH plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SYK 25 TF
	SYK 506	Housing type: Y-TECH plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SYK 30 TF
	SYK 507	Housing type: Y-TECH plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SYK 35 TF
	SYK 508	Housing type: Y-TECH plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SYK 40 TF
	SY 503 M	Housing type: Plummer block \| Y-bearing: YAR 203/12-2F \| Complete unit: SY 12 TF
	SY 504 M	Housing type: Plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SY 20 TF
	SYJ 504	Housing type: Plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SYJ 20 TF
	SY 505 M	Housing type: Plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SY 25 TF
	SYJ 505	Housing type: Plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SYJ 25 TF
	SY 506 M	Housing type: Plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SY 30 TF
	SYJ 506	Housing type: Plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SYJ 30 TF
	SY 507 M	Housing type: Plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SY 35 TF
	SYJ 507	Housing type: Plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SYJ 35 TF
	SY 508 M	Housing type: Plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SY 40 TF
	SYJ 508	Housing type: Plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SYJ 40 TF
	SY 509 M	Housing type: Plummer block \| Y-bearing: YAR 209-2F \| Complete unit: SY 45 TF
	SYJ 509	Housing type: Plummer block \| Y-bearing: YAR 209-2F \| Complete unit: SYJ 45 TF
	SY 510 M	Housing type: Plummer block \| Y-bearing: YAR 210-2F \| Complete unit: SY 50 TF
	SYJ 510	Housing type: Plummer block \| Y-bearing: YAR 210-2F \| Complete unit: SYJ 50 TF
	SY 511 M	Housing type: Plummer block \| Y-bearing: YAR 211-2F \| Complete unit: SY 55 TF
	SYJ 511	Housing type: Plummer block \| Y-bearing: YAR 211-2F \| Complete unit: SYJ 55 TF
	SY 512 M	Housing type: Plummer block \| Y-bearing: YAR 212-2F \| Complete unit: SY 60 TF
	SYJ 512	Housing type: Plummer block \| Y-bearing: YAR 212-2F \| Complete unit: SYJ 60 TF
	SY 513 M	Housing type: Plummer block \| Y-bearing: YAR 213-2F \| Complete unit: SY 65 TF
	SYJ 513	Housing type: Plummer block \| Y-bearing: YAR 213-2F \| Complete unit: SYJ 65 TF
	SYJ 514	Housing type: Plummer block \| Y-bearing: YAR 214-2F \| Complete unit: SYJ 70 TF
	SYJ 515	Housing type: Plummer block \| Y-bearing: YAR 215-2F \| Complete unit: SYJ 75 TF
	SYJ 516	Housing type: Plummer block \| Y-bearing: YAR 216-2F \| Complete unit: SYJ 80 TF
	SYJ 518	Housing type: Plummer block \| Y-bearing: YAR 218-2F \| Complete unit: SYJ 90 TF
	SYJ 520	Housing type: Plummer block \| Y-bearing: YAR 220-2F \| Complete unit: SYJ 100 TF
	SY 503 U	Housing type: Plummer block \| Y-bearing: YAR 203-008-2F \| Complete unit: SY 1/2 TF
	SYH 503 U	Housing type: Plummer block \| Y-bearing: YAR 203-008-2F \| Complete unit: SYH 1/2 TF
	SY 505 U	Housing type: Plummer block \| Y-bearing: YAR 205-013-2F \| Complete unit: SY 13/16 TF
	SY 505 U/AH	Housing type: Plummer block \| Y-bearing: YAR 205-100-2F/AH \| Complete unit: SY 1. TF/AH
	SY 506 U	Housing type: Plummer block \| Y-bearing: YAR 206-101-2F \| Complete unit: SY 1.1/16 TF
	SY 506 U/AH	Housing type: Plummer block \| Y-bearing: YAR 206-103-2F/AH \| Complete unit: SY 1.3/16 TF/AH
	SY 507 U	Housing type: Plummer block \| Y-bearing: YAR 207-105-2F \| Complete unit: SY 1.5/16 TF
	SYM 508 U	Housing type: Plummer block \| Y-bearing: YAR 208-107-2F \| Complete unit: SYM 1.7/16 TF
	SY 508 U/AH	Housing type: Plummer block \| Y-bearing: YAR 208-108-2F/AH \| Complete unit: SY 1.1/2 TF/AH
	SYM 509 U	Housing type: Plummer block \| Y-bearing: YAR 209-108-2F \| Complete unit: SYM 1.1/2 TF
	SY 508 U	Housing type: Plummer block \| Y-bearing: YAR 208-109-2F \| Complete unit: SY 1.9/16 TF
	SY 509 U	Housing type: Plummer block \| Y-bearing: YAR 209-110-2F \| Complete unit: SY 1.5/8 TF
	SY 509 U/AH	Housing type: Plummer block \| Y-bearing: YAR 209-111-2F/AH \| Complete unit: SY 1.11/16 TF/AH
	SYM 510 U	Housing type: Plummer block \| Y-bearing: YAR 210-111-2F \| Complete unit: SYM 1.11/16 TF
	SY 510 U	Housing type: Plummer block \| Y-bearing: YAR 210-112-2F \| Complete unit: SYM 1.3/4 TF
	SY 510 U/AH	Housing type: Plummer block \| Y-bearing: YAR 210-115-2F/AH \| Complete unit: SY 1.15/16 TF/AH
	SYH 510 U	Housing type: Plummer block \| Y-bearing: YAR 210-115-2F \| Complete unit: SYH 1.15/16 TF
	SY 511 U	Housing type: Plummer block \| Y-bearing: YAR 211-115-2F \| Complete unit: SYM 1.15/16 TF
	SY 511 U/AH	Housing type: Plummer block \| Y-bearing: YAR 211-200-2F/AH \| Complete unit: SY 2. TF/AH
	SY 512 U	Housing type: Plummer block \| Y-bearing: YAR 212-203-2F \| Complete unit: SYM 2.3/16 TF
	SYH 512 U	Housing type: Plummer block \| Y-bearing: YAR 212-204-2F \| Complete unit: SYH 2.1/4 TF
	SY 514 U	Housing type: Plummer block \| Y-bearing: YAR 214-207-2F \| Complete unit: SYM 2.7/16 TF
	SY 513 U	Housing type: Plummer block \| Y-bearing: YAR 213-211-2F \| Complete unit: SY 2.11/16 TF
	SYM 515 U	Housing type: Plummer block \| Y-bearing: YAR 215-211-2F \| Complete unit: SYM 2.11/16 TF
	SY 515 U	Housing type: Plummer block \| Y-bearing: YAR 215-212-2F \| Complete unit: SY 2.3/4 TF
	SY 516 U	Housing type: Plummer block \| Y-bearing: YAR 216-215-2F \| Complete unit: SYM 2.15/16 TF
	SY 504 U	Housing type: Plummer block \| Y-bearing: YET 204-012 \| Complete unit: SY 3/4 FM
	SYH 504 U	Housing type: Plummer block \| Y-bearing: YEL 204-012-2F \| Complete unit: SYH 3/4 WF
	SYH 505 U	Housing type: Plummer block \| Y-bearing: YET 205-100 \| Complete unit: SYH 1. FM
	SYH 506 U	Housing type: Plummer block \| Y-bearing: YEL 206-102-2F \| Complete unit: SYH 1.1/8 WF
	SYH 507 U	Housing type: Plummer block \| Y-bearing: YET 207-104 \| Complete unit: SYH 1.1/4 FM
	SYH 508 U	Housing type: Plummer block \| Y-bearing: YEL 208-108-2F \| Complete unit: SYH 1.1/2 WF
	SYH 509 U	Housing type: Plummer block \| Y-bearing: YEL 209-111-2F \| Complete unit: SYH 1.11/16 WF
	SYH 511 U	Housing type: Plummer block \| Y-bearing: YET 211-200 \| Complete unit: SYH 2. FM
	SYF 504	Housing type: Shortened plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SYF 20 TF
	SYFJ 504	Housing type: Shortened plummer block \| Y-bearing: YAR 204-2F \| Complete unit: SYFJ 20 TF
	SYF 505	Housing type: Shortened plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SYF 25 TF
	SYFJ 505	Housing type: Shortened plummer block \| Y-bearing: YAR 205-2F \| Complete unit: SYFJ 25 TF
	SYF 506	Housing type: Shortened plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SYF 30 TF
	SYFJ 506	Housing type: Shortened plummer block \| Y-bearing: YAR 206-2F \| Complete unit: SYFJ 30 TF
	SYF 507	Housing type: Shortened plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SYF 35 TF
	SYFJ 507	Housing type: Shortened plummer block \| Y-bearing: YAR 207-2F \| Complete unit: SYFJ 35 TF
	SYF 508	Housing type: Shortened plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SYF 40 TF
	SYFJ 508	Housing type: Shortened plummer block \| Y-bearing: YAR 208-2F \| Complete unit: SYFJ 40 TF
	SYF 509	Housing type: Shortened plummer block \| Y-bearing: YAR 209-2F \| Complete unit: SYF 45 TF
	SYFJ 509	Housing type: Shortened plummer block \| Y-bearing: YAR 209-2F \| Complete unit: SYFJ 45 TF
	SYF 510	Housing type: Shortened plummer block \| Y-bearing: YAR 210-2F \| Complete unit: SYF 50 TF
	SYFJ 510	Housing type: Shortened plummer block \| Y-bearing: YAR 210-2F \| Complete unit: SYFJ 50 TF
	P 40	Housing type: Pressed steel pillow block \| Y-bearing: YAR 203/12-2F \| Complete unit: P 12 TF
	P 47	Housing type: Pressed steel pillow block \| Y-bearing: YAT 204 \| Complete unit: P 20 RM
	P 52	Housing type: Pressed steel pillow block \| Y-bearing: YAT 205 \| Complete unit: P 25 RM
	P 62	Housing type: Pressed steel pillow block \| Y-bearing: YAT 206 \| Complete unit: P 30 RM
	P 72	Housing type: Pressed steel pillow block \| Y-bearing: YAT 207 \| Complete unit: P 35 RM
	P 80	Housing type: Pressed steel pillow block \| Y-bearing: YAT 208 \| Complete unit: P 40 RM
	P 85	Housing type: Pressed steel pillow block \| Y-bearing: YAT 209 \| Complete unit: P 45 RM
	FYK 504	Housing type: Y-TECH square flange \| Y-bearing: YAR 204-2F \| Complete unit: FYK 20 TF
	FYK 505	Housing type: Y-TECH square flange \| Y-bearing: YAR 205-2F \| Complete unit: FYK 25 TF
	FYK 506	Housing type: Y-TECH square flange \| Y-bearing: YAR 206-2F \| Complete unit: FYK 30 TF
	FYK 507	Housing type: Y-TECH square flange \| Y-bearing: YAR 207-2F \| Complete unit: FYK 35 TF
	FYK 508	Housing type: Y-TECH square flange \| Y-bearing: YAR 208-2F \| Complete unit: FYK 40 TF
	FYTBK 504	Housing type: Y-TECH oval flange \| Y-bearing: YAR 204-2F \| Complete unit: FYTBK 20 TF
	FYTBK 505	Housing type: Y-TECH oval flange \| Y-bearing: YAR 205-2F \| Complete unit: FYTBK 25 TF
	FYTBK 506	Housing type: Y-TECH oval flange \| Y-bearing: YAR 206-2F \| Complete unit: FYTBK 30 TF
	FYTBK 507	Housing type: Y-TECH oval flange \| Y-bearing: YAR 207-2F \| Complete unit: FYTBK 35 TF
	FY 503 M	Housing type: Square flange \| Y-bearing: YAR 203/12-2F \| Complete unit: FY 12 TF
	FY 504 M	Housing type: Square flange \| Y-bearing: YAR 204-2F \| Complete unit: FY 20 TF
	FYJ 504	Housing type: Square flange \| Y-bearing: YAR 204-2F \| Complete unit: FYJ 20 TF
	FY 505 M	Housing type: Square flange \| Y-bearing: YAR 205-2F \| Complete unit: FY 25 TF
	FYJ 505	Housing type: Square flange \| Y-bearing: YAR 205-2F \| Complete unit: FYJ 25 TF
	FY 506 M	Housing type: Square flange \| Y-bearing: YAR 206-2F \| Complete unit: FY 30 TF
	FYJ 506	Housing type: Square flange \| Y-bearing: YAR 206-2F \| Complete unit: FYJ 30 TF
	FY 507 M	Housing type: Square flange \| Y-bearing: YAR 207-2F \| Complete unit: FY 35 TF
	FYJ 507	Housing type: Square flange \| Y-bearing: YAR 207-2F \| Complete unit: FYJ 35 TF
	FY 508 M	Housing type: Square flange \| Y-bearing: YAR 208-2F \| Complete unit: FY 40 TF
	FYJ 508	Housing type: Square flange \| Y-bearing: YAR 208-2F \| Complete unit: FYJ 40 TF
	FY 509 M	Housing type: Square flange \| Y-bearing: YAR 209-2F \| Complete unit: FY 45 TF
	FYJ 509	Housing type: Square flange \| Y-bearing: YAR 209-2F \| Complete unit: FYJ 45 TF
	FY 510 M	Housing type: Square flange \| Y-bearing: YAR 210-2F \| Complete unit: FY 50 TF
	FYJ 510	Housing type: Square flange \| Y-bearing: YAR 210-2F \| Complete unit: FYJ 50 TF
	FY 511 M	Housing type: Square flange \| Y-bearing: YAR 211-2F \| Complete unit: FY 55 TF
	FYJ 511	Housing type: Square flange \| Y-bearing: YAR 211-2F \| Complete unit: FYJ 55 TF
	FY 512 M	Housing type: Square flange \| Y-bearing: YAR 212-2F \| Complete unit: FY 60 TF
	FYJ 512	Housing type: Square flange \| Y-bearing: YAR 212-2F \| Complete unit: FYJ 60 TF
	FY 513 M	Housing type: Square flange \| Y-bearing: YAR 213-2F \| Complete unit: FY 65 TF
	FYJ 513	Housing type: Square flange \| Y-bearing: YAR 213-2F \| Complete unit: FYJ 65 TF
	FYJ 514	Housing type: Square flange \| Y-bearing: YAR 214-2F \| Complete unit: FYJ 70 TF
	FYJ 515	Housing type: Square flange \| Y-bearing: YAR 215-2F \| Complete unit: FYJ 75 TF
	FYJ 516	Housing type: Square flange \| Y-bearing: YAR 216-2F \| Complete unit: FYJ 80 TF
	FYJ 518	Housing type: Square flange \| Y-bearing: YAR 218-2F \| Complete unit: FYJ 90 TF
	FYJ 520	Housing type: Square flange \| Y-bearing: YAR 220-2F \| Complete unit: FYJ 100 TF
	FY 503 U	Housing type: Square flange \| Y-bearing: YAR 203-008-2F \| Complete unit: FY 1/2 TF
	FY 505 U	Housing type: Square flange \| Y-bearing: YAR 205-013-2F \| Complete unit: FY 13/16 TF
	FY 506 U	Housing type: Square flange \| Y-bearing: YAR 206-101-2F \| Complete unit: FY 1.1/16 TF
	FY 507 U	Housing type: Square flange \| Y-bearing: YAR 207-105-2F \| Complete unit: FY 1.5/16 TF
	FY 508 U	Housing type: Square flange \| Y-bearing: YAR 208-107-2F \| Complete unit: FYM 1.7/16 TF
	FY 509 U	Housing type: Square flange \| Y-bearing: YAR 209-108-2F \| Complete unit: FYM 1.1/2 TF
	FY 510 U	Housing type: Square flange \| Y-bearing: YAR 210-111-2F \| Complete unit: FYM 1.11/16 TF
	FY 511 U	Housing type: Square flange \| Y-bearing: YAR 211-115-2F \| Complete unit: FYM 1.15/16 TF
	FY 512 U	Housing type: Square flange \| Y-bearing: YAR 212-203-2F \| Complete unit: FYM 2.3/16 TF
	FY 514 U	Housing type: Square flange \| Y-bearing: YAR 214-207-2F \| Complete unit: FYM 2.7/16 TF
	FY 513 U	Housing type: Square flange \| Y-bearing: YAR 213-211-2F \| Complete unit: FY 2.11/16 TF
	FY 515 U	Housing type: Square flange \| Y-bearing: YAR 215-212-2F \| Complete unit: FY 2.3/4 TF
	FY 516 U	Housing type: Square flange \| Y-bearing: YAR 216-215-2F \| Complete unit: FYM 2.15/16 TF
	FY 504 U	Housing type: Square flange \| Y-bearing: YET 204-012 \| Complete unit: FY 3/4 FM
	FYTB 503 M	Housing type: Oval flange \| Y-bearing: YAR 203/12-2F \| Complete unit: FYTB 12 TF
	FYTB 504 M	Housing type: Oval flange \| Y-bearing: YAR 204-2F \| Complete unit: FYTB 20 TF
	FYTJ 504	Housing type: Oval flange \| Y-bearing: YAR 204-2F \| Complete unit: FYTJ 20 TF
	FYTB 505 M	Housing type: Oval flange \| Y-bearing: YAR 205-2F \| Complete unit: FYTB 25 TF
	FYTJ 505	Housing type: Oval flange \| Y-bearing: YAR 205-2F \| Complete unit: FYTJ 25 TF
	FYTB 506 M	Housing type: Oval flange \| Y-bearing: YAR 206-2F \| Complete unit: FYTB 30 TF
	FYTJ 506	Housing type: Oval flange \| Y-bearing: YAR 206-2F \| Complete unit: FYTJ 30 TF
	FYTB 507 M	Housing type: Oval flange \| Y-bearing: YAR 207-2F \| Complete unit: FYTB 35 TF
	FYTJ 507	Housing type: Oval flange \| Y-bearing: YAR 207-2F \| Complete unit: FYTJ 35 TF
	FYTB 508 M	Housing type: Oval flange \| Y-bearing: YAR 208-2F \| Complete unit: FYTB 40 TF
	FYTJ 508	Housing type: Oval flange \| Y-bearing: YAR 208-2F \| Complete unit: FYTJ 40 TF
	FYTB 509 M	Housing type: Oval flange \| Y-bearing: YAR 209-2F \| Complete unit: FYTB 45 TF
	FYTJ 509	Housing type: Oval flange \| Y-bearing: YAR 209-2F \| Complete unit: FYTJ 45 TF
	FYTB 510 M	Housing type: Oval flange \| Y-bearing: YAR 210-2F \| Complete unit: FYTB 50 TF
	FYTJ 510	Housing type: Oval flange \| Y-bearing: YAR 210-2F \| Complete unit: FYTJ 50 TF
	FYT 503 U	Housing type: Oval flange \| Y-bearing: YAT 203-008 \| Complete unit: FYT 1/2 RM
	FYT 504 U	Housing type: Oval flange \| Y-bearing: YAT 204-012 \| Complete unit: FYT 3/4 RM
	FYT 504 U/AH	Housing type: Oval flange \| Y-bearing: YAR 204-012-2F/AH \| Complete unit: FYT 3/4 TF/AH
	FYT 505 U	Housing type: Oval flange \| Y-bearing: YAR 205-014-2F \| Complete unit: FYT 7/8 TF
	FYT 506 U	Housing type: Oval flange \| Y-bearing: YAR 206-102-2F \| Complete unit: FYT 1.1/8 TF
	FYT 507 U	Housing type: Oval flange \| Y-bearing: YAT 207-104 \| Complete unit: FYT 1.1/4 RM
	FYTB 507 U	Housing type: Oval flange \| Y-bearing: YAR 207-104-2F \| Complete unit: FYTB 1.1/4 TF
	FYTJ 507 U	Housing type: Oval flange \| Y-bearing: YAR 207-104-2F \| Complete unit: FYTJ 1.1/4 TF
	FYT 508 U	Housing type: Oval flange \| Y-bearing: YAT 208-108 \| Complete unit: FYT 1.1/2 RM
	FYT 509 U	Housing type: Oval flange \| Y-bearing: YAR 209-110-2F \| Complete unit: FYT 1.5/8 TF
	FYT 510 U	Housing type: Oval flange \| Y-bearing: YAT 210-115 \| Complete unit: FYT 1.15/16 RM
	FYT 511 U	Housing type: Oval flange \| Y-bearing: YAT 211-200 \| Complete unit: FYT 2. RM
	FYC 504	Housing type: Round flange \| Y-bearing: YAR 204-2F \| Complete unit: FYC 20 TF
	FYC 505	Housing type: Round flange \| Y-bearing: YAR 205-2F \| Complete unit: FYC 25 TF
	FYC 506	Housing type: Round flange \| Y-bearing: YAR 206-2F \| Complete unit: FYC 30 TF
	FYC 507	Housing type: Round flange \| Y-bearing: YAR 207-2F \| Complete unit: FYC 35 TF
	FYC 508	Housing type: Round flange \| Y-bearing: YAR 208-2F \| Complete unit: FYC 40 TF
	FYC 509	Housing type: Round flange \| Y-bearing: YAR 209-2F \| Complete unit: FYC 45 TF
	FYC 510	Housing type: Round flange \| Y-bearing: YAR 210-2F \| Complete unit: FYC 50 TF
	FYC 511	Housing type: Round flange \| Y-bearing: YAR 211-2F \| Complete unit: FYC 55 TF
	FYC 512	Housing type: Round flange \| Y-bearing: YAR 212-2F \| Complete unit: FYC 60 TF
	FYC 513	Housing type: Round flange \| Y-bearing: YAR 213-2F \| Complete unit: FYC 65 TF
	PF 40	Housing type: Pressed 4-bolt flange \| Y-bearing: YAR 203/12-2F \| Complete unit: PF 12 TF
	PFD 40	Housing type: Pressed 2-bolt flange \| Y-bearing: YAR 203/12-2F \| Complete unit: PFD 12 TF
	PFT 40	Housing type: Pressed 3-bolt flange \| Y-bearing: YAR 203/12-2F \| Complete unit: PFT 12 TF
	PF 47	Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 204 \| Complete unit: PF 20 RM
	PFD 47	Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 204 \| Complete unit: PFD 20 RM
	PFT 47	Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 204 \| Complete unit: PFT 20 RM
	PF 52	Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 205 \| Complete unit: PF 25 RM
	PFD 52	Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 205 \| Complete unit: PFD 25 RM
	PFT 52	Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 205 \| Complete unit: PFT 25 RM
	PF 62	Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 206 \| Complete unit: PF 30 RM
	PFD 62	Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 206 \| Complete unit: PFD 30 RM
	PFT 62	Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 206 \| Complete unit: PFT 30 RM
	PF 72	Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 207 \| Complete unit: PF 35 RM
	PFD 72	Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 207 \| Complete unit: PFD 35 RM
	PFT 72	Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 207 \| Complete unit: PFT 35 RM
	PF 80	Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 208 \| Complete unit: PF 40 RM
	PFD 80	Housing type: Pressed 2-bolt flange \| Y-bearing: YAT 208 \| Complete unit: PFD 40 RM
	PFT 80	Housing type: Pressed 3-bolt flange \| Y-bearing: YAT 208 \| Complete unit: PFT 40 RM
	PF 85	Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 209 \| Complete unit: PF 45 RM
	PF 90	Housing type: Pressed 4-bolt flange \| Y-bearing: YAT 210 \| Complete unit: PF 50 RM
	TU 504 M	Housing type: Take-up \| Y-bearing: YAR 204-2F \| Complete unit: TU 20 TF
	TUJ 504	Housing type: Take-up \| Y-bearing: YAR 204-2F \| Complete unit: TUJ 20 TF
	TU 505 M	Housing type: Take-up \| Y-bearing: YAR 205-2F \| Complete unit: TU 25 TF
	TUJ 505	Housing type: Take-up \| Y-bearing: YAR 205-2F \| Complete unit: TUJ 25 TF
	TU 506 M	Housing type: Take-up \| Y-bearing: YAR 206-2F \| Complete unit: TU 30 TF
	TUJ 506	Housing type: Take-up \| Y-bearing: YAR 206-2F \| Complete unit: TUJ 30 TF
	TU 507 M	Housing type: Take-up \| Y-bearing: YAR 207-2F \| Complete unit: TU 35 TF
	TUJ 507	Housing type: Take-up \| Y-bearing: YAR 207-2F \| Complete unit: TUJ 35 TF
	TU 508 M	Housing type: Take-up \| Y-bearing: YAR 208-2F \| Complete unit: TU 40 TF
	TUJ 508	Housing type: Take-up \| Y-bearing: YAR 208-2F \| Complete unit: TUJ 40 TF
	TU 509 M	Housing type: Take-up \| Y-bearing: YAR 209-2F \| Complete unit: TU 45 TF
	TUJ 509	Housing type: Take-up \| Y-bearing: YAR 209-2F \| Complete unit: TUJ 45 TF
	TU 510 M	Housing type: Take-up \| Y-bearing: YAR 210-2F \| Complete unit: TU 50 TF
	TUJ 510	Housing type: Take-up \| Y-bearing: YAR 210-2F \| Complete unit: TUJ 50 TF
	TU 511 M	Housing type: Take-up \| Y-bearing: YAR 211-2F \| Complete unit: TU 55 TF
	TUJ 511	Housing type: Take-up \| Y-bearing: YAR 211-2F \| Complete unit: TUJ 55 TF
	TUJ 512	Housing type: Take-up \| Y-bearing: YAR 212-2F \| Complete unit: TUJ 60 TF
	TU 504 U	Housing type: Take-up \| Y-bearing: YAR 204-012-2F \| Complete unit: TU 3/4 TF
	TU 505 U	Housing type: Take-up \| Y-bearing: YAR 205-013-2F \| Complete unit: TU 13/16 TF
	TU 506 U	Housing type: Take-up \| Y-bearing: YAR 206-101-2F \| Complete unit: TU 1.1/16 TF
	TU 507 U	Housing type: Take-up \| Y-bearing: YAR 207-105-2F \| Complete unit: TU 1.5/16 TF
	TU 509 U	Housing type: Take-up \| Y-bearing: YAR 209-111-2F \| Complete unit: TU 1.11/16 TF
	TU 510 U	Housing type: Take-up \| Y-bearing: YAR 210-115-2F \| Complete unit: TU 1.15/16 TF
	TU 511 U	Housing type: Take-up \| Y-bearing: YAR 211-203-2F \| Complete unit: TU 2.3/16 TF

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SKF Y-Bearing Housings (SY, FY, FYT, FYC, P, PF, TU Series)
