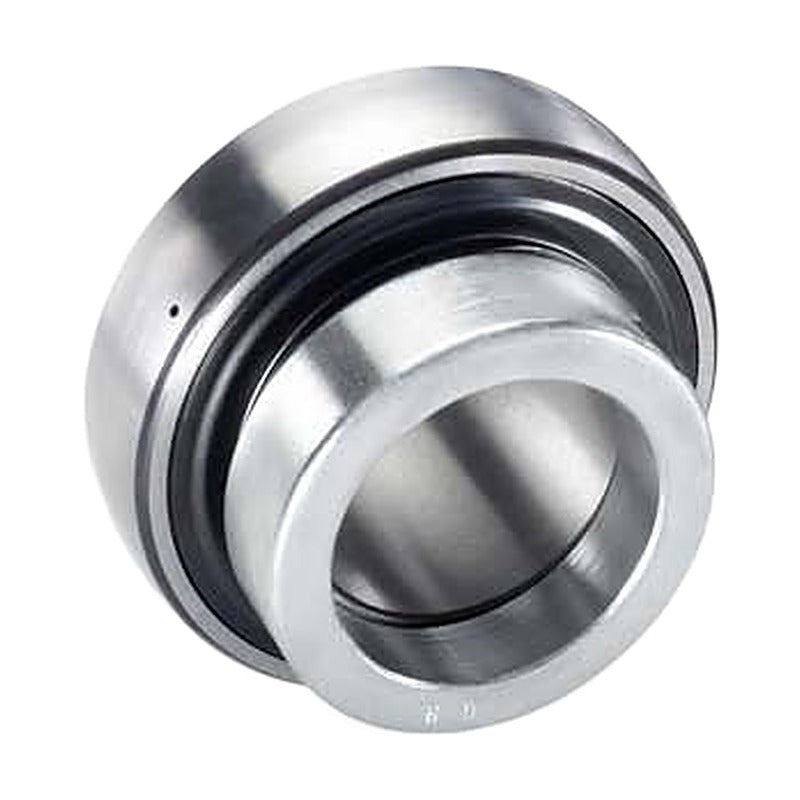

SKF YET and YEL Y-Bearings with Eccentric Locking Collar

SKF YET and YEL Y-Bearings with Eccentric Locking Collar

SKF YET and YEL Y-Bearings with Eccentric Locking Collar for metric and inch shafts: insert (Y-) bearings with an eccentric locking collar, used in SKF Y-bearing units.

Key features

  • Deep groove ball bearing design with sphered outer ring
  • Sealed on both sides and greased for life
  • Accommodates initial misalignment when mounted in a Y-bearing housing
  • Seal variants (2F, 2RF and others) as listed per size
  • Interchangeable with SKF Y-bearing housings

Specifications

Bearing type Y-bearing (insert bearing)
Locking An eccentric locking collar
Shafts metric and inch shafts
Brand SKF
Category Insert Bearings
Source SKF Y-bearings and Y-bearing units, p. 100-103
YET 203/15 d: 15 mm | D: 40 mm | B1: 28.6 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.12 kg
YET 203 d: 17 mm | D: 40 mm | B1: 28.6 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.10 kg
YET 204 d: 20 mm | D: 47 mm | B1: 31 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.18 kg
YET 204/VL065 d: 20 mm | D: 47 mm | B1: 31 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.18 kg
YEL 204-2F d: 20 mm | D: 47 mm | B1: 43.7 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.19 kg
YEL 204-2RF/VL065 d: 20 mm | D: 47 mm | B1: 43.7 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.19 kg
YET 205 d: 25 mm | D: 52 mm | B1: 31 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.18 kg
YET 205/VL065 d: 25 mm | D: 52 mm | B1: 31 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.18 kg
YEL 205-2F d: 25 mm | D: 52 mm | B1: 44.4 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.24 kg
YEL 205-2RF/VL065 d: 25 mm | D: 52 mm | B1: 44.4 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.24 kg
YET 206 d: 30 mm | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.30 kg
YET 206/VL065 d: 30 mm | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.30 kg
YEL 206-2F d: 30 mm | D: 62 mm | B1: 48.4 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.36 kg
YEL 206-2RF/VL065 d: 30 mm | D: 62 mm | B1: 48.4 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.36 kg
YET 207 d: 35 mm | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.44 kg
YET 207/VL065 d: 35 mm | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.44 kg
YEL 207-2F d: 35 mm | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.55 kg
YEL 207-2RF/VL065 d: 35 mm | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.55 kg
YET 208 d: 40 mm | D: 80 mm | B1: 43.7 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.59 kg
YET 208/VL065 d: 40 mm | D: 80 mm | B1: 43.7 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.59 kg
YEL 208-2F d: 40 mm | D: 80 mm | B1: 56.3 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.67 kg
YEL 208-2RF/VL065 d: 40 mm | D: 80 mm | B1: 56.3 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.67 kg
YET 209 d: 45 mm | D: 85 mm | B1: 43.7 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.65 kg
YEL 209-2F d: 45 mm | D: 85 mm | B1: 56.3 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.74 kg
YET 210 d: 50 mm | D: 90 mm | B1: 43.7 mm | C: 35.1 kN | C0: 23.2 kN | Mass: 0.70 kg
YEL 210-2F d: 50 mm | D: 90 mm | B1: 62.7 mm | C: 35.1 kN | C0: 23.2 kN | Mass: 0.89 kg
YET 211 d: 55 mm | D: 100 mm | B1: 48.4 mm | C: 43.6 kN | C0: 29 kN | Mass: 0.90 kg
YEL 211-2F d: 55 mm | D: 100 mm | B1: 71.4 mm | C: 43.6 kN | C0: 29 kN | Mass: 1.20 kg
YET 212 d: 60 mm | D: 110 mm | B1: 53.1 mm | C: 52.7 kN | C0: 36 kN | Mass: 1.30 kg
YEL 212-2F d: 60 mm | D: 110 mm | B1: 77.8 mm | C: 52.7 kN | C0: 36 kN | Mass: 1.60 kg
YEL 203-008-2F d: 1/2 in. | D: 40 mm | B1: 37.3 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.15 kg
YET 203-008 d: 1/2 in. | D: 40 mm | B1: 28.6 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.13 kg
YEL 204-012-2F d: 3/4 in. | D: 47 mm | B1: 43.7 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.20 kg
YET 204-012 d: 3/4 in. | D: 47 mm | B1: 31 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.17 kg
YET 205-100 d: 1 in. | D: 52 mm | B1: 31 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.18 kg
YEL 205-100-2F d: 1 in. | D: 52 mm | B1: 44.4 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.24 kg
YEL 206-102-2F d: 1 1/8 in. | D: 62 mm | B1: 48.4 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.39 kg
YET 206-102 d: 1 1/8 in. | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.33 kg
YEL 206-103-2F d: 1 3/16 in. | D: 62 mm | B1: 48.4 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.37 kg
YET 206-103 d: 1 3/16 in. | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.31 kg
YEL 207-104-2F d: 1 1/4 in. | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.60 kg
YET 206-104 d: 1 1/4 in. | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.29 kg
YET 207-104 d: 1 1/4 in. | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.51 kg
YET 207-105 d: 1 5/16 in. | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.56 kg
YEL 207-106-2F d: 1 3/8 in. | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.55 kg
YET 207-106 d: 1 3/8 in. | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.47 kg
YEL 207-107-2F d: 1 7/16 in. | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.53 kg
YET 207-107 d: 1 7/16 in. | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.44 kg
YET 208-108 d: 1 1/2 in. | D: 80 mm | B1: 43.7 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.63 kg
YEL 208-108-2F d: 1 1/2 in. | D: 80 mm | B1: 56.3 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.77 kg
YEL 209-111-2F d: 1 11/16 in. | D: 85 mm | B1: 56.3 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.88 kg
YET 209-111 d: 1 11/16 in. | D: 85 mm | B1: 43.7 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.74 kg
YEL 209-112-2F d: 1 3/4 in. | D: 85 mm | B1: 56.3 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.80 kg
YET 209-112 d: 1 3/4 in. | D: 85 mm | B1: 43.7 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.70 kg
YEL 210-115-2F d: 1 15/16 in. | D: 90 mm | B1: 62.7 mm | C: 35.1 kN | C0: 23.2 kN | Mass: 0.94 kg
YEL 211-200-2F d: 2 in. | D: 100 mm | B1: 71.4 mm | C: 43.6 kN | C0: 29 kN | Mass: 1.50 kg
YEL 211-203-2F d: 2 3/16 in. | D: 100 mm | B1: 71.4 mm | C: 43.6 kN | C0: 29 kN | Mass: 1.30 kg
YEL 212-207-2F d: 2 7/16 in. | D: 110 mm | B1: 77.8 mm | C: 52.7 kN | C0: 36 kN | Mass: 1.70 kg
YET 212-207 d: 2 7/16 in. | D: 110 mm | B1: 53.1 mm | C: 52.7 kN | C0: 36 kN | Mass: 1.20 kg
Insert BearingsSKF
59 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF YET and YEL Y-Bearings with Eccentric Locking Collar

Brand SKF·Insert Bearings

Available part numbers (59)

YET 203/15, YET 203, YET 204, YET 204/VL065, YEL 204-2F, YEL 204-2RF/VL065, YET 205, YET 205/VL065, YEL 205-2F, YEL 205-2RF/VL065 + 49 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
YET 203/15d: 15 mm | D: 40 mm | B1: 28.6 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.12 kg
YET 203d: 17 mm | D: 40 mm | B1: 28.6 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.10 kg
YET 204d: 20 mm | D: 47 mm | B1: 31 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.18 kg
YET 204/VL065d: 20 mm | D: 47 mm | B1: 31 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.18 kg
YEL 204-2Fd: 20 mm | D: 47 mm | B1: 43.7 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.19 kg
YEL 204-2RF/VL065d: 20 mm | D: 47 mm | B1: 43.7 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.19 kg
YET 205d: 25 mm | D: 52 mm | B1: 31 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.18 kg
YET 205/VL065d: 25 mm | D: 52 mm | B1: 31 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.18 kg
YEL 205-2Fd: 25 mm | D: 52 mm | B1: 44.4 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.24 kg
YEL 205-2RF/VL065d: 25 mm | D: 52 mm | B1: 44.4 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.24 kg
YET 206d: 30 mm | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.30 kg
YET 206/VL065d: 30 mm | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.30 kg
YEL 206-2Fd: 30 mm | D: 62 mm | B1: 48.4 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.36 kg
YEL 206-2RF/VL065d: 30 mm | D: 62 mm | B1: 48.4 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.36 kg
YET 207d: 35 mm | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.44 kg
YET 207/VL065d: 35 mm | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.44 kg
YEL 207-2Fd: 35 mm | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.55 kg
YEL 207-2RF/VL065d: 35 mm | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.55 kg
YET 208d: 40 mm | D: 80 mm | B1: 43.7 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.59 kg
YET 208/VL065d: 40 mm | D: 80 mm | B1: 43.7 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.59 kg
YEL 208-2Fd: 40 mm | D: 80 mm | B1: 56.3 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.67 kg
YEL 208-2RF/VL065d: 40 mm | D: 80 mm | B1: 56.3 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.67 kg
YET 209d: 45 mm | D: 85 mm | B1: 43.7 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.65 kg
YEL 209-2Fd: 45 mm | D: 85 mm | B1: 56.3 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.74 kg
YET 210d: 50 mm | D: 90 mm | B1: 43.7 mm | C: 35.1 kN | C0: 23.2 kN | Mass: 0.70 kg
YEL 210-2Fd: 50 mm | D: 90 mm | B1: 62.7 mm | C: 35.1 kN | C0: 23.2 kN | Mass: 0.89 kg
YET 211d: 55 mm | D: 100 mm | B1: 48.4 mm | C: 43.6 kN | C0: 29 kN | Mass: 0.90 kg
YEL 211-2Fd: 55 mm | D: 100 mm | B1: 71.4 mm | C: 43.6 kN | C0: 29 kN | Mass: 1.20 kg
YET 212d: 60 mm | D: 110 mm | B1: 53.1 mm | C: 52.7 kN | C0: 36 kN | Mass: 1.30 kg
YEL 212-2Fd: 60 mm | D: 110 mm | B1: 77.8 mm | C: 52.7 kN | C0: 36 kN | Mass: 1.60 kg
YEL 203-008-2Fd: 1/2 in. | D: 40 mm | B1: 37.3 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.15 kg
YET 203-008d: 1/2 in. | D: 40 mm | B1: 28.6 mm | C: 9.56 kN | C0: 4.75 kN | Mass: 0.13 kg
YEL 204-012-2Fd: 3/4 in. | D: 47 mm | B1: 43.7 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.20 kg
YET 204-012d: 3/4 in. | D: 47 mm | B1: 31 mm | C: 12.7 kN | C0: 6.55 kN | Mass: 0.17 kg
YET 205-100d: 1 in. | D: 52 mm | B1: 31 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.18 kg
YEL 205-100-2Fd: 1 in. | D: 52 mm | B1: 44.4 mm | C: 14 kN | C0: 7.8 kN | Mass: 0.24 kg
YEL 206-102-2Fd: 1 1/8 in. | D: 62 mm | B1: 48.4 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.39 kg
YET 206-102d: 1 1/8 in. | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.33 kg
YEL 206-103-2Fd: 1 3/16 in. | D: 62 mm | B1: 48.4 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.37 kg
YET 206-103d: 1 3/16 in. | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.31 kg
YEL 207-104-2Fd: 1 1/4 in. | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.60 kg
YET 206-104d: 1 1/4 in. | D: 62 mm | B1: 35.7 mm | C: 19.5 kN | C0: 11.2 kN | Mass: 0.29 kg
YET 207-104d: 1 1/4 in. | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.51 kg
YET 207-105d: 1 5/16 in. | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.56 kg
YEL 207-106-2Fd: 1 3/8 in. | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.55 kg
YET 207-106d: 1 3/8 in. | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.47 kg
YEL 207-107-2Fd: 1 7/16 in. | D: 72 mm | B1: 51.1 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.53 kg
YET 207-107d: 1 7/16 in. | D: 72 mm | B1: 38.9 mm | C: 25.5 kN | C0: 15.3 kN | Mass: 0.44 kg
YET 208-108d: 1 1/2 in. | D: 80 mm | B1: 43.7 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.63 kg
YEL 208-108-2Fd: 1 1/2 in. | D: 80 mm | B1: 56.3 mm | C: 30.7 kN | C0: 19 kN | Mass: 0.77 kg
YEL 209-111-2Fd: 1 11/16 in. | D: 85 mm | B1: 56.3 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.88 kg
YET 209-111d: 1 11/16 in. | D: 85 mm | B1: 43.7 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.74 kg
YEL 209-112-2Fd: 1 3/4 in. | D: 85 mm | B1: 56.3 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.80 kg
YET 209-112d: 1 3/4 in. | D: 85 mm | B1: 43.7 mm | C: 33.2 kN | C0: 21.6 kN | Mass: 0.70 kg
YEL 210-115-2Fd: 1 15/16 in. | D: 90 mm | B1: 62.7 mm | C: 35.1 kN | C0: 23.2 kN | Mass: 0.94 kg
YEL 211-200-2Fd: 2 in. | D: 100 mm | B1: 71.4 mm | C: 43.6 kN | C0: 29 kN | Mass: 1.50 kg
YEL 211-203-2Fd: 2 3/16 in. | D: 100 mm | B1: 71.4 mm | C: 43.6 kN | C0: 29 kN | Mass: 1.30 kg
YEL 212-207-2Fd: 2 7/16 in. | D: 110 mm | B1: 77.8 mm | C: 52.7 kN | C0: 36 kN | Mass: 1.70 kg
YET 212-207d: 2 7/16 in. | D: 110 mm | B1: 53.1 mm | C: 52.7 kN | C0: 36 kN | Mass: 1.20 kg
