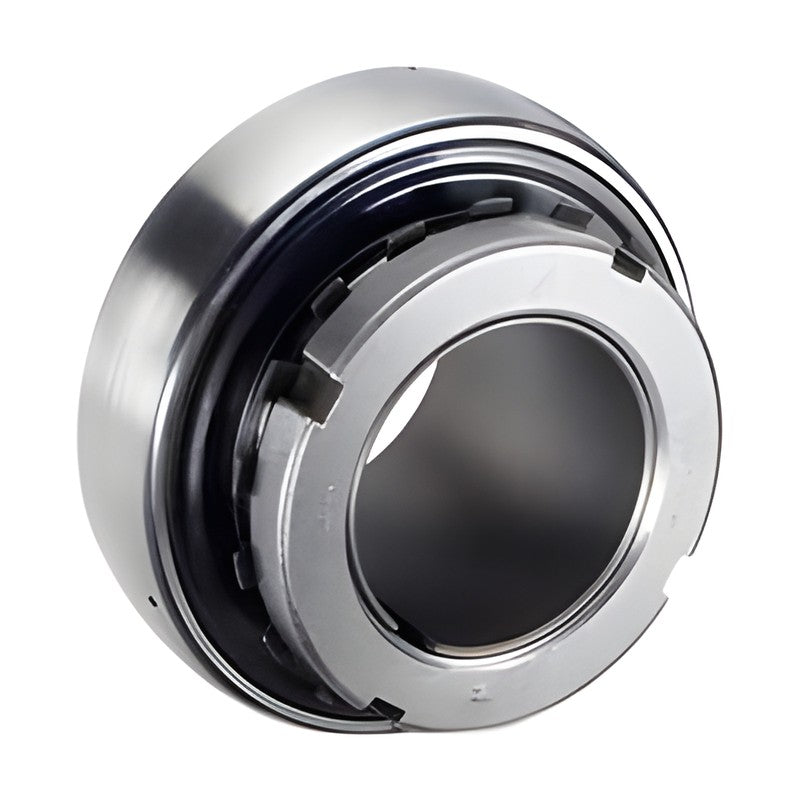

SKF YSA Y-Bearings with Tapered Bore (Adapter Sleeve)

SKF YSA Y-Bearings with Tapered Bore (Adapter Sleeve)

SKF YSA Y-Bearings with Tapered Bore (Adapter Sleeve) for metric and inch shafts: insert (Y-) bearings with a tapered bore for adapter sleeve mounting, used in SKF Y-bearing units.

Key features

  • Deep groove ball bearing design with sphered outer ring
  • Sealed on both sides and greased for life
  • Accommodates initial misalignment when mounted in a Y-bearing housing
  • Seal variants (2F, 2RF and others) as listed per size
  • Interchangeable with SKF Y-bearing housings

Specifications

Bearing type Y-bearing (insert bearing)
Locking A tapered bore for adapter sleeve mounting
Shafts metric and inch shafts
Brand SKF
Category Insert Bearings
Source SKF Y-bearings and Y-bearing units, p. 104-107
YSA 205-2FK d: 20 mm | D: 52 mm | B: 24 mm | C: 14 kN | C0: 7.8 kN
YSA 206-2FK d: 25 mm | D: 62 mm | B: 28 mm | C: 19.5 kN | C0: 11.2 kN
YSA 207-2FK d: 30 mm | D: 72 mm | B: 30.5 mm | C: 25.5 kN | C0: 15.3 kN
YSA 208-2FK d: 35 mm | D: 80 mm | B: 33.9 mm | C: 30.7 kN | C0: 19 kN
YSA 209-2FK d: 40 mm | D: 85 mm | B: 35 mm | C: 33.2 kN | C0: 21.6 kN
YSA 210-2FK d: 45 mm | D: 90 mm | B: 37 mm | C: 35.1 kN | C0: 23.2 kN
YSA 211-2FK d: 50 mm | D: 100 mm | B: 40 mm | C: 43.6 kN | C0: 29 kN
YSA 212-2FK d: 55 mm | D: 110 mm | B: 42.5 mm | C: 52.7 kN | C0: 36 kN
YSA 213-2FK d: 60 mm | D: 120 mm | B: 43.5 mm | C: 57.2 kN | C0: 40 kN
Insert BearingsSKF
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF YSA Y-Bearings with Tapered Bore (Adapter Sleeve)

Brand SKF·Insert Bearings

Available part numbers (9)

YSA 205-2FK, YSA 206-2FK, YSA 207-2FK, YSA 208-2FK, YSA 209-2FK, YSA 210-2FK, YSA 211-2FK, YSA 212-2FK, YSA 213-2FK

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
YSA 205-2FKd: 20 mm | D: 52 mm | B: 24 mm | C: 14 kN | C0: 7.8 kN
YSA 206-2FKd: 25 mm | D: 62 mm | B: 28 mm | C: 19.5 kN | C0: 11.2 kN
YSA 207-2FKd: 30 mm | D: 72 mm | B: 30.5 mm | C: 25.5 kN | C0: 15.3 kN
YSA 208-2FKd: 35 mm | D: 80 mm | B: 33.9 mm | C: 30.7 kN | C0: 19 kN
YSA 209-2FKd: 40 mm | D: 85 mm | B: 35 mm | C: 33.2 kN | C0: 21.6 kN
YSA 210-2FKd: 45 mm | D: 90 mm | B: 37 mm | C: 35.1 kN | C0: 23.2 kN
YSA 211-2FKd: 50 mm | D: 100 mm | B: 40 mm | C: 43.6 kN | C0: 29 kN
YSA 212-2FKd: 55 mm | D: 110 mm | B: 42.5 mm | C: 52.7 kN | C0: 36 kN
YSA 213-2FKd: 60 mm | D: 120 mm | B: 43.5 mm | C: 57.2 kN | C0: 40 kN
