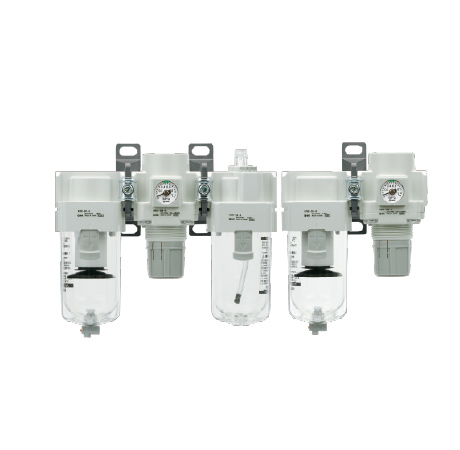

SMC AC40D-06-D F.R. Clean Combination (Filter Regulator + Mist Separator)

SMC AC40D-06-D F.R. Clean Combination (Filter Regulator + Mist Separator)

SMC modular F.R.L. combination for compressed air preparation.

Key features

  • Body size 40-06, port size: 3/4
  • Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm)
  • Setting pressure: 0.05–0.85 MPa (low-pressure 0.02–0.2 MPa available on request)
  • Max working pressure 1.0 MPa, proof pressure 1.5 MPa
  • Operating temperature: -5 to 60°C
  • Threads: Rc / NPT / G

Specifications

Body size 40-06
Combination type AC-D
Constituent units AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm)
Port size 3/4
Setting pressure 0.05–0.85 MPa
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Operating temperature -5 to 60°C
Spec Clean/Low-particle (-D)
AC40D-06-06-D Rc 3/4, Manual drain | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06E-D Rc 3/4, Manual drain, Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06C-D Rc 3/4, Auto drain N.C. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06CE-D Rc 3/4, Auto drain N.C., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06D-D Rc 3/4, Auto drain N.O. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06DE-D Rc 3/4, Auto drain N.O., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06-D NPT 3/4, Manual drain | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06E-D NPT 3/4, Manual drain, Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06C-D NPT 3/4, Auto drain N.C. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06CE-D NPT 3/4, Auto drain N.C., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06D-D NPT 3/4, Auto drain N.O. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06DE-D NPT 3/4, Auto drain N.O., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06-D G 3/4, Manual drain | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06E-D G 3/4, Manual drain, Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06C-D G 3/4, Auto drain N.C. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06CE-D G 3/4, Auto drain N.C., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06D-D G 3/4, Auto drain N.O. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06DE-D G 3/4, Auto drain N.O., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
FRL CombinationsSMC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AC40D-06-D F.R. Clean Combination (Filter Regulator + Mist Separator)

Brand SMC·FRL Combinations

Available part numbers (18)

AC40D-06-06-D, AC40D-06-06E-D, AC40D-06-06C-D, AC40D-06-06CE-D, AC40D-06-06D-D, AC40D-06-06DE-D, AC40D-06-N06-D, AC40D-06-N06E-D, AC40D-06-N06C-D, AC40D-06-N06CE-D + 8 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AC40D-06-06-DRc 3/4, Manual drain | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06E-DRc 3/4, Manual drain, Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06C-DRc 3/4, Auto drain N.C. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06CE-DRc 3/4, Auto drain N.C., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06D-DRc 3/4, Auto drain N.O. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-06DE-DRc 3/4, Auto drain N.O., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: Rc | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06-DNPT 3/4, Manual drain | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06E-DNPT 3/4, Manual drain, Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06C-DNPT 3/4, Auto drain N.C. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06CE-DNPT 3/4, Auto drain N.C., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06D-DNPT 3/4, Auto drain N.O. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-N06DE-DNPT 3/4, Auto drain N.O., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: NPT | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06-DG 3/4, Manual drain | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06E-DG 3/4, Manual drain, Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Manual drain | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06C-DG 3/4, Auto drain N.C. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06CE-DG 3/4, Auto drain N.C., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Auto drain N.C. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06D-DG 3/4, Auto drain N.O. | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
AC40D-06-F06DE-DG 3/4, Auto drain N.O., Square embedded gauge | Body size: 40-06 | Combination type: AC-D | Constituent units: AW (filter regulator with 5μm filter) + AFM (mist separator, 0.3μm) | Thread: G | Port size: 3/4 | Auto drain: Auto drain N.O. | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Spec: Clean/Low-particle (-D)
