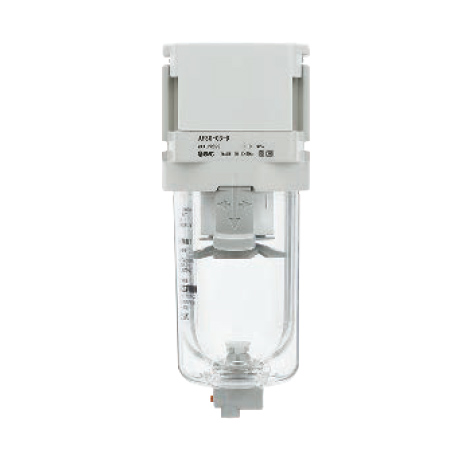

SMC AF30-D Modular Air Filter

SMC AF30-D Modular Air Filter

SMC modular pneumatic air filter (clean/low-particle spec).

Key features

  • Body size 30, port size: 1/4, 3/8
  • Filter rating: 5 μm
  • Max working pressure 1.0 MPa, proof pressure 1.5 MPa
  • Operating temperature: -5 to 60°C
  • Mass: 0.18 kg
  • Threads: Rc / NPT / G

Specifications

Body size 30
Filter rating 5 μm
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Operating temperature -5 to 60°C
Mass 0.18 kg
Case material Polycarbonate (standard)
Spec Clean/Low-particle (-D)
AF30-02-D Rc 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02C-D Rc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02D-D Rc 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02B-D Rc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02BC-D Rc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02BD-D Rc 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03-D Rc 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03C-D Rc 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03D-D Rc 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03B-D Rc 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03BC-D Rc 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03BD-D Rc 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02-D NPT 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02C-D NPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02D-D NPT 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02B-D NPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02BC-D NPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02BD-D NPT 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03-D NPT 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03C-D NPT 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03D-D NPT 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03B-D NPT 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03BC-D NPT 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03BD-D NPT 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02-D G 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02C-D G 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02D-D G 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02B-D G 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02BC-D G 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02BD-D G 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03-D G 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03C-D G 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03D-D G 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03B-D G 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03BC-D G 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03BD-D G 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
FiltersSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AF30-D Modular Air Filter

Brand SMC·Filters

Available part numbers (36)

AF30-02-D, AF30-02C-D, AF30-02D-D, AF30-02B-D, AF30-02BC-D, AF30-02BD-D, AF30-03-D, AF30-03C-D, AF30-03D-D, AF30-03B-D + 26 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AF30-02-DRc 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02C-DRc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02D-DRc 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02B-DRc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02BC-DRc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-02BD-DRc 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03-DRc 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03C-DRc 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03D-DRc 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03B-DRc 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03BC-DRc 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-03BD-DRc 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02-DNPT 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02C-DNPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02D-DNPT 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02B-DNPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02BC-DNPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N02BD-DNPT 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03-DNPT 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03C-DNPT 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03D-DNPT 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03B-DNPT 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03BC-DNPT 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-N03BD-DNPT 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02-DG 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02C-DG 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02D-DG 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02B-DG 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02BC-DG 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F02BD-DG 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03-DG 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03C-DG 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03D-DG 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03B-DG 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03BC-DG 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF30-F03BD-DG 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
