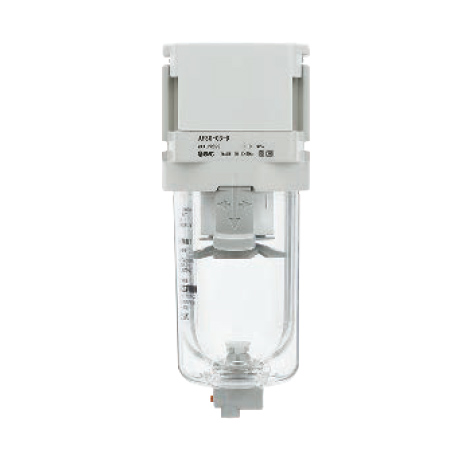

SMC AF40-06-D Modular Air Filter (3/4 Port)

SMC AF40-06-D Modular Air Filter (3/4 Port)

SMC modular pneumatic air filter (clean/low-particle spec).

Key features

  • Body size 40-06, port size: 3/4
  • Filter rating: 5 μm
  • Max working pressure 1.0 MPa, proof pressure 1.5 MPa
  • Operating temperature: -5 to 60°C
  • Mass: 0.41 kg
  • Threads: Rc / NPT / G

Specifications

Body size 40-06
Port size 3/4
Filter rating 5 μm
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Operating temperature -5 to 60°C
Mass 0.41 kg
Case material Polycarbonate (standard)
Spec Clean/Low-particle (-D)
AF40-06-D Rc 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06C-D Rc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06D-D Rc 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06B-D Rc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06BC-D Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06BD-D Rc 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06-D NPT 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06C-D NPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06D-D NPT 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06B-D NPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06BC-D NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06BD-D NPT 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06-D G 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06C-D G 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06D-D G 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06B-D G 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06BC-D G 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06BD-D G 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
FiltersSMC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AF40-06-D Modular Air Filter (3/4 Port)

Brand SMC·Filters

Available part numbers (18)

AF40-06-D, AF40-06C-D, AF40-06D-D, AF40-06B-D, AF40-06BC-D, AF40-06BD-D, AF40-N06-D, AF40-N06C-D, AF40-N06D-D, AF40-N06B-D + 8 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AF40-06-DRc 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06C-DRc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06D-DRc 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06B-DRc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06BC-DRc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-06BD-DRc 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06-DNPT 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06C-DNPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06D-DNPT 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06B-DNPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06BC-DNPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-N06BD-DNPT 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06-DG 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06C-DG 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06D-DG 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06B-DG 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06BC-DG 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AF40-F06BD-DG 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 5 μm | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
