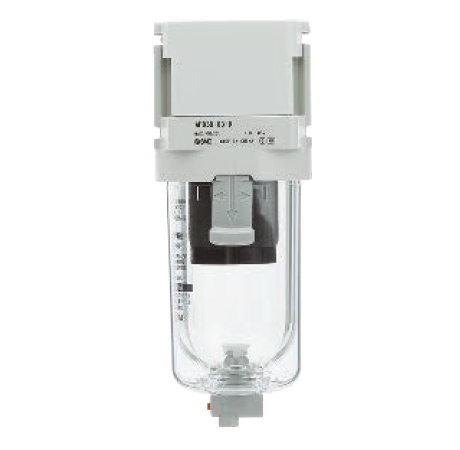

SMC AFD40-D Modular Micro Mist Separator

SMC AFD40-D Modular Micro Mist Separator

SMC modular pneumatic micro mist separator (clean/low-particle spec).

Key features

  • Body size 40, port size: 1/4, 3/8, 1/2
  • Filter rating: 0.01 μm (filtration efficiency 99.9%)
  • Outlet oil mist concentration: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm)
  • Compressed air purity class: ISO 8573-1:2010 [1:7:2]. Max working pressure 1.0 MPa, proof pressure 1.5 MPa, min working pressure 0.05 MPa
  • Operating temperature: -5 to 60°C
  • Processed air flow: 600 L/min(ANR)

Specifications

Body size 40
Filter rating 0.01 μm (filtration efficiency 99.9%)
Outlet oil mist MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm)
Air purity class ISO 8573-1:2010 [1:7:2]
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Min working pressure 0.05 MPa
Operating temperature -5 to 60°C
Processed air flow 600 L/min(ANR)
Drain capacity 45 cm³
Mass 0.37 kg
Case material Polycarbonate (standard)
AFD40-02-D Rc 1/4, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02C-D Rc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02D-D Rc 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02B-D Rc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02BC-D Rc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02BD-D Rc 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03-D Rc 3/8, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03C-D Rc 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03D-D Rc 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03B-D Rc 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03BC-D Rc 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03BD-D Rc 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04-D Rc 1/2, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04C-D Rc 1/2, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04D-D Rc 1/2, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04B-D Rc 1/2, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04BC-D Rc 1/2, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04BD-D Rc 1/2, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02-D NPT 1/4, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02C-D NPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02D-D NPT 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02B-D NPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02BC-D NPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02BD-D NPT 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03-D NPT 3/8, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03C-D NPT 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03D-D NPT 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03B-D NPT 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03BC-D NPT 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03BD-D NPT 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04-D NPT 1/2, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04C-D NPT 1/2, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04D-D NPT 1/2, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04B-D NPT 1/2, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04BC-D NPT 1/2, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04BD-D NPT 1/2, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02-D G 1/4, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02C-D G 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02D-D G 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02B-D G 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02BC-D G 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02BD-D G 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03-D G 3/8, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03C-D G 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03D-D G 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03B-D G 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03BC-D G 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03BD-D G 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04-D G 1/2, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04C-D G 1/2, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04D-D G 1/2, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04B-D G 1/2, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04BC-D G 1/2, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04BD-D G 1/2, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
FiltersSMC
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AFD40-D Modular Micro Mist Separator

Brand SMC·Filters

Available part numbers (54)

AFD40-02-D, AFD40-02C-D, AFD40-02D-D, AFD40-02B-D, AFD40-02BC-D, AFD40-02BD-D, AFD40-03-D, AFD40-03C-D, AFD40-03D-D, AFD40-03B-D + 44 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AFD40-02-DRc 1/4, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02C-DRc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02D-DRc 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02B-DRc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02BC-DRc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-02BD-DRc 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03-DRc 3/8, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03C-DRc 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03D-DRc 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03B-DRc 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03BC-DRc 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-03BD-DRc 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04-DRc 1/2, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04C-DRc 1/2, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04D-DRc 1/2, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04B-DRc 1/2, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04BC-DRc 1/2, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-04BD-DRc 1/2, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: Rc | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02-DNPT 1/4, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02C-DNPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02D-DNPT 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02B-DNPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02BC-DNPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N02BD-DNPT 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03-DNPT 3/8, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03C-DNPT 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03D-DNPT 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03B-DNPT 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03BC-DNPT 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N03BD-DNPT 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04-DNPT 1/2, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04C-DNPT 1/2, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04D-DNPT 1/2, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04B-DNPT 1/2, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04BC-DNPT 1/2, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-N04BD-DNPT 1/2, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: NPT | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02-DG 1/4, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02C-DG 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02D-DG 1/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02B-DG 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02BC-DG 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F02BD-DG 1/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03-DG 3/8, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03C-DG 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03D-DG 3/8, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03B-DG 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03BC-DG 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F03BD-DG 3/8, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 3/8 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04-DG 1/2, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04C-DG 1/2, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04D-DG 1/2, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04B-DG 1/2, Bracket, Manual drain, clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04BC-DG 1/2, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFD40-F04BD-DG 1/2, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40 | Thread: G | Port size: 1/2 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.01 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 0.1 mg/m³ (pre-saturation: 0.01 mg/m³ ≈ 0.008 ppm) | Air purity class: ISO 8573-1:2010 [1:7:2] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 600 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.37 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
