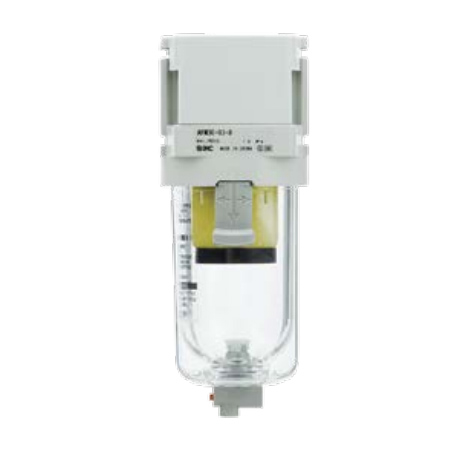

SMC AFM20-D Modular Mist Separator

SMC AFM20-D Modular Mist Separator

SMC modular pneumatic mist separator (clean/low-particle spec).

Key features

  • Body size 20, port size: 1/8, 1/4
  • Filter rating: 0.3 μm (filtration efficiency 99.9%)
  • Outlet oil mist concentration: MAX. 1.0 mg/m³ (≈0.8 ppm)
  • Compressed air purity class: ISO 8573-1:2010 [3:7:3]. Max working pressure 1.0 MPa, proof pressure 1.5 MPa, min working pressure 0.05 MPa
  • Operating temperature: -5 to 60°C
  • Processed air flow: 200 L/min(ANR)

Specifications

Body size 20
Filter rating 0.3 μm (filtration efficiency 99.9%)
Outlet oil mist MAX. 1.0 mg/m³ (≈0.8 ppm)
Air purity class ISO 8573-1:2010 [3:7:3]
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Min working pressure 0.05 MPa
Operating temperature -5 to 60°C
Processed air flow 200 L/min(ANR)
Drain capacity 8 cm³
Mass 0.10 kg
Case material Polycarbonate (standard)
AFM20-01-D Rc 1/8, Manual drain, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-01C-D Rc 1/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-01B-D Rc 1/8, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-01BC-D Rc 1/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-02-D Rc 1/4, Manual drain, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-02C-D Rc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-02B-D Rc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-02BC-D Rc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N01-D NPT 1/8, Manual drain, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N01C-D NPT 1/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N01B-D NPT 1/8, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N01BC-D NPT 1/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N02-D NPT 1/4, Manual drain, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N02C-D NPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N02B-D NPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N02BC-D NPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F01-D G 1/8, Manual drain, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F01C-D G 1/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F01B-D G 1/8, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F01BC-D G 1/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F02-D G 1/4, Manual drain, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F02C-D G 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F02B-D G 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F02BC-D G 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
FiltersSMC
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AFM20-D Modular Mist Separator

Brand SMC·Filters

Available part numbers (24)

AFM20-01-D, AFM20-01C-D, AFM20-01B-D, AFM20-01BC-D, AFM20-02-D, AFM20-02C-D, AFM20-02B-D, AFM20-02BC-D, AFM20-N01-D, AFM20-N01C-D + 14 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AFM20-01-DRc 1/8, Manual drain, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-01C-DRc 1/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-01B-DRc 1/8, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-01BC-DRc 1/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-02-DRc 1/4, Manual drain, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-02C-DRc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-02B-DRc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-02BC-DRc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N01-DNPT 1/8, Manual drain, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N01C-DNPT 1/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N01B-DNPT 1/8, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N01BC-DNPT 1/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N02-DNPT 1/4, Manual drain, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N02C-DNPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N02B-DNPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-N02BC-DNPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F01-DG 1/8, Manual drain, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F01C-DG 1/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F01B-DG 1/8, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F01BC-DG 1/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F02-DG 1/4, Manual drain, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F02C-DG 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F02B-DG 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM20-F02BC-DG 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 200 L/min(ANR) | Drain capacity: 8 cm³ | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
