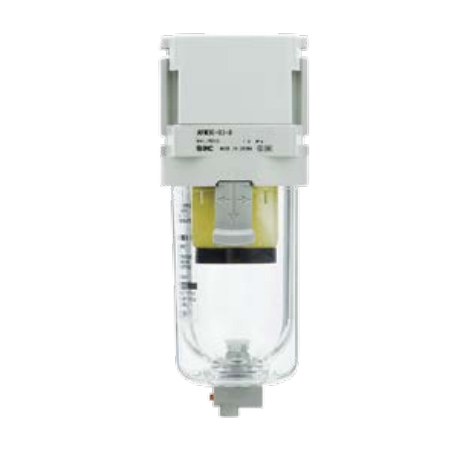

SMC AFM40-06-D Modular Mist Separator (3/4 Port)

SMC AFM40-06-D Modular Mist Separator (3/4 Port)

SMC modular pneumatic mist separator (clean/low-particle spec).

Key features

  • Body size 40-06, port size: 3/4
  • Filter rating: 0.3 μm (filtration efficiency 99.9%)
  • Outlet oil mist concentration: MAX. 1.0 mg/m³ (≈0.8 ppm)
  • Compressed air purity class: ISO 8573-1:2010 [3:7:3]. Max working pressure 1.0 MPa, proof pressure 1.5 MPa, min working pressure 0.05 MPa
  • Operating temperature: -5 to 60°C
  • Processed air flow: 1,100 L/min(ANR)

Specifications

Body size 40-06
Port size 3/4
Filter rating 0.3 μm (filtration efficiency 99.9%)
Outlet oil mist MAX. 1.0 mg/m³ (≈0.8 ppm)
Air purity class ISO 8573-1:2010 [3:7:3]
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Min working pressure 0.05 MPa
Operating temperature -5 to 60°C
Processed air flow 1,100 L/min(ANR)
Drain capacity 45 cm³
Mass 0.40 kg
AFM40-06-D Rc 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06C-D Rc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06D-D Rc 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06B-D Rc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06BC-D Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06BD-D Rc 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06-D NPT 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06C-D NPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06D-D NPT 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06B-D NPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06BC-D NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06BD-D NPT 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06-D G 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06C-D G 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06D-D G 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06B-D G 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06BC-D G 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06BD-D G 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
FiltersSMC
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AFM40-06-D Modular Mist Separator (3/4 Port)

Brand SMC·Filters

Available part numbers (18)

AFM40-06-D, AFM40-06C-D, AFM40-06D-D, AFM40-06B-D, AFM40-06BC-D, AFM40-06BD-D, AFM40-N06-D, AFM40-N06C-D, AFM40-N06D-D, AFM40-N06B-D + 8 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AFM40-06-DRc 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06C-DRc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06D-DRc 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06B-DRc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06BC-DRc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-06BD-DRc 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06-DNPT 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06C-DNPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06D-DNPT 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06B-DNPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06BC-DNPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-N06BD-DNPT 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06-DG 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06C-DG 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06D-DG 3/4, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06B-DG 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06BC-DG 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AFM40-F06BD-DG 3/4, Bracket, Auto drain N.O. (Normal Open), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Auto drain: Auto drain N.O. (Normal Open) | Filter rating: 0.3 μm (filtration efficiency 99.9%) | Outlet oil mist: MAX. 1.0 mg/m³ (≈0.8 ppm) | Air purity class: ISO 8573-1:2010 [3:7:3] | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Min working pressure: 0.05 MPa | Operating temperature: -5 to 60°C | Processed air flow: 1,100 L/min(ANR) | Drain capacity: 45 cm³ | Mass: 0.40 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
