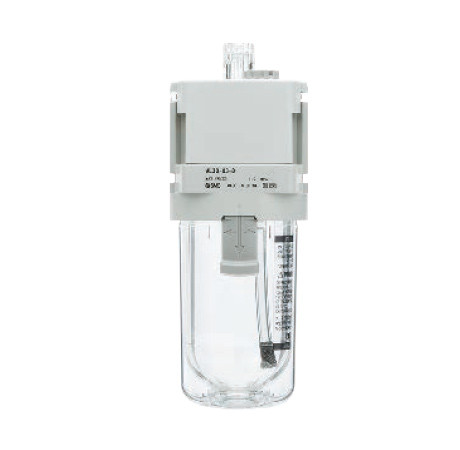

SMC AL20-D Modular Lubricator

SMC AL20-D Modular Lubricator

SMC modular pneumatic lubricator (clean/low-particle spec).

Key features

  • Body size 20, port size: 1/8, 1/4
  • Max working pressure 1.0 MPa, proof pressure 1.5 MPa
  • Operating temperature: -5 to 60°C
  • Recommended oil: turbine oil class 1 (ISO VG32)
  • Oil capacity: 25 cm³. Minimum dripping flow: 15 L/min(ANR)
  • Mass: 0.10 kg

Specifications

Body size 20
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Operating temperature -5 to 60°C
Recommended oil Turbine oil class 1 (ISO VG32)
Oil capacity 25 cm³
Minimum dripping flow 15 L/min(ANR)
Mass 0.10 kg
Case material Polycarbonate (standard)
Spec Clean/Low-particle (-D)
AL20-01-D Rc 1/8, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-01B-D Rc 1/8, Bracket, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-02-D Rc 1/4, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-02B-D Rc 1/4, Bracket, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-N01-D NPT 1/8, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-N01B-D NPT 1/8, Bracket, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-N02-D NPT 1/4, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-N02B-D NPT 1/4, Bracket, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-F01-D G 1/8, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-F01B-D G 1/8, Bracket, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-F02-D G 1/4, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-F02B-D G 1/4, Bracket, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
LubricatorsSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AL20-D Modular Lubricator

Brand SMC·Lubricators

Available part numbers (12)

AL20-01-D, AL20-01B-D, AL20-02-D, AL20-02B-D, AL20-N01-D, AL20-N01B-D, AL20-N02-D, AL20-N02B-D, AL20-F01-D, AL20-F01B-D + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AL20-01-DRc 1/8, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-01B-DRc 1/8, Bracket, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-02-DRc 1/4, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-02B-DRc 1/4, Bracket, clean/low-particle spec | Body size: 20 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-N01-DNPT 1/8, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-N01B-DNPT 1/8, Bracket, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-N02-DNPT 1/4, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-N02B-DNPT 1/4, Bracket, clean/low-particle spec | Body size: 20 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-F01-DG 1/8, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-F01B-DG 1/8, Bracket, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-F02-DG 1/4, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL20-F02B-DG 1/4, Bracket, clean/low-particle spec | Body size: 20 | Thread: G | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 25 cm³ | Minimum dripping flow: 15 L/min(ANR) | Mass: 0.10 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
