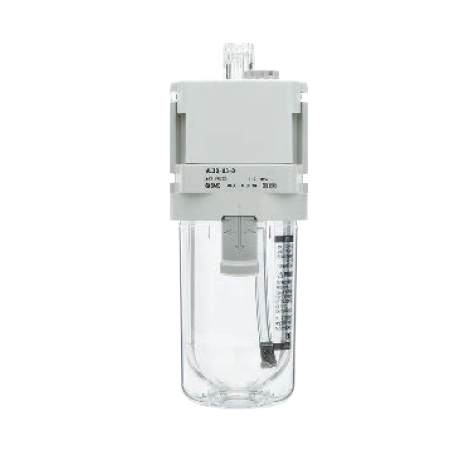

SMC AL30-D Modular Lubricator

SMC AL30-D Modular Lubricator

SMC modular pneumatic lubricator (clean/low-particle spec).

Key features

  • Body size 30, port size: 1/4, 3/8
  • Max working pressure 1.0 MPa, proof pressure 1.5 MPa
  • Operating temperature: -5 to 60°C
  • Recommended oil: turbine oil class 1 (ISO VG32)
  • Oil capacity: 55 cm³. Minimum dripping flow: 30–40 L/min(ANR) (port-dependent)
  • Mass: 0.18 kg

Specifications

Body size 30
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Operating temperature -5 to 60°C
Recommended oil Turbine oil class 1 (ISO VG32)
Oil capacity 55 cm³
Minimum dripping flow 30–40 L/min(ANR) (port-dependent)
Mass 0.18 kg
Case material Polycarbonate (standard)
Spec Clean/Low-particle (-D)
AL30-02-D Rc 1/4, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-02B-D Rc 1/4, Bracket, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-03-D Rc 3/8, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-03B-D Rc 3/8, Bracket, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-N02-D NPT 1/4, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-N02B-D NPT 1/4, Bracket, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-N03-D NPT 3/8, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-N03B-D NPT 3/8, Bracket, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-F02-D G 1/4, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-F02B-D G 1/4, Bracket, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-F03-D G 3/8, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-F03B-D G 3/8, Bracket, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
LubricatorsSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AL30-D Modular Lubricator

Brand SMC·Lubricators

Available part numbers (12)

AL30-02-D, AL30-02B-D, AL30-03-D, AL30-03B-D, AL30-N02-D, AL30-N02B-D, AL30-N03-D, AL30-N03B-D, AL30-F02-D, AL30-F02B-D + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AL30-02-DRc 1/4, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-02B-DRc 1/4, Bracket, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-03-DRc 3/8, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-03B-DRc 3/8, Bracket, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-N02-DNPT 1/4, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-N02B-DNPT 1/4, Bracket, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-N03-DNPT 3/8, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-N03B-DNPT 3/8, Bracket, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-F02-DG 1/4, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-F02B-DG 1/4, Bracket, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-F03-DG 3/8, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL30-F03B-DG 3/8, Bracket, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 55 cm³ | Minimum dripping flow: 30–40 L/min(ANR) (port-dependent) | Mass: 0.18 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
