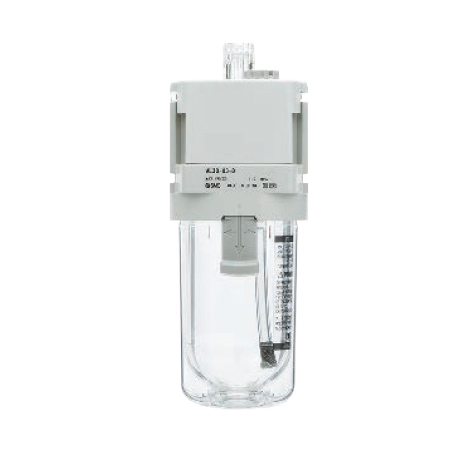

SMC AL40-06-D Modular Lubricator (3/4 Port)

SMC AL40-06-D Modular Lubricator (3/4 Port)

SMC modular pneumatic lubricator (clean/low-particle spec).

Key features

  • Body size 40-06, port size: 3/4
  • Max working pressure 1.0 MPa, proof pressure 1.5 MPa
  • Operating temperature: -5 to 60°C
  • Recommended oil: turbine oil class 1 (ISO VG32)
  • Oil capacity: 135 cm³. Minimum dripping flow: 50 L/min(ANR)
  • Mass: 0.41 kg

Specifications

Body size 40-06
Port size 3/4
Max working pressure 1.0 MPa
Proof pressure 1.5 MPa
Operating temperature -5 to 60°C
Recommended oil Turbine oil class 1 (ISO VG32)
Oil capacity 135 cm³
Minimum dripping flow 50 L/min(ANR)
Mass 0.41 kg
Case material Polycarbonate (standard)
Spec Clean/Low-particle (-D)
AL40-06-D Rc 3/4, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-06B-D Rc 3/4, Bracket, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-N06-D NPT 3/4, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-N06B-D NPT 3/4, Bracket, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-F06-D G 3/4, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-F06B-D G 3/4, Bracket, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
LubricatorsSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AL40-06-D Modular Lubricator (3/4 Port)

Brand SMC·Lubricators

Available part numbers (6)

AL40-06-D, AL40-06B-D, AL40-N06-D, AL40-N06B-D, AL40-F06-D, AL40-F06B-D

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AL40-06-DRc 3/4, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-06B-DRc 3/4, Bracket, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-N06-DNPT 3/4, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-N06B-DNPT 3/4, Bracket, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-F06-DG 3/4, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: No mounting option | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
AL40-F06B-DG 3/4, Bracket, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Mounting: Bracket | Max working pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Operating temperature: -5 to 60°C | Recommended oil: Turbine oil class 1 (ISO VG32) | Oil capacity: 135 cm³ | Minimum dripping flow: 50 L/min(ANR) | Mass: 0.41 kg | Case material: Polycarbonate (standard) | Spec: Clean/Low-particle (-D)
