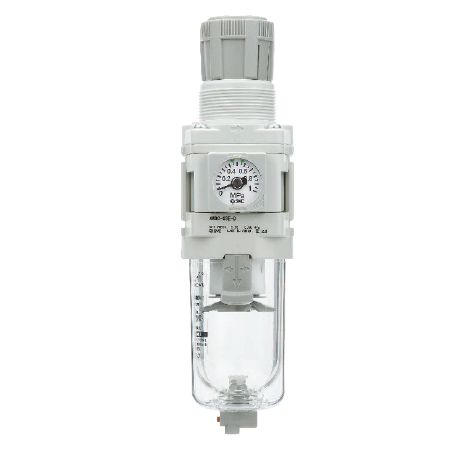

SMC AW30-D Modular Filter Regulator

SMC AW30-D Modular Filter Regulator

SMC modular filter regulator with built-in 5μm filter element (clean/low-particle spec).

Key features

  • Body size 30, port size: 1/4, 3/8
  • Setting pressure 0.05–0.85 MPa, max working pressure 1.0 MPa
  • Drain capacity: 25 cm³. Mass: 0.34 kg
  • Threads: Rc / NPT / G
  • Drain options: manual or N.C. auto drain (N.O. drain available on request)
  • Mounting: bracket

Specifications

Body size 30
Reverse flow No
Setting pressure 0.05–0.85 MPa
Max working pressure 1.0 MPa
Filter rating 5 μm
Drain capacity 25 cm³
Mass 0.34 kg
Spec Clean/Low-particle (-D)
AW30-02-D Rc 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02E-D Rc 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02C-D Rc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02CE-D Rc 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02B-D Rc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02BE-D Rc 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02BC-D Rc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02BCE-D Rc 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03-D Rc 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03E-D Rc 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03C-D Rc 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03CE-D Rc 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03B-D Rc 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03BE-D Rc 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03BC-D Rc 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03BCE-D Rc 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02-D NPT 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02E-D NPT 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02C-D NPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02CE-D NPT 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02B-D NPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02BE-D NPT 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02BC-D NPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02BCE-D NPT 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03-D NPT 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03E-D NPT 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03C-D NPT 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03CE-D NPT 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03B-D NPT 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03BE-D NPT 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03BC-D NPT 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03BCE-D NPT 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02-D G 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02E-D G 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02C-D G 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02CE-D G 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02B-D G 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02BE-D G 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02BC-D G 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02BCE-D G 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03-D G 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03E-D G 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03C-D G 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03CE-D G 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03B-D G 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03BE-D G 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03BC-D G 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03BCE-D G 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
Filter RegulatorsSMC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AW30-D Modular Filter Regulator

Brand SMC·Filter Regulators

Available part numbers (48)

AW30-02-D, AW30-02E-D, AW30-02C-D, AW30-02CE-D, AW30-02B-D, AW30-02BE-D, AW30-02BC-D, AW30-02BCE-D, AW30-03-D, AW30-03E-D + 38 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AW30-02-DRc 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02E-DRc 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02C-DRc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02CE-DRc 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02B-DRc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02BE-DRc 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02BC-DRc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-02BCE-DRc 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03-DRc 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03E-DRc 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03C-DRc 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03CE-DRc 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03B-DRc 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03BE-DRc 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03BC-DRc 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-03BCE-DRc 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02-DNPT 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02E-DNPT 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02C-DNPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02CE-DNPT 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02B-DNPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02BE-DNPT 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02BC-DNPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N02BCE-DNPT 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03-DNPT 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03E-DNPT 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03C-DNPT 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03CE-DNPT 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03B-DNPT 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03BE-DNPT 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03BC-DNPT 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-N03BCE-DNPT 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02-DG 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02E-DG 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02C-DG 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02CE-DG 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02B-DG 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02BE-DG 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02BC-DG 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F02BCE-DG 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03-DG 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03E-DG 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03C-DG 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03CE-DG 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03B-DG 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03BE-DG 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03BC-DG 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30-F03BCE-DG 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)

Need a different model, or a part not listed here? Send us your parts list →
