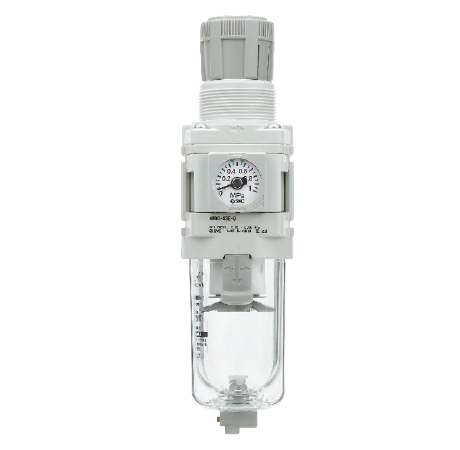

SMC AW30K-D Modular Filter Regulator (Reverse Flow)

SMC AW30K-D Modular Filter Regulator (Reverse Flow)

SMC modular filter regulator with built-in 5μm filter element (clean/low-particle spec).

Key features

  • Body size 30, port size: 1/4, 3/8
  • Setting pressure 0.05–0.85 MPa, max working pressure 1.0 MPa
  • Drain capacity: 25 cm³. Mass: 0.34 kg
  • Threads: Rc / NPT / G
  • Drain options: manual or N.C. auto drain (N.O. drain available on request)
  • Mounting: bracket

Specifications

Body size 30
Reverse flow Yes
Setting pressure 0.05–0.85 MPa
Max working pressure 1.0 MPa
Filter rating 5 μm
Drain capacity 25 cm³
Mass 0.34 kg
Spec Clean/Low-particle (-D)
AW30K-02-D Reverse flow, Rc 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02E-D Reverse flow, Rc 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02C-D Reverse flow, Rc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02CE-D Reverse flow, Rc 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02B-D Reverse flow, Rc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02BE-D Reverse flow, Rc 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02BC-D Reverse flow, Rc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02BCE-D Reverse flow, Rc 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03-D Reverse flow, Rc 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03E-D Reverse flow, Rc 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03C-D Reverse flow, Rc 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03CE-D Reverse flow, Rc 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03B-D Reverse flow, Rc 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03BE-D Reverse flow, Rc 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03BC-D Reverse flow, Rc 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03BCE-D Reverse flow, Rc 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02-D Reverse flow, NPT 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02E-D Reverse flow, NPT 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02C-D Reverse flow, NPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02CE-D Reverse flow, NPT 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02B-D Reverse flow, NPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02BE-D Reverse flow, NPT 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02BC-D Reverse flow, NPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02BCE-D Reverse flow, NPT 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03-D Reverse flow, NPT 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03E-D Reverse flow, NPT 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03C-D Reverse flow, NPT 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03CE-D Reverse flow, NPT 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03B-D Reverse flow, NPT 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03BE-D Reverse flow, NPT 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03BC-D Reverse flow, NPT 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03BCE-D Reverse flow, NPT 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02-D Reverse flow, G 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02E-D Reverse flow, G 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02C-D Reverse flow, G 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02CE-D Reverse flow, G 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02B-D Reverse flow, G 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02BE-D Reverse flow, G 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02BC-D Reverse flow, G 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02BCE-D Reverse flow, G 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03-D Reverse flow, G 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03E-D Reverse flow, G 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03C-D Reverse flow, G 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03CE-D Reverse flow, G 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03B-D Reverse flow, G 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03BE-D Reverse flow, G 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03BC-D Reverse flow, G 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03BCE-D Reverse flow, G 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
Filter RegulatorsSMC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AW30K-D Modular Filter Regulator (Reverse Flow)

Brand SMC·Filter Regulators

Available part numbers (48)

AW30K-02-D, AW30K-02E-D, AW30K-02C-D, AW30K-02CE-D, AW30K-02B-D, AW30K-02BE-D, AW30K-02BC-D, AW30K-02BCE-D, AW30K-03-D, AW30K-03E-D + 38 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AW30K-02-DReverse flow, Rc 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02E-DReverse flow, Rc 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02C-DReverse flow, Rc 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02CE-DReverse flow, Rc 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02B-DReverse flow, Rc 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02BE-DReverse flow, Rc 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02BC-DReverse flow, Rc 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-02BCE-DReverse flow, Rc 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03-DReverse flow, Rc 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03E-DReverse flow, Rc 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03C-DReverse flow, Rc 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03CE-DReverse flow, Rc 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03B-DReverse flow, Rc 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03BE-DReverse flow, Rc 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03BC-DReverse flow, Rc 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-03BCE-DReverse flow, Rc 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: Rc | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02-DReverse flow, NPT 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02E-DReverse flow, NPT 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02C-DReverse flow, NPT 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02CE-DReverse flow, NPT 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02B-DReverse flow, NPT 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02BE-DReverse flow, NPT 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02BC-DReverse flow, NPT 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N02BCE-DReverse flow, NPT 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03-DReverse flow, NPT 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03E-DReverse flow, NPT 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03C-DReverse flow, NPT 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03CE-DReverse flow, NPT 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03B-DReverse flow, NPT 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03BE-DReverse flow, NPT 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03BC-DReverse flow, NPT 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-N03BCE-DReverse flow, NPT 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: NPT | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02-DReverse flow, G 1/4, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02E-DReverse flow, G 1/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02C-DReverse flow, G 1/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02CE-DReverse flow, G 1/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02B-DReverse flow, G 1/4, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02BE-DReverse flow, G 1/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02BC-DReverse flow, G 1/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F02BCE-DReverse flow, G 1/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 1/4 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03-DReverse flow, G 3/8, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03E-DReverse flow, G 3/8, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03C-DReverse flow, G 3/8, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03CE-DReverse flow, G 3/8, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03B-DReverse flow, G 3/8, Bracket, Manual drain, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03BE-DReverse flow, G 3/8, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03BC-DReverse flow, G 3/8, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)
AW30K-F03BCE-DReverse flow, G 3/8, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 30 | Thread: G | Port size: 3/8 | Reverse flow: Yes | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 25 cm³ | Mass: 0.34 kg | Spec: Clean/Low-particle (-D)

Need a different model, or a part not listed here? Send us your parts list →
