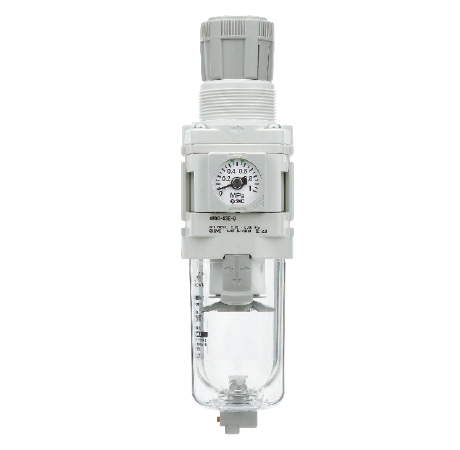

SMC AW40-06-D Modular Filter Regulator (3/4 Port)

SMC AW40-06-D Modular Filter Regulator (3/4 Port)

SMC modular filter regulator with built-in 5μm filter element (clean/low-particle spec).

Key features

  • Body size 40-06, port size: 3/4
  • Setting pressure 0.05–0.85 MPa, max working pressure 1.0 MPa
  • Drain capacity: 45 cm³. Mass: 0.69 kg
  • Threads: Rc / NPT / G
  • Drain options: manual or N.C. auto drain (N.O. drain available on request)
  • Mounting: bracket

Specifications

Body size 40-06
Port size 3/4
Reverse flow No
Setting pressure 0.05–0.85 MPa
Max working pressure 1.0 MPa
Filter rating 5 μm
Drain capacity 45 cm³
Mass 0.69 kg
Spec Clean/Low-particle (-D)
AW40-06-D Rc 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06E-D Rc 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06C-D Rc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06CE-D Rc 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06B-D Rc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06BE-D Rc 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06BC-D Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06BCE-D Rc 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06-D NPT 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06E-D NPT 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06C-D NPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06CE-D NPT 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06B-D NPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06BE-D NPT 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06BC-D NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06BCE-D NPT 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06-D G 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06E-D G 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06C-D G 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06CE-D G 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06B-D G 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06BE-D G 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06BC-D G 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06BCE-D G 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
Filter RegulatorsSMC
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC AW40-06-D Modular Filter Regulator (3/4 Port)

Brand SMC·Filter Regulators

Available part numbers (24)

AW40-06-D, AW40-06E-D, AW40-06C-D, AW40-06CE-D, AW40-06B-D, AW40-06BE-D, AW40-06BC-D, AW40-06BCE-D, AW40-N06-D, AW40-N06E-D + 14 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AW40-06-DRc 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06E-DRc 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06C-DRc 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06CE-DRc 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06B-DRc 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06BE-DRc 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06BC-DRc 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-06BCE-DRc 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: Rc | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06-DNPT 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06E-DNPT 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06C-DNPT 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06CE-DNPT 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06B-DNPT 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06BE-DNPT 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06BC-DNPT 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-N06BCE-DNPT 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: NPT | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06-DG 3/4, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06E-DG 3/4, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06C-DG 3/4, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06CE-DG 3/4, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: No mounting option | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06B-DG 3/4, Bracket, Manual drain, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06BE-DG 3/4, Bracket, Manual drain, Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Manual drain (no auto drain) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06BC-DG 3/4, Bracket, Auto drain N.C. (Normal Closed), clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: No pressure gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
AW40-F06BCE-DG 3/4, Bracket, Auto drain N.C. (Normal Closed), Square embedded gauge, clean/low-particle spec | Body size: 40-06 | Thread: G | Port size: 3/4 | Reverse flow: No | Mounting: Bracket | Auto drain: Auto drain N.C. (Normal Closed) | Pressure gauge: Square embedded gauge | Setting pressure: 0.05–0.85 MPa | Max working pressure: 1.0 MPa | Filter rating: 5 μm | Drain capacity: 45 cm³ | Mass: 0.69 kg | Spec: Clean/Low-particle (-D)
